2006 SUBARU TRIBECA center console

12

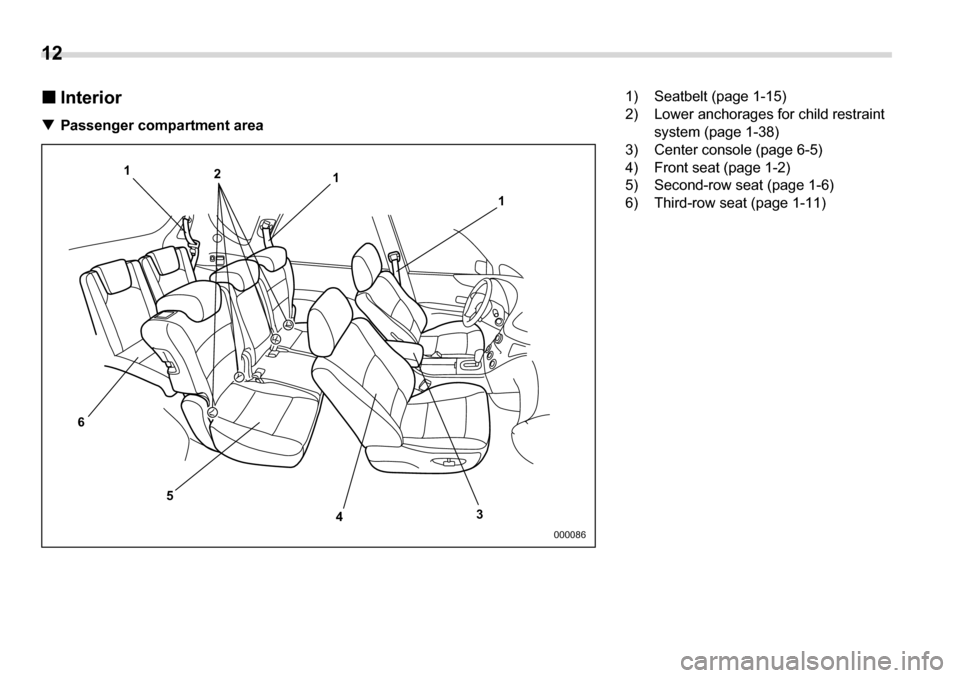

„ Interior
T Passenger compartment area
1
2
6 5 43
1
1
000086
1) Seatbelt (page 1-15)
2) Lower anchorages for child restraint system (page 1-38)
3) Center console (page 6-5)
4) Front seat (page 1-2)
5) Second-row seat (page 1-6)
6) Third-row seat (page 1-11)

Seat, seatbelt and SRS airbags 1-29
– CONTINUED –
„
System servicing
NOTE
If the front part of the vehicle is dam-
aged in an accident to the extent that
the seatbelt pretensioner does not op-
erate, contact your SUBARU dealer as
soon as possible. „Precautions against vehicle
modification
Always consult your SUBARU dealer if
you want to install any accessory parts toyour vehicle.y Continuous illumination of the
warning light
yIllumination of the warning light
while driving
yWhen discarding a seatbelt retrac-
tor assembly or scrapping the en-
tire vehicle damaged by a colli-
sion, consult your SUBARU deal-
er.
yTampering with or disconnecting
the system’s wiring could result in
accidental activation of the seat-
belt pretensioner and/or airbag or
could make the system inopera-
tive, which may result in serious
injury. The wiring harnesses of
the seatbelt pretensioner and SRS
airbag systems are covered with
yellow insulation and the connec-
tors of the system are yellow for
easy identification. Do not use
electrical test equipment on any
circuit related to the seatbelt pre-
tensioner and airbag systems. For
required servicing of the seatbelt
pretensioner, see your nearest
SUBARU dealer.
The front sub sensors are located in
both front fenders and the airbag
control module including the impact
sensors is located under the center
console. If you need service or re-
pair in those areas or near the front
seatbelt retractors, we recommend
that you have an authorized
SUBARU dealer perform the work.
Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the seatbelt pertensioners. y Attachment of any equipment
(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine SUBARU accessory parts to the front end.
y Modification of the suspension
system or front end structure.

1-54 Seat, seatbelt and SRS airbags
system. Turn the ignition switch to the
“ON” position and make sure that the front
passenger’s frontal airbag ON indicator
goes out and the OFF indicator comes on.
If still the ON indicator remains illuminated
while the OFF indicator extinguishes, take
the following actions. yEnsure that no article is placed on the
seat other than the child restraint system
and the child occupant. y Ensure that there is no article left in the
seatback pocket.
If the ON indicator still illuminates while
the OFF indicator extinguishes after tak-
ing relevant corrective actions described
above, relocate the child restraint system
to one of the rear seating positions recom-
mended in this owner’s manual and imme-
diately contact your SUBARU dealer for
an inspection.
NOTE
When a child who has outgrown a child
restraint system or a small adult is
seated in the front passenger’s seat,
the Subaru advanced frontal airbag
system may or may not activate the front passenger’s SRS frontal airbag
depending on the occupant’s seating
posture. If the front passenger’s SRS
frontal airbag is activated (the ON indi- cator illuminates while the OFF indica-
tor extinguishes), take the following
actions.y
Ensure that no article is placed on
the seat other than the occupant.y Ensure that there is no article left in
the seatback pocket.
If the ON indicator still illuminates
while the OFF indicator extinguishes
despite the fact that the actions noted
above have been taken, seat the child/
small adult in the rear seat and immedi-
ately contact your SUBARU dealer for
an inspection. Even if the system has
passed the dealer inspection, it is rec-
ommended that on subsequent trips
the child/small adult always take the
rear seat.
Children who have outgrown a child re-
straint system should always wear the
seatbelt irrespective of whether the airbag
is deactivated or activated. T Conditions in which front passen-
ger’s SRS frontal airbag is activated
The front passenger’s SRS frontal airbag
will be activated for deployment upon im-
pact when any of the following conditions
is met regarding the front passenger’s seat.y When the seat is occupied by an adult. y
When a heavy article is placed on the
seat.
When the front passenger’s seat is occu-
pied by an adult, observe the following
precautions. Failure to do so may lessen
the load on the front passenger’s seat, de-
activating the front passenger’s SRS fron-
tal airbag despite the fact that the seat is
occupied by an adult.y Do not allow the rear seat occupant to
lift the front passenger’s seat cushion us-
ing his/her feet.y Do not place any article under the front
passenger’s seat, or squeeze any article
from behind and under the seat. This may
lift the seat cushion.y Do not squeeze any article between the
front passenger’s seat and side trim/pillar,
door or center console box. This may lift
the seat cushion. V If the passenger’s frontal airbag
OFF indicator illuminates and the
ON indicator extinguishes even
when the front passenger’s seat is
occupied by an adult
This can be caused by the adult incorrect-
ly sitting in the front passenger’s seat.
Turn the ignition switch to the “OFF” posi-
tion. Ask the front passenger to set the
seatback to the upright position, sit up
straight in the center of the seat cushion,

1-68 Seat, seatbelt and SRS airbags
In the event that the SRS airbag is de-
ployed, replacement of the system
should be performed only by an autho-
rized SUBARU dealer. When the com-
ponents of the SRS airbag system are
replaced, use only genuine SUBARU parts.
NOTE
In the following cases, contact your
SUBARU dealer as soon as possible. y
The front part of the vehicle was in-
volved in an accident in which the only
the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.y The pad of the steering wheel, the
cover over the front passenger’s SRS
frontal airbag, or either roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.y Either center pillar and rear wheel
house or a nearby area of the vehicle
was involved in an accident in which
the SRS side airbag and SRS curtain
airbag did not deploy. y The fabric or leather of either front
seatback is cut, frayed, or otherwise
damaged. „
Precautions against vehicle
modificationIf you need service or repair in areas
listed in the following, have an au-
thorized SUBARU dealer perform
the work. The SRS airbag control
module, impact sensors and airbag
modules are stored in these areas. yUnder the center console
y Inside each front fender
y Steering wheel and column and
nearby areas
y Top of the dashboard on front
passenger’s side and nearby ar- eas
y Each front seat and nearby area
y Inside each center pillar
y In each roof side (from the front
pillar to a point over the rear seat)
y Between the rear seat cushion
and rear wheel house on each
side
yTo avoid accidental activation of
the system or rendering the sys-
tem inoperative, which may result
in serious injury, no modifications
should be made to any compo-
nents or wiring of the SRS airbag
system.
This includes following modifica- tions:
yInstallation of custom steering
wheels
yAttachment of additional trim
materials to the dashboard
yInstallation of custom seats
yReplacement of seat fabric or
leather
yInstallation of additional fabric
or leather on the front seat

Climate control 4-9
„Rear air conditioner (if
equipped)
The rear air conditioner blows cool air out
of the rear ventilators while the “A/C” but-
ton on the control panel is in the “ON” po-
sition. The fan speed of the rear air condi-
tioner can be adjusted using the rear air
conditioner dial behind the center console.
The fan speed can be adjusted in four
steps by turning the dial. Turn the dial to
the “OFF” position to stop the fan.
NOTE y When the “A/C” button is in the
“OFF” position and when the “A/C” in-
dicator is not illuminated during AUTO-
mode operation, the air conditioner
compressor does not operate, mean-
ing that the system merely blows un- cooled air out of the ventilators. y
The outlet air temperature of the rear
air conditioner cannot be adjusted. y The rear air conditioner cannot be
used as a heater. „ Temperature sensors
1) Interior air temperature sensor
2) Solar sensor
The automatic climate control system em-
ploys several sensors. These sensors are
delicate. If they are treated incorrectly and
become damaged, the system may not be
able to control the interior temperature
correctly. To avoid damaging the sensors,
observe the following precautions:
– Do not subject the sensors to impact.
– Keep water away from the sensors. – Do not cover the sensors.
The sensors are located as follows:
– Solar sensor: beside windshield de-
froster grille
– Interior air temperature sensor: on the
side of the driver-side part of the center
panel
– Outside temperature sensor: behind front grille
400516
2
1
400517

6
Interior equipment
Interior light ........................................................ 6-2 Dome light ............................................................... 6-2
Cargo area light ...................................................... 6-2
Map light ............................................................. 6-3
Sun visors ........................................................... 6-3 Sun visor extension plate ...................................... 6-3
Vanity mirror with light ........................................... 6-4
Storage compartment ........................................ 6-4 Glove box ................................................................ 6-4
Center console box ................................................ 6-5
Rear console ........................................................... 6-6
Overhead console .................................................. 6-6
Cup holder .......................................................... 6-6 Front passenger’s cup holder ............................... 6-7
Rear seat (5-seater models)/Second-row seat (7-seater models) passenger’s cup holder ........ 6-7
Third-row seat cup holders (7-seater models) ..... 6-8
Accessory power outlets ................................... 6-8
Coat hook ............................................................ 6-10 Rear (5-seater models)/Second-row (7-seater models) passenger area ...................................... 6-10
Shopping bag hook ............................................ 6-11
Floor mat ............................................................. 6-11
Convenient tie-down hooks .............................. 6-12
Under-floor storage compartment .................... 6-12
HomeLink® Wireless Control System (if equipped) ......................................................... 6-13 Garage door opener programming in the
U.S.A. ..................................................................... 6-14
Programming rolling-code-protected garage
door openers in the U.S.A. .................................. 6-15
Programming for entrance gates and garage door openers in Canada ...................................... 6-16
Programming other devices .................................. 6-17
Operating the HomeLink® Wireless Control System ................................................................... 6-17
Reprogramming a single HomeLink® button ...... 6-17
Erasing HomeLink® button memory .................... 6-17
In case a problem occurs ....................................... 6-17

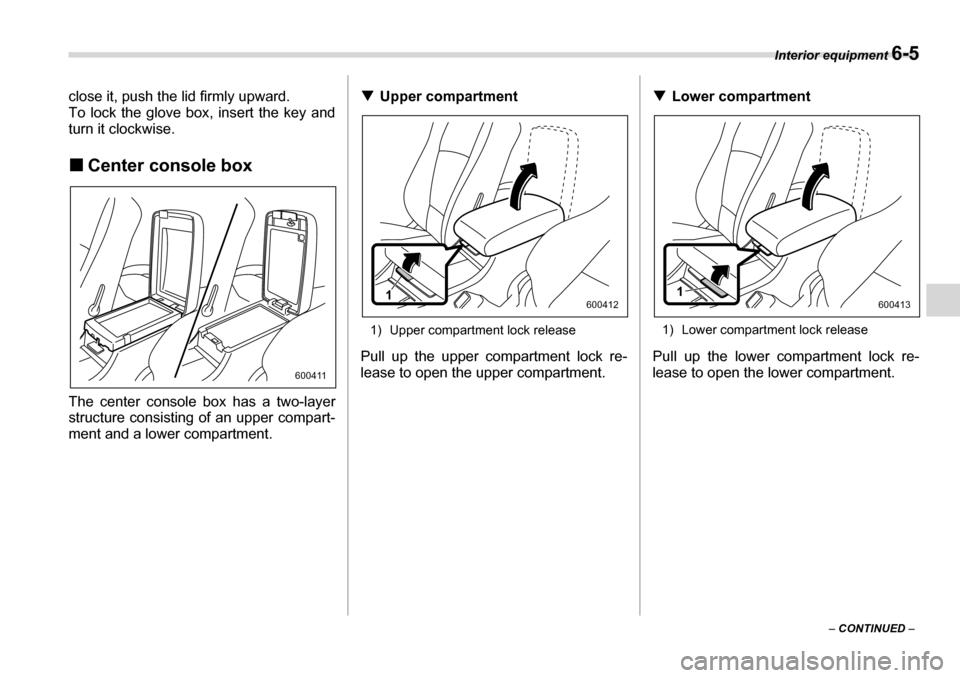

Interior equipment 6-5
– CONTINUED –
close it, push the lid firmly upward.
To lock the glove box, insert the key and
turn it clockwise. „
Center console box
The center console box has a two-layer
structure consisting of an upper compart-
ment and a lower compartment. T
Upper compartment
1) Upper compartment lock release
Pull up the upper compartment lock re-
lease to open the upper compartment. T
Lower compartment
1) Lower compartment lock release
Pull up the lower compartment lock re-
lease to open the lower compartment.
600411
16004121600413

6-6 Interior equipment
„Rear console
The rear console is located in the back of
the center console box. Pull it out to use it. „ Overhead console To open the console, push on the lid light-
ly and it will automatically open.Cup holder
600414
600415
When your vehicle is parked in the
sun or on a warm day, the inside of
the overhead console heats up.
Avoid storing plastic or other heat-
vulnerable or flammable articles
such as a lighter in the overhead
console.y
When not in use, always keep the
cup holder stored while driving to
reduce the risk of injury in the
event of a sudden stop or an acci-
dent.
y Do not pick up a cup from the cup
holder or put a cup in the holder
while you are driving, as this may
distract you and lead to an acci-
dent.
y Take care to avoid spills. Bever-
ages, if hot, might burn you or
your passengers. Spilled bever-
ages may also damage upholstery
or carpets.
