2006 SUBARU TRIBECA headlight bulb

10
Illustrated index „Exterior
45
23
1
12 11 10 9 8 7 6
000085
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-26)
3) Bulb replacement (page 11-39)
4) Wiper switch (page 3-30)
5) Moonroof (page 2-23)
6) Door locks (page 2-4)
7) Tire pressure (page 11-25)
8) Flat tires (page 9-7)
9) Tire chains (page 8-11)
10) Fog light switch (page 3-28)
11) Tie-down hooks (page 9-15)
12) Towing hook (page 9-15)

3-20 Instruments and controls
„Selector lever/Gear position
indicator
The selector lever/gear position indicator
shows the position of the selector lever.
When manual mode is selected, the gear
position indicator shows the current gear
position and the upshift/downshift indica-
tor illuminates. (Refer to the “Automatic
transmission” section in chapter 7.) „ Turn signal indicator lights
These lights show the operation of the
turn signal or lane change signal.
If the indicator lights do not blink or blink
rapidly, the turn signal bulb may be
burned out. Replace the bulb as soon as possible. Refer to the “Replacing bulbs”
section in chapter 11. „
High beam indicator
light
This light shows that the headlights are in
the high beam mode.
This indicator light also comes on when
the headlight flasher is operated. „ Cruise control indica-
tor light
The cruise control indicator light comes on
when the ignition switch is turned to the
“ON” position and goes out after approxi-
mately three seconds.
This light comes on when the “CRUISE” main switch is pressed.
NOTE
If you move the cruise control lever or
press the main switch button while
turning the ignition switch “ON”, the
cruise control function is deactivatedand the “CRUISE” indicator light flash-
es. To reactivate the cruise control
function, turn the ignition switch backto the “ACC” or “LOCK” position, and
then turn it again to the “ON” position. „
Cruise control set indica-
tor light
The cruise control set indicator light
comes on when the ignition switch is
turned to the “ON” position and goes out
after approximately three seconds.
This light comes on when vehicle speed
has been set. „ Headlight indicator
light
This indicator light comes on when the
light switch is turned to the “ ” posi-
tion (to turn on the parking lights) or to the
“ ” position (to turn on the headlights). „ Front fog light indicator
light
This indicator light is on while the front fog
lights are on.
300266

Maintenance and service
Windshield washer fluid .................................... 11-30
Replacement of wiper blades ............................ 11-31
Windshield wiper blade assembly ........................ 11-31
Windshield wiper blade rubber ............................. 11-32
Rear window wiper blade assembly ..................... 11-33
Rear window wiper blade rubber .......................... 11-33
Battery ................................................................. 11-35
Fuses ................................................................... 11-36
Main fuse ............................................................. 11-37
Installation of accessories ................................ 11-38
Replacing bulbs .................................................. 11-39 Headlight ................................................................. 11-40
Parking light ............................................................ 11-41
Front turn signal light ............................................ 11-42
Front fog light ......................................................... 11-42
Rear combination lights ......................................... 11-42
Backup light/Tail light ............................................ 11-43
Rear gate light ......................................................... 11-43
License plate light .................................................. 11-44
Dome light ............................................................... 11-44
Map light .................................................................. 11-45
Door step light ........................................................ 11-45
Cargo area light ...................................................... 11-46

11 - 4 0 Maintenance and service
Wattage Bulb No.
1) High beam headlight 12V-65W H9
2) Low beam headlight 12V-55W H7
3) Front turn signal/Parking light 12V-27/8W –
4) Parking/Front side marker light 12V-5W –
5) Map light 12V-8W –
6) Dome light 12V-5W –
7) Door step light 12V-3W –
8) Fog light 12V-55W H3
9) Cargo area light 12V-13W –
10) Tail light 12V-3.8W 194
11) Brake/tail light 12V-21/5W (W21/5W)
12) Rear turn signal light 12V-21W (W21W)
13) Backup light 12V-16W 921
14) Rear gate light 12V-5W (W5W)
15) Licence plate light 12V-5W 168
„ Headlight
NOTE yIf headlight aiming is required, con-
sult your SUBARU dealer for proper
adjustment of the headlight aim. y It may be difficult to replace the
bulbs. Have your SUBARU dealer re-
place the bulbs if necessary. Replace any bulb only with a new
bulb of the specified wattage. Using
a bulb of different wattage could re-
sult in a fire.
Halogen headlight bulbs become
very hot while in use. If you touch
the bulb surface with bare hands or
greasy gloves, finger prints or
grease on the bulb surface develop
into hot spots, causing the bulb to
break. If there are finger prints or
grease on the bulb surface, wipe
them away with a soft cloth mois-
tened with alcohol.

Maintenance and service 11 - 4 1
– CONTINUED –
T
Low beam light bulbs
1. Remove the bulb cover, by turning it
counterclockwise.
2. Disconnect the electrical connector.
3. Remove the retainer spring. 4. Replace the bulb, then set the retainer spring securely.
5. Reconnect the electrical connector.
6. Install the bulb cover. T
High beam light bulbs
1. Disconnect the electrical connector
from the bulb.
2. Remove the bulb from the headlight
assembly by turning it counterclockwise.
3. Replace the bulb with new one.
4. Reconnect the electrical connector. At
this time, use care not to touch the bulb surface.
5. To install the bulb to the headlight as-
sembly, turn it clockwise until it clicks. „
Parking light
1. Remove the bulb socket from the
headlight assembly by turning it counter-
clockwise.
2. Pull the bulb out of the socket. Install a
B00340
B00341
B00342
B00343
B00344

11 - 4 2 Maintenance and service
new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until it
locks.
4. Install the headlight assembly and the
front grille in the reverse order of removal. „Front turn signal light
1. Remove the bulb socket from the
headlight assembly by turning it counter- clockwise. 2. Remove the bulb from the socket by
pushing it and turning counterclockwise.
Install a new bulb.
3. Set the bulb socket into the headlight
assembly and turn it clockwise until itlocks.
4. Install the headlight assembly and the
front grille in the reverse order of removal. „
Front fog light
It may be difficult to replace the bulbs.
Have your SUBARU dealer replace the
bulbs if necessary. „
Rear combination lights
1. Remove the two covers by inserting
the tip of a flat-head screwdriver.
2. Using a Phillips screwdriver, remove
the upper and lower screws.
B00345
B00346
B00347
B00348

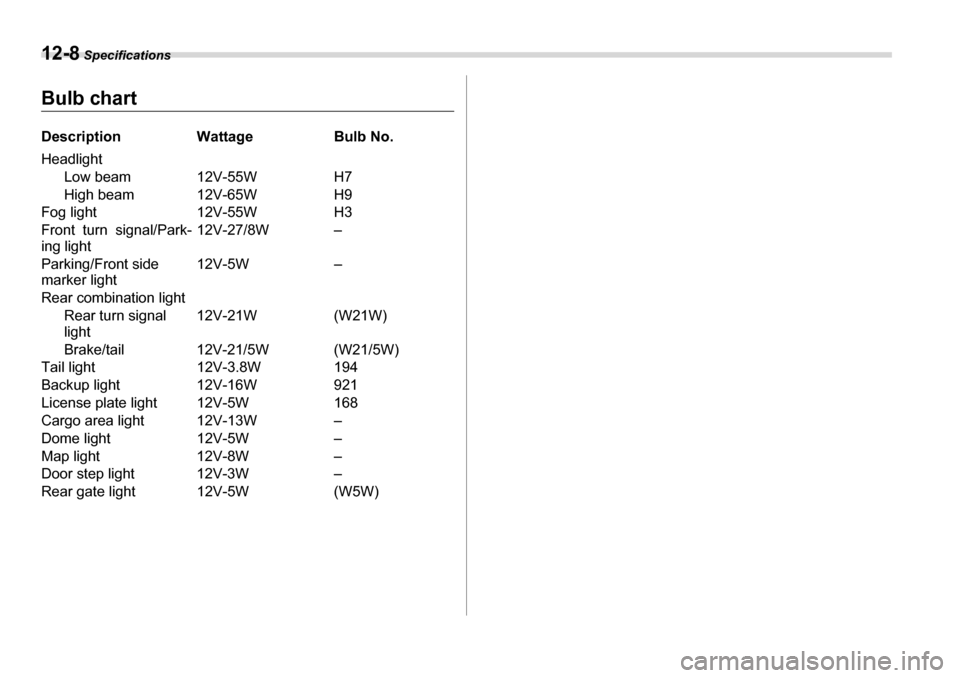

12-8 Specifications
Bulb chart
Description Wattage Bulb No.
Headlight
Low beam 12V-55W H7
High beam 12V-65W H9
Fog light 12V-55W H3
Front turn signal/Park-
ing light 12V-27/8W –
Parking/Front side marker light 12V-5W –
Rear combination light Rear turn signal
light 12V-21W (W21W)
Brake/tail 12V-21/5W (W21/5W)
Tail light 12V-3.8W 194
Backup light 12V-16W 921
License plate light 12V-5W 168
Cargo area light 12V-13W –
Dome light 12V-5W –
Map light 12V-8W –
Door step light 12V-3W –
Rear gate light 12V-5W (W5W)
