2006 SUBARU TRIBECA airbag off

Instruments and controls 3-9
– CONTINUED –
reaches near the middle of the range. En-
gine operation is optimum with the engine
coolant at this temperature range and high
revving operation when the engine is not
warmed up enough should be avoided.
Warning and indicator lights
Several of the warning and indicator lights
come on momentarily and then go out
when the ignition switch is initially turned
to the “ON” position. This permits check-
ing the operation of the bulbs.
Apply the parking brake and turn the igni-
tion switch to the “ON” position. The fol-
lowing lights come on:
: Driver’s seatbelt warning light
(The seatbelt warning light goes out only
when the driver fastens the seatbelt.)
: Front passenger’s seatbelt warn-
ing light (The seatbelt warning light goes
out only when the front seat passenger
fastens the seatbelt.)
: SRS airbag system warning light: CHECK ENGINE warning light/
Malfunction indicator lamp
: Charge warning light: Oil pressure warning light
: AT OIL temperature warning light / : ABS warning light
: Vehicle Dynamics Control operation
indicator light
: Vehicle Dynamics Control warning
light/Traction Control system OFF indica-
tor light
/ : Brake system warning light: AWD warning light
: Low tire pressure warning light : SPORT mode indicator light
: Front passenger’s frontal airbag ON
indicator light
: Front passenger’s frontal airbag OFF
indicator light
: Low fuel warning light: Cruise control indicator light
: Cruise control set indicator light
If the pointer exceeds the normal
operating range, safely stop the ve-
hicle as soon as possible.
See the “In case of emergency” in
chapter 9.

3-12 Instruments and controls
„Front passenger’s frontal air-
bag ON and OFF indicators
: Front passenger’s frontal airbag ON indicator
: Front passenger’s frontal airbag OFF indicator
The front passenger’s frontal airbag ON
and OFF indicators show you the status of
the front passenger’s SRS frontal airbag. The indicators are located in the center
portion of the dashboard.
When the ignition switch is turned to the
“ON” position, both the ON and OFF indi-
cators illuminate for 6 seconds during
which time the system is checked. Follow-
ing the system check, both indicators ex-
tinguish for 2 seconds. After that, one of
the indicators illuminates depending on
the status of the front passenger’s SRS
frontal airbag determined by the Subaru
advanced frontal airbag system monitor-
ing.
If the front passenger’s SRS frontal airbag
is activated, the passenger’s frontal airbag
ON indicator will illuminate while the OFF
indicator will remain extinguished.
If the front passenger’s SRS frontal airbag
is deactivated, the passenger’s frontal air-
bag ON indicator will remain extinguished
while the OFF indicator will illuminate.
If both the ON and OFF indicators remain
lit or extinguished simultaneously, the sys-
tem is faulty. Contact your SUBARU deal-
er immediately for an inspection.
„
CHECK ENGINE warn-
ing light/Malfunction in-
dicator lamp
If this light comes on steadily or blinks
while the engine is running, it may indicate
that there is a problem or potential prob-
lem somewhere in the emission control
system. TIf the light comes on steadily:
If the light comes on steadily while driving
or does not go out after the engine starts,
an emission control system malfunction
has been detected.
You should have your vehicle checked by
an authorized SUBARU dealer immedi-ately.
y No illumination of the warning
light when the ignition switch is
first turned to the “ON” position
yContinuous illumination of the
warning light
yIllumination of the warning light
while driving
PASS AIR BAG
100533
If the CHECK ENGINE light comes
on while you are driving, have your
vehicle checked/repaired by your
SUBARU dealer as soon as possi-
ble. Continued vehicle operation
without having the emission control
system checked and repaired as
necessary could cause serious
damage, which may not be covered
by your vehicle’s warranty.

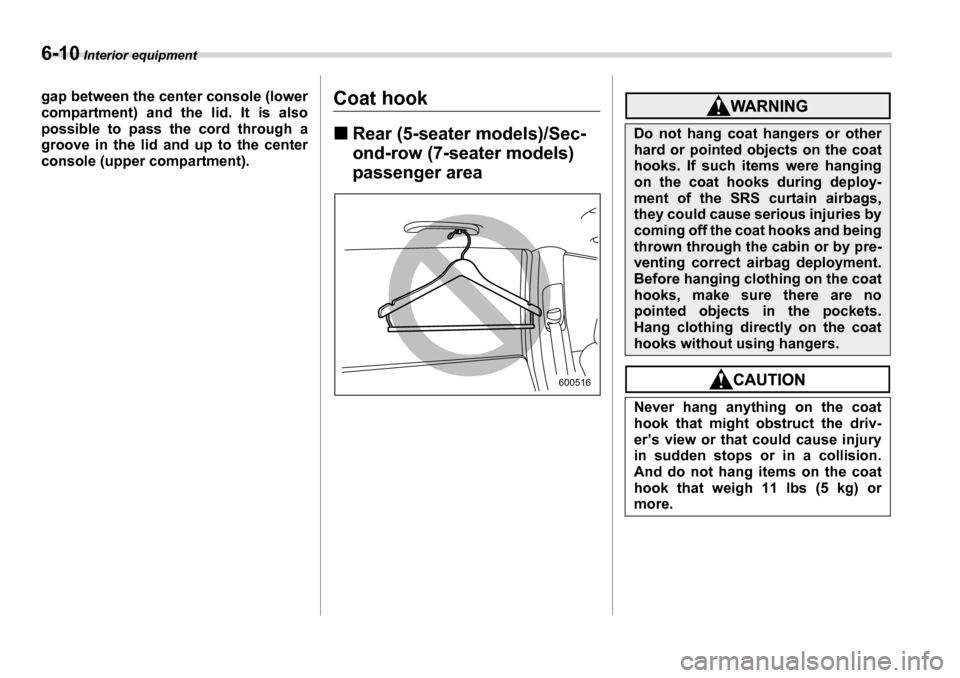

6-10 Interior equipment
gap between the center console (lower
compartment) and the lid. It is also
possible to pass the cord through a
groove in the lid and up to the center
console (upper compartment).Coat hook „Rear (5-seater models)/Sec- ond-row (7-seater models)
passenger area
600516
Do not hang coat hangers or other
hard or pointed objects on the coat
hooks. If such items were hanging
on the coat hooks during deploy-
ment of the SRS curtain airbags,
they could cause serious injuries by
coming off the coat hooks and being
thrown through the cabin or by pre-
venting correct airbag deployment.
Before hanging clothing on the coat
hooks, make sure there are no
pointed objects in the pockets.
Hang clothing directly on the coat
hooks without using hangers.
Never hang anything on the coat
hook that might obstruct the driv-
er’s view or that could cause injury
in sudden stops or in a collision.
And do not hang items on the coat
hook that weigh 11 lbs (5 kg) or
more.

9-16 In case of emergency
3. Screw the towing hook into the thread
hole until the threads can no longer be
seen.
4. Tighten the towing hook securely using
a wheel nut wrench. After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Fit the towing hook cover on the bumper.
Rear towing hook:
1. Take out the towing hook, screwdriver
and wheel nut wrench from the on board
tool bag.
2. Pry off the cover on the rear bumper
using a screwdriver, and you will find a
threaded hole for attaching the towing
hook.
3. Screw the towing hook into the thread
hole until its thread can no longer be seen.
900219
900220
y
Do not use the towing hook ex-
cept when towing your vehicle.
yBe sure to remove the towing hook after towing. Leaving the
towing hook mounted on the vehi-
cle could interfere with proper op-
eration of the SRS airbag system
in a frontal collision.
900221
900222
900223

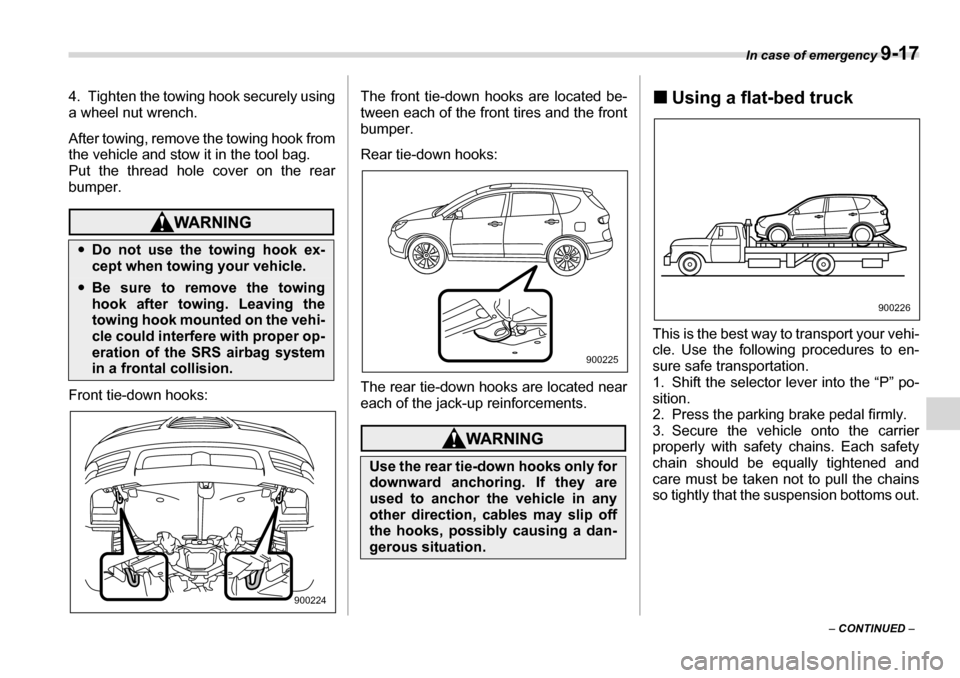

In case of emergency 9-17
– CONTINUED –
4. Tighten the towing hook securely using
a wheel nut wrench.
After towing, remove the towing hook from
the vehicle and stow it in the tool bag.
Put the thread hole cover on the rear
bumper.
Front tie-down hooks:
The front tie-down hooks are located be-
tween each of the front tires and the front
bumper.
Rear tie-down hooks:
The rear tie-down hooks are located near
each of the jack-up reinforcements.
„
Using a flat-bed truck
This is the best way to transport your vehi-
cle. Use the following procedures to en-
sure safe transportation.
1. Shift the selector lever into the “P” po-sition.
2. Press the parking brake pedal firmly.
3. Secure the vehicle onto the carrier
properly with safety chains. Each safety
chain should be equally tightened and
care must be taken not to pull the chains
so tightly that the suspension bottoms out.
y Do not use the towing hook ex-
cept when towing your vehicle.
yBe sure to remove the towing
hook after towing. Leaving the
towing hook mounted on the vehi-
cle could interfere with proper op-
eration of the SRS airbag system
in a frontal collision.
900224
Use the rear tie-down hooks only for
downward anchoring. If they are
used to anchor the vehicle in any
other direction, cables may slip off
the hooks, possibly causing a dan-
gerous situation.
900225
900226

11 - 4 Maintenance and service
„Before checking or servicing
in the engine compartment
„When you do checking or ser-
vicing in the engine compart-
ment while the engine is run-ning
Engine hood
To open the hood:
1. If the wiper blades are lifted off the
windshield, return them to their original
positions.
2. Pull the hood release knob under the
instrument panel.yWear adequate eye protection to
guard against getting oil or fluids
in your eyes. If something does
get in your eyes, thoroughly wash
them out with clean water.
yDo not tamper with the wiring of
the SRS airbag system or seatbelt
pretensioner system, or attempt
to take its connectors apart, as
that may activate the system or it
can render it inoperative. The wir-
ing and connectors of these sys-
tems are yellow for easy identifi-
cation. NEVER use a circuit tester
for these wiring.
If your SRS airbag or seatbelt pre-
tensioner needs service, consult
your nearest SUBARU dealer.
yAlways stop the engine and set
the parking brake firmly to pre-
vent the vehicle from moving.
yAlways let the engine cool down.
Engine parts become very hot
when the engine is running and
remain hot for some time after the
engine is stopped.
yDo not spill engine oil, engine
coolant, brake fluid or any other
fluid on hot engine components.
This may cause a fire.
yAlways remove the key from the
ignition switch. When the ignition
switch is in the “ON” position, the
cooling fan may operate suddenly
even when the engine is stopped.
A running engine can be dangerous.
Keep your fingers, hands, clothing,
hair and tools away from the cooling
fan, belts and any other moving en-
gine parts. Removing rings, watch-
es and ties is advisable.
B00300

Index 14-7
Position indicator ......................................................... 3-20
Shift lock release .............................................................. 7-14
Snow tires ......................................................................... 8-10
Sounding a panic alarm .................................................... 2-10
Spare tire ............................................................................ 9-2
Spark plugs .................................................................... 11-14
Specifications ................................................................... 12-2
Speedometer ...................................................................... 3-6 SRS
Curtain airbag .............................................................. 1-59
Frontal airbag .............................................................. 1-51
Side airbag .................................................................. 1-59
SRS airbag (Supplemental Restraint System airbag) .. 4, 1-44
SRS airbag system warning light ...................................... 3-11
Starting the engine ............................................................. 7-7
State emission testing (U.S. only) ...................................... 7-5
Steering wheel Power .......................................................................... 7-15
Tilt ................................................................................ 3-37
Stopping the engine ........................................................... 7-8
Storage compartment ......................................................... 6-4
Sun shades ...................................................................... 2-25
Sun visors ........................................................................... 6-3
Supplemental Restraint System airbag (SRS) ................. 1-44
Synthetic leather upholstery ............................................. 10-5 T
Tachometer ........................................................................ 3-7
Temperature gauge ............................................................ 3-8
Temporary spare tire .......................................................... 9-6
Third-row seat .................................................................. 1-11
Tie-down hooks ................................................................ 9-15 Tilt steering wheel ............................................................. 3-37
Tire
Chains .......................................................................... 8-11
Inspection ................................................................... 11-25
Pressures and wear ................................................... 11-25
Replacement .............................................................. 11-28
Rotation ...................................................................... 11-28
Tire pressure monitoring system (TPMS) ......................... 7-24
Tires .................................................................................. 12-3
Types ......................................................................... 11-23
Tires and wheels ............................................................. 11-23
Top tether anchorages ...................................................... 1-41
Towing .............................................................................. 9-15 All wheels on the ground .............................................. 9-18
Flat-bed truck ............................................................... 9-17
Tie-down hooks ............................................................ 9-15
Weight .......................................................................... 8-18
Traction Control system
OFF indicator light ........................................................ 3-18
OFF switch ................................................................... 7-23
Trailer
Hitch ............................................................................. 8-15
Hitches ......................................................................... 8-21
Towing ......................................................................... 8-17
Towing tips ................................................................... 8-23
Trip meter ........................................................................... 3-7
Turn signal Indicator lights .............................................................. 3-20
Lever ............................................................................ 3-27
U
Under-floor storage compartment ..................................... 6-12
