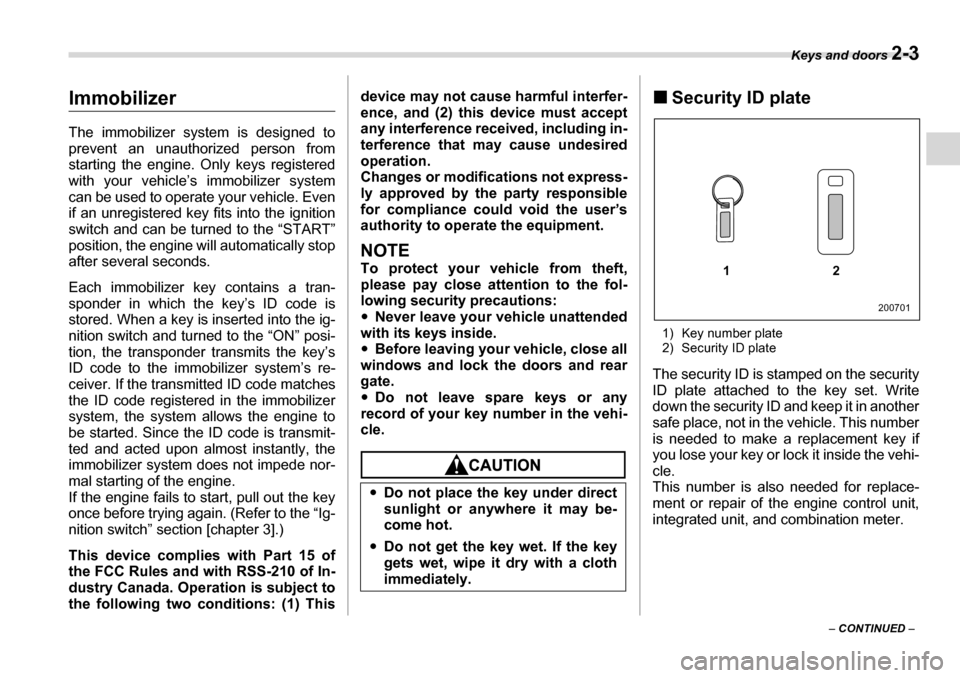

Immobilizer
The immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered with your vehicle’s immobilizer system
can be used to operate your vehicle. Even
if an unregistered key fits into the ignition
switch and can be turned to the “START”
position, the engine will automatically stop
after several seconds.
Each immobilizer key contains a tran-
sponder in which the key’s ID code is
stored. When a key is inserted into the ig-
nition switch and turned to the “ON” posi-
tion, the transponder transmits the key’s
ID code to the immobilizer system’s re-
ceiver. If the transmitted ID code matches
the ID code registered in the immobilizer
system, the system allows the engine to
be started. Since the ID code is transmit-
ted and acted upon almost instantly, the
immobilizer system does not impede nor-
mal starting of the engine.
If the engine fails to start, pull out the key
once before trying again. (Refer to the “Ig-
nition switch” section [chapter 3].)
This device complies with Part 15 of
the FCC Rules and with RSS-210 of In-
dustry Canada. Operation is subject to
the following two conditions: (1) This device may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including in-
terference that may cause undesired
operation.
Changes or modifications not express-
ly approved by the party responsible
for compliance could void the user’s
authority to operate the equipment.
NOTE
To protect your vehicle from theft,
please pay close attention to the fol-
lowing security precautions: y
Never leave your vehicle unattended
with its keys inside. y Before leaving your vehicle, close all
windows and lock the doors and rear
gate.y Do not leave spare keys or any
record of your key number in the vehi-
cle.
„ Security ID plate
1) Key number plate
2) Security ID plate
The security ID is stamped on the security
ID plate attached to the key set. Write
down the security ID and keep it in another
safe place, not in the vehicle. This number
is needed to make a replacement key if
you lose your key or lock it inside the vehi-cle.
This number is also needed for replace-
ment or repair of the engine control unit,
integrated unit, and combination meter.
y
Do not place the key under direct
sunlight or anywhere it may be-
come hot.
y Do not get the key wet. If the key
gets wet, wipe it dry with a cloth
immediately.
12
200701

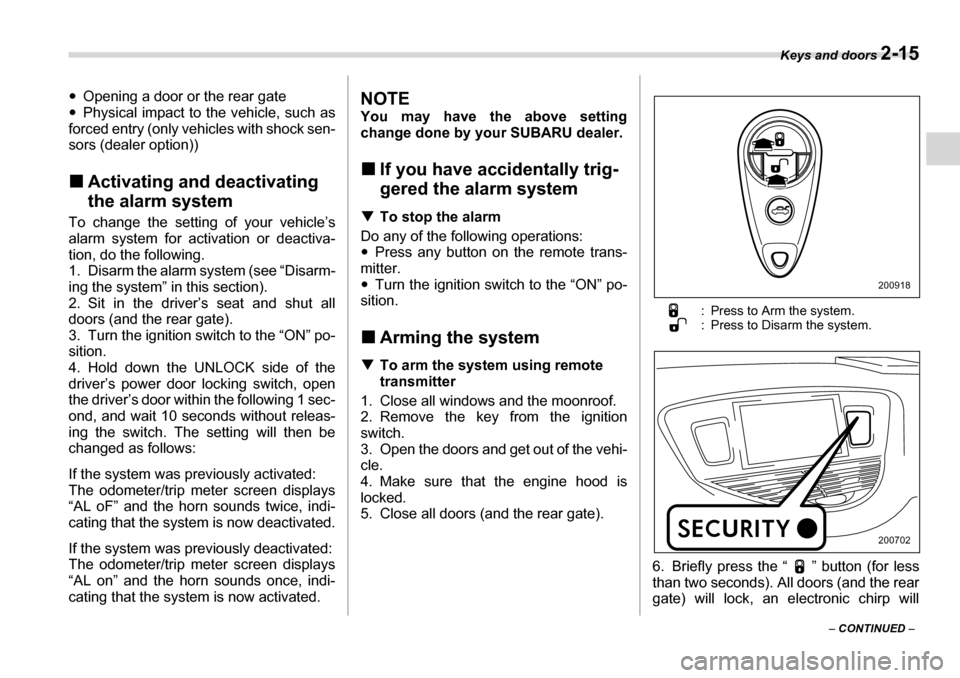

Keys and doors 2-15
– CONTINUED –
y
Opening a door or the rear gate
y Physical impact to the vehicle, such as
forced entry (only vehicles with shock sen-
sors (dealer option)) „ Activating and deactivating
the alarm system
To change the setting of your vehicle’s
alarm system for activation or deactiva- tion, do the following.
1. Disarm the alarm system (see “Disarm-
ing the system” in this section).
2. Sit in the driver’s seat and shut all
doors (and the rear gate).
3. Turn the ignition switch to the “ON” po- sition.
4. Hold down the UNLOCK side of the
driver’s power door locking switch, open
the driver’s door within the following 1 sec-
ond, and wait 10 seconds without releas-
ing the switch. The setting will then be
changed as follows:
If the system was previously activated:
The odometer/trip meter screen displays
“AL oF” and the horn sounds twice, indi- cating that the system is now deactivated.
If the system was previously deactivated:
The odometer/trip meter screen displays
“AL on” and the horn sounds once, indi-
cating that the system is now activated.
NOTE
You may have the above setting
change done by your SUBARU dealer. „ If you have accidentally trig-
gered the alarm system
T To stop the alarm
Do any of the following operations: y Press any button on the remote trans-
mitter.y Turn the ignition switch to the “ON” po-
sition. „ Arming the system
T To arm the system using remote transmitter
1. Close all windows and the moonroof.
2. Remove the key from the ignition switch.
3. Open the doors and get out of the vehi-cle.
4. Make sure that the engine hood is
locked.
5. Close all doors (and the rear gate). : Press to Arm the system.
: Press to Disarm the system.
6. Briefly press the “ ” button (for less
than two seconds). All doors (and the rear
gate) will lock, an electronic chirp will
200918
200702

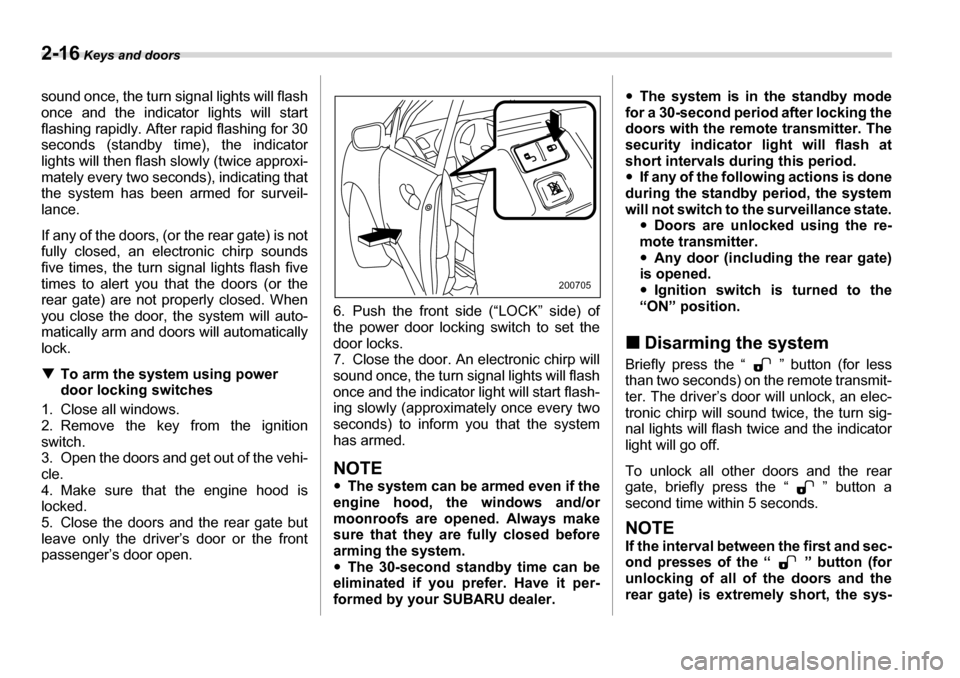

2-16 Keys and doors
sound once, the turn signal lights will flash
once and the indicator lights will start
flashing rapidly. After rapid flashing for 30
seconds (standby time), the indicator
lights will then flash slowly (twice approxi-
mately every two seconds), indicating that
the system has been armed for surveil-
lance.
If any of the doors, (or the rear gate) is not
fully closed, an electronic chirp sounds
five times, the turn signal lights flash five
times to alert you that the doors (or the
rear gate) are not properly closed. When
you close the door, the system will auto-
matically arm and doors will automatically
lock. TTo arm the system using power
door locking switches
1. Close all windows.
2. Remove the key from the ignitionswitch.
3. Open the doors and get out of the vehi- cle.
4. Make sure that the engine hood is
locked.
5. Close the doors and the rear gate but
leave only the driver’s door or the front
passenger’s door open. 6. Push the front side (“LOCK” side) of
the power door locking switch to set the
door locks.
7. Close the door. An electronic chirp will
sound once, the turn signal lights will flash
once and the indicator light will start flash-
ing slowly (approximately once every two seconds) to inform you that the system has armed.
NOTE y
The system can be armed even if the
engine hood, the windows and/or
moonroofs are opened. Always make
sure that they are fully closed before
arming the system.y The 30-second standby time can be
eliminated if you prefer. Have it per-
formed by your SUBARU dealer. y
The system is in the standby mode
for a 30-second period after locking the
doors with the remote transmitter. The
security indicator light will flash at
short intervals during this period. y If any of the following actions is done
during the standby period, the system
will not switch to the surveillance state. yDoors are unlocked using the re-
mote transmitter.y Any door (including the rear gate)
is opened. y Ignition switch is turned to the
“ON” position.
„ Disarming the system
Briefly press the “ ” button (for less
than two seconds) on the remote transmit-
ter. The driver’s door will unlock, an elec-
tronic chirp will sound twice, the turn sig-
nal lights will flash twice and the indicator
light will go off.
To unlock all other doors and the rear
gate, briefly press the “ ” button a
second time within 5 seconds.
NOTE
If the interval between the first and sec-
ond presses of the “ ” button (for
unlocking of all of the doors and the
rear gate) is extremely short, the sys-
200705

3
Instruments and controls
Ignition switch .................................................... 3-3 LOCK ....................................................................... 3-3
ACC .......................................................................... 3-3
ON ............................................................................ 3-4
START ...................................................................... 3-4

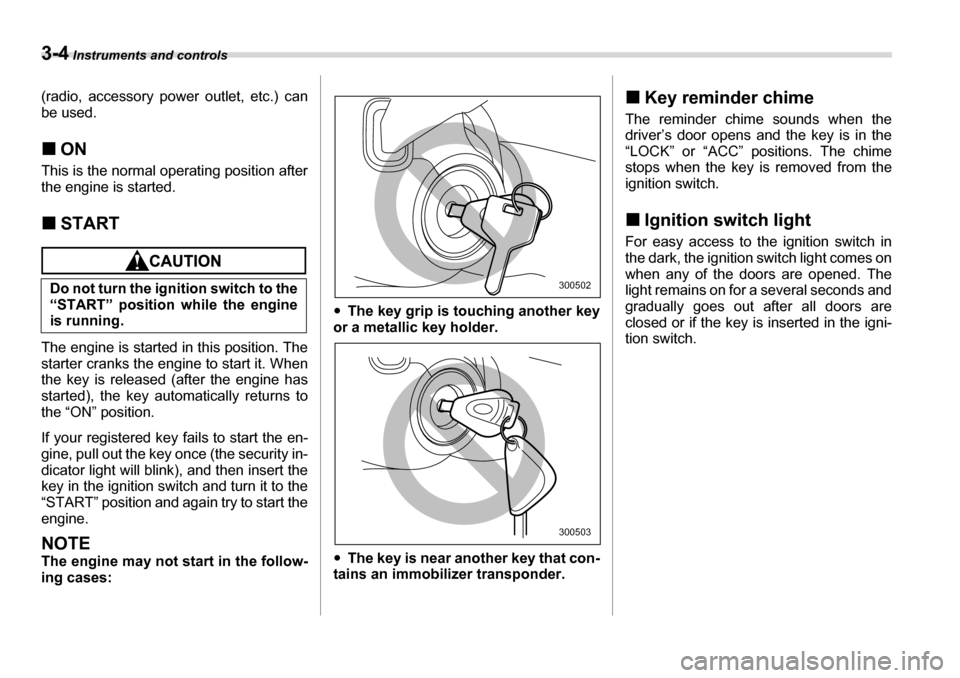

Key reminder chime ............................................... 3-4
Ignition switch light ................................................ 3-4
Hazard warning flasher ...................................... 3-5
Meters and gauges ............................................. 3-5 Combination meter illumination ............................ 3-5
Canceling the function for meter needle/gauge movement and combination meter sequential
illumination upon turning on the ignition
switch .................................................................... 3-5
Speedometer ........................................................... 3-6
Odometer ................................................................. 3-6

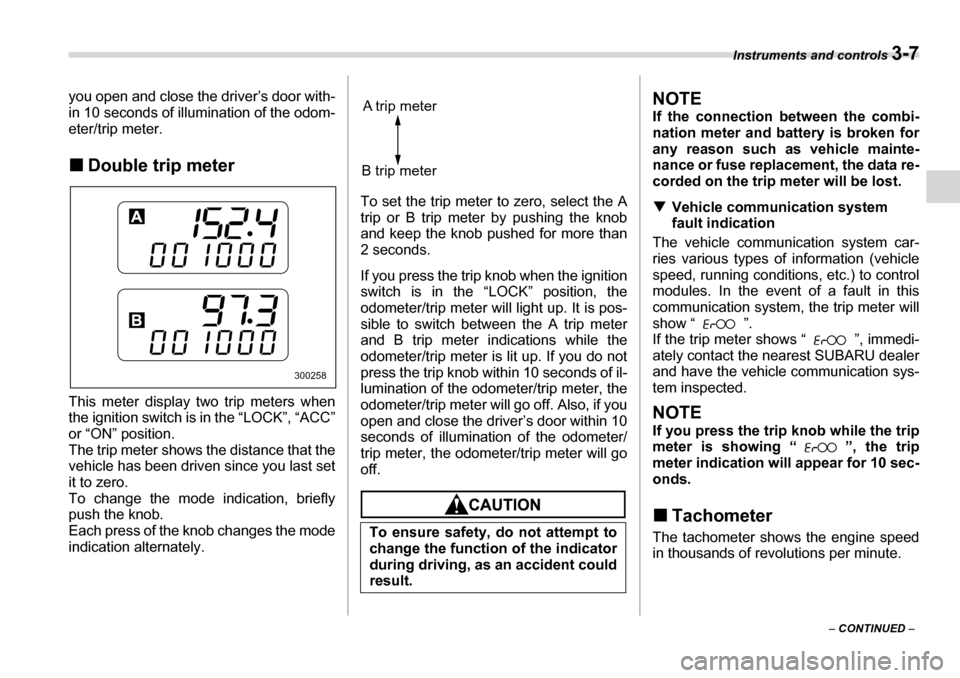

Double trip meter .................................................... 3-7
Tachometer ............................................................. 3-7

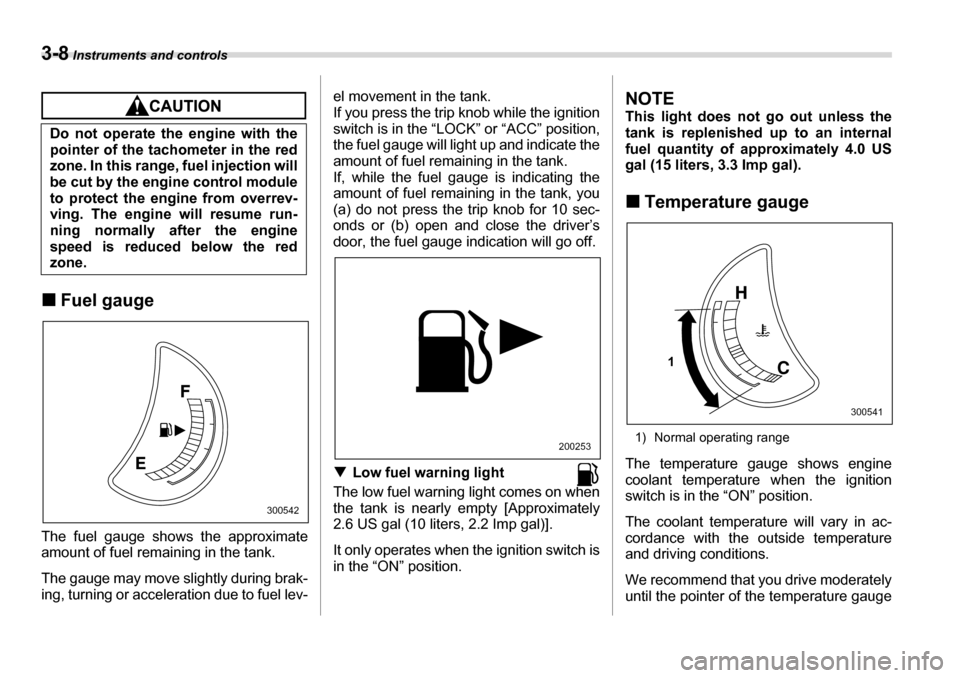

Fuel gauge ............................................................... 3-8
Temperature gauge ................................................ 3-8
Warning and indicator lights ............................. 3-9 Seatbelt warning light and chime .......................... 3-10
SRS airbag system warning light .......................... 3-11
Front passenger’s frontal airbag ON and OFF indicators .............................................................. 3-12
CHECK ENGINE warning light/Malfunction
indicator lamp ....................................................... 3-12
Charge warning light ............................................... 3-13
Oil pressure warning light ..................................... 3-13
AT OIL TEMPerature warning light ....................... 3-13 Rear differential oil temperature warning light .... 3-14
Low tire pressure warning light ............................ 3-14
ABS warning light ................................................... 3-15
Brake system warning light ................................... 3-16
Low fuel warning light ..................................... 3-17
Door open warning light ........................................ 3-17
Windshield washer fluid warning light ................. 3-17
All-Wheel Drive warning light ................................ 3-17
Vehicle Dynamics Control operation indicator
light ........................................................................ 3-18
Vehicle Dynamics Control warning light/Traction Control system OFF indicator light .................... 3-18
Security indicator light ........................................... 3-19
SPORT mode indicator light .................................. 3-19
Selector lever/Gear position indicator .................. 3-20
Turn signal indicator lights .................................... 3-20
High beam indicator light ....................................... 3-20
Cruise control indicator light ................................. 3-20
Cruise control set indicator light .......................... 3-20
Headlight indicator light ......................................... 3-20
Front fog light indicator light ................................. 3-20
Clock .................................................................... 3-21
Outside temperature indication ........................ 3-21
Multi function display (Vehicle without Navigation System) ......................................... 3-23Current fuel consumption ...................................... 3-23
Average fuel consumption ..................................... 3-23
Driving range on remaining fuel ............................ 3-24
Journey time ........................................................... 3-25

Instruments and controls 3-3
– CONTINUED –

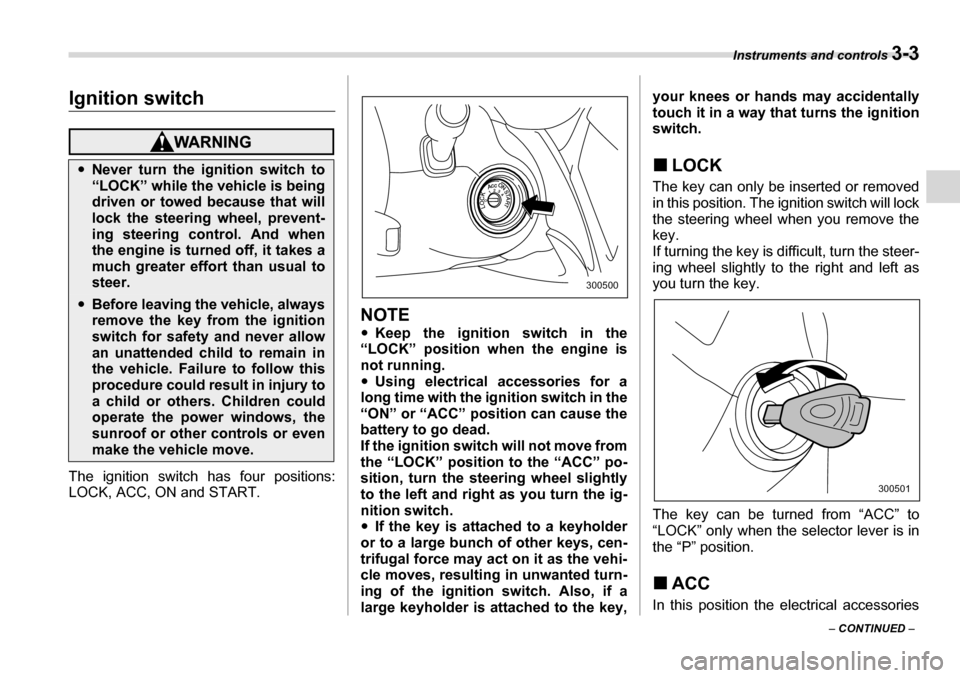

Instruments and controlsIgnition switch
The ignition switch has four positions:
LOCK, ACC, ON and START.
NOTE yKeep the ignition switch in the
“LOCK” position when the engine is
not running. y Using electrical accessories for a
long time with the ignition switch in the
“ON” or “ACC” position can cause the
battery to go dead.
If the ignition switch will not move from
the “LOCK” position to the “ACC” po-
sition, turn the steering wheel slightlyto the left and right as you turn the ig-
nition switch. y If the key is attached to a keyholder
or to a large bunch of other keys, cen-
trifugal force may act on it as the vehi-
cle moves, resulting in unwanted turn-
ing of the ignition switch. Also, if a
large keyholder is attached to the key, your knees or hands may accidentally
touch it in a way that turns the ignition
switch. „
LOCK
The key can only be inserted or removed
in this position. The ignition switch will lock
the steering wheel when you remove the key.
If turning the key is difficult, turn the steer-
ing wheel slightly to the right and left as
you turn the key.
The key can be turned from “ACC” to
“LOCK” only when the selector lever is in
the “P” position. „ ACC
In this position the electrical accessories
y Never turn the ignition switch to
“LOCK” while the vehicle is being
driven or towed because that will
lock the steering wheel, prevent-
ing steering control. And when
the engine is turned off, it takes a
much greater effort than usual to
steer.
yBefore leaving the vehicle, always
remove the key from the ignition
switch for safety and never allow
an unattended child to remain in
the vehicle. Failure to follow this
procedure could result in injury to
a child or others. Children could
operate the power windows, the
sunroof or other controls or even
make the vehicle move.
300500
300501

3-4 Instruments and controls
(radio, accessory power outlet, etc.) can
be used. „ON
This is the normal operating position after
the engine is started. „ START
The engine is started in this position. The
starter cranks the engine to start it. When
the key is released (after the engine has
started), the key automatically returns to
the “ON” position.
If your registered key fails to start the en-
gine, pull out the key once (the security in-
dicator light will blink), and then insert the
key in the ignition switch and turn it to the
“START” position and again try to start the
engine.
NOTE
The engine may not start in the follow-
ing cases: y
The key grip is touching another key
or a metallic key holder. y The key is near another key that con-
tains an immobilizer transponder. „
Key reminder chime
The reminder chime sounds when the
driver’s door opens and the key is in the
“LOCK” or “ACC” positions. The chime
stops when the key is removed from the
ignition switch. „ Ignition switch light
For easy access to the ignition switch in
the dark, the ignition switch light comes on
when any of the doors are opened. The
light remains on for a several seconds and
gradually goes out after all doors are
closed or if the key is inserted in the igni-tion switch.
Do not turn the ignition switch to the
“START” position while the engine
is running.
300502
300503

Instruments and controls 3-7
– CONTINUED –
you open and close the driver’s door with-
in 10 seconds of illumination of the odom- eter/trip meter. „
Double trip meter
This meter display two trip meters when
the ignition switch is in the “LOCK”, “ACC”
or “ON” position.
The trip meter shows the distance that the
vehicle has been driven since you last set
it to zero.
To change the mode indication, briefly
push the knob.
Each press of the knob changes the mode
indication alternately. To set the trip meter to zero, select the A
trip or B trip meter by pushing the knob
and keep the knob pushed for more than 2 seconds.
If you press the trip knob when the ignition
switch is in the “LOCK” position, the
odometer/trip meter will light up. It is pos-
sible to switch between the A trip meter and B trip meter indications while the
odometer/trip meter is lit up. If you do not
press the trip knob within 10 seconds of il-
lumination of the odometer/trip meter, the
odometer/trip meter will go off. Also, if you
open and close the driver’s door within 10
seconds of illumination of the odometer/
trip meter, the odometer/trip meter will go
off.
NOTE
If the connection between the combi-
nation meter and battery is broken for
any reason such as vehicle mainte-
nance or fuse replacement, the data re-
corded on the trip meter will be lost. T
Vehicle communication system
fault indication
The vehicle communication system car-
ries various types of information (vehicle
speed, running conditions, etc.) to control
modules. In the event of a fault in this
communication system, the trip meter will
show “ ”.
If the trip meter shows “ ”, immedi-
ately contact the nearest SUBARU dealer
and have the vehicle communication sys-
tem inspected.
NOTE
If you press the trip knob while the trip
meter is showing “ ”, the trip
meter indication will appear for 10 sec-
onds. „ Tachometer
The tachometer shows the engine speed
in thousands of revolutions per minute.
300258
To ensure safety, do not attempt to
change the function of the indicator
during driving, as an accident could
result.
A trip meter
B trip meter

3-8 Instruments and controls
„Fuel gauge
The fuel gauge shows the approximate
amount of fuel remaining in the tank.
The gauge may move slightly during brak-
ing, turning or acceleration due to fuel lev- el movement in the tank.
If you press the trip knob while the ignition
switch is in the “LOCK” or “ACC” position,
the fuel gauge will light up and indicate the
amount of fuel remaining in the tank.
If, while the fuel gauge is indicating the
amount of fuel remaining in the tank, you
(a) do not press the trip knob for 10 sec-
onds or (b) open and close the driver’s
door, the fuel gauge indication will go off. T
Low fuel warning light
The low fuel warning light comes on when
the tank is nearly empty [Approximately
2.6 US gal (10 liters, 2.2 Imp gal)].
It only operates when the ignition switch is
in the “ON” position.
NOTE
This light does not go out unless the
tank is replenished up to an internal
fuel quantity of approximately 4.0 US
gal (15 liters, 3.3 Imp gal). „ Temperature gauge
1) Normal operating range
The temperature gauge shows engine
coolant temperature when the ignition switch is in the “ON” position.
The coolant temperature will vary in ac-
cordance with the outside temperature
and driving conditions.
We recommend that you drive moderately
until the pointer of the temperature gauge
Do not operate the engine with the
pointer of the tachometer in the red
zone. In this range, fuel injection will
be cut by the engine control module
to protect the engine from overrev-
ving. The engine will resume run-
ning normally after the engine
speed is reduced below the red
zone.
300542
200253
1
300541
