Lights and Visibility68
Adjusting the right-hand exterior mirror*
– Turn the rotary knob to position . The movement of the mirror
surface is identical to the movement of the rotary knob.
The exterior mirror heater only operates when the engine is running.
WARNING
•Convex (curved outward) or a spherical exterior mirrors increase the vision field. They do, however, ma ke objects appear smaller in the mirror. These mirrors are only of limited use, therefore, for estimating distances to the following vehicles.
•Use whenever possible the interior rear mirror, for estimating the distances to the following vehicles.
Note
•Do not touch the surfaces of the exterior mirrors if the exterior mirror heater is switched on.
•You can set the exterior mi rrors by hand, if the power setting function fails at any time, by pressing on the edge of the mirror surface.
•Contact your specialist garage if a fault exists with the power setting of the exterior mirrors.
NKO A05Fabia 20.book Page 68 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage69
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Seats and Stowage
Front seats
Basic information
The front seats have a wide range of different settings and can thus be matched to the physical characteristics of the driver and front passenger. Correct adjust-ment of the seats is particularly important for
•safely and quickly reaching the controls,
•a relaxed, fatigue-free body position,
•achieving the maximum protection offered by the seat belts and the airbag system.
The chapters which follow describe th e procedure which you should adopt for adjusting the seats.
WARNING
•Never transport more occupants than the maximum seating in the vehicle.
•Each occupant must correctly fasten the seat belt belonging to the seat. Children must be fastened ⇒page 155, “Transporting children safely” with a suitable restraint system.
•The front seats and the head restraints must always be adjusted to match the body size of the seat occupant as well as the seat belts must always be correctly fastened in order to provide an optimal protection for you and your occupants.
•Always keep your feet in the footwell when the car is being driven - never place your feet on the instrument panel, out of the window or on the surfaces of the seats. This is particularly important for the front seat
passenger. You will be exposed to increased risk of injury if it becomes necessary to apply the brake or in the ev ent of an accident. If an airbag is deployed, you may suffer fatal injuries when adopting an incorrect seated position!
•It is important for the driver and front passenger to maintain a distance of at least 25 cm from the steering wheel or dash panel. Not maintaining this minimum distance will mean that the airbag system will not be able to properly protect you - hazard! The front seats and the head restraints must always also be correctly adjusted to match the body size of the occupant.
•Ensure that there are no objects in the footwell as any objects may get behind the pedals during a drivin g or braking manoeuvre. You would then no longer be able to operate the clutch, to brake or accelerate.
WARNING (continued)
NKO A05Fabia 20.book Page 69 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage70
Adjusting the front seats
Adjusting a seat in a forward/back direction
– Pull the lever ⇒page 70, fig. 49 up and push the seat into the
desired position.
– Release the lever and push the seat further until the lock is
heard to engage.
Adjusting height of seat*
– Lift the seat if required by pulling or pumping lever upwards.
– Lower the seat if required by pushing or pumping lever down-
wards.
Adjust the angle of the seat backrest
– Relieve any pressure on the backrest (do not lean on it) and turn
the handwheel to adjust the angle of the backrest.
The driver's seat should be adjusted in such a way that the pedals can be pressed to the floor with slightly bent legs.
The backrest on the driver's seat should be adjusted in such a way that the upper point of the steering wheel can be easily reached with slightly bent arms.
WARNING
•Only adjust the driver seat when the vehicle is stationary - risk of injury!
•Take care when adjusting the seat ! Adjusting the seat without care can lead to bruises or injuries.
•The backrests must not be angled too far back when driving other- wise this will affect proper operation of the seat belts and of the airbag system - risk of injury!Fig. 49 Controls at seat
A1
A1
A2
A2
A3
NKO A05Fabia 20.book Page 70 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage71
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Head restraints
Best protection is achieved if the top edge of the head restraint is at
the same level as the u pper part of your head.
Adjusting the height of a head restraint
– Grasp the side of the head restraint with both hands and push the
head restraint in the direction of axle of the metal guide rods, in the
direction of arrow ⇒page 71, fig. 50 to the top or to the bottom.
– Move the head restraint downwards if required by pressing the
locking button ⇒page 71, fig. 51 and by pressing with the other
hand the head restraint downwards.
Removing and installing a head restraint
– Pull the head restraint out of the ba ckrest of the seat as far as the
stop.
– Press the locking button in the direction of arrow ⇒page 71,
fig. 51 and pull the head restraint out.
– To re-insert the head restraint, push it down into the backrest of the
seat far enough until you hear the locking button engage.
The position of the front, rear outer head restraints and the rear middle head restraint* is adjustable for height.
The head restraints must be adjusted to match the size of the seat occupant. Correctly adjusted head restraints togeth er with the seat belts offer effective protection for the occupants ⇒page 135.
WARNING
•The head restraints must be correctly adjusted in order to offer effec- tive protection for the occupants in the event of an accident.
•Do not drive under any circumstance with removed head restraints - risk of injury!
Fig. 50 Adjusting head restraint
Fig. 51 Removing a head restraint
NKO A05Fabia 20.book Page 71 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage74
WARNING
•Ensure that the seat belts are not damaged when operating the rear seat backrests. Under no circumstances must the rear seat belts be jammed by the folded back rear seat backrest.
•The belts and the belt locks must be in their original position after folding back the rear seats and seat backrests - they must be ready to use.
•Pay attention that the rear seat backrest is correctly interlocked. It is only then that the three-point seat belt can reliably fulfil its function.
•The seat backrests must be securely interlocked in position so that no objects in the luggage compartmen t can slide into the passenger compartment if there is sudde n braking - risk of injury.
Inserting head restraints in the rear seats
– The rear head restraints can be inserted into the relevant holes of
the folded forwards rear seats.
Remove the rear seat
The luggage compartment can be increased in size by removing the
rear seat.
Removing
– Fold the rear seat forwards.
– Press the wire clamps in the direction of the arrow ⇒fig. 56 and
remove the rear seat from its holder.
Installing
– Press the wire clamp in the direction of the arrow and place the
seat upholstery in its holder.
– Fold the rear seat back into its original position.
Fig. 55 Rear seats: Head restraints in rear seats
Fig. 56 Remove the rear seats
NKO A05Fabia 20.book Page 74 Tuesday, September 26, 2006 8:38 AM

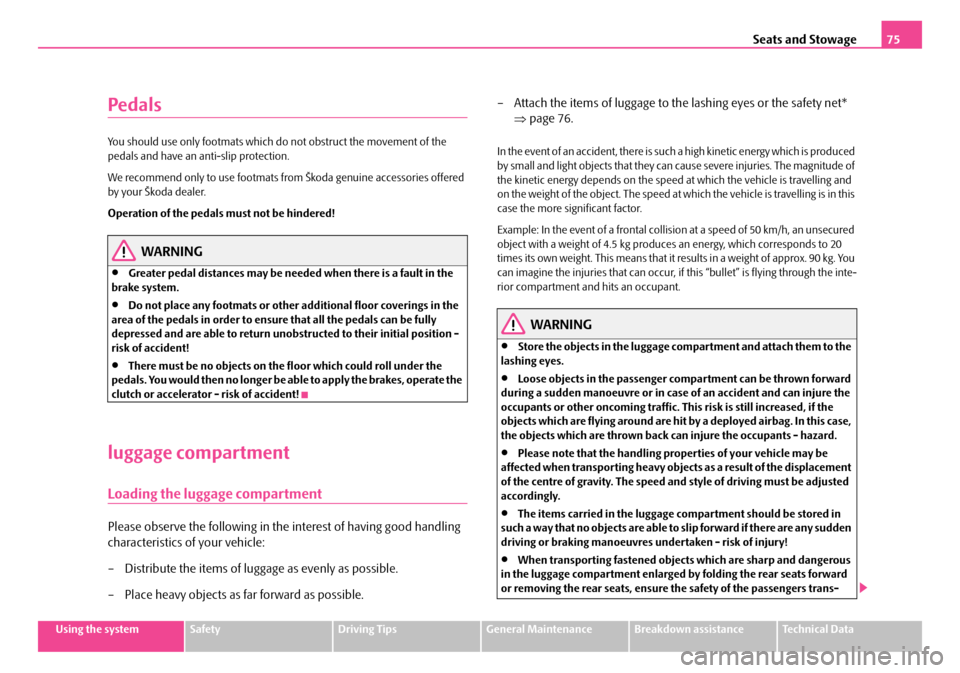

Seats and Stowage75
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
Pedals
You should use only footmats which do not obstruct the movement of the pedals and have an anti-slip protection.
We recommend only to use footmats from Škoda genuine accessories offered by your Škoda dealer.
Operation of the pedals must not be hindered!
WARNING
•Greater pedal distances may be need ed when there is a fault in the brake system.
•Do not place any footmats or other additional floor coverings in the area of the pedals in order to ensure that all the pedals can be fully depressed and are able to return unobstructed to their initial position - risk of accident!
•There must be no objects on the floor which could roll under the pedals. You would then no longer be able to apply the brakes, operate the clutch or accelerator - risk of accident!
luggage compartment
Loading the luggage compartment
Please observe the following in the interest of having good handling
characteristics of your vehicle:
– Distribute the items of luggage as evenly as possible.
– Place heavy objects as far forward as possible.
– Attach the items of luggage to the lashing eyes or the safety net*
⇒ page 76.
In the event of an accident, there is such a high kinetic energy which is produced by small and light objects that they can cause severe injuries. The magnitude of the kinetic energy depends on the speed at which the vehicle is travelling and on the weight of the object. The speed at which the vehicle is travelling is in this case the more significant factor.
Example: In the event of a frontal collision at a speed of 50 km/h, an unsecured object with a weight of 4.5 kg produc es an energy, which corresponds to 20 times its own weight. This means that it results in a weight of approx. 90 kg. You can imagine the injuries that can occur, if this “bullet” is flying through the inte- rior compartment and hits an occupant.
WARNING
•Store the objects in the luggage comp artment and attach them to the lashing eyes.
•Loose objects in the passenger compartment can be thrown forward during a sudden manoeuvre or in case of an accident and can injure the occupants or other oncoming traffic. This risk is still increased, if the objects which are flying around are hit by a deployed airbag. In this case, the objects which are thrown back can injure the occupants - hazard.
•Please note that the handling properties of your vehicle may be affected when transporting heavy objects as a result of the displacement of the centre of gravity. The speed an d style of driving must be adjusted accordingly.
•The items carried in the luggage compartment should be stored in such a way that no objects are able to slip forward if there are any sudden driving or braking manoeuvres undertaken - risk of injury!
•When transporting fastened objects which are sharp and dangerous in the luggage compartment enlarged by folding the rear seats forward or removing the rear seats, ensure the safety of the passengers trans-
NKO A05Fabia 20.book Page 75 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage76
ported on the other rear seats ⇒page 136, “Correct seated position for the occupants on the rear seats”.
•If the rear seats next to the folded forward seat are occupied, ensure maximum safety, e.g. by placing the goods to be transported in such a way that a folding back of the seat is prevented in case of a rear collision.
•Never drive with the tailgate fully opened or slightly ajar otherwise exhaust gases may get into the interior of the vehicle - risk of poisoning!
•On no account exceed the permissible axle loads and the permissible gross weight of the vehicle - risk of accident!
•Never transport occupants in the luggage compartment.
Caution
Please ensure that the heating elements of the rear window heater are not damaged as a result of objects sliding in this area.
Note
•Tyre pressure must be adjusted to the load ⇒page 214, fig. 151.
Fastening elements
Eyes are located on the sides of the loading area for lashing the goods to be loaded ⇒fig. 57.
You can also attach securing nets* to these eyes for lashing small objects.
WARNING
•The load to be transported must be fixed in place in such a way that it cannot move during the journey and when braking.
•If the items of luggage or objects ar e attached to the lashing eyes with unsuitable or damaged lashing straps, injuries can occur in the event of braking manoeuvres or accidents. In order to prevent the items of luggage being thrown forward, always use suitable lashing straps which are firmly attached to the lashing eyes.
•The whole strength of the net makes it possible to load the pocket with objects of up to 1.5 kg in weight. Heavy objects are not secured suffi- ciently - risk of injury and net damage!
WARNING (continued)
Fig. 57 Luggage compartment: Lashing eyes and lashing hooks
NKO A05Fabia 20.book Page 76 Tuesday, September 26, 2006 8:38 AM

Seats and Stowage77
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistanceTechnical Data
•The load to be transported must be fixed in place in such a way that it cannot move during the journey and when braking.
Folding hooks*
A folding hook* for attaching small items of luggage, such as bags etc., is provided on both sides of the luggage compartment ⇒fig. 58.
An item of luggage weighing up to 10 kg can be attached to the hook.
The luggage compartment cover
You can use the luggage compartment cover behind the head
restraints for storing light and soft items.
The luggage compartment cover can be removed as required if one
must transport bulky goods.
– Unhook the support straps on the tailgate ⇒fig. 59.
– Slightly raise the luggage compartment cover.
– Remove the luggage compartment cover from the holders by
pulling to the rear or with adequa te blows to the bottom side of the
luggage compartment cover in the area between the holders.
WARNING (continued)
Fig. 58 Luggage compartment: folding hooks
Fig. 59 Removing the luggage compartment cover
A1
A2
