2006 Seat Cordoba headlamp

Driving and the environment147
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
On the right headlight, if you are changing from driving on the left-hand side
to the right-hand side.
On the left headlight, if you are changing from driving on the left-hand side to
the right-hand side.
Covering bifocal headlamps for driving on the left
On the right headlight, if you are changi
ng from driving on the right-hand side
to the left-hand side ⇒ fig. 107.
On the left headlight, if you are changi ng from driving on the right-hand side
to the left-hand side ⇒ fig. 108.
Fig. 107 Right headlight
Fig. 108 Left headlight
cordoba_ingles Seite 147 Freitag, 7. Oktober 2005 6:00 18

Driving and the environment
148Covering bifocal headlamps for driving on the rightOn the right headlight, if you are chan ging from driving on the left-hand side
to the right-hand side ⇒fig. 109 . On the left headlight, if you are changi
ng from driving on the left-hand side to
the right-hand side ⇒ fig. 110.
Covering GDL headlamps for driving on the left
Fig. 109 Right headlightFig. 110 Left headlight
Fig. 111 Right headlightFig. 112 Left headlight
cordoba_ingles Seite 148 Freitag, 7. Oktober 2005 6:00 18

Driving and the environment149
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
On the right head
light, if you are changing from driving on the right-hand side
to the left-hand side ⇒ page 148, fig. 111.
On the left headlight, if you are changi ng from driving on the right-hand side
to the left-hand side ⇒ page 148, fig. 112.
Covering GDL headlamps for driving on the right
On the right headlight, if you are chan ging from driving on the left-hand side
to the right-hand side ⇒fig. 113 .
On the left headlight, if you are changing from driving on the left-hand side to
the right-hand side ⇒fig. 114 .Trailer towingWhat do you need to bear in mind when towing a trailer?Your vehicle may be used to tow a trailer when fitted with the correct equip-
ment.
If the car is supplied with a factory-fitted towing bracket it will already have
the necessary technical modifications and meet the statutory requirements
for towing a trailer. For the posterior fitting of a trailer towing bracket see
⇒ page 164.
Fig. 113 Right headlight
Fig. 114 Left headlight
cordoba_ingles Seite 149 Freitag, 7. Oktober 2005 6:00 18

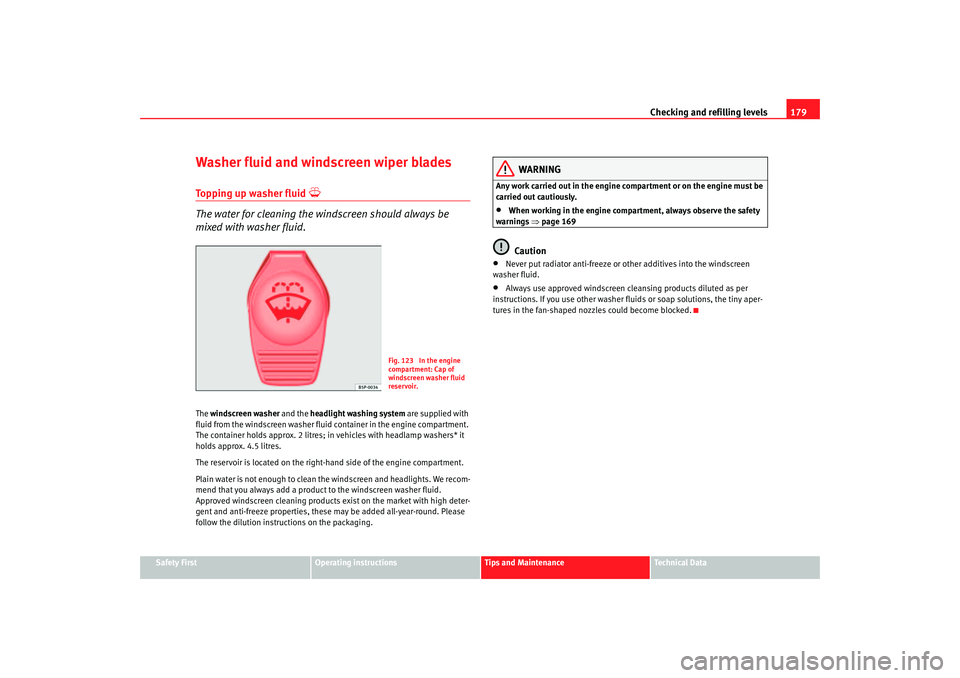

Checking and refilling levels179
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Washer fluid and windscreen wiper bladesTopping up washer fluid

The water for cleaning the windscreen should always be
mixed with washer fluid.The windscreen washer and the headlight washing system are supplied with
fluid from the windscreen washer fluid container in the engine compartment.
The container holds approx. 2 litres; in vehicles with headlamp washers* it
holds approx. 4.5 litres.
The reservoir is located on the right-hand side of the engine compartment.
Plain water is not enough to clean the windscreen and headlights. We recom-
mend that you always add a product to the windscreen washer fluid.
Approved windscreen cleaning products exist on the market with high deter-
gent and anti-freeze properties, these may be added all-year-round. Please
follow the dilution instructions on the packaging.
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.•
When working in the engine compartm ent, always observe the safety
warnings ⇒page 169Caution
•
Never put radiator anti-freeze or other additives into the windscreen
washer fluid.
•
Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fl uids or soap solutions, the tiny aper-
tures in the fan-shaped nozzles could become blocked.
Fig. 123 In the engine
compartment: Cap of
windscreen washer fluid
reservoir.
cordoba_ingles Seite 179 Freitag, 7. Oktober 2005 6:00 18

If and when199
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Fuses on left side of dash panelFuses
Number Electrical equipment Amperes
1 Secondary water pump 1.8 20 VT (T16) 15
2A BS/E S P 10
3 Vacant
4 Brake light, clutch switch, relay coils 5
5 Engine control unit (petrol) 5
6 Right side light 5
7 Left side light 5
8 Mirror heating unit 5
9 Lambda probe 10
10 Signal“S”
a). Radio unit 5
11 Electric mirror power supply 5
12 Headlamp height adjustment 5
13 Oil pressure/level sensor 5
14 Additional heating engine/fuel pump 10
15 Automatic gearbox unit 10
16 Heated seats 15
17 Engine control unit 5
18 Instrument panel /Heating and ventilation, Navigation, Headlamp height adjustment, Electric mirror 10
19 Reverse light 10
20 Windscreen washer pump 10
21 Main beam headlight, right 10
cordoba_ingles Seite 199 Freitag, 7. Oktober 2005 6:00 18

If and when
204Some of the electrical items listed in the table are only fitted on certain
models or are optional extras.
Please note that the above list, while corr ect at the time of printing, is subject
to alterations.Lamp changeGeneral notesBefore changing any lamp first turn off the equipment concerned.
Do not touch the lamp glass. Fingerprints vaporise in the heat, causing a
reduction in the lamp life and conden sation on the mirror surface, thus
reducing efficiency.
A lamp should only be placed by one of the same type. The designation is
inscribed on the bulb, either on the glass part or on the base.
It is highly recommended to keep a box of spare lamps in the vehicle. At the
very least, the lamps that most affect road safety should have spares in the
vehicle.
Rear lights on frame
Brake/side 12V/P21/5W
Indicator 12V/P21W Rear lights on tailgate
small side light 12V/W5W
fog light 12V/P21W
reverse 12V/P21W
Single reflector headlamps
main/dipped 12V 60/55W (H4)
indicator 12V/PY21W
side 12/W5W
Double reflector headlamps
dipped 12V/55W (H7)
main 12V/55W (H3)
indicator 12V/PY21W
side 12V/W5W
Xenon headlights
6)
dipped 12V/35W (D1S)
7)
main 12V/55W (H7)
indicator 12V/PY21W
side 12V/W5W
F1
Multi-terminal voltage supply “30”. Internal fuse box 100
G1 Trailer fuse voltage supply in internal fuse box 50
H1 Vacant
Number
Electrical equipment Amperes6)For these type of headlights, the bulbs must be changed by an Authorised Service
Centre, given that complex elements of the vehicle must be removed and that the au-
tomatic control system must be reset.7)Xenon discharge lamps emit 2.5 times as much light flux and have a useful life five
times greater than halogen lamps, this means that, except in case of an abnormal
fault, there is no need to change the bulbs during the vehicle life.
cordoba_ingles Seite 204 Freitag, 7. Oktober 2005 6:00 18

If and when
210Fog lights– Remove the grille, taking out the screw ⇒fig. 148, carefully
pull the grille on the side of the screw and release the cover – Undo the two fastening screws
⇒fig. 148 and when released
unplug the connector
– Turn the headlamp cover to the left a quarter turn.
– Unplug the lamp cable.
– Undo the lamp retainer spring and remove.
– Remove the lamp and fit the new lamp in the same position, making sure it sits correctly.
– Press the retaining spring on the lamp base and clip on.
– Plug in the lamp cable.
– The assembly of the cover and the headlamp is carried out in reverse order.
Fig. 148 Fog lightsFig. 149 Fog lights
AA
AF
cordoba_ingles Seite 210 Freitag, 7. Oktober 2005 6:00 18
