Checking and refilling levels219
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
Any work carried out in the engine compartment or on the engine must be
carried out cautiously.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Caution
•Never put radiator anti-freeze or other additives into the windscreen
washer fluid.
•Always use approved windscreen cleansing products diluted as per
instructions. If you use other washer fluids or soap solutions, the tiny holes
in the fan-shaped nozzles could become blocked.
Changing the front windscreen wiper blades
Damaged wiper blades should be replaced immediately.
Check the condition of the wiper blades regularly. Change them as
required.
Change the windscreen wiper blades
– Lift the wiper arm away from the glass. Do not pull the arm by the
blade.
– Turn the wiper blade as shown by arrow Ÿfig. 146 as far as
it will go and then pull it off as shown by arrow Ÿfig. 147 .
– Push a new wiper blade of the same length and version onto the
wiper arm and turn the wiper blade to the stop against the direc-
tion shown by arrow .
– Place the wiper arm in the starting position.
These are available from SEAT Service®.
If the windscreen wipers scrape, they should be replaced if they are
damaged, or cleaned if they are soiled.
Fig. 146 Windscreen
wipers raised
Fig. 147 Removing front
wipers
A1
A2
A1

If and when235
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
– Use the enclosed extractorŸpage 234, fig. 155 to unscrew
the valve insert. Place the valve insert on a clean surface.
– Vigorously shake the sealant bottle Ÿpage 234, fig. 155 for
several seconds.
Sealing and inflating tyres
Inflating the tyre
– Thread the inflating tubeŸfig. 156 on the valve.
– Check that the air bleed screw is screwed tight.
– Start the engine and leave it running in neutral.
– Attach the connector to a 12 volt socket of the vehicle.– Connect the compressor using the ON/OFF switch for at least
six minutes.
– Run the compressor until a tyre pressure of between 2,0 and 2,5
bar has been reached. This should take a maximum of 6 minutes
.
– Detach the compressor when the pressure reaches 2,0 and 2,5
bars.
– If the desired pressure is not reached, unscrew the valve inflator
tube and store the compressor back in the vehicle.
– Move the vehicle some 10 metres forwards or backwards so that
the sealant is evenly distributed in the tyre interior.
– Take the compressor out again, screw the inflator tube well into
the valve and inflate the tyre again.
– If the required pressure can still not be reached, the tyre is too
badly damaged. The tyre cannot be sealed with the anti-puncture
kit. Do not attempt to travel in the vehicle and contact the nearest
qualified dealership.
– Disconnect the compressor and unscrew the compressor tyre
filler hose from the tyre valve.
– Drive the vehicle at a maximum speed of 80 km/h (50 mph) once
a tyre pressure of 2.0 - 2.5 bar has been reached.
– Check the tyre pressure after driving for 10 minutes.
A1
A10
Fig. 156 Contents of anti-
puncture kit
A5
A7
A9
A8

If and when 236
WARNING
•Do not allow the sealant to get onto your skin or into your eyes. Risk of
injury.
•Keep children away from the sealant.
Changing a wheel
Preparatory work
You must park the vehicle correctly before changing a tyre.
– If you have a flat tyre or puncture, park the car as far away from
the flow of traffic as possible on a flat surface.
– Switch off the engine. Switch on the hazard warning lights.
– Apply the handbrake firmly and engage a gear or put the selector
in the P position.
– Chock the wheel opposite the wheel being changed with a stone
or similar object.
– If you are towing a trailer, unhitch it from your vehicle.
– Remove the spare wheel and the vehicle tools from the luggage
compartment.
– All passengers should leave the car. They should wait in a safe
place (for instance behind the safety barrier).
WARNING
•If you have a puncture, stop the car well away from moving traffic.
Switch on the hazard warning lights and set the emergency triangle in
position. Please observe legal requirements when doing so.
•All passengers should leave the car.
•Apply the handbrake firmly and engage a gear or put the gear selector
in the P position. Chock the wheel opposite the wheel being changed with
a stone or similar object.
•If you are towing a trailer, unhitch it from your vehicle.
•Only use jacks which have been approved for your vehicle by SEAT.
•Never use other jacks, even if they have been approved for use on other
SEAT models. The jack could slip. Risk of injury.
•Never start the engine when the vehicle is raised. This may cause an
accident.
•Never place your body (e.g. arm or leg) underneath the vehicle if it is
only supported by the jack Risk of injury.
•If you have to work underneath the vehicle, you must use suitable
stands additionally to support the vehicle - Risk of accident!.

If and when249
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Reading light
– Remove the complete bracket (interior light and reading light),
place the flat end of a screwdriver between the light and the
ceiling trim and turn the screwdriver.– Turn the lampvholder of the back of the lamp in the direction of
the arrow Ÿfig. 171 and separate.
– Remove the defective lamp (with glass bulb).
– Fit a new lamp.
– Replace the mount in the casing and guide it towards the right as
far as possible.
– Replace the bracket, first on the left and then insert it in the
opening in the ceiling trim.
Jump-starting
Jump leads
The jump lead must have a sufficient wire cross-section.
If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross-section must be at least 25 mm
2 for petrol
engines and at least 35 mm2 for diesel engines.
Note
•The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
•The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 171 Reading lights
Fig. 172 Reading lights

If and when251
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
WARNING
•Please note the safety warnings referring to working in the engine
compartment Ÿpage 209, “Working in the engine compartment”.
•The battery providing assistance must have the same voltage as the flat
battery (12V) and approximately the same capacity (see imprint on
battery). Failure to comply could result in an explosion.
•Never use jump leads when one of the batteries is frozen. Danger of
explosion! Even after the battery has thawed, battery acid could leak and
cause chemical burns. If a battery freezes, it should be replaced.
•Keep sparks, flames and lighted cigarettes away from batteries, danger
of explosion. Failure to comply could result in an explosion.
•Observe the instructions provided by the manufacturer of the jump
leads.
•Do not connect the negative cable from the other vehicle directly to the
negative terminal of the flat battery. The gas emitted from the battery could
be ignited by sparks. Danger of explosion.
•Do not attach the negative cable from the other vehicle to parts of the
fuel system or to the brake line.
•The non-insulated parts of the battery clamps must not be allowed to
touch. The jump lead attached to the positive battery terminal must not
touch metal parts of the vehicle, this can cause a short circuit.
•Position the leads in such a way that they cannot come into contact
with any moving parts in the engine compartment.
•Do not bend over the batteries. This could result in chemical burns.
Note
The vehicles must not touch each other, otherwise electricity could flow as
soon as the positive terminals are connected.
Towing and tow-starting
Tow-starting*
The use of jump leads is preferable to tow-starting.
We recommend that you do not tow-start your vehicle. Jump-starting
is preferable Ÿpage 249.
However, if your vehicle has to be tow-started:
– Engage the 2
nd or the 3rd gear.
– Keep the clutch pressed down.
– Switch on the ignition.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear
lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.

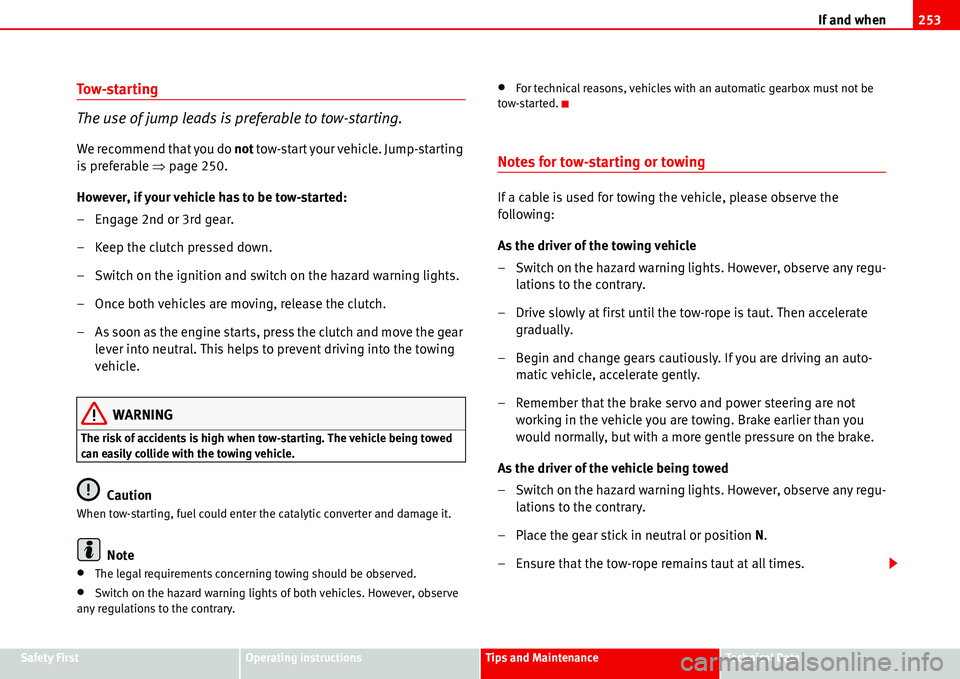

If and when253
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Tow-starting
The use of jump leads is preferable to tow-starting.
We recommend that you do not tow-start your vehicle. Jump-starting
is preferable Ÿpage 250.
However, if your vehicle has to be tow-started:
– Engage 2nd or 3rd gear.
– Keep the clutch pressed down.
– Switch on the ignition and switch on the hazard warning lights.
– Once both vehicles are moving, release the clutch.
– As soon as the engine starts, press the clutch and move the gear
lever into neutral. This helps to prevent driving into the towing
vehicle.
WARNING
The risk of accidents is high when tow-starting. The vehicle being towed
can easily collide with the towing vehicle.
Caution
When tow-starting, fuel could enter the catalytic converter and damage it.
Note
•The legal requirements concerning towing should be observed.
•Switch on the hazard warning lights of both vehicles. However, observe
any regulations to the contrary.
•For technical reasons, vehicles with an automatic gearbox must not be
tow-started.
Notes for tow-starting or towing
If a cable is used for towing the vehicle, please observe the
following:
As the driver of the towing vehicle
– Switch on the hazard warning lights. However, observe any regu-
lations to the contrary.
– Drive slowly at first until the tow-rope is taut. Then accelerate
gradually.
– Begin and change gears cautiously. If you are driving an auto-
matic vehicle, accelerate gently.
– Remember that the brake servo and power steering are not
working in the vehicle you are towing. Brake earlier than you
would normally, but with a more gentle pressure on the brake.
As the driver of the vehicle being towed
– Switch on the hazard warning lights. However, observe any regu-
lations to the contrary.
– Place the gear stick in neutral or position N.
– Ensure that the tow-rope remains taut at all times.

General notes on the technical data259
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
How are the figures measured?
Fuel consumption
Fuel consumption and emission values are determined according to Euro-
pean Commission Directive 99/100/EC. They take the actual kerb weight
(weight class) into consideration. To calculate the consumption rate, two measuring cycles are carried out on a rolling road test bed. The test criteria
are as follows:
Note
•The fuel consumption and emission values quoted in the tables below are
based on an empty basic vehicle without optional extras. The kerb weight of
the vehicle may vary depending on the equipment fitted and thus the weight
category with a relative increase of consumption and emission of CO
2 Your
Authorised Service Centre will be able to inform you of the figures which apply
to your vehicle.
•Actual consumption may vary from quoted test values, depending on
personal driving style, road and traffic conditions, the weather and the condi-
tion of the vehicle.Urban cycle The urban cycle starts with an engine cold start. City driving is then simulated.
Extra urban cycleIn the extra urban cycle the vehicle undergoes frequent acceleration and braking in all gears, as in normal everyday driving. The
road speed ranges from 0 to 120 km/h.
CombinedThe average overall consumption is calculated with a weighting of around 37% for the urban cycle and 63% for the extra urban
cycle.
CO
2 emissionsThe exhaust gases are collected during both driving cycles to calculate carbon dioxide emissions. The gas composition is then
analysed to evaluate the CO2 content and other emissions.
