Driving and the environment191
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Overheating
At very high temperatures and during prolonged ascents, driving in a low gear
and high engine speed always monitor the temperature indicator for the
coolant.
Electronic Stabilisation Program
Do not switch off the ESP when towing a trailer. The ESP makes it easier to
stabilise if the trailer starts to snake.
Driving economically and with respect for the
environment
General notes
Fuel consumption depends largely on your personal driving
style.
Fuel economy, environmental impact and wear on the engine, brakes and
tyres depend largely on three factors:
•Personal driving style
•Conditions of use (weather, road surface)
•Technical requirements
By adopting an economical driving style and anticipating the traffic situation
ahead, you can easily reduce fuel consumption by 10-15%. This section
suggests methods of lessening the impact on the environment and reducing
your operating costs at the same time.
Think ahead when driving
A vehicle uses most fuel when accelerating. If you think ahead when driving,
you will need to brake less and thus accelerate less. Wherever possible, let
the vehicle roll slowly to a stop, for instance when you can see that the next
traffic lights are red.
Regular servicing
By taking your car to an Authorised Service Centre for regular servicing you
can establish a basis for good fuel economy before you start driving. A well-
serviced engine gives you the benefit of improved fuel efficiency as well as
maximum reliability and an enhanced resale value.
A badly serviced engine can consume up to 10% more fuel than necessary.
Check the oil level every time you fill the tank. Oil consumption depends to a
great extent on the engine load and engine speed. Depending on your
personal driving style, oil consumption can be up to 1 litre per 1,000 km.

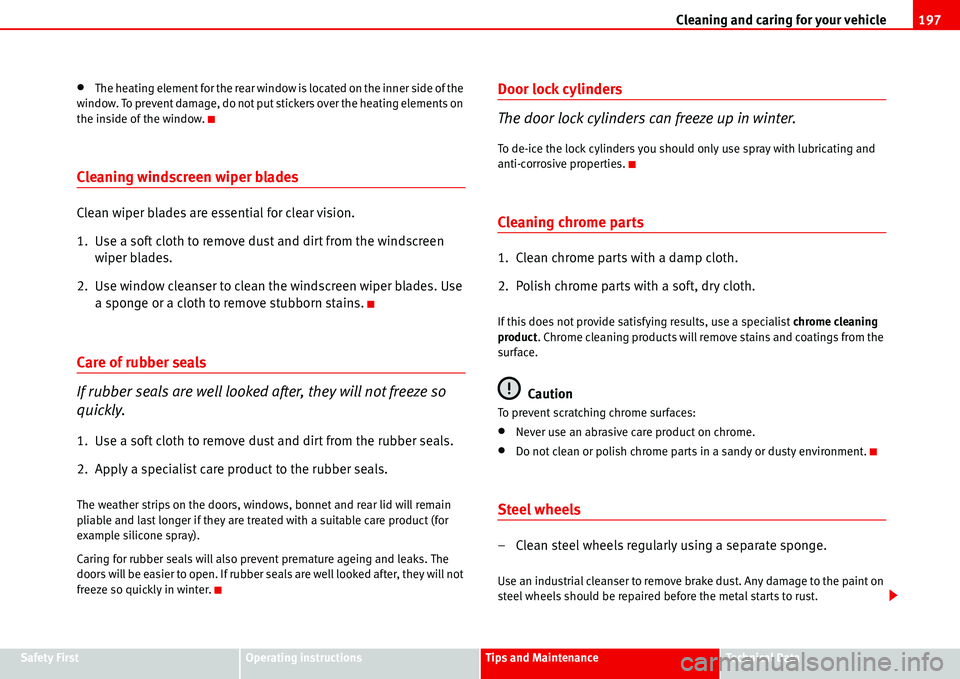

Cleaning and caring for your vehicle197
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
•The heating element for the rear window is located on the inner side of the
window. To prevent damage, do not put stickers over the heating elements on
the inside of the window.
Cleaning windscreen wiper blades
Clean wiper blades are essential for clear vision.
1. Use a soft cloth to remove dust and dirt from the windscreen
wiper blades.
2. Use window cleanser to clean the windscreen wiper blades. Use
a sponge or a cloth to remove stubborn stains.
Care of rubber seals
If rubber seals are well looked after, they will not freeze so
quickly.
1. Use a soft cloth to remove dust and dirt from the rubber seals.
2. Apply a specialist care product to the rubber seals.
The weather strips on the doors, windows, bonnet and rear lid will remain
pliable and last longer if they are treated with a suitable care product (for
example silicone spray).
Caring for rubber seals will also prevent premature ageing and leaks. The
doors will be easier to open. If rubber seals are well looked after, they will not
freeze so quickly in winter.
Door lock cylinders
The door lock cylinders can freeze up in winter.
To de-ice the lock cylinders you should only use spray with lubricating and
anti-corrosive properties.
Cleaning chrome parts
1. Clean chrome parts with a damp cloth.
2. Polish chrome parts with a soft, dry cloth.
If this does not provide satisfying results, use a specialist chrome cleaning
product. Chrome cleaning products will remove stains and coatings from the
surface.
Caution
To prevent scratching chrome surfaces:
•Never use an abrasive care product on chrome.
•Do not clean or polish chrome parts in a sandy or dusty environment.
Steel wheels
– Clean steel wheels regularly using a separate sponge.
Use an industrial cleanser to remove brake dust. Any damage to the paint on
steel wheels should be repaired before the metal starts to rust.

Cleaning and caring for your vehicle199
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Cleaning the engine compartment
Take special care when cleaning the engine compartment.
Anti-corrosion treatment
The engine compartment and the surface of the power unit are given anti-
corrosion treatment at the factory.
Good corrosion protection is particularly important in winter when the car is
frequently driven on salted roads. To prevent the salt corroding the vehicle,
the entire engine compartment should be thoroughly cleaned before and
after the salting period.
Your Authorised Service Centre is able to provide the correct cleaning and
preserving products and has the necessary equipment. For this reason, we
recommend having this work performed by them.
The anti-corrosion protection is usually removed if the engine compartment
is cleaned with grease removing solutions, or if you have the engine cleaned.
If this job is carried out, you should ensure that all surfaces, seams, joints and
components in the engine compartment are given anti-corrosion treatment
afterwards.
WARNING
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
•Switch off the engine, apply the parking brake firmly and always
remove the key from the ignition before you open the bonnet.
•Allow the engine to cool before you clean the engine compartment.
•Do not clean the underside of vehicle, wheel arches without protecting
your hands and arms. You may cut yourself on sharp-edged metal parts.
Failure to comply could result in injury.
•Moisture, ice and salt on the brakes may affect braking efficiency. Risk
of accident. If possible, avoid sudden braking immediately after washing
the vehicle.
•Never touch the radiator fan. It is temperature-controlled and could
start automatically, even when the key is removed from the ignition!
For the sake of the environment
Fuel, grease and oil deposits could be removed when the engine is washed.
The polluted water must be cleaned in an oil separator. For this reason,
engine washing should be carried out only by a qualified workshop or a suit-
able filling station.
Care of the vehicle interior
Cleaning plastic parts and the dash panel
– Use a clean, damp cloth to clean plastic parts and the dash
panel.
– If this does not provide satisfactory results, use a special
solvent-free plastic cleaning product.
WARNING
Never clean the dash panel and surface of the airbag module with cleansers
containing solvents. Solvents cause the surface to become porous. If the
airbag inflates, disintegrating plastic parts can cause substantial injuries.
WARNING (continued)

Checking and refilling levels207
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Petrol
Petrol types
The correct petrol types are listed on a sticker inside the fuel
tank flap.
Only unleaded petrol, corresponding to the standard DIN EN 228, may be
used for vehicles with catalytic converters (EN = “European Norm”).
Petrol types are categorised according to their octane number, e. g. 91, 95,
98 or 99. You may use petrol with a higher octane number than the one
recommended for your engine. However this has no advantage in terms of
fuel consumption and engine power.
Caution
If you must drive with fuel of a lower octane rating than recommended then
avoid driving at high engine speeds or putting demand on your engine.
Otherwise engine damage may occur. Fill up with petrol with the correct
octane number as soon as possible.
For the sake of the environment
Just one full tank of leaded fuel would seriously impair the efficiency of the
catalytic converter.
Petrol additives
The quality of the petrol influences running behaviour, performance and
service life of the engine. For this reason you should use good quality petrol
containing additives. These additives will help to prevent corrosion, keep the
fuel system clean and prevent deposits from building up in the engine.If good quality petrol with additives is not available, this may cause engine
problems (e.g. engine does not run smoothly or problems occur when
starting).
Not all petrol additives are effective. We recommend you use only “genuine
SEAT fuel additives for petrol engines”. They are available from SEAT Service
Centres
®. Your dealer will also be able to provide information on how to use
them.
Do not mix other fuel additives with the fuel.
Diesel
Diesel*
Diesel fuel must correspond to DIN EN 590 (EN = “European standard”). It
must have a cetane number (CN) of at least 51. The cetane number indicates
the ignition quality of the diesel fuel.
Notes on filling with fuel Ÿpage 206.
RME fuel*
Only vehicles fitted with special equipment may drive with
biodiesel fuel in accordance with standard DIN EN 14214.
The biodiesel fuel must comply with the DIN EN 14.214 (FAME) Standard.
•Biodiesel is a methylester obtained from rapeseed oil.
•DIN is a German abbreviation for “ Deutsches Institut für Normug e.V.”, the
German standards institute.
•EN means European Norm.

Checking and refilling levels209
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a Filter pre-heater
Your vehicle is fitted with a fuel filter pre-heater, making it well equipped for
operation in winter. This ensures that the fuel system remains operational to
approx. -24°C, provided you use winter-grade diesel which is safe to -15°C .
However, if the fuel has waxed to such an extent that the engine will not start
at temperatures of under -24°C, simply place the vehicle in a warm place for
a while.
Caution
Do not mix fuel additives (“thinners”, or similar additives) with diesel fuel.
Supplementary heating system
The supplementary heating system raises the calorific capacity of the heating
while the engine is running and outside temperatures are very low. The
supplementary heating system connects and disconnects automatically.
The exhaust fumes produced are eliminated through an exhaust pipe below
the vehicle.
Note
•For short journeys, very low outside temperatures and a percentage of
biodiesel fuel of over 50 % too much smoke may be produced.
•Every time the engine is switched off, the fan continues to operate for a
short time in order to more quickly cool the heater. When refuelling it is not
necessary to wait until the fan stops operating.
Working in the engine compartment
Safety instructions on working in the engine compartment
Any work carried out in the engine compartment or on the
engine must be carried out cautiously.
Before starting any work on the engine or in the engine compart-
ment:
1. Switch off the engine and remove the key from the ignition.
2. Apply the handbrake.
3. Move the gear stick to neutral or the selector lever to position P.
4. Wait for the engine to cool down.
5. Keep children away from the vehicle.
6. Raise the bonnet Ÿpage 97.
You should not do any work in the engine compartment unless you know
exactly how to carry out the jobs and have the correct tools! Have the work
carried out by a qualified workshop if you are uncertain.
All service fluids and consumables, e.g. coolant, engine oil, spark plugs and
batteries, are being constantly developed. SEAT provides a constant flow of
information to the Authorised Service Centres concerning modifications. For
this reason we recommend that you have service fluids and consumables
replaced by an Authorised Service Centre. Please observe the relevant
instructions Ÿpage 202. The engine compartment of any motor vehicle is a
hazardous area. Ÿ.

Checking and refilling levels 212
•Never open the bonnet if you see steam, smoke or coolant escaping
from the engine compartment.
•Wait until no more steam, smoke or coolant is emitted from the bonnet,
then carefully open the bonnet.
•Make sure that the support rod is inserted securely and properly in the
holder in the open bonnet.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Closing the bonnet
Closing the bonnet
1. To close the bonnet, pull it down to overcome the gas strut pres-
sure.
2. Make sure that the bonnet catches onto its clasp. Do not press
down Ÿ
If the bonnet does not close properly, open it again and close it properly.
WARNING
If the bonnet is not closed properly, it could open while you are driving and
completely obscure your view of the road. Risk of accident.
•After closing the bonnet, always check that it is properly secured. The
bonnet must be flush with the surrounding body panels.
•If you notice that the bonnet latch is not secured when the vehicle is
moving, stop the vehicle immediately and close the bonnet properly. Risk
of accident.
Engine oil
Engine oil specifications
The engine oil used must conform with exact specifications.
Specifications
The engine comes with a special, high quality, multi grade oil that can be
used in all seasons of the year except for those regions affected by extreme
cold.
As the use of good quality oil is necessary for the correct operation and long
service life of the engine, when it becomes necessary to replenish or change
the oil, always use an oil that complies to the VW standards.
If it is not possible to find oil conforming to the VW standards then oil
conforming to the ACEA or API standards with an appropriate viscosity at
atmospheric temperature should be used instead. The use of this type of oil
may have some repercussions on the performance of the engine for example,
long starting time, increased consumption and a higher emission level.
If a top up is required then different oils may be mixed as long as they all
conform to the VW standards.
The specifications (VW standards) set out in the following page should
appear on the container of the service oil; the container will display together
the different standards for petrol and diesel engines, the oil can be used for
both types of engines.
WARNING (continued)

Checking and refilling levels 214
Note
Before a long trip, we recommend finding an engine oil that conforms to the
corresponding VW specifications and keeping it in the vehicle. This way, the
correct engine oil will always be available for a top-up if needed.
Checking the engine oil level
The engine oil dipstick indicates the level of the oil.
Before opening the bonnet, read and observe the warnings
Ÿpage 209.
– Park the vehicle on an even surface.
– Stop the engine and wait a few minutes for the oil to drain back
into the sump.
– Raise the bonnet Ÿpage 211.– Pull out the dipstick.
– Wipe the dipstick with a cloth and insert it again, pushing it in as
far as it will go.
– Then pull the dipstick out again and check the oil level .
– Replace the dipstick, pushing it in as far as it will go.
If the oil level is in area Ÿfig. 142 , you must not top up with oil.
If the oil level is in area , you may top up with oil (approx. 0,5 l).
If the oil level is in area , you must top up with oil (approx. 1,0 l).
It is normal for the engine to consume a certain amount of oil. Consumption
can be up to 1.0 litres per 1,000 km. For this reason the engine oil level must
be checked at regular intervals, preferably when filling the tank and before a
journey.
When the engine is working hard, for instance during sustained high-speed
motorway cruising in summer, when towing a trailer or climbing on mountain
passes, the oil level should preferably be kept within area (but not above).
WARNING
Special care must be taken when working on the engine or on components
in the engine compartment.
•When working in the engine compartment, always observe the safety
warnings Ÿpage 209
Caution
If the oil level is above the area do not start the engine. This could result
in damage to the engine and catalytic converter. Contact SEAT Service Centre ®.
Fig. 142 Dipstick
AA
AB
AC
AA
AA

Checking and refilling levels215
Safety FirstOperating instructionsTips and MaintenanceTe c h n i c a l D a t a
Topping up engine oil E
Top up gradually with small quantities of oil.
Before opening the bonnet, read and observe the warnings Ÿ in
“Safety instructions on working in the engine compartment” on
page 209 .
– Unscrew cap from oil filler opening Ÿfig. 143.
– Top-up oil in small amounts, using the correct oil.
– To avoid over-filling with engine oil, you should top-up using
small quantities, wait a while and check the oil level before
adding any more oil.
– As soon as the oil level is in area , carefully close the cap.
The position of the oil filler opening is shown in the corresponding engine
compartment diagram Ÿpage 262.Engine oil specification Ÿpage 212.
WARNING
Oil is highly inflammable! Ensure that no oil comes into contact with hot
engine components when topping up.
Caution
If the oil level is above the area do not start the engine. This could result
in damage to the engine and catalytic converter. Contact a qualified work-
shop.
For the sake of the environment
The oil level must never be above area . Otherwise oil can be drawn in
through the crankcase breather and escape into the atmosphere via the
exhaust system.
Changing engine oil
The engine oil must be changed at the intervals given in the
service schedule.
We recommend that you have the engine oil changed by an Authorised
Service Centre.
The two different oil change intervals are shown in the Inspection and Main-
tenance Plan.
WARNING
Only change the oil yourself if you have the specialist knowledge required!
Fig. 143 In the engine
compartment: Engine oil
filler cap
AB
AA
AA
