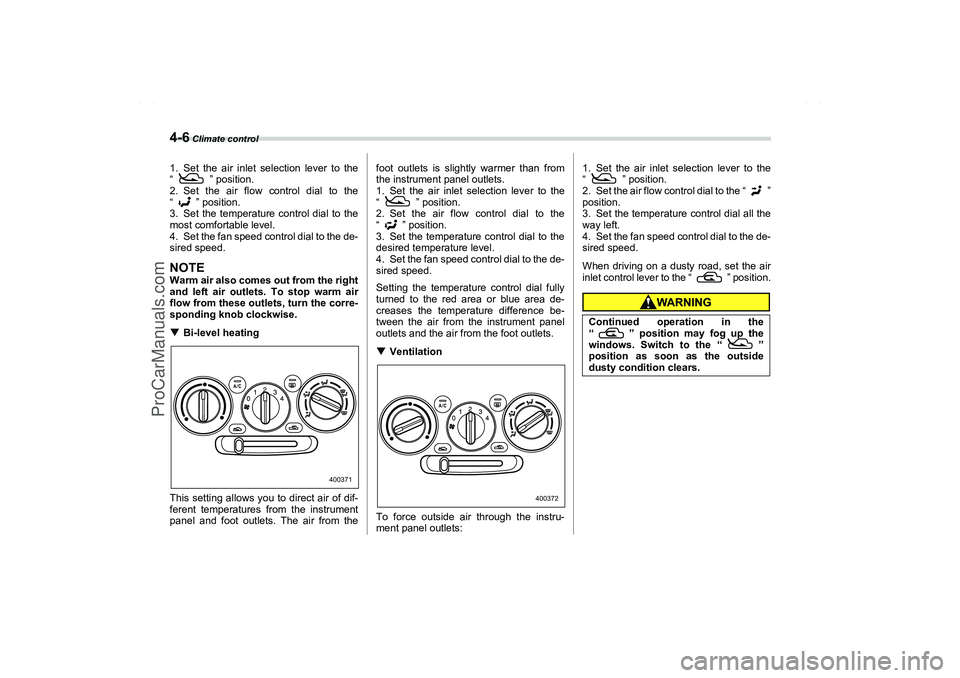

4-6
Climate control
1. Set the air inlet selection lever to the
“ ” position.
2. Set the air flow control dial to the
“ ” position.
3. Set the temperature control dial to the
most comfortable level.
4. Set the fan speed control dial to the de-
sired speed.NOTEWarm air also comes out from the right
and left air outlets. To stop warm air
flow from these outlets, turn the corre-
sponding knob clockwise.
Bi-level heating
This setting allows you to direct air of dif-
ferent temperatures from the instrument
panel and foot outlets. The air from thefoot outlets is slightly warmer than from
the instrument panel outlets.
1. Set the air inlet selection lever to the
“ ” position.
2. Set the air flow control dial to the
“ ” position.
3. Set the temperature control dial to the
desired temperature level.
4. Set the fan speed control dial to the de-
sired speed.
Setting the temperature control dial fully
turned to the red area or blue area de-
creases the temperature difference be-
tween the air from the instrument panel
outlets and the air from the foot outlets.
Ventilation
To force outside air through the instru-
ment panel outlets:1. Set the air inlet selection lever to the
“ ” position.
2. Set the air flow control dial to the “ ”
position.
3. Set the temperature control dial all the
way left.
4. Set the fan speed control dial to the de-
sired speed.
When driving on a dusty road, set the air
inlet control lever to the “ ” position.
400371
400372
Continued operation in the
“ ” position may fog up the
windows. Switch to the “ ”
position as soon as the outside
dusty condition clears.
A1910BE-A-GSAAB.book Page 6 Tuesday, September 6, 2005 8:37 AM
ProCarManuals.com
5-14
Audio
Tone control
The volume control dial (8) normally func-
tion as volume control. The dial becomes
a control for Bass, Midrange or Treble
when you select the appropriate tone con-
trol mode.
Choose desired level for each mode by
turning the volume control dial. The con-
trol function returns to volume control
mode after approximately 5 seconds.
To change control modes: Each brief
press of the “TONE” button (3) changes
control modes in the following sequence
starting from bass control mode. (When
the radio is first turned on, the control
mode is in the volume control.)
Fader and balance control
The volume control dial (8) normally func-
tion as volume control. The dial become
the controls for Fader or Balance when
you select the appropriate fader and bal-
ance control mode.
Choose desired setting for each mode by
turning the volume control dial. The con-
trol function returns to volume control
mode after approximately 5 seconds.To change control modes: Each brief
press of the “BAL” button (4) changes
control modes in the following sequence
starting from fader control mode. (When
the radio is turned on, the control mode is
in the volume control.)
Display illumination dimness can-
cellation (BRIGHT)
The brightness of the radio display dims
when the light switch is in the “
” or
“
” positions. If this makes the display
difficult to read, press the volume dial for
more than 1.5 seconds to return the dis-
play to original brightness.
Subsequently pressing the volume dial
again for more than 1.5 seconds or if you
can safely do so, turning the light switch to
the OFF position and back to the “
”
or “
” position makes the radio display
dim again.
FM/AM selection button
Push the “FM” (1) or “AM” (2) button when
the radio is off to turn on the radio.
Push the “FM” or “AM” button when the ra-
dio is on to select FM1, FM2 or AM recep-
tion.Stereo indicator
The stereo indicator “ST” will come on
when an FM stereo broadcast is received.
Manual tuning (TUNE)
: Tuning to a higher frequency: Tuning to a lower frequency: Seeking the next higher station: Seeking the next lower station
Manual tuning
Turn the tuning knob (6) clockwise and re-
lease it immediately to increase the tuning
frequency and turn the tuning knob coun-
terclockwise and release it immediately to
decrease the tuning frequency.
Each time the knob is turned, the frequen-
cy changes 10 kHz in the AM waveband
and 0.2 MHz in the FM waveband.
VOLUME BASS TREBLEMIDDLE
FADER BALANCE VOLUME
500248
