· 121 · · 120 ·

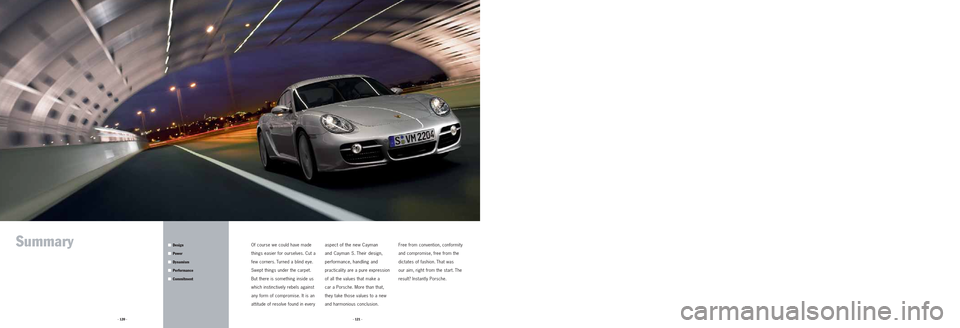

SummaryOf course we could have made
things easier for ourselves. Cut a
few corners. Turned a blind eye.
Swept things under the carpet.
But there is something inside us
which instinctively rebels against
any form of compromise. It is an
attitude of resolve found in everyaspect of the new Cayman
and Cayman S. Their design,
performance, handling and
practicality are a pure expression
of all the values that make a
car a Porsche. More than that,
they take those values to a new
and harmonious conclusion.Free from convention, conformity
and compromise, free from the
dictates of fashion. That was
our aim, right from the start. The
result? Instantly Porsche.
Design
Power
Dynamism
Performance
Commitment
· 122 ·
Technical data
Cayman Cayman S
Engine
TypeBoxer Boxer
InstallationMid-mounted Mid-mounted
Cylinders66
Displacement2,687 cm33,387 cm3
Max. power (DIN) 180 kW (245 bhp) 217 kW (295 bhp)
at rpm6,500 6,250
Max. torque273 Nm 340 Nm
at rpm4,600 – 6,000 4,400 – 6,000
Compression ratio11.3 :1 11.1:1
Transmission
LayoutRear-wheel drive Rear-wheel drive
Manual gearbox 5-speed 6-speed
Tiptronic S (optional)5-speed 5-speed
Chassis
Front axleMcPherson-strut suspension McPherson-strut suspension
Rear axleMcPherson-strut suspension McPherson-strut suspension
SteeringVariable steering ratio, Variable steering ratio,
power-assisted (hydraulic) power-assisted (hydraulic)
Turning circle11. 1 m 11. 1 m
Brakes4-piston monobloc aluminium fixed 4-piston monobloc aluminium fixed
calipers front and rear, discs calipers front and rear, discs
internally vented and cross-drilled internally vented and cross-drilled
Vehicle stability systemPSM (with ABS 8.0) PSM (with ABS 8.0)
Wheels Front: 6.5J x 17 Front: 8J x 18
Rear: 8J x 17 Rear: 9J x 18
Tyres Front: 205/55 ZR 17 Front: 235/40 ZR 18
Rear: 235/50 ZR 17 Rear: 265/40 ZR 18
· 123 ·The new Cayman and the Cayman S |
Technical data
Cayman Cayman S
WeightsManual gearbox/ Tiptronic S Manual gearbox/ Tiptronic S
Unladen weight (DIN)1,300 kg/1,360 kg 1,350 kg/1,390 kg
Unladen weight (EC)* 1,375 kg/1,435 kg 1,425 kg/1,465 kg
Permissible gross weight1,620 kg/1,665 kg 1,630 kg/1,670 kg
Performance Manual gearbox/ Tiptronic S Manual gearbox/ Tiptronic S
Top speed258 km / h (160 mph)/ 275 km / h (171 mph)/
253 km / h (157 mph) 267 km / h (166 mph)
0 –100 km / h (0 – 62 mph) 6.1 secs/7.0 secs 5.4 secs/6.1 secs
Flexibility 80 –120 km / h
(50 –75 mph)6.9 secs/7.2 secs (in 4th gear) 6.6 secs/6.3 secs (in 5th/4th gear)
Flexibility 100 – 200 km / h
(62 –124 mph) 21.5 secs/22.1 secs (in 4th gear)18.0 secs/17.8 secs (in 5th/4th gear)
Fuel consumption/emissionsManual gearbox/ Tiptronic S Manual gearbox/ Tiptronic S
In accordance with 80 / 1268 /EC as valid at time of going to press
Urban in l / 100 km (mpg)13.8 (20.5)/14.9 (19.0) 15.3 (18.5)/16.3 (17.3)
Extra urban in l / 100 km (mpg)6.8 (41.5)/7.7 (36.7) 7.8 (36.2)/7.9 (35.8)
Combined in l / 100 km (mpg)9.3 (30.4)/10.1 (28.0) 10.6 (26.6)/11.0 (25.7)
CO2emissions (g /km)222/242 254/262
Dimensions /aerodynamics
Length4,341 mm 4,341 mm
Width1,801 mm 1,801 mm
Height1,305 mm 1,305 mm
Wheelbase2,415 mm 2,415 mm
Luggage compartment150 litres/260 litres 150 litres/260 litres
volume front /rear
Tank capacity (refill volume)64 litres 64 litres
Drag coefficient0.29/0.29 0.29/0.30
* The unladen weight (EC) complies with the relevant EC Directives and is valid for standard specification vehicles only.
Some optional equipment can increase this weight. The figure specified above includes 68 kg representing the driver and 7 kg for luggage.
· 125 · · 124 ·The new Cayman and the Cayman S |
Index
A
Active safety 58
Adaptive sports seats 75
Air conditioning 75
Anti-theft protection 67
B
Bi-Xenon lighting system with
headlight cleaning 59
BOSE
®Surround Sound
System 84
Braking system 60
C
CD autochanger (CDC- 4) 87
CD radio (CDR-24) 83
Child seats 67
Colours 96
Cruise control 75
Cylinder-specific
knock control 40
D
Driver and passenger airbags 66
E
Electrically adjustable seats 74
Electronic logbook 87
Engine and gearbox mounts 42
Engine cooling 36
Engine management system
with electronic throttle
(Motronic ME7.8) 37
Exhaust emission control 90
Exhaust system 40
Extended navigation module 87
F
Factory collection 116
Fuel system 90
Index
H
HomeLink®
garage-door opener 76
I
Ignition system 40
Instruments 72
Intake manifold, two-stage
resonance 38
Integrated dry-sump
lubrication 36
L
Load-carrying capability 79
Luggage compartment, front 79
Luggage compartment, rear 79
M
Manual gearbox with
dual-mass flywheel 44
Materials and recycling 90
MOST
®bus 83
N
Navigation system 86
Noise 90
O
Oil-level indicator 36
On-board computer 86
Optional equipment 94
P
ParkAssist 77
Passive safety 65
Porsche Active Suspension
Management (PASM) 52
Porsche Ceramic Composite
Brake (PCCB) 62
Porsche Communication
Management (PCM) 86
Porsche Side Impact
Protection (POSIP) 66
Porsche Stability
Management (PSM) 64
R
Rear screen 77
Roof transport system 81
S
Seat heating 75
Seats 74
Service 118
Servicing 41, 91
Six-cylinder boxer engine 30
Sound Package Plus 83
Sport Chrono Package 54
Sport Chrono Package Plus 55
Sports exhaust system 41
Sports seats 74
Steering 50
Steering wheel 73
Storage compartments 80
Suspension 48
T
Technical data 122
Telephone module 87
Telephone preparation 83
Tiptronic S 45
Tyre Pressure Monitoring
(TPM) 51
V
VarioCam Plus 39
Vehicle tracking system 67
W
Water-repellent side windows 76
‘Welcome Home’ lighting 76
Wheels 51
Wipers, front 76
Wiper, rear 77
The models featured in this
publication are approved for road
use in Germany. Some items of
equipment are available as extra-
cost options only. The availability
of models and options may vary
from market to market due to
local restrictions and regulations.
For information on standard and
optional equipment, please consult
your Porsche Centre. Porsche
reserves the right to alter
specifications and other product
information without prior notice.
Colours may differ from those
illustrated. Errors and omissions
excepted.
Porsche, the Porsche Crest, 911,
Boxster, Carrera, Tequipment,
Tiptronic, PCCB, PCM and PSM
are registered trademarks of
Dr. Ing. h.c. F. Porsche AG.
Dr. Ing. h.c. F. Porsche AG
Porscheplatz 1
D -70435 Stuttgart
www.porsche.com
Edition: 05/06
Printed in Germany
WVK 306 820 07 E/ WW
