Electrical System
Add-On Electrical Equipment
Notice:Don’t add anything electrical to your vehicle
unless you check with your dealer rst. Some
electrical equipment can damage your vehicle and
the damage wouldn’t be covered by your warranty.
Some add-on electrical equipment can keep other
components from working as they should.
Your vehicle has an airbag system. Before attempting to
add anything electrical to your vehicle, seeServicing
Your Airbag-Equipped Vehicle on page 1-65.
Headlamp Wiring
The headlamp circuit is protected by individual fuses in
the underhood fuse block. An electrical overload will
cause the fuse to blow. If this happens, have the
headlamp system checked right away.
Windshield Wiper Fuses
The windshield wiper motor is protected by a circuit
breaker and a fuse. If the motor overheats due to heavy
snow, etc., the wiper will stop until the motor cools. If
the overload is caused by some electrical problem, have
it xed.
Power Windows and Other Power
Options
Circuit breakers in the fuse panel protect the power
windows and other power accessories. When the current
load is too heavy, the circuit breaker opens and
closes, protecting the circuit until the problem is xed.
5-111

Underhood Fuse Block
The underhood fuse block
is located on the
passenger’s side of the
vehicle in the engine
compartment.
To remove the fuse block cover, press in on the tab at
the bottom of the cover and pull up.
Fuses Usage
1 Driver’s Side High-Beam Headlamp
2 Passenger’s Side High-Beam Headlamp
3 Driver’s Side Low-Beam Headlamp
4 Passenger’s Side Low-Beam Headlamp
5 Windshield Wipers/Washer
6 Washer/Remote Vehicle Current
7 Fog Lamps (Option)
9 Airbag
10 Accessory Power
11 Horn
V6 Engine
5-114

Fuses Usage
12 Emission
13 Air Conditioning Clutch
14 Oxygen Sensor
15 Powertrain Control Module
16Powertrain Control Module/Electronic
Throttle Control
17 Electronic Throttle Control
18 Display
19 Anti-lock Brake Solenoid
20 Fuel Injection
21 Transmission Solenoid
22 Fuel Pump
23 Anti-lock Brakes
24 Electronic Ignition
26 Battery Main 1
27 Battery Main 2
28 Battery Main 3
29 Fan 1
30 Battery Main 4
31 Anti-lock Brake Motor
32 Fan 2
33 Starter
56 Air PumpRelays Usage
34 High-Beam Headlamps
35 Low-Beam Headlamps
36 Fog Lamps (Option)
37 Ignition 1
38 Air Conditioner Compressor
39 Horn
40 Powertrain
41 Fuel Pump
42 Fan 1
43 Fan 3
44 Windshield Wiper/High
45 Windshield Wiper
46 Fan 2
48 Crank
49 Spare Fuse
50 Spare Fuse
51 Spare Fuse
52 Blank
53 Blank
54 Blank
55 Fuse Puller
§Air Conditioning Clutch
5-115

Audio System(s) (cont.)
Navigation/Radio System, see
Navigation Manual..................................3-139
Radio with CD...................................3-96, 3-107
Radio with Six-Disc CD..............................3-123
Setting the Time..........................................3-96
Theft-Deterrent Feature...............................3-139
Understanding Radio Reception...................3-140
XM™ Satellite Radio Antenna System...........3-142
Automatic Transaxle
Fluid..........................................................5-23
Operation...................................................2-25
B
Backglass Antenna........................................3-141
Battery..........................................................5-45
Exterior Lighting Battery Saver......................3-17
Run-Down Protection...................................3-20
Before Leaving on a Long Trip.........................4-24
Brake
Anti-Lock Brake System (ABS)........................ 4-7
Emergencies................................................ 4-8
Parking......................................................2-30
System Warning Light..................................3-42
Brakes..........................................................5-42
Braking........................................................... 4-6
Braking in Emergencies..................................... 4-8
Break-In, New Vehicle.....................................2-21Bulb Replacement...........................................5-53
Back-Up Lamps...........................................5-58
Front Turn Signal, Parking and Fog Lamps.....5-56
Halogen Bulbs............................................5-53
Headlamp Aiming........................................5-50
Replacement Bulbs......................................5-59
Taillamps, Turn Signal, and Stoplamps............5-57
Buying New Tires...........................................5-72
C
California Fuel.................................................. 5-6
California Proposition 65 Warning....................... 5-3
Canadian Owners................................................ ii
Capacities and Specications..........................5-118
Carbon Monoxide...................2-13, 2-33, 4-28, 4-40
Care of
Safety Belts..............................................5-104
Your CD Player.........................................3-141
Your CDs .................................................3-141
Center Console Storage Area...........................2-42
Chains, Tire...................................................5-77
Check
Engine Light...............................................3-47
Checking Things Under the Hood......................5-10
Chemical Paint Spotting.................................5-108
Child Restraints
Child Restraint Systems...............................1-36
Infants and Young Children...........................1-33
2

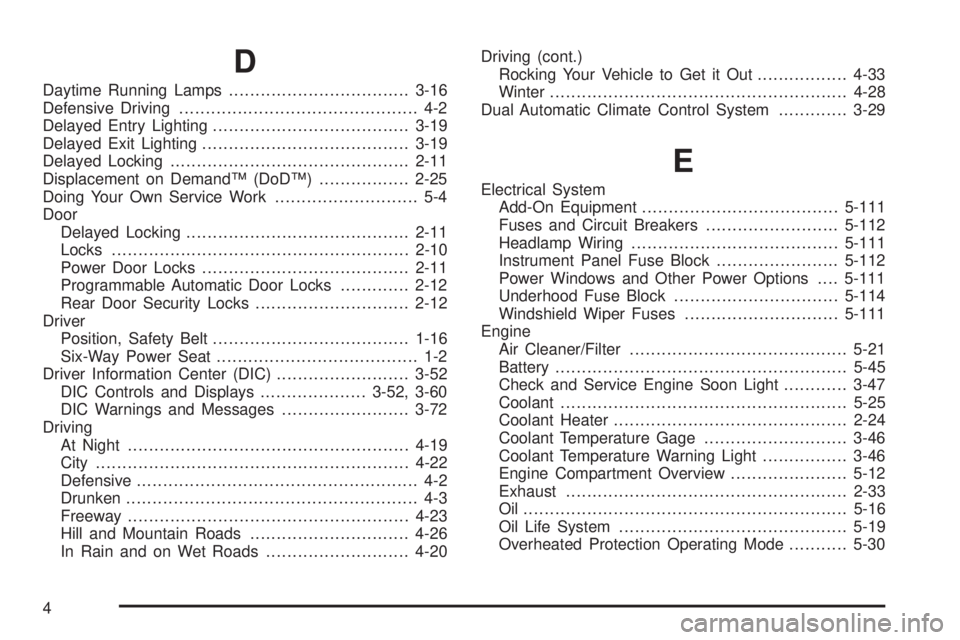

D
Daytime Running Lamps..................................3-16
Defensive Driving............................................. 4-2
Delayed Entry Lighting.....................................3-19
Delayed Exit Lighting.......................................3-19
Delayed Locking.............................................2-11
Displacement on Demand™ (DoD™).................2-25
Doing Your Own Service Work........................... 5-4
Door
Delayed Locking..........................................2-11
Locks........................................................2-10
Power Door Locks.......................................2-11
Programmable Automatic Door Locks.............2-12
Rear Door Security Locks.............................2-12
Driver
Position, Safety Belt.....................................1-16
Six-Way Power Seat...................................... 1-2
Driver Information Center (DIC).........................3-52
DIC Controls and Displays....................3-52, 3-60
DIC Warnings and Messages........................3-72
Driving
At Night.....................................................4-19
City...........................................................4-22
Defensive..................................................... 4-2
Drunken....................................................... 4-3
Freeway.....................................................4-23
Hill and Mountain Roads..............................4-26
In Rain and on Wet Roads...........................4-20Driving (cont.)
Rocking Your Vehicle to Get it Out.................4-33
Winter........................................................4-28
Dual Automatic Climate Control System.............3-29
E
Electrical System
Add-On Equipment.....................................5-111
Fuses and Circuit Breakers.........................5-112
Headlamp Wiring.......................................5-111
Instrument Panel Fuse Block.......................5-112
Power Windows and Other Power Options....5-111
Underhood Fuse Block...............................5-114
Windshield Wiper Fuses.............................5-111
Engine
Air Cleaner/Filter.........................................5-21
Battery.......................................................5-45
Check and Service Engine Soon Light............3-47
Coolant......................................................5-25
Coolant Heater............................................2-24
Coolant Temperature Gage...........................3-46
Coolant Temperature Warning Light................3-46
Engine Compartment Overview......................5-12
Exhaust.....................................................2-33
Oil .............................................................5-16
Oil Life System...........................................5-19
Overheated Protection Operating Mode...........5-30
4

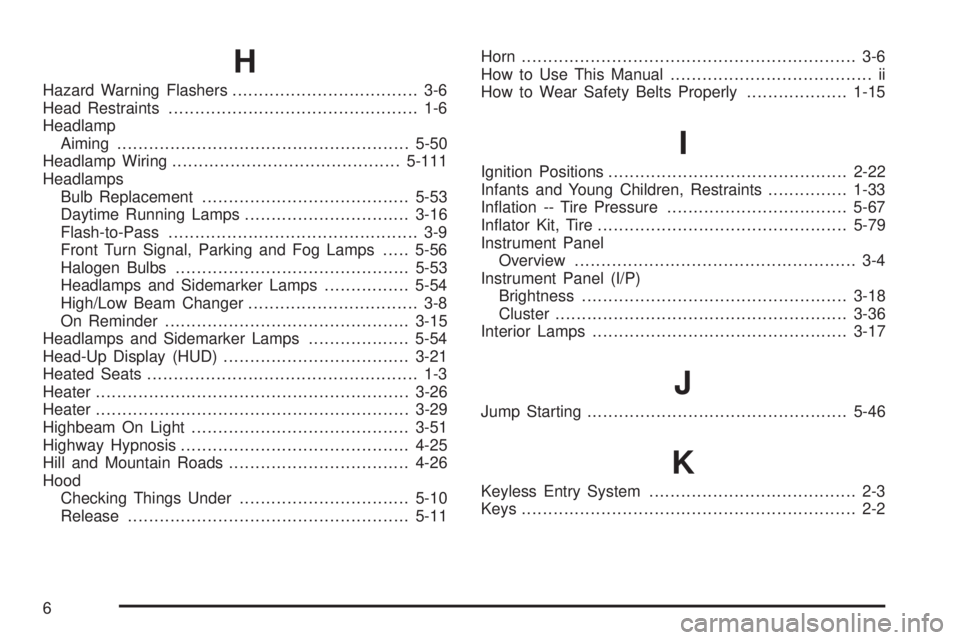

H
Hazard Warning Flashers................................... 3-6
Head Restraints............................................... 1-6
Headlamp
Aiming.......................................................5-50
Headlamp Wiring...........................................5-111
Headlamps
Bulb Replacement.......................................5-53
Daytime Running Lamps...............................3-16
Flash-to-Pass............................................... 3-9
Front Turn Signal, Parking and Fog Lamps.....5-56
Halogen Bulbs............................................5-53
Headlamps and Sidemarker Lamps................5-54
High/Low Beam Changer................................ 3-8
On Reminder..............................................3-15
Headlamps and Sidemarker Lamps...................5-54
Head-Up Display (HUD)...................................3-21
Heated Seats................................................... 1-3
Heater...........................................................3-26
Heater...........................................................3-29
Highbeam On Light.........................................3-51
Highway Hypnosis...........................................4-25
Hill and Mountain Roads..................................4-26
Hood
Checking Things Under................................5-10
Release.....................................................5-11Horn............................................................... 3-6
How to Use This Manual...................................... ii
How to Wear Safety Belts Properly...................1-15
I
Ignition Positions.............................................2-22
Infants and Young Children, Restraints...............1-33
Ination -- Tire Pressure..................................5-67
Inator Kit, Tire...............................................5-79
Instrument Panel
Overview..................................................... 3-4
Instrument Panel (I/P)
Brightness..................................................3-18
Cluster.......................................................3-36
Interior Lamps................................................3-17
J
Jump Starting.................................................5-46
K
Keyless Entry System....................................... 2-3
Keys............................................................... 2-2
6
