2006 Peugeot Expert Dag Owner's Manual

Access and starting56 -
THE KEYS
The keys allow you to switch on the
ignition and to independently operate
the locks on the doors and the fuel
tank cap.
Central locking
From one of the two front doors, the
keys allow you to lock and unlock the
front, side and rear doors. If one of
the doors is open, the central locking
does not work.
The remote control performs the
same functions at a distance.
Changing the battery of the
remote control
If the direction indicators do not
come on when the button is pressed,
change the battery.
To do this, remove the screw and un-
clip the casing using a coin at the ring
(CR 1620/3 volt battery).
If the remote control does not work
after the battery has been changed,
reprogram the remote control.
The remote control
Locking
Press button A to lock the vehicle.
This is confirmed by fixed lighting of
the direction indicators for approxi-
mately two seconds.
Unlocking
Press button B to unlock the vehicle.
This is confirmed by rapid flashing of
the direction indicators.
Key in ignition
A buzzer sounds on opening the driv-
er's door, if the key has been left in
the ignition.
Programming the remote
control
 Switch off the ignition.
 Switch the ignition on again.
 Press button A immediately for a
few seconds.
 Switch off the ignition and remove
the remote control key from the ig-
nition lock. The remote control is
now working again.

57Access and starting-
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or jour-
ney, however, it is advisable to take
it with you along with your personal
papers.Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your
PEUGEOT dealer can rapidly supply
you with new keys.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more difficult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range of
your vehicle.
You run the risk of stopping it from
working and the remote control would
have to be reprogrammed.
When purchasing a second-hand ve-
hicle:
- ensure that you are given the confi-
dential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Do not make any modifications to the
electronic engine immobiliser sys-
tem.
If the system does not function
correctly,
contact a PEUGEOT deal-
er as soon as possible.

57Access and starting-
ELECTRONIC ENGINE
IMMOBILISER
This locks the engine management
system as soon as the ignition has
been switched off and therefore pre-
vents starting of the vehicle by any-
one who does not have the key.
The ignition key has an electronic
chip which has a special code. When
the ignition is switched on, the code is
recognised and starting is possible.
CONFIDENTIAL CARD
This is given to you on delivery of
your vehicle with the duplicate keys.
It contains the identification code
necessary for any work carried out
by a PEUGEOT dealer on the elec-
tronic immobiliser system. This code
is hidden by a film, which should be
removed only if necessary.
Keep your card in a safe place,
never inside the vehicle.
When undertaking a long trip or jour-
ney, however, it is advisable to take
it with you along with your personal
papers.Make a careful note of the
number of each key. This
number is coded on the la-
bel attached to the key.
If the keys are lost, your
PEUGEOT dealer can rapidly supply
you with new keys.
The high frequency remote control is
a sensitive system; do not operate it
while it is in your pocket as there is a
possibility that it may unlock the vehi-
cle, without you being aware of it.
The remote control does not operate
when the key is in the ignition, even
when the ignition is switched off, ex-
cept for reprogramming.
Driving with the doors locked may
make access to the passenger com-
partment by the emergency services
more difficult in an emergency.
As a safety precaution (with children
on board), remove the key from the
ignition when you leave the vehicle,
even for a short time. Do not repeatedly press the buttons
of your remote control out of range of
your vehicle.
You run the risk of stopping it from
working and the remote control would
have to be reprogrammed.
When purchasing a second-hand ve-
hicle:
- ensure that you are given the confi-
dential card;
- have the key codes memorised by a PEUGEOT dealer, to ensure that
the keys in your possession are
the only ones which can start the
vehicle.
Do not make any modifications to the
electronic engine immobiliser sys-
tem.
If the system does not function
correctly,
contact a PEUGEOT deal-
er as soon as possible.

Access and starting58 -
FRONT DOORS AND SLIDING
SIDE DOOR
Opening the doors from outside
(front and side doors)
Opening the doors from inside
(front doors)
The front door opening controls permit
complete unlocking of the vehicle.Locking/Unlocking from
the inside
Front door
To lock, lower button
A.
To unlock and open, lift button A and
pull the handle towards you.
The opening/closing control of one of
the front doors permits complete un-
locking/locking of the vehicle.
Sliding side door
The side door opening/closing control
only controls the door concerned.
To lock, push down button B.
To unlock and open, raise button B
and pull the handle towards the rear. Note:
the sliding side door can be
secured in the fully open position. To
release it, pull the handle firmly to-
wards the front and slide the door.
Side door child lock
This prevents opening of the side
door from the inside.
 Turn the control a quarter turn
using the ignition key.

59Access and starting-
HINGED REAR DOORS
Opening the doors from outside
To open, pull the rear right door handle
towards you and open the rear left door
by pulling the lever on the inside.Locking/Unlocking from inside
(Van)
To unlock and open, pull the handle
towards you.
To open the other door, push lever
A.
Note: when closing from the inside,
close the vehicle's left-hand door first
ensuring that lever A is in the vertical
position then close the right-hand
door. Opening the hinged rear doors
to 180°
To open the rear doors to 180°,
release the check strap
B towards
you when the door is partially open.
When closing the door, the check
strap hooks itself in place again
automatically.
Opening the doors from inside
Each opening control only unlocks
the door concerned.

Access and starting60 -

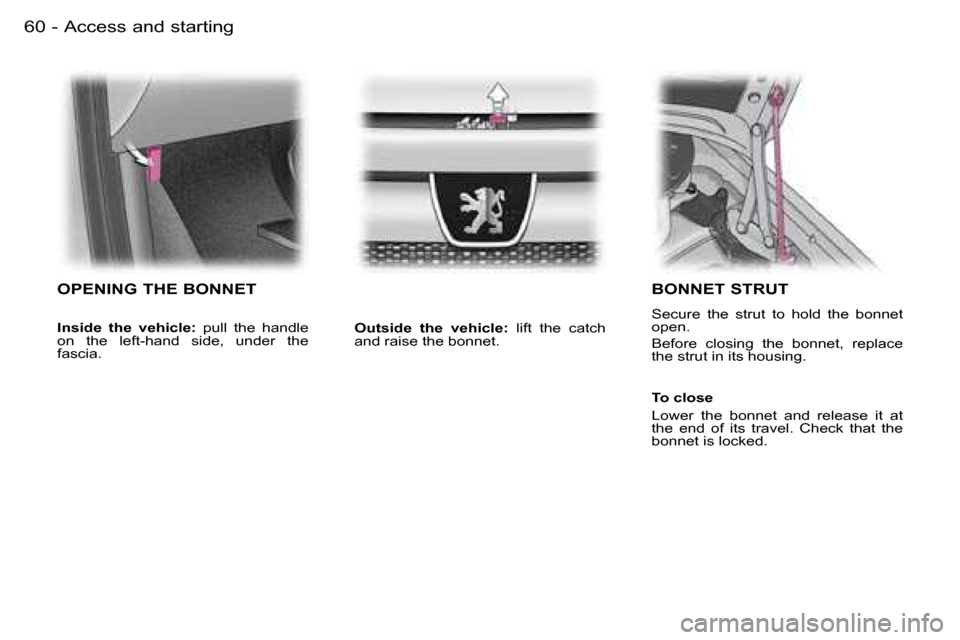

OPENING THE BONNET
Inside the vehicle: pull the handle
on the left-hand side, under the
fascia.
BONNET STRUT
Secure the strut to hold the bonnet
open.
Before closing the bonnet, replace
the strut in its housing.
To close
Lower the bonnet and release it at
the end of its travel. Check that the
bonnet is locked.
Outside the vehicle:
lift the catch
and raise the bonnet.

61Access and starting-
FILLING WITH FUEL
The engine must be switched off
when filling with fuel.
 Insert the key then turn it to the
left.
 Remove the cap.
An indication on the cap reminds you
which type of fuel to use.
When you fill your tank, do not con-
tinue after the third cut-off of the
pump. This could cause your vehicle
to malfunction.
The capacity of the tank is approx-
imately 80 litres.
 After filling the tank, lock the cap.
Low fuel level
When the minimum
fuel level in the tank is
reached, this warning
light comes on.
You have enough fuel remaining
to drive for approximately 30 miles
(50 km). Ensure that the right-hand
sliding side door is not
opened while you are filling
with fuel.
The key cannot be removed
from the lock until the cap has been
replaced on the fuel tank.
If the tank is filled with fuel which
does not conform to your vehicle's
engine, it is essential that the fuel
tank is drained before the engine is
switched on.

Visibility62 -
In good or rainy weather,
both day and night, the
front fog lamps and the rear
fog lamp are dazzling and
are prohibited.
Do not forget to switch them
off when they are no longer needed.
THE LIGHTS STALK
Front and rear lights
Selection is by turning ring A. The
status is confirmed by the indicator
light on the instrument panel.
Lights off
Side lights
Dipped/main beam
headlamps
Dipped/Main beam change
Pull the stalk fully towards you.
Lights on buzzer
With the ignition off, when the driver's
door is opened, a buzzer sounds if
you have left your lights on.
Front fog lamps and rear fog
lamp
Rotate the ring forwards to switch on
and backwards to switch off. The sta-
tus is confirmed by the indicator light
on the instrument panel.
Fog lamps off
Vehicles fitted with a rear fog
lamp (ring B) Rear fog lamp
This operates with the dipped/main
beam headlamps. The front fog lamps operate with the
side lights, the dipped headlamps
and the main beam headlamps.
Front and rear fog
lamps (2nd notch of
the ring forwards).
Front fog lamps (first notch
of the ring forwards)
Vehicles fitted with front fog lamps
and a rear fog lamp (ring C)
Direction indicators (flashers)
Left: downwards.
Right: upwards.
