2006 PEUGEOT 807 Owners Manual

Other accessories

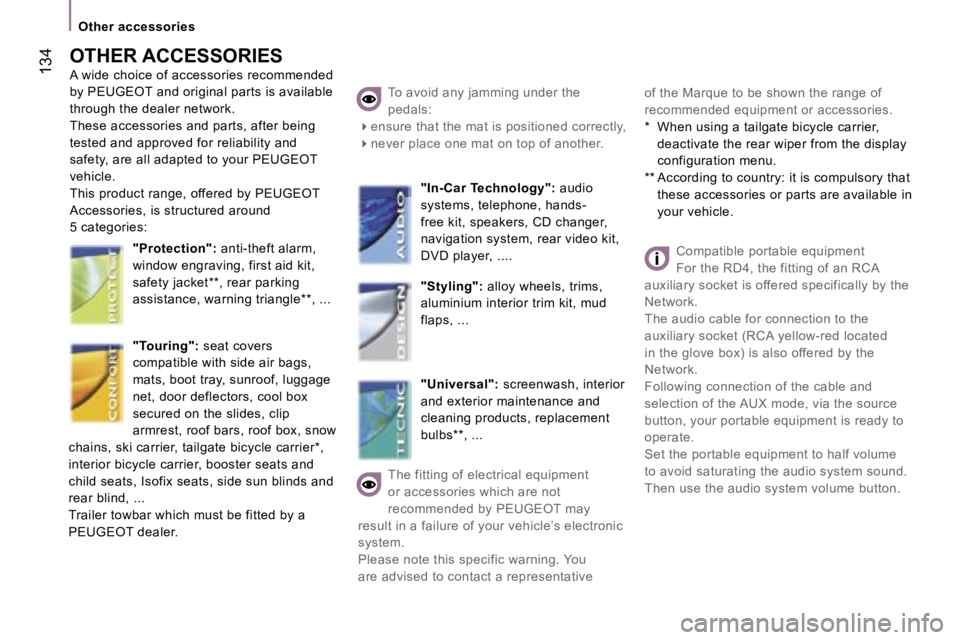

OTHER ACCESSORIES
A wide choice of accessories recommended
by PEUGEOT and original parts is available
through the dealer network.
These accessories and parts, after being
tested and approved for reliability and
safety, are all adapted to your PEUGEOT
vehicle.
This product range, offered by PEUGEOT
Accessories, is structured around
5 categories:
To avoid any jamming under the
pedals:
 ensure that the mat is positioned correctly,
 never place one mat on top of another.
134
The fitting of electrical equipment
or accessories which are not
recommended by PEUGEOT may
result in a failure of your vehicle’s electronic
system.
Please note this specific warning. You
are advised to contact a representative
"Protection": anti-theft alarm,
window engraving, first aid kit,
safety jacket**, rear parking
assistance, warning triangle**, ... "In-Car Technology":
audio
systems, telephone, hands-
free kit, speakers, CD changer,
navigation system, rear video kit,
DVD player, ....
"Styling": alloy wheels, trims,
aluminium interior trim kit, mud
flaps, ...
"Universal": screenwash, interior
and exterior maintenance and
cleaning products, replacement
bulbs**, ...
of the Marque to be shown the range of
recommended equipment or accessories.
* When using a tailgate bicycle carrier, deactivate the rear wiper from the display
configuration menu.
** According to country: it is compulsory that these accessories or parts are available in
your vehicle.
"Touring": seat covers
compatible with side air bags,
mats, boot tray, sunroof, luggage
net, door deflectors, cool box
secured on the slides, clip
armrest, roof bars, roof box, snow
chains, ski carrier, tailgate bicycle carrier*,
interior bicycle carrier, booster seats and
child seats, Isofix seats, side sun blinds and
rear blind, ...
Trailer towbar which must be fitted by a
PEUGEOT dealer.
Compatible portable equipment
For the RD4, the fitting of an RCA
auxiliary socket is offered specifically by the
Network.
The audio cable for connection to the
auxiliary socket (RCA yellow-red located
in the glove box) is also offered by the
Network.
Following connection of the cable and
selection of the AUX mode, via the source
button, your portable equipment is ready to
operate.
Set the portable equipment to half volume
to avoid saturating the audio system sound.
Then use the audio system volume button.

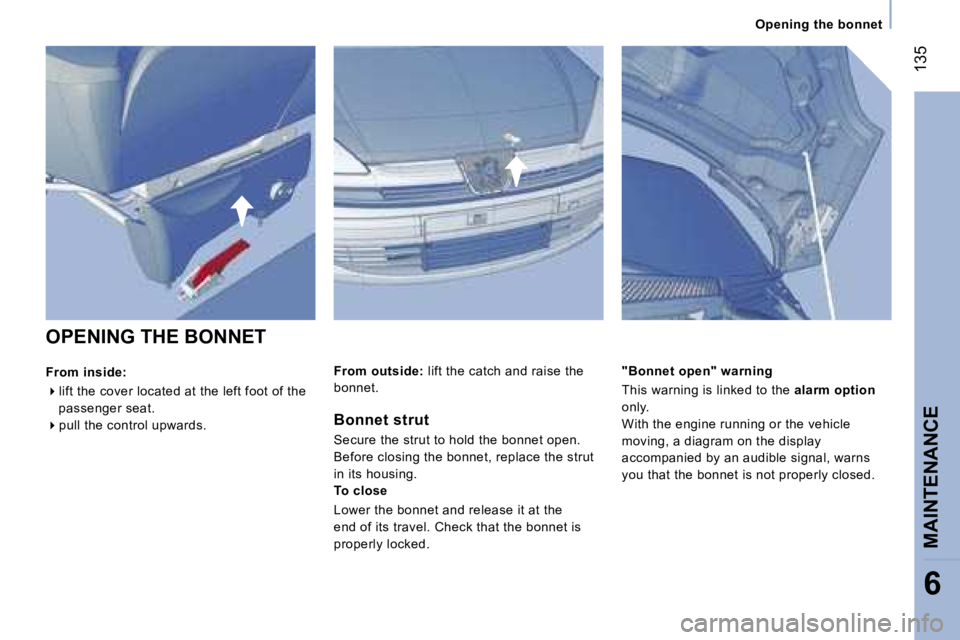

Opening the bonnet
OPENING THE BONNET
From inside:
 lift the cover located at the left foot of the
passenger seat.
 pull the control upwards. "Bonnet open" warning

This warning is linked to the alarm option
only.
With the engine running or the vehicle
moving, a diagram on the display
accompanied by an audible signal, warns
you that the bonnet is not properly closed.
From outside:
lift the catch and raise the
bonnet.
Bonnet strut
Secure the strut to hold the bonnet open.
Before closing the bonnet, replace the strut
in its housing.
To close
Lower the bonnet and release it at the
end of its travel. Check that the bonnet is
properly locked.
MAINTENANCE
6
135

1
2
3
4
5
6
7
8
109
11
Under the bonnet
136

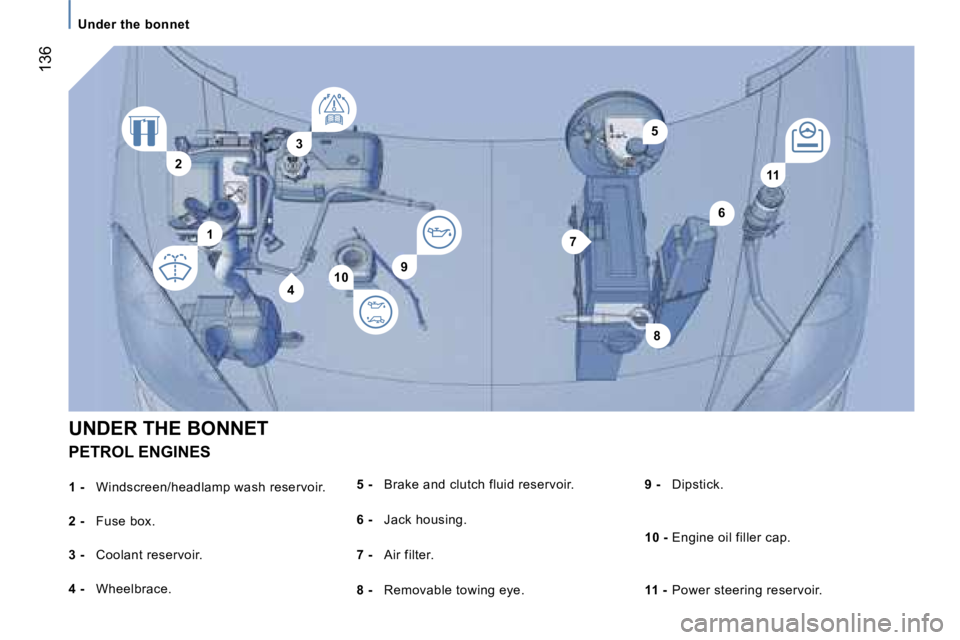

PETROL ENGINES
1
- Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace. 5 -
Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye. 9 -
Dipstick.
10 - Engine oil filler cap.
11 - Power steering reservoir.
UNDER THE BONNET

1
2
5
6
7
8
10
9
11
3
4
a
bUnder the bonnet

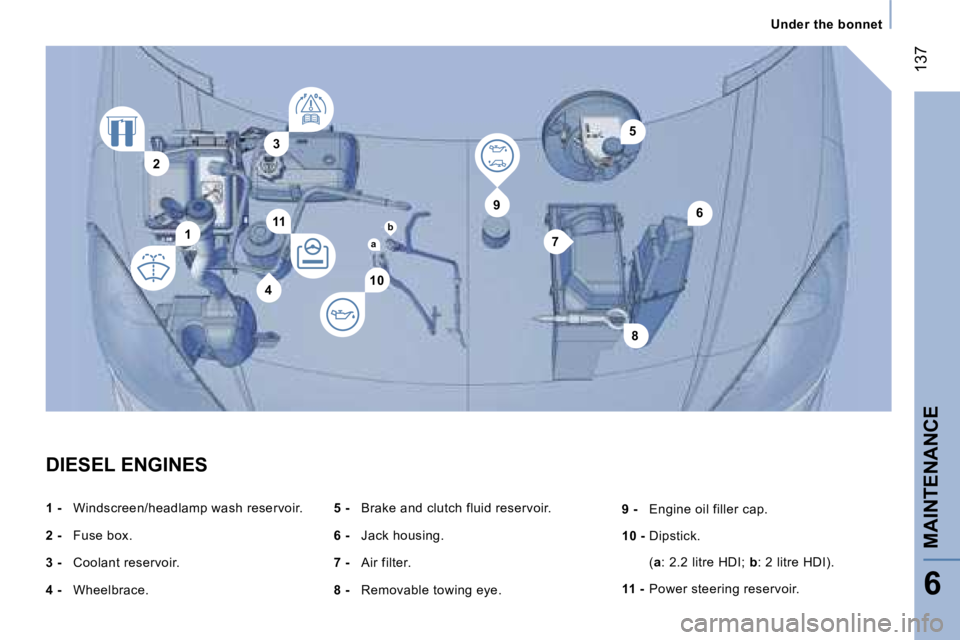

DIESEL ENGINES
1 - Windscreen/headlamp wash reservoir.
2 - Fuse box.
3 - Coolant reservoir.
4 - Wheelbrace. 5 -
Brake and clutch fluid reservoir.
6 - Jack housing.
7 - Air filter.
8 - Removable towing eye. 9 -
Engine oil filler cap.
10 - Dipstick.
( a: 2.2 litre HDI; b: 2 litre HDI).
11 - Power steering reservoir.
MAINTENANCE
6
137

A
B
Checking the levels
138
These regular maintenance operations
will keep your vehicle in good running
order. Consult the instructions at PEUGEOT
dealerships, on the Infotec site or in the
servicing booklet enclosed in the wallet
containing the handbook pack.To maintain the reliability of engines and
emission control systems, the use of
additives in engine oil is prohibited.
Oil change
It is imperative that this is carried out at the
intervals specified and the viscosity grade of
the oil selected must fulfil the requirements
in accordance with the manufacturer’s
servicing schedule. Consult the instructions at
PEUGEOT dealerships or on the Infotec site.
Viscosity selection
In all cases, the oil selected must meet the
manufacturer ’s requirements.
Changing the brake fluid
The brake fluid must be changed at
the intervals stated, according to the
manufacturer ’s servicing schedule.
Use fluids recommended by the
manufacturer, which fulfil DOT4 standards.
Cooling system
Only use the fluid recommended by the
manufacturer.
Otherwise, you risk seriously damaging your
engine. When the engine is warm, the temperature
of the coolant is controlled by the engine
fan. As this fan can operate with the ignition
key removed and because the cooling
system is pressurised, wait for at least one
hour after the engine has stopped before
carrying out any work.
Slacken the cap by 1/4 of a turn to release
the pressure to prevent any risk of scalding.
When the pressure has dropped, remove the
cap and top up the level with coolant.
Windscreen wash and headlamp
wash* level
For best quality cleaning and for your safety,
we would advise that you use products of
the PEUGEOT Universal range.
Used oil
Avoid prolonged contact of used oil with the
skin.
Brake fluid is harmful to health and very
corrosive.
Do not dispose of used oil, brake fluid or
coolant into drains or into the ground but
into the containers dedicated to this use at
PEUGEOT dealerships.
* According to country.
CHECKING THE LEVELS
If you have to remove/refit the engine
style cover, handle it with care to avoid
damaging the fixing clips.
Oil level
Check the level regularly and top up
between changes. The maximum
consumption is 0.5 l per 600 miles
(1 000 km).
Check the level with the vehicle level,
engine cold, using the dipstick.

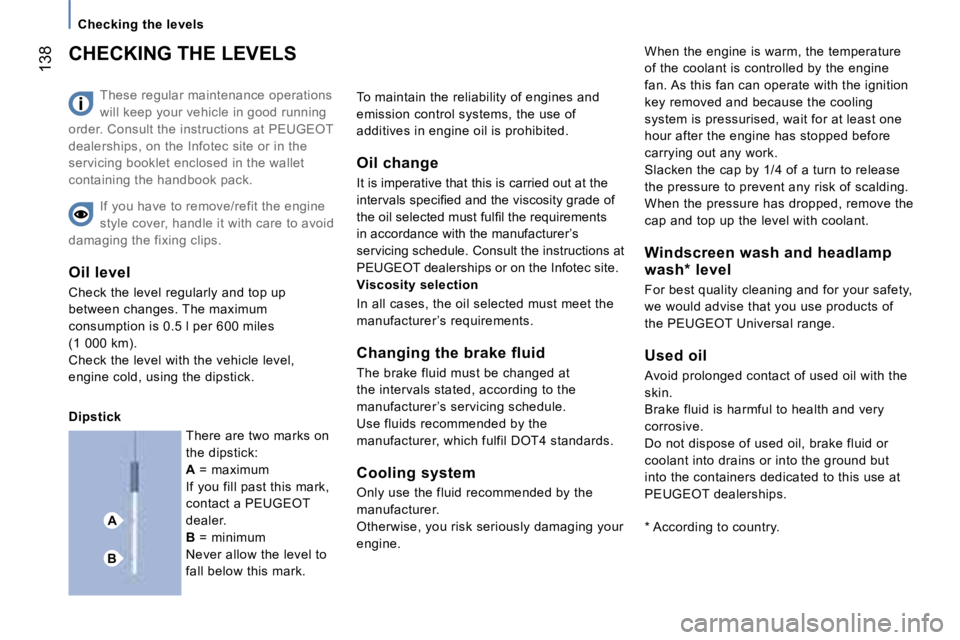

Dipstick
There are two marks on
the dipstick:
A = maximum
If you fill past this mark,
contact a PEUGEOT
dealer.
B = minimum
Never allow the level to
fall below this mark.

Checking the levels
CHECKS
Battery
At the start of winter, have your battery
checked by a PEUGEOT dealer.
Air filter and passenger
compartment filter
Have the filter elements replaced regularly.
If you drive in dusty conditions, change
them twice as often.
Brake pads
Brake pad wear depends on the style of
driving, in particular for vehicles which are
used in town, over short distances .
It may be necessary to check the thickness
of the pads, even between services.
Handbrake
Where the handbrake travel is too great
or there is a reduction in the performance
of the system, the handbrake should be
adjusted, even between services.
Have the system checked by a PEUGEOT
dealer.
Oil filter
Change the filter regularly, in accordance
with the servicing schedule. Manual gearbox
This does not require an oil change. Have
the level checked in accordance with the
manufacturer ’s servicing schedule.
Fuel circuit disarmed
In a serious collision, a mechanism
automatically prevents fuel from reaching
the engine.

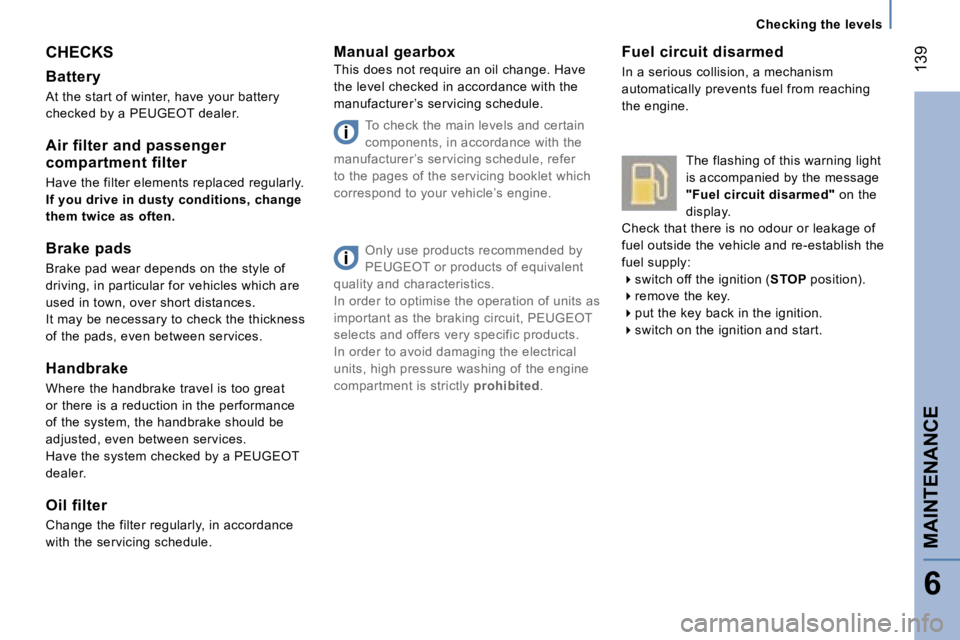

To check the main levels and certain
components, in accordance with the
manufacturer ’s servicing schedule, refer
to the pages of the servicing booklet which
correspond to your vehicle’s engine.
Only use products recommended by
PEUGEOT or products of equivalent
quality and characteristics.
In order to optimise the operation of units as
important as the braking circuit, PEUGEOT
selects and offers very specific products.
In order to avoid damaging the electrical
units, high pressure washing of the engine
compartment is strictly prohibited.
MAINTENANCE
6
139
The flashing of this warning light
is accompanied by the message
"Fuel circuit disarmed" on the
display.
Check that there is no odour or leakage of
fuel outside the vehicle and re-establish the
fuel supply:
switch off the ignition ( STOP position).
remove the key.
put the key back in the ignition.
switch on the ignition and start.

Fuel
Low fuel level
When the tank’s minimum level is
reached, this warning light comes
on, accompanied by the message
"Fuel level low" on the display.
You have enough fuel left to cover
approximately 30 miles (50 km) , depending
on driving conditions and the engine.
If the warning light flashes, this indicates a
fuel gauge malfunction.
Contact a PEUGEOT dealer.
The tank must be filled with fuel with the
engine off . 

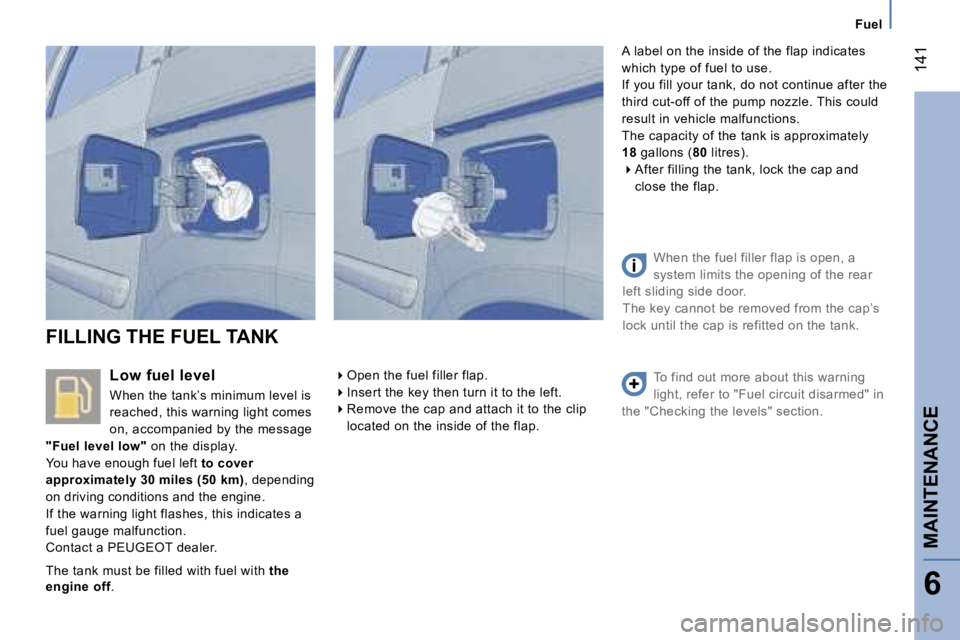

Open the fuel filler flap.
 Insert the key then turn it to the left.
 Remove the cap and attach it to the clip
located on the inside of the flap.
FILLING THE FUEL TANK A label on the inside of the flap indicates
which type of fuel to use.
If you fill your tank, do not continue after the
third cut-off of the pump nozzle. This could
result in vehicle malfunctions.
The capacity of the tank is approximately
18
gallons ( 80 litres).
 After filling the tank, lock the cap and
close the flap.
When the fuel filler flap is open, a
system limits the opening of the rear
left sliding side door.
The key cannot be removed from the cap’s
lock until the cap is refitted on the tank.
MAINTENANCE
6
141
To find out more about this warning
light, refer to "Fuel circuit disarmed" in
the "Checking the levels" section.

142ECONOMY MODE FUNCTION
After the engine has stopped, with the key
in the ignition position, certain functions
(windscreen wiper, electric windows,
courtesy lights, audio equipment, etc.) can
only be used for a cumulative duration of
thirty minutes, to prevent discharging the
battery.
Once the thirty minutes are over, the
message "Economy mode active" appears
on the display and the active functions are
put on standby.
To resume the use of these functions
immediately, start the engine and let it run
for a few seconds.
A flat battery will prevent the engine from
starting.
This is housed in a compartment located
underneath the floor, in front of the driver ’s
seat.

To charge the battery using a battery
charger Disconnect the battery,
 Follow the instructions for use given by
the battery charger manufacturer,
 Reconnect starting with the negative (-)
terminal,
 Check that the terminals and connectors
are clean. If they are covered with
sulphate (white or greenish deposit),
disconnect them and clean them.
To start the vehicle from another battery  Connect the red cable to the positive (+)
terminals of the two batteries,
 Connect one end of the green or black
cable to the negative (-) terminal of the
slave battery,
 Connect the other end of the green or
black cable to an earth point on the
broken down vehicle as far as possible
from the battery,
 Operate the starter, let the engine run,
 Wait for the engine to return to idle, then
disconnect the cables.
Battery
BATTERY
Before disconnecting the battery, you
must wait for 2 minutes after switching off
the ignition.
 Never disconnect a terminal when the
engine is running.
 Never charge a battery without first
disconnecting the terminals.
 Close the windows and sunroof before
disconnecting the battery. If they do not
operate normally following reconnection
of the battery, they must be reinitialised
(refer to the information regarding
the sunroof safety auto-reverse in the
"Accesses" section of the "Ergonomics
and Comfort" chapter and regarding the
electric window safety auto-reverse in the
"Mirrors and Windows" section).
 After every reconnection of the battery,
switch on the ignition and wait 1 minute
before starting to allow the electronic
systems to be initialised. If slight
difficulties are experienced after this,
please contact a PEUGEOT dealer.
The door open monitoring electrical system
consumes power, remember to close the
sliding doors when your vehicle is parked for

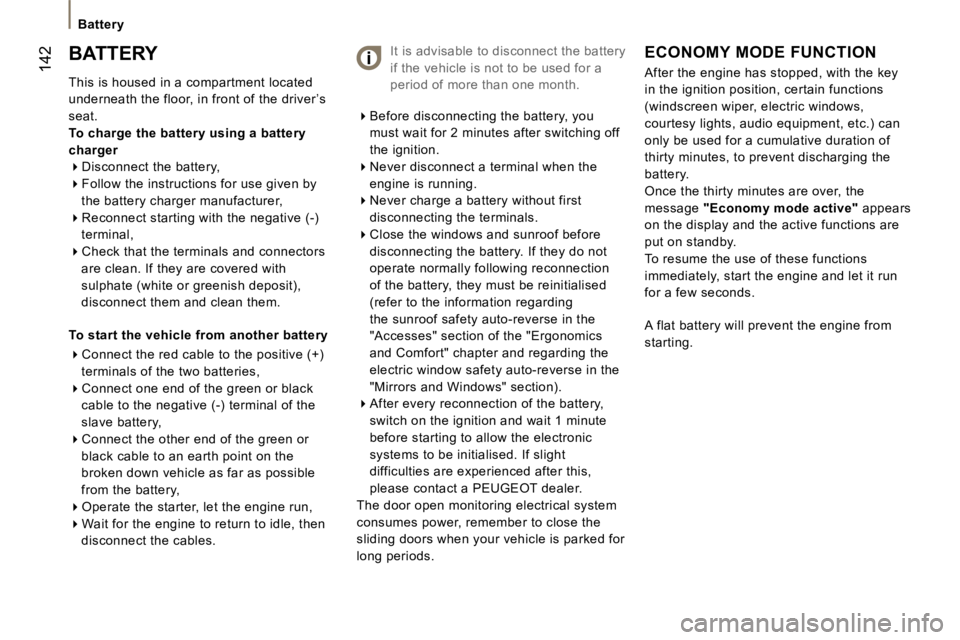

long periods.It is advisable to disconnect the battery
if the vehicle is not to be used for a
period of more than one month.
