2006 PEUGEOT 807 Owners Manual

98
1
2
3
45
6
1
1
05 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to confirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad. Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to
your voice mailbox.
DIAL

1
2
3
99
Turn the dial and select the MAILBOX
function.Press the PICK UP button.
Press the dial to confirm the selection.

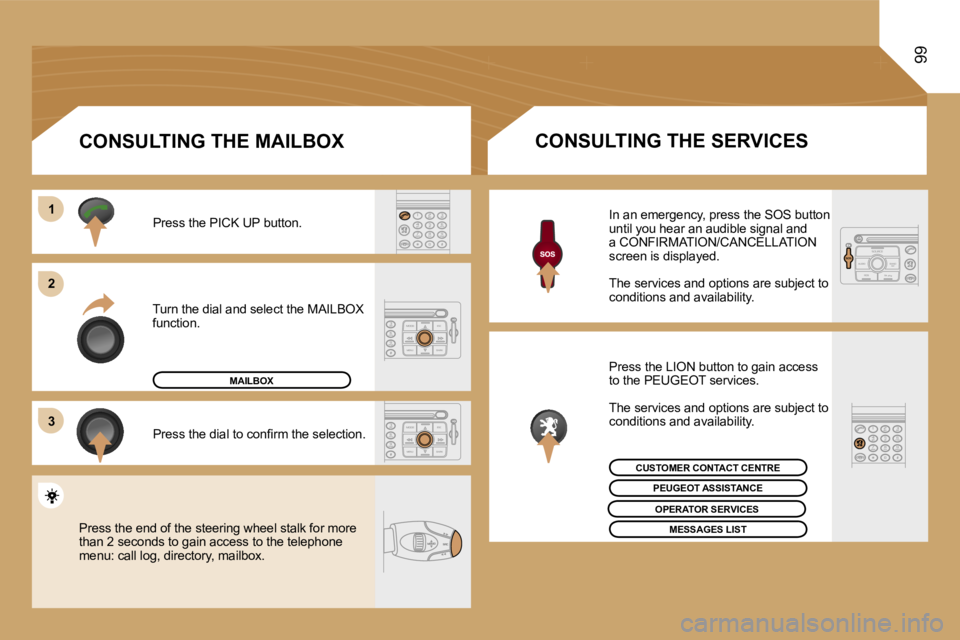

CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject to
conditions and availability.
In an emergency, press the SOS button
until you hear an audible signal and
a CONFIRMATION/CANCELLATION
screen is displayed.
The services and options are subject to
conditions and availability.
MAILBOX
OPERATOR SERVICES
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.
MESSAGES LIST

3
100

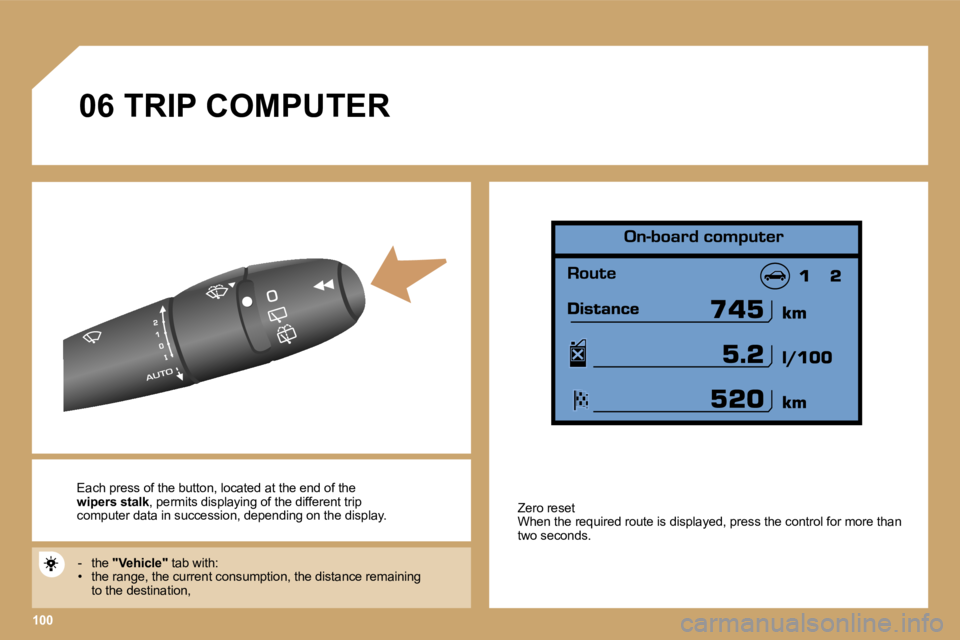

06 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk , permits displaying of the different trip
computer data in succession, depending on the displ ay.
- the "Vehicle" tab with:
• the range, the current consumption, the distance remaining
to the destination, Zero reset
When the required route is displayed, press the con
trol for more than
two seconds.

101

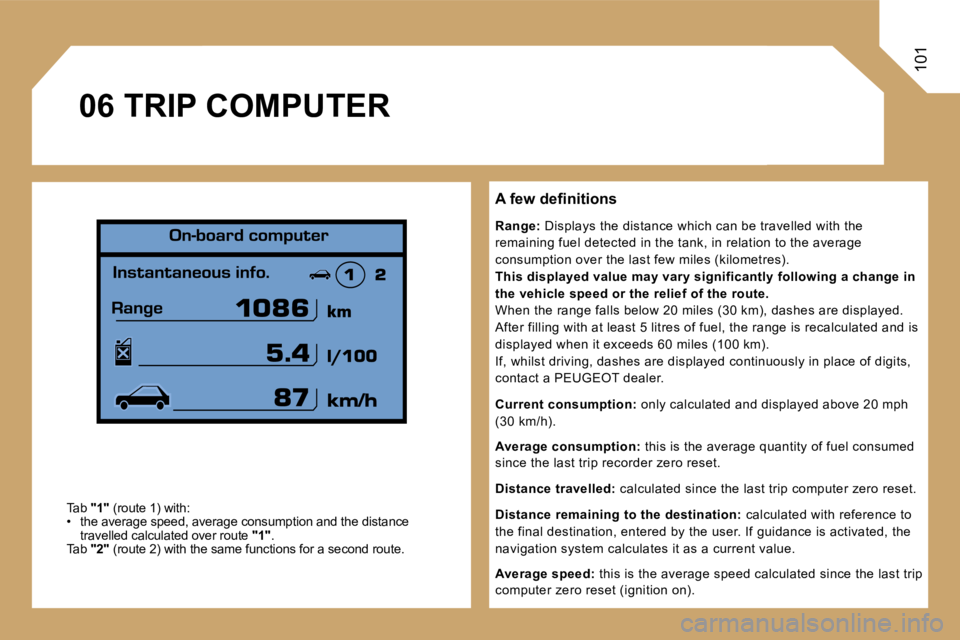

A few definitions
Range: Displays the distance which can be travelled with the
remaining fuel detected in the tank, in relation to the average
consumption over the last few miles (kilometres).
This displayed value may vary significantly followi ng a change in
the vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed.
After filling with at least 5 litres of fuel, the r ange is recalculated and is
displayed when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuous ly in place of digits,
contact a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph
(30 km/h).
Average consumption: this is the average quantity of fuel consumed
since the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset .
Distance remaining to the destination: calculated with reference to
the final destination, entered by the user. If guid ance is activated, the
navigation system calculates it as a current value.
Average speed: this is the average speed calculated since the las t trip
computer zero reset (ignition on).
06 TRIP COMPUTER
Tab "1" (route 1) with:
• the average speed, average consumption and the di stance
travelled calculated over route "1".
Tab "2" (route 2) with the same functions for a second rou te.

102
RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
Backwards scrolling of the RADIO and CD lists.
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.
Forwards scrolling of the RADIO and CD lists.RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous
track.
Continuous press: fast backwards play. - Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.

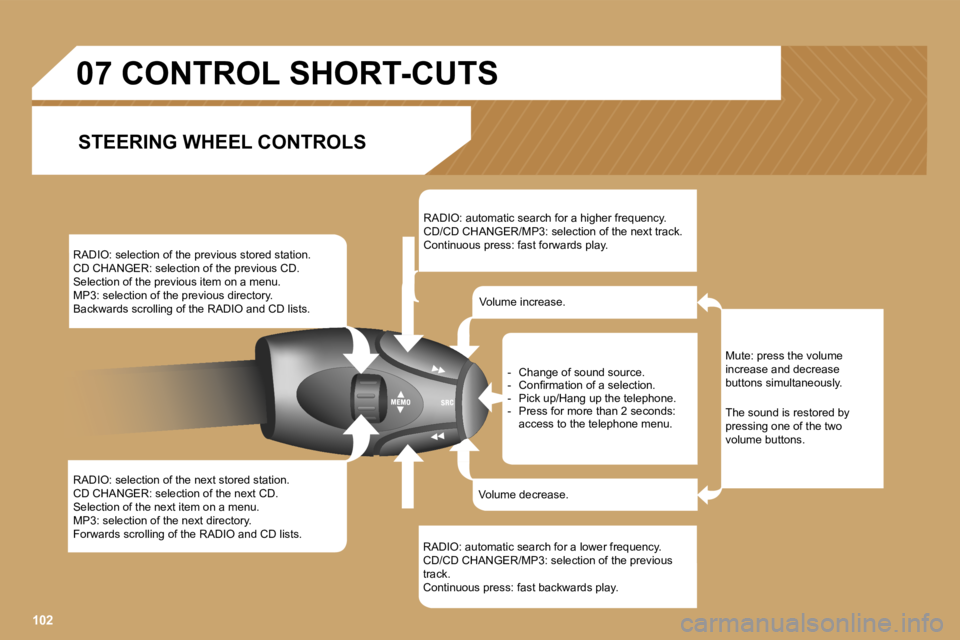

07 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.

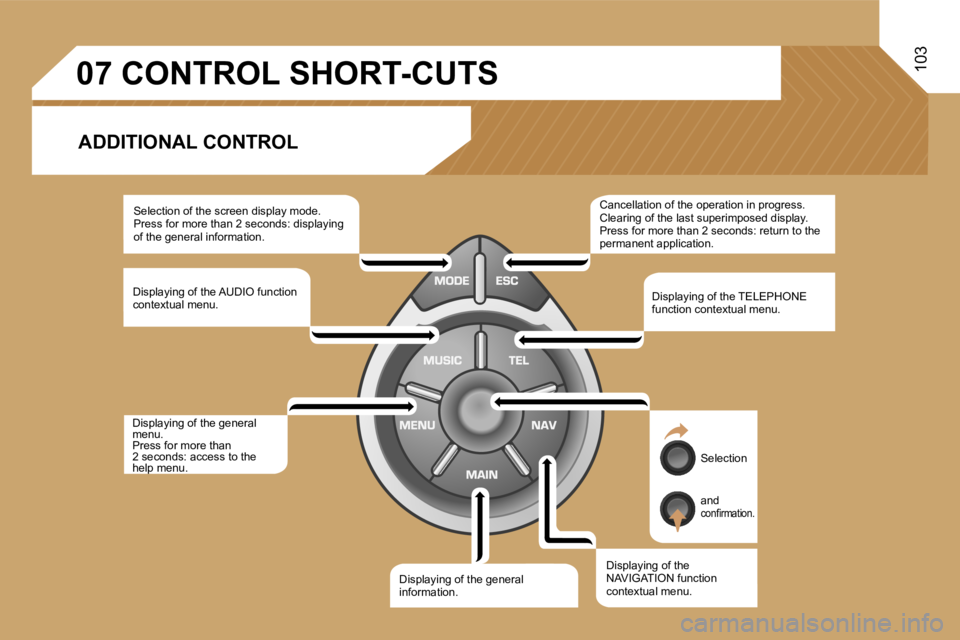

10307 CONTROL SHORT-CUTSADDITIONAL CONTROL
Selection of the screen display mode.
Press for more than 2 seconds: displaying
of the general information.
Displaying of the AUDIO function
contextual menu.
Displaying of the general
menu.
Press for more than
2 seconds: access to the
help menu. Displaying of the general
information.Displaying of the
NAVIGATION function
contextual menu.Displaying of the TELEPHONE
function contextual menu.
Cancellation of the operation in progress.
Clearing of the last superimposed display.
Press for more than 2 seconds: return to the
permanent application.
Selection
and
confirmation.

2
1
104
Press the end of the lights stalk to start the voic
e
recognition.
Say the words one by one and wait for the audible
confirmation signal between each word.
The list which follows is not exhaustive. AUDIO
- RADIO then NEXT
- CD PLAYER then NEXT TRACK
- CD CHANGER then NEXT DISK
...
TELEPHONE
- TELEPHONE then REDIAL
- TELEPHONE then ADDRESS BOOK then DESCRIPTION
- TELEPHONE then VOICE MAIL
...
GPS
- NAVIGATION then SHOW then DESTINATION
- NAVIGATION then STOP
- NAVIGATION then ZOOM IN
...

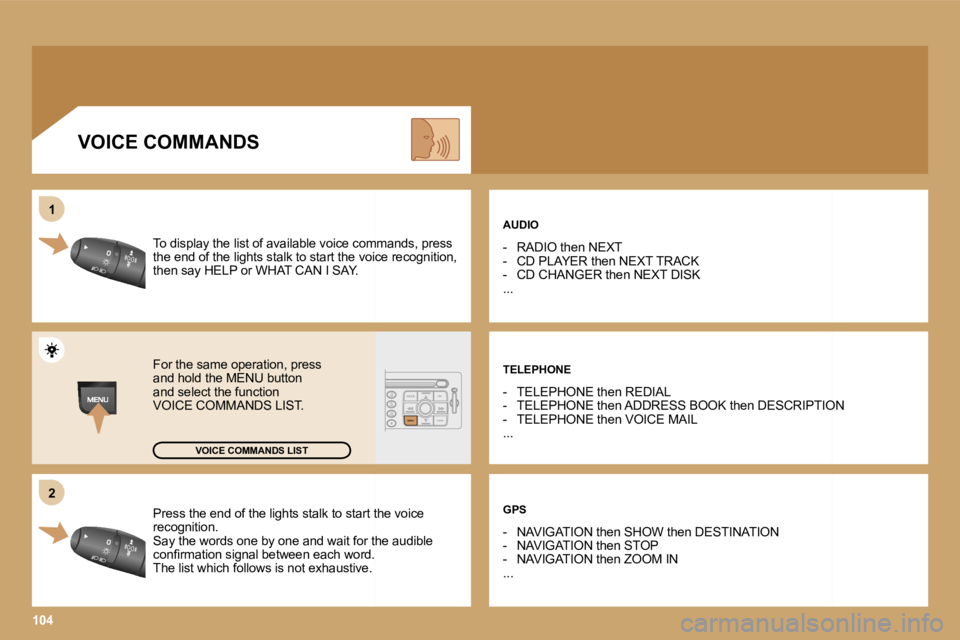

VOICE COMMANDS
To display the list of available voice commands, pr ess
the end of the lights stalk to start the voice reco gnition,
then say HELP or WHAT CAN I SAY.
For the same operation, press
and hold the MENU button
and select the function
VOICE COMMANDS LIST.
VOICE COMMANDS LIST

1
2
3
45 6
7
8
9
10508 CONFIGURATION
ADJUSTING THE DATE AND
TIME
Press the MENU button.
Turn the dial and select the
CONFIGURATION function.
Press the dial to confirm the selection.
Turn the dial and select the DISPLAY
CONFIGURATION function. Press the dial to confirm the
selection.
Turn the dial and select the
ADJUST THE DATE AND TIME
function.
Adjust the parameters one by one
confirming by pressing the OK
button. Next select the OK tab on
the display then confirm.
DISPLAY CONFIGURATION
ADJUST THE DATE AND TIME
OK
Press the dial to confirm the selection. Turn the dial and select the
INTERNATIONAL PARAMETERS
function then confirm.
INTERNATIONAL PARAMETERS
