2006 Peugeot 307 SW Owner's Manual

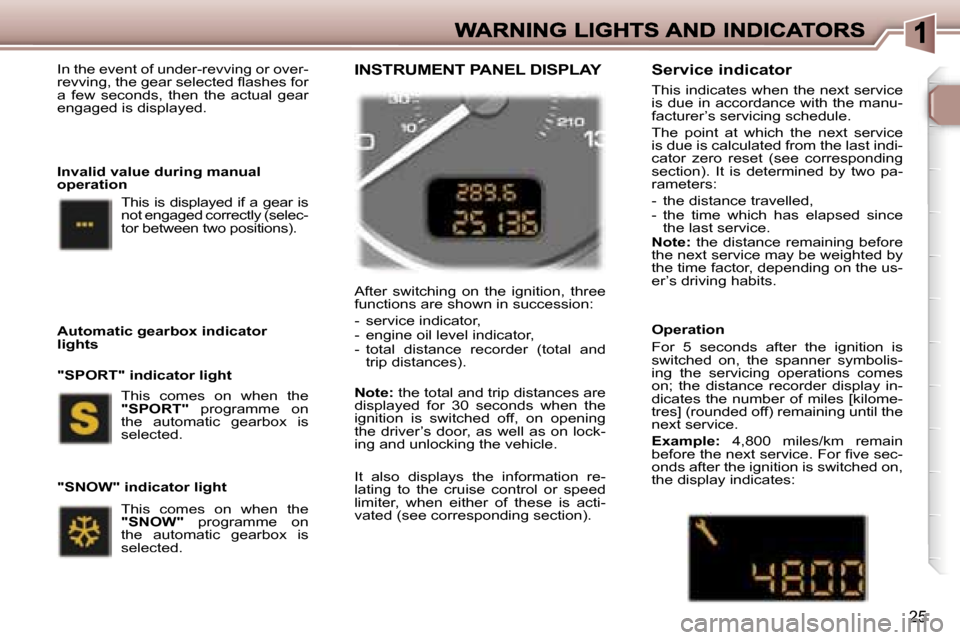

25
In the event of under-revving or over-revving, the gear selected flashes for a few seconds, then the actual gear engaged is displayed.
This comes on when the "SPORT" programme on the automatic gearbox is selected.
This comes on when the "SNOW" programme on the automatic gearbox is selected.
Automatic gearbox indicator lights
"SNOW" indicator light
This is displayed if a gear is not engaged correctly (selec-tor between two positions).
"SPORT" indicator light
Invalid value during manual operation
After switching on the ignition, three functions are shown in succession:
- service indicator,- engine oil level indicator,- total distance recorder (total and trip distances).
Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver’s door, as well as on lock-ing and unlocking the vehicle.
It also displays the information re-lating to the cruise control or speed limiter, when either of these is acti-vated (see corresponding section).
Service indicator
This indicates when the next service is due in accordance with the manu-facturer’s servicing schedule.
The point at which the next service is due is calculated from the last indi-cator zero reset (see corresponding section). It is determined by two pa-rameters:
- the distance travelled,- the time which has elapsed since the last service.Note: the distance remaining before the next service may be weighted by the time factor, depending on the us-er’s driving habits.
Operation
For 5 seconds after the ignition is switched on, the spanner symbolis-ing the servicing operations comes on; the distance recorder display in-dicates the number of miles [kilome-tres] (rounded off) remaining until the next service.
Example: 4,800 miles/km remain before the next service. For five sec-onds after the ignition is switched on, the display indicates:
INSTRUMENT PANEL DISPLAY

25
In the event of under-revving or over-revving, the gear selected flashes for a few seconds, then the actual gear engaged is displayed.
This comes on when the "SPORT" programme on the automatic gearbox is selected.
This comes on when the "SNOW" programme on the automatic gearbox is selected.
Automatic gearbox indicator lights
"SNOW" indicator light
This is displayed if a gear is not engaged correctly (selec-tor between two positions).
"SPORT" indicator light
Invalid value during manual operation
After switching on the ignition, three functions are shown in succession:
- service indicator,- engine oil level indicator,- total distance recorder (total and trip distances).
Note: the total and trip distances are displayed for 30 seconds when the ignition is switched off, on opening the driver’s door, as well as on lock-ing and unlocking the vehicle.
It also displays the information re-lating to the cruise control or speed limiter, when either of these is acti-vated (see corresponding section).
Service indicator
This indicates when the next service is due in accordance with the manu-facturer’s servicing schedule.
The point at which the next service is due is calculated from the last indi-cator zero reset (see corresponding section). It is determined by two pa-rameters:
- the distance travelled,- the time which has elapsed since the last service.Note: the distance remaining before the next service may be weighted by the time factor, depending on the us-er’s driving habits.
Operation
For 5 seconds after the ignition is switched on, the spanner symbolis-ing the servicing operations comes on; the distance recorder display in-dicates the number of miles [kilome-tres] (rounded off) remaining until the next service.
Example: 4,800 miles/km remain before the next service. For five sec-onds after the ignition is switched on, the display indicates:
INSTRUMENT PANEL DISPLAY

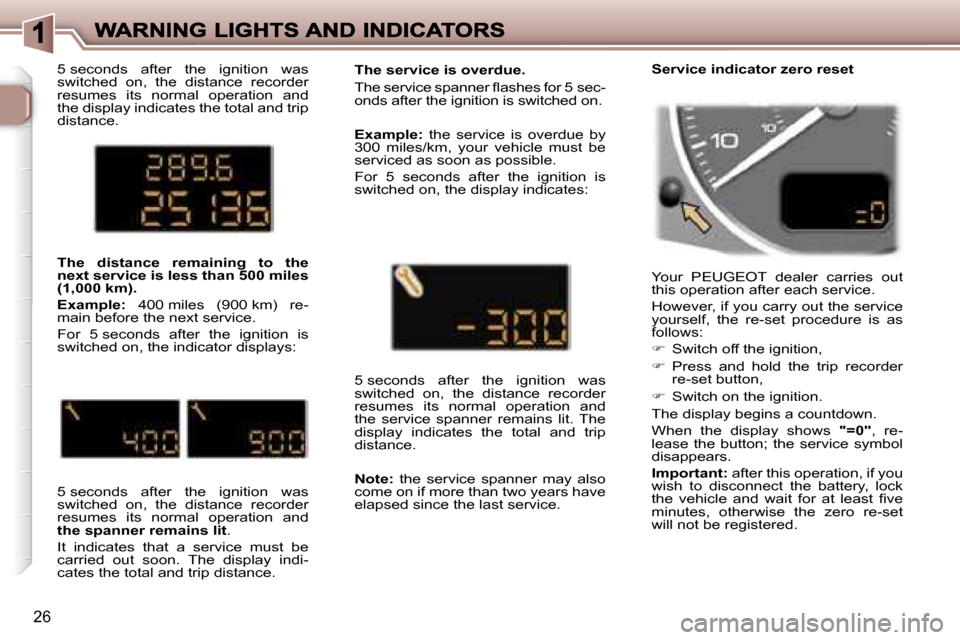

26
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the display indicates the total and trip distance.
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is as follows:
 Switch off the ignition,
 Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-lease the button; the service symbol disappears.
Important: after this operation, if you wish to disconnect the battery, lock the vehicle and wait for at least five minutes, otherwise the zero re-set will not be registered.
The service is overdue.
The service spanner flashes for 5 sec-onds after the ignition is switched on.
Example: the service is overdue by 300 miles/km, your vehicle must be serviced as soon as possible.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the service spanner remains lit. The display indicates the total and trip distance.
Note: the service spanner may also come on if more than two years have elapsed since the last service.
The distance remaining to the next service is less than 500 miles (1,000 km).
Example: 400 miles (900 km) re-main before the next service.
For 5 seconds after the ignition is switched on, the indicator displays:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit.
It indicates that a service must be carried out soon. The display indi-cates the total and trip distance.
Service indicator zero reset

26
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the display indicates the total and trip distance.
Your PEUGEOT dealer carries out this operation after each service.
However, if you carry out the service yourself, the re-set procedure is as follows:
 Switch off the ignition,
 Press and hold the trip recorder re-set button,
 Switch on the ignition.
The display begins a countdown.
When the display shows "=0", re-lease the button; the service symbol disappears.
Important: after this operation, if you wish to disconnect the battery, lock the vehicle and wait for at least five minutes, otherwise the zero re-set will not be registered.
The service is overdue.
The service spanner flashes for 5 sec-onds after the ignition is switched on.
Example: the service is overdue by 300 miles/km, your vehicle must be serviced as soon as possible.
For 5 seconds after the ignition is switched on, the display indicates:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the service spanner remains lit. The display indicates the total and trip distance.
Note: the service spanner may also come on if more than two years have elapsed since the last service.
The distance remaining to the next service is less than 500 miles (1,000 km).
Example: 400 miles (900 km) re-main before the next service.
For 5 seconds after the ignition is switched on, the indicator displays:
5 seconds after the ignition was switched on, the distance recorder resumes its normal operation and the spanner remains lit.
It indicates that a service must be carried out soon. The display indi-cates the total and trip distance.
Service indicator zero reset

27
With the lights on, press the button to vary the intensity of the lighting of the instruments and controls. When the lighting reaches the minimum (or maximum) setting, release the button then press it again to increase (or re-duce) the brightness.
As soon as the lighting is of the re-quired brightness, release the button.
With the ignition on, press the button until the zeros appear.
Pressing the button enables you to alternate between the distance re-corder and cruise control or speed limiter displays, when either of these is activated.
Engine oil level indicator
When the ignition is switched on, the engine oil level is indicated for a few seconds, after the service information.
Oil level correct
Oil level gauge fault
Flashing of "OIL --" indicates a malfunc-tion of the engine oil level gauge.
Contact a PEUGEOT dealer.
The level read will only be correct if the vehicle is on level ground and the engine has been off for more than 15 minutes.
Flashing of "OIL", linked with the serv-ice warning light, accompanied by an audible signal and a message on the multifunction display, indicates a lack of oil which could damage the engine.
If the lack of oil is confirmed by a check using the dipstick, it is essen-tial that the level is topped up.
Lack of oil
Dipstick
There are 2 marks on the dipstick:
- never exceed level A,- in position B, top up the level via the oil filler cap, using the type of oil suited to your engine.
A = max.
B = min.
Trip recorder zero reset button
Lighting rheostat

28
TRIP COMPUTERMonochrome screens A
- the range,- the current consumption,- the distance travelled,- the average consumption,- the average speed.
Each time the button on the end of the wiper stalk is pressed, the vari-ous items of trip computer data are displayed in succession, depending on the multifunction display:
Zero reset
Press the stalk for more than two seconds.
Monochrome screens C
- the "vehicle" tab with:• the range, the current consump-tion and the distance still to be driven,- tab "1" (route 1) with:• the average speed, the average consumption and the distance driven calculated over route "1",- tab "2" (route 2) with the same features for a second route.
Zero reset
When the required route is displayed, press the button for more than two seconds.

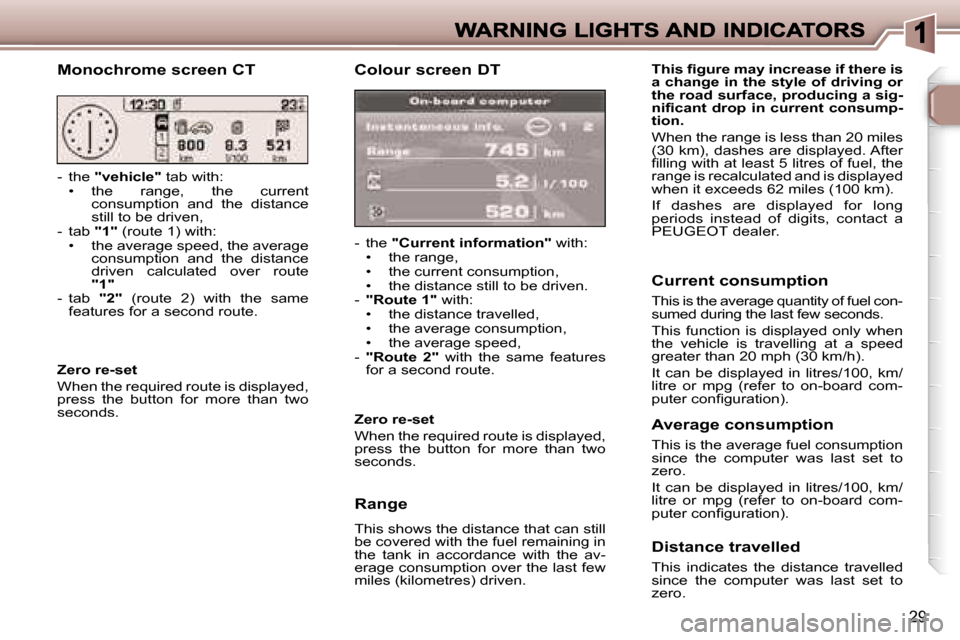

29
Colour screen DT
- the "Current information" with:• the range,• the current consumption,• the distance still to be driven.- "Route 1" with:• the distance travelled,• the average consumption,• the average speed,- "Route 2" with the same features for a second route.
Monochrome screen CT
-the "vehicle" tab with:• the range, the current consumptionand the distance still to be driven,- tab "1" (route 1) with:• the average speed, the average consumption and the distance driven calculated over route "1"-tab "2" (route 2) with the same features for a second route.
Zero re-set
When the required route is displayed, press the button for more than two seconds.Zero re-set
When the required route is displayed, press the button for more than two seconds.
This figure may increase if there is a change in the style of driving or the road surface, producing a sig-nificant drop in current consump-tion.
When the range is less than 20 miles (30 km), dashes are displayed. After filling with at least 5 litres of fuel, the range is recalculated and is displayed when it exceeds 62 miles (100 km).
If dashes are displayed for long periods instead of digits, contact a PEUGEOT dealer.
Current consumption
This is the average quantity of fuel con-sumed during the last few seconds.
This function is displayed only when the vehicle is travelling at a speed greater than 20 mph (30 km/h).
It can be displayed in litres/100, km/litre or mpg (refer to on-board com-puter configuration).
Average consumption
This is the average fuel consumption since the computer was last set to zero.
It can be displayed in litres/100, km/litre or mpg (refer to on-board com-puter configuration).
Distance travelled
This indicates the distance travelled since the computer was last set to zero.
Range
This shows the distance that can still be covered with the fuel remaining in the tank in accordance with the av-erage consumption over the last few miles (kilometres) driven.

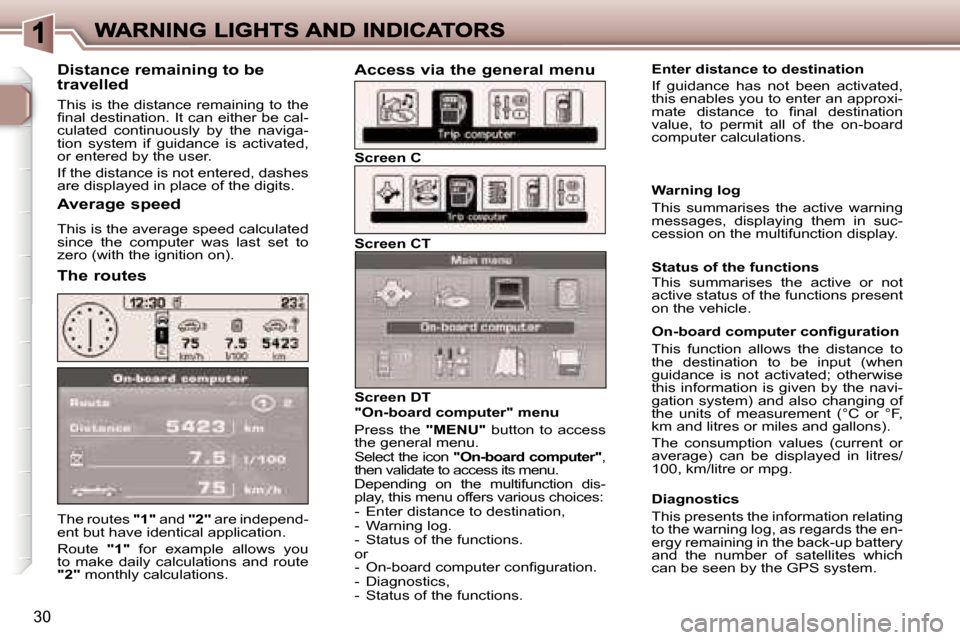

30
The routes "1" and "2" are independ-ent but have identical application.
Route "1" for example allows you to make daily calculations and route "2" monthly calculations.
Distance remaining to be travelled
This is the distance remaining to the final destination. It can either be cal-culated continuously by the naviga-tion system if guidance is activated, or entered by the user.
If the distance is not entered, dashes are displayed in place of the digits.
Average speed
This is the average speed calculated since the computer was last set to zero (with the ignition on).
The routesAccess via the general menu
Screen C
Screen CT
Screen DT"On-board computer" menu
Press the "MENU" button to access the general menu.Select the icon "On-board computer", then validate to access its menu.Depending on the multifunction dis-play, this menu offers various choices:- Enter distance to destination,- Warning log.- Status of the functions.or- On-board computer configuration.- Diagnostics,- Status of the functions.
Enter distance to destination
If guidance has not been activated, this enables you to enter an approxi-mate distance to final destination value, to permit all of the on-board computer calculations.
Warning log
This summarises the active warning messages, displaying them in suc-cession on the multifunction display.
Status of the functionsThis summarises the active or not active status of the functions present on the vehicle.
On-board computer configuration
This function allows the distance to the destination to be input (when guidance is not activated; otherwise this information is given by the navi-gation system) and also changing of the units of measurement (°C or °F, km and litres or miles and gallons).
The consumption values (current or average) can be displayed in litres/100, km/litre or mpg.
Diagnostics
This presents the information relating to the warning log, as regards the en-ergy remaining in the back-up battery and the number of satellites which can be seen by the GPS system.
