2006 Peugeot 307 SW Owner's Manual

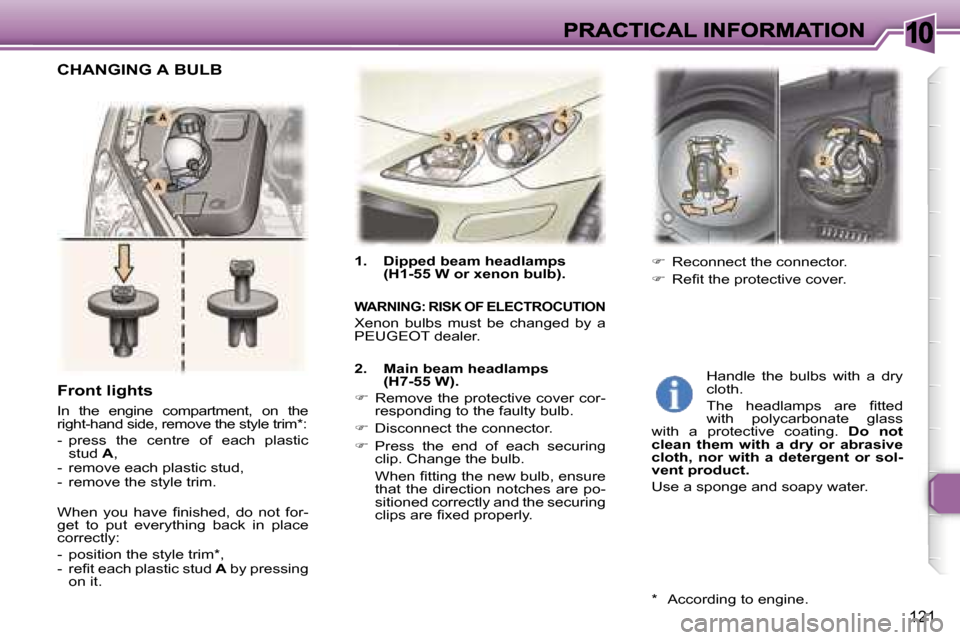

10
121
1. Dipped beam headlamps (H1-55 W or xenon bulb).
WARNING: RISK OF ELECTROCUTION
Xenon bulbs must be changed by a PEUGEOT dealer.
2. Main beam headlamps (H7-55 W).
 Remove the protective cover cor-responding to the faulty bulb.
 Disconnect the connector.
 Press the end of each securing clip. Change the bulb.
When fitting the new bulb, ensure that the direction notches are po-sitioned correctly and the securing clips are fixed properly.
 Reconnect the connector.
 Refit the protective cover.
Front lights
In the engine compartment, on the right-hand side, remove the style trim*:
- press the centre of each plastic stud A,- remove each plastic stud,- remove the style trim.
When you have finished, do not for-get to put everything back in place correctly:
- position the style trim*,- refit each plastic stud A by pressing on it.
* According to engine.
Handle the bulbs with a dry cloth.
The headlamps are fitted with polycarbonate glass with a protective coating. Do not clean them with a dry or abrasive cloth, nor with a detergent or sol-vent product.
Use a sponge and soapy water.
CHANGING A BULB

10

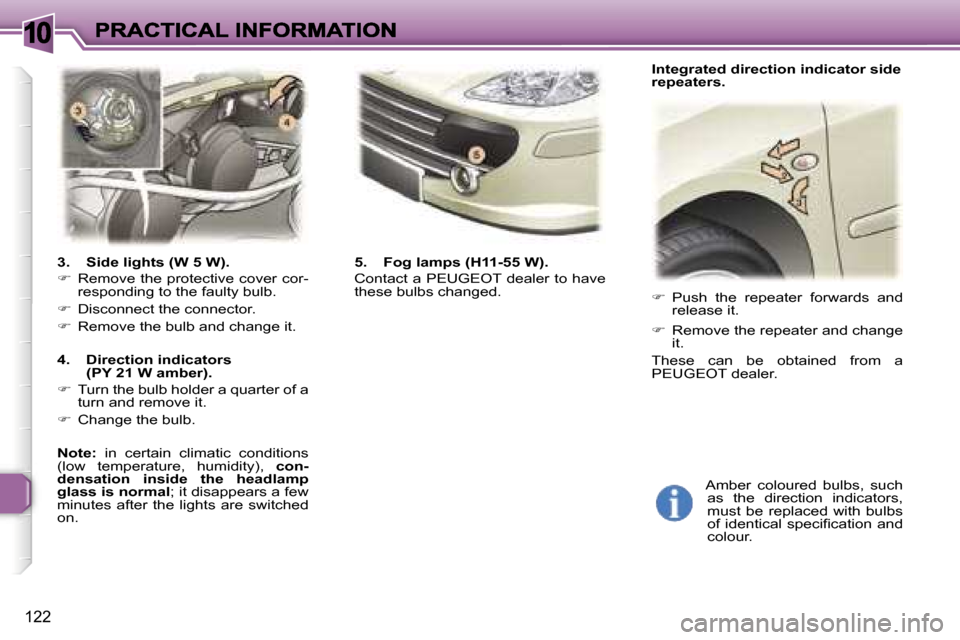

122
3. Side lights (W 5 W).
 Remove the protective cover cor-responding to the faulty bulb.
 Disconnect the connector.
 Remove the bulb and change it.
4. Direction indicators (PY 21 W amber).
 Turn the bulb holder a quarter of a turn and remove it.
 Change the bulb.
Note: in certain climatic conditions (low temperature, humidity), con-densation inside the headlamp glass is normal; it disappears a few minutes after the lights are switched on.
5. Fog lamps (H11-55 W).
Contact a PEUGEOT dealer to have these bulbs changed. Push the repeater forwards and release it.
 Remove the repeater and change it.
These can be obtained from a PEUGEOT dealer.
Amber coloured bulbs, such as the direction indicators, must be replaced with bulbs of identical specification and colour.
Integrated direction indicator side repeaters.

10

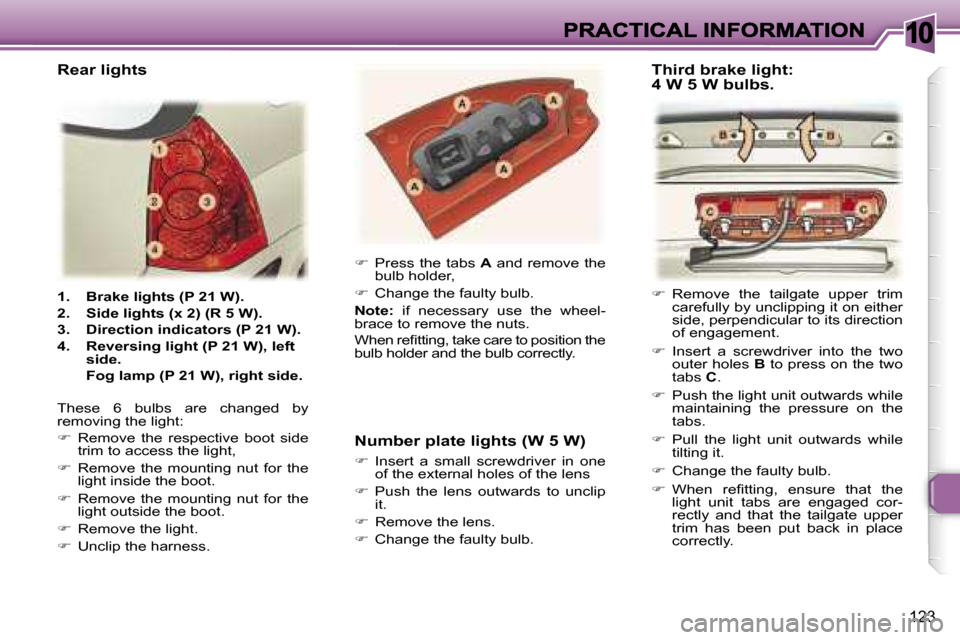

123
1. Brake lights (P 21 W).
2. Side lights (x 2) (R 5 W).
3. Direction indicators (P 21 W).
4. Reversing light (P 21 W), left side.
Fog lamp (P 21 W), right side.
These 6 bulbs are changed by removing the light:
 Remove the respective boot side trim to access the light,
 Remove the mounting nut for the light inside the boot.
 Remove the mounting nut for the light outside the boot.
 Remove the light.
 Unclip the harness.
 Press the tabs A and remove the bulb holder,
 Change the faulty bulb.
Note: if necessary use the wheel-brace to remove the nuts.
When refitting, take care to position the bulb holder and the bulb correctly.
Remove the tailgate upper trim carefully by unclipping it on either side, perpendicular to its direction of engagement.
Insert a screwdriver into the two outer holes B to press on the two tabs C.
 Push the light unit outwards while maintaining the pressure on the tabs.
 Pull the light unit outwards while tilting it.
 Change the faulty bulb.
 When refitting, ensure that the light unit tabs are engaged cor-rectly and that the tailgate upper trim has been put back in place correctly.
Number plate lights (W 5 W)
 Insert a small screwdriver in one of the external holes of the lens
 Push the lens outwards to unclip it.
 Remove the lens.
 Change the faulty bulb.
Third brake light:4 W 5 W bulbs.Rear lights

10

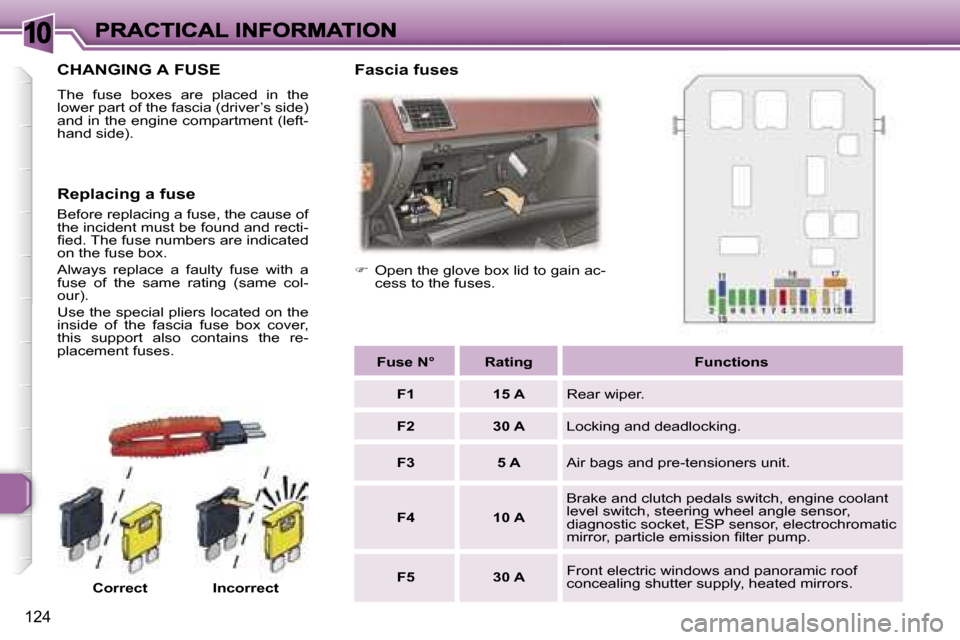

124
CHANGING A FUSE
The fuse boxes are placed in the lower part of the fascia (driver’s side) and in the engine compartment (left-hand side).
CorrectIncorrect
 Open the glove box lid to gain ac-cess to the fuses.
Fuse N°RatingFunctions
F115 ARear wiper.
F230 ALocking and deadlocking.
F35 AAir bags and pre-tensioners unit.
F410 A
Brake and clutch pedals switch, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, electrochromatic mirror, particle emission filter pump.
F530 AFront electric windows and panoramic roof concealing shutter supply, heated mirrors.
Replacing a fuse
Before replacing a fuse, the cause of the incident must be found and recti-fied. The fuse numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating (same col-our).
Use the special pliers located on the inside of the fascia fuse box cover, this support also contains the re-placement fuses.
Fascia fuses

10

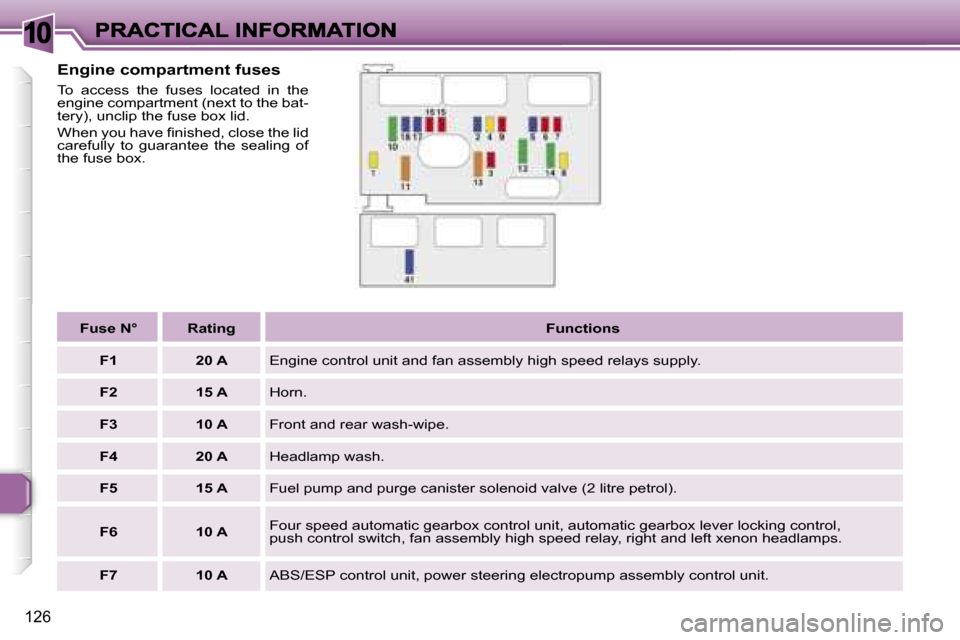

126
Engine compartment fuses
To access the fuses located in the engine compartment (next to the bat-tery), unclip the fuse box lid.
When you have finished, close the lid carefully to guarantee the sealing of the fuse box.
Fuse N°RatingFunctions
F120 AEngine control unit and fan assembly high speed relays supply.
F215 AHorn.
F310 AFront and rear wash-wipe.
F420 AHeadlamp wash.
F515 AFuel pump and purge canister solenoid valve (2 litre petrol).
F610 AFour speed automatic gearbox control unit, automatic gearbox lever locking control, push control switch, fan assembly high speed relay, right and left xenon headlamps.
F710 AABS/ESP control unit, power steering electropump assembly control uni t.

10

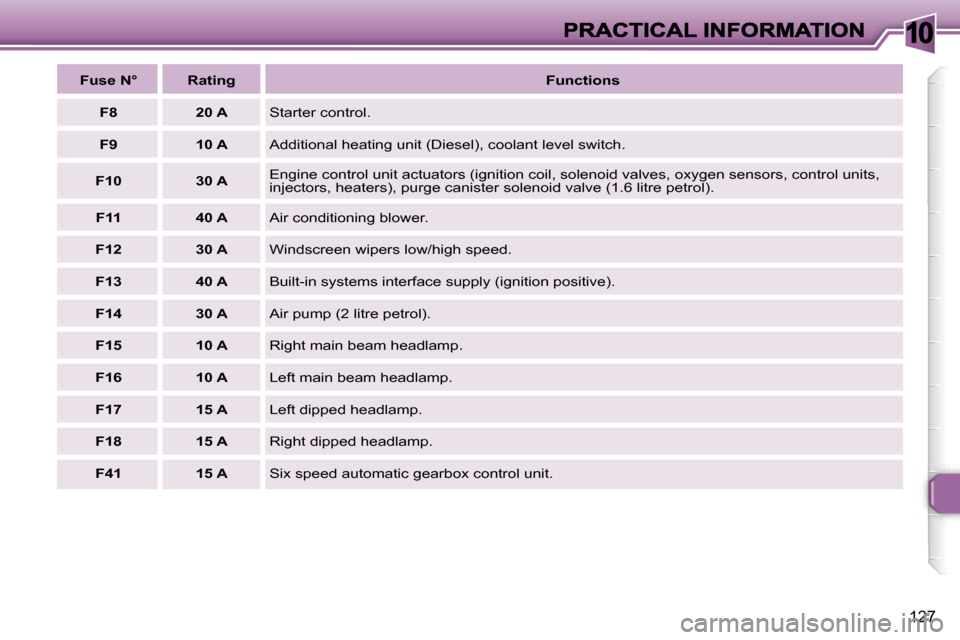

127
Fuse N°RatingFunctions
F820 AStarter control.
F910 AAdditional heating unit (Diesel), coolant level switch.
F1030 AEngine control unit actuators (ignition coil, solenoid valves, oxygen sensors, control units, injectors, heaters), purge canister solenoid valve (1.6 litre petro l).
F1140 AAir conditioning blower.
F1230 AWindscreen wipers low/high speed.
F1340 ABuilt-in systems interface supply (ignition positive).
F1430 AAir pump (2 litre petrol).
F1510 ARight main beam headlamp.
F1610 ALeft main beam headlamp.
F1715 ALeft dipped headlamp.
F1815 ARight dipped headlamp.
F4115 ASix speed automatic gearbox control unit.

10

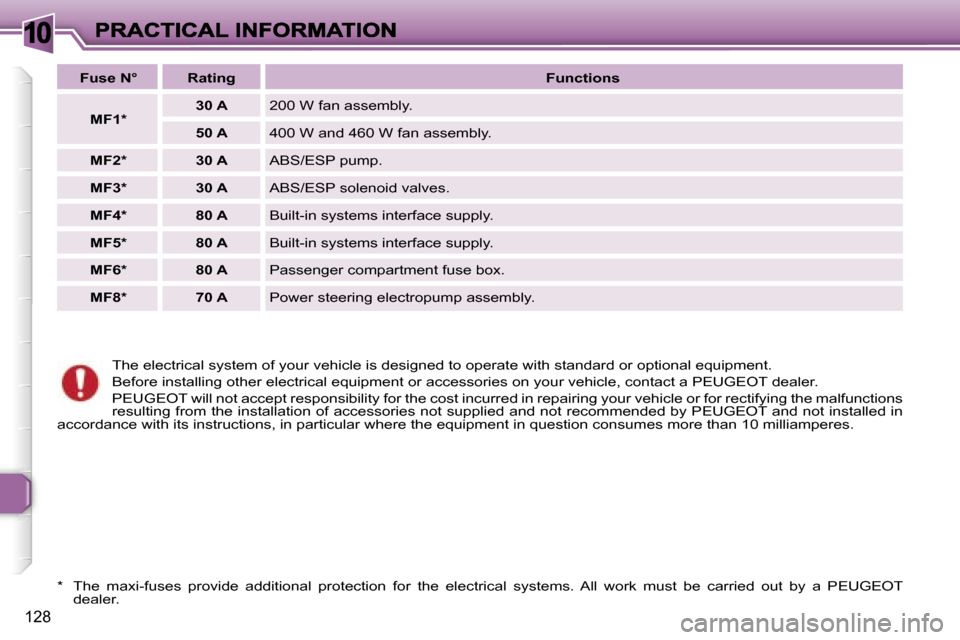

128
The electrical system of your vehicle is designed to operate with standard or optional equipment.
Before installing other electrical equipment or accessories on you r vehicle, contact a PEUGEOT dealer.
PEUGEOT will not accept responsibility for the cost incurred in rep airing your vehicle or for rectifying the malfunctions resulting from the installation of accessories not supplied and not recommended by PEUGEOT and not installed in accordance with its instructions, in particular where the equipme nt in question consumes more than 10 milliamperes.
Fuse N°RatingFunctions
MF1*30 A200 W fan assembly.
50 A400 W and 460 W fan assembly.
MF2*30 AABS/ESP pump.
MF3*30 AABS/ESP solenoid valves.
MF4*80 ABuilt-in systems interface supply.
MF5*80 ABuilt-in systems interface supply.
MF6*80 APassenger compartment fuse box.
MF8*70 APower steering electropump assembly.
* The maxi-fuses provide additional protection for the electrica l systems. All work must be carried out by a PEUGEOT dealer.

10
124
CHANGING A FUSE
The fuse boxes are placed in the lower part of the fascia (driver’s side) and in the engine compartment (left-hand side).
CorrectIncorrect
 Open the glove box lid to gain ac-cess to the fuses.
Fuse N°RatingFunctions
F115 ARear wiper.
F230 ALocking and deadlocking.
F35 AAir bags and pre-tensioners unit.
F410 A
Brake and clutch pedals switch, engine coolant level switch, steering wheel angle sensor, diagnostic socket, ESP sensor, electrochromatic mirror, particle emission filter pump.
F530 AFront electric windows and panoramic roof concealing shutter supply, heated mirrors.
Replacing a fuse
Before replacing a fuse, the cause of the incident must be found and recti-fied. The fuse numbers are indicated on the fuse box.
Always replace a faulty fuse with a fuse of the same rating (same col-our).
Use the special pliers located on the inside of the fascia fuse box cover, this support also contains the re-placement fuses.
Fascia fuses
