2006 PEUGEOT 207 DAG Owners Manual

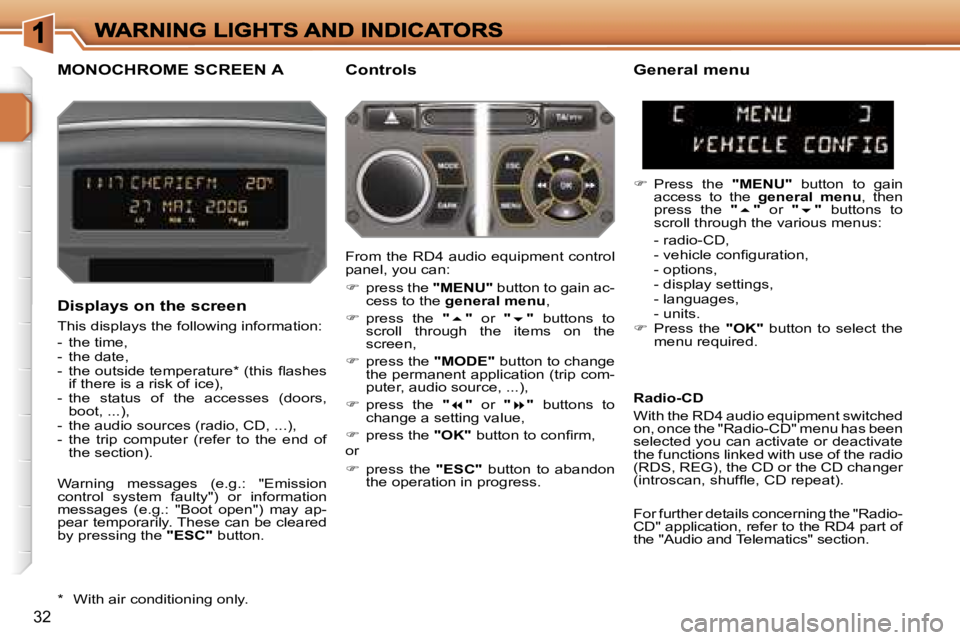

32
MONOCHROME SCREEN A Controls
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Boot open") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
General menu
 Press the "MENU" button to gain access to the general menu, then press the "" or "" buttons to scroll through the various menus:
- radio-CD, - vehicle configuration, - options, - display settings, - languages, - units. Press the "OK" button to select the menu required.
From the RD4 audio equipment control panel, you can:
 press the "MENU" button to gain ac-cess to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,or
 press the "ESC" button to abandon the operation in progress.
Radio-CD
With the RD4 audio equipment switched on, once the "Radio-CD" menu has been selected you can activate or deactivate the functions linked with use of the radio (RDS, REG), the CD or the CD changer (introscan, shuffle, CD repeat).
For further details concerning the "Radio-CD" application, refer to the RD4 part of the "Audio and Telematics" section.
* With air conditioning only.

!
33

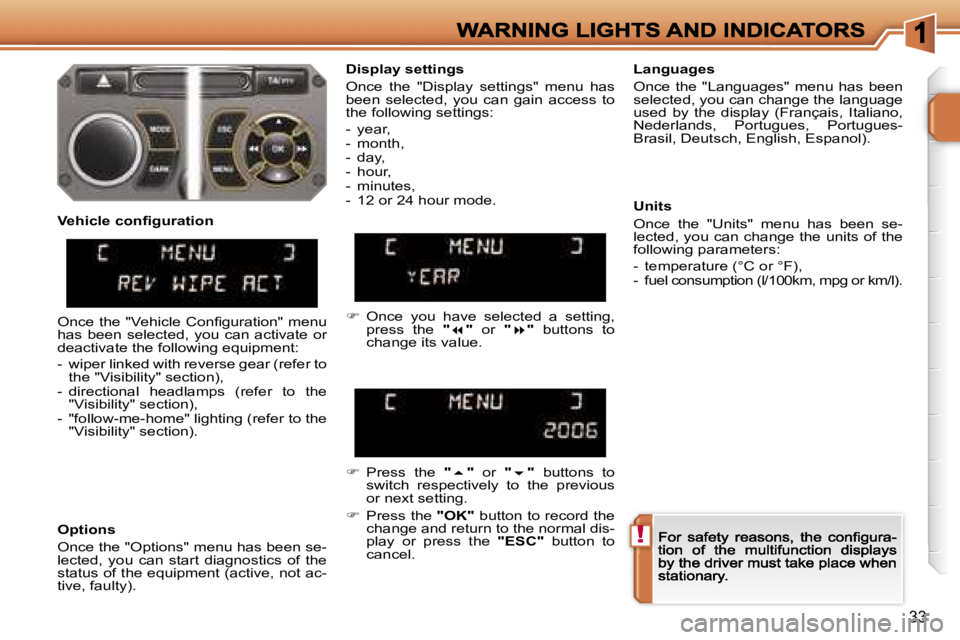

Display settings
Once the "Display settings" menu has been selected, you can gain access to the following settings:
- year,- month,- day,- hour,- minutes,- 12 or 24 hour mode.
Languages
Once the "Languages" menu has been selected, you can change the language used by the display (Français, Italiano, Nederlands, Portugues, Portugues-Brasil, Deutsch, English, Espanol).
Units
Once the "Units" menu has been se-lected, you can change the units of the following parameters:
- temperature (°C or °F),- fuel consumption (l/100km, mpg or km/l).
 Once you have selected a setting, press the "" or "" buttons to change its value.
 Press the "" or "" buttons to switch respectively to the previous or next setting.
 Press the "OK" button to record the change and return to the normal dis-play or press the "ESC" button to cancel.
Vehicle configuration
Options
Once the "Options" menu has been se-lected, you can start diagnostics of the status of the equipment (active, not ac-tive, faulty).
Once the "Vehicle Configuration" menu has been selected, you can activate or deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section).

34

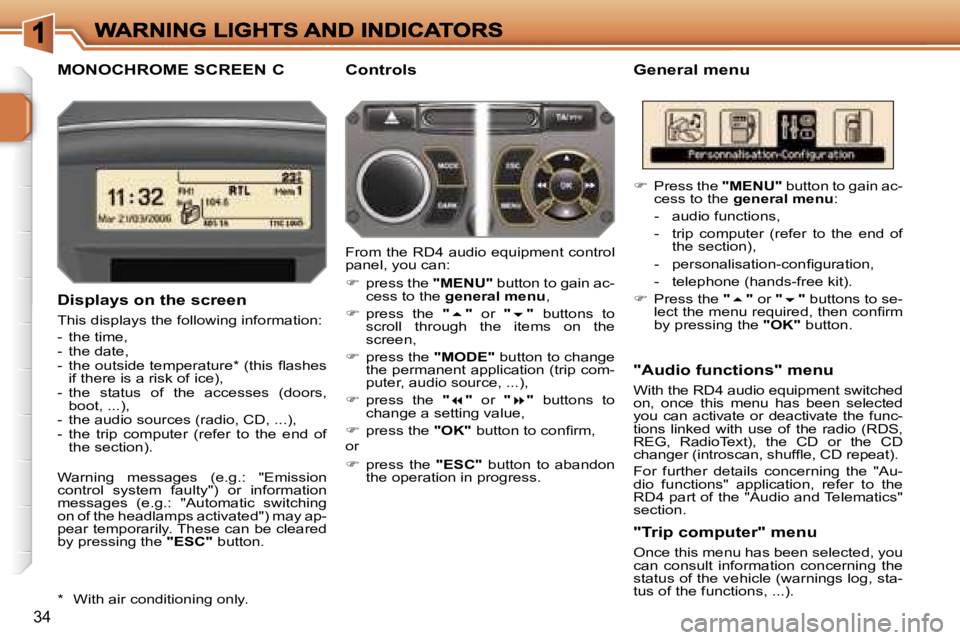

MONOCHROME SCREEN CGeneral menu
Displays on the screen
This displays the following information:
- the time,- the date,- the outside temperature* (this flashes if there is a risk of ice),- the status of the accesses (doors, boot, ...),- the audio sources (radio, CD, ...),- the trip computer (refer to the end of the section).
Warning messages (e.g.: "Emission control system faulty") or information messages (e.g.: "Automatic switching on of the headlamps activated") may ap-pear temporarily. These can be cleared by pressing the "ESC" button.
"Audio functions" menu
With the RD4 audio equipment switched on, once this menu has been selected you can activate or deactivate the func-tions linked with use of the radio (RDS, REG, RadioText), the CD or the CD changer (introscan, shuffle, CD repeat).
For further details concerning the "Au-dio functions" application, refer to the RD4 part of the "Audio and Telematics" section.
Controls
From the RD4 audio equipment control panel, you can:
 press the "MENU" button to gain ac-cess to the general menu,
 press the "" or "" buttons to scroll through the items on the screen,
 press the "MODE" button to change the permanent application (trip com-puter, audio source, ...),
 press the "" or "" buttons to change a setting value,
 press the "OK" button to confirm,or
 press the "ESC" button to abandon the operation in progress.
 Press the "MENU" button to gain ac-cess to the general menu:
- audio functions,
- trip computer (refer to the end of the section),
- personalisation-configuration,
- telephone (hands-free kit).
 Press the "" or "" buttons to se-lect the menu required, then confirm by pressing the "OK" button.
* With air conditioning only.
"Trip computer" menu
Once this menu has been selected, you can consult information concerning the status of the vehicle (warnings log, sta-tus of the functions, ...).

!
35

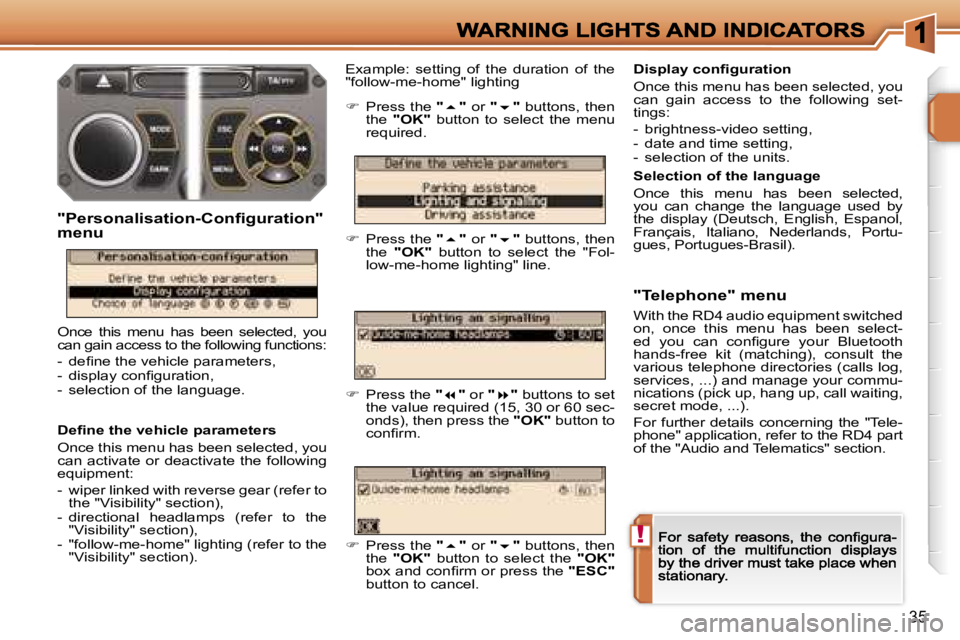

Define the vehicle parameters
Once this menu has been selected, you can activate or deactivate the following equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting (refer to the "Visibility" section).
"Telephone" menu
With the RD4 audio equipment switched on, once this menu has been select-ed you can configure your Bluetooth hands-free kit (matching), consult the various telephone directories (calls log, services, ...) and manage your commu-nications (pick up, hang up, call waiting, secret mode, ...).
For further details concerning the "Tele-phone" application, refer to the RD4 part of the "Audio and Telematics" section.
Display configuration
Once this menu has been selected, you can gain access to the following set-tings:
- brightness-video setting,- date and time setting,- selection of the units.
Selection of the language
Once this menu has been selected, you can change the language used by the display (Deutsch, English, Espanol, Français, Italiano, Nederlands, Portu-gues, Portugues-Brasil).
Example: setting of the duration of the "follow-me-home" lighting
"Personalisation-Configuration"
menu
Once this menu has been selected, you can gain access to the following functions:
- define the vehicle parameters,- display configuration,- selection of the language.
 Press the "" or "" buttons, then the "OK" button to select the menu required.
 Press the "" or "" buttons, then the "OK" button to select the "Fol-low-me-home lighting" line.
 Press the "" or "" buttons to set the value required (15, 30 or 60 sec-onds), then press the "OK" button to confirm.
 Press the "" or "" buttons, then the "OK" button to select the "OK" box and confirm or press the "ESC" button to cancel.

36

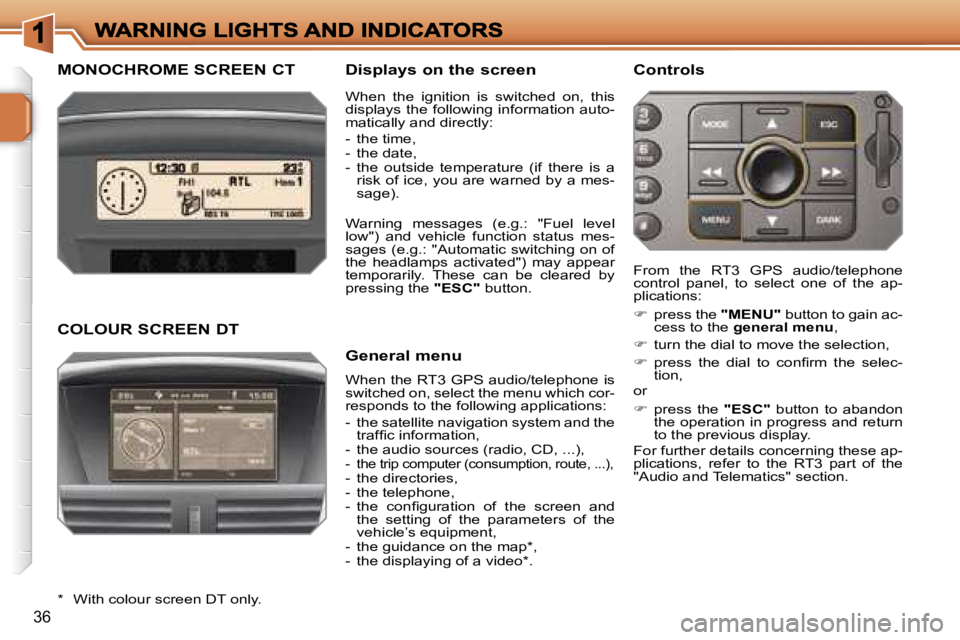

MONOCHROME SCREEN CT Displays on the screen
When the RT3 GPS audio/telephone is switched on, select the menu which cor-responds to the following applications:
- the satellite navigation system and the traffic information,- the audio sources (radio, CD, ...),- the trip computer (consumption, route, ...),- the directories,- the telephone,- the configuration of the screen and the setting of the parameters of the vehicle’s equipment,- the guidance on the map*,- the displaying of a video*.
Controls
When the ignition is switched on, this displays the following information auto-matically and directly:
- the time,- the date,- the outside temperature (if there is a risk of ice, you are warned by a mes-sage).
Warning messages (e.g.: "Fuel level low") and vehicle function status mes-sages (e.g.: "Automatic switching on of the headlamps activated") may appear temporarily. These can be cleared by pressing the "ESC" button.
From the RT3 GPS audio/telephone control panel, to select one of the ap-plications:
 press the "MENU" button to gain ac-cess to the general menu,
 turn the dial to move the selection,
 press the dial to confirm the selec-tion,or
 press the "ESC" button to abandon the operation in progress and return to the previous display.For further details concerning these ap-plications, refer to the RT3 part of the "Audio and Telematics" section.
COLOUR SCREEN DTGeneral menu
* With colour screen DT only.

37

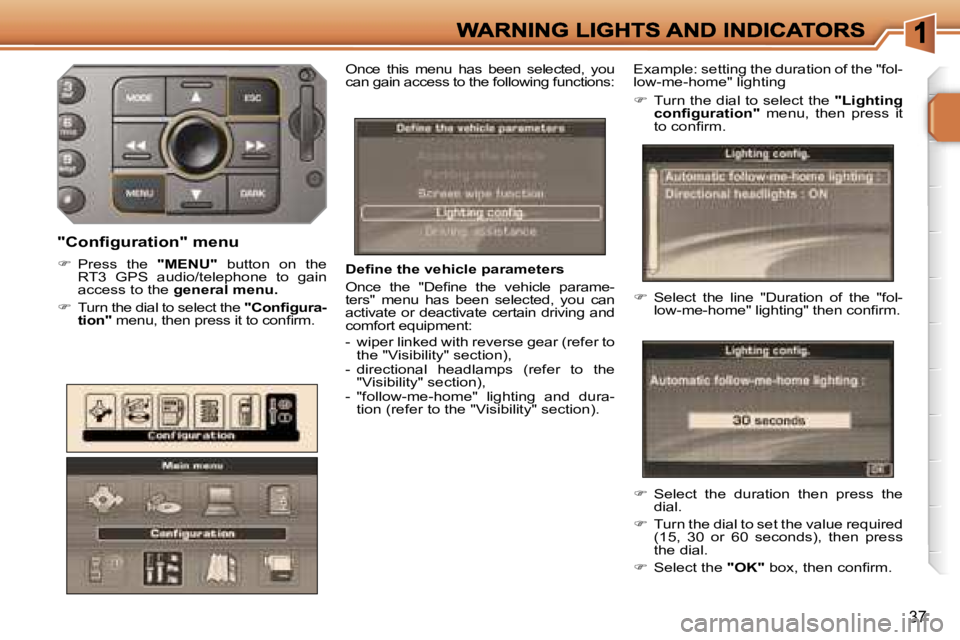

Define the vehicle parameters
Once the "Define the vehicle parame-ters" menu has been selected, you can activate or deactivate certain driving and comfort equipment:
- wiper linked with reverse gear (refer to the "Visibility" section),- directional headlamps (refer to the "Visibility" section),- "follow-me-home" lighting and dura-tion (refer to the "Visibility" section).
Example: setting the duration of the "fol-low-me-home" lighting
 Turn the dial to select the "Lighting configuration" menu, then press it to confirm.
 Select the line "Duration of the "fol-low-me-home" lighting" then confirm.
"Configuration" menu
 Press the "MENU" button on the RT3 GPS audio/telephone to gain access to the general menu.
 Turn the dial to select the "Configura-tion" menu, then press it to confirm.
Once this menu has been selected, you can gain access to the following functions:
 Select the duration then press the dial.
 Turn the dial to set the value required (15, 30 or 60 seconds), then press the dial.
 Select the "OK" box, then confirm.

!
i
38

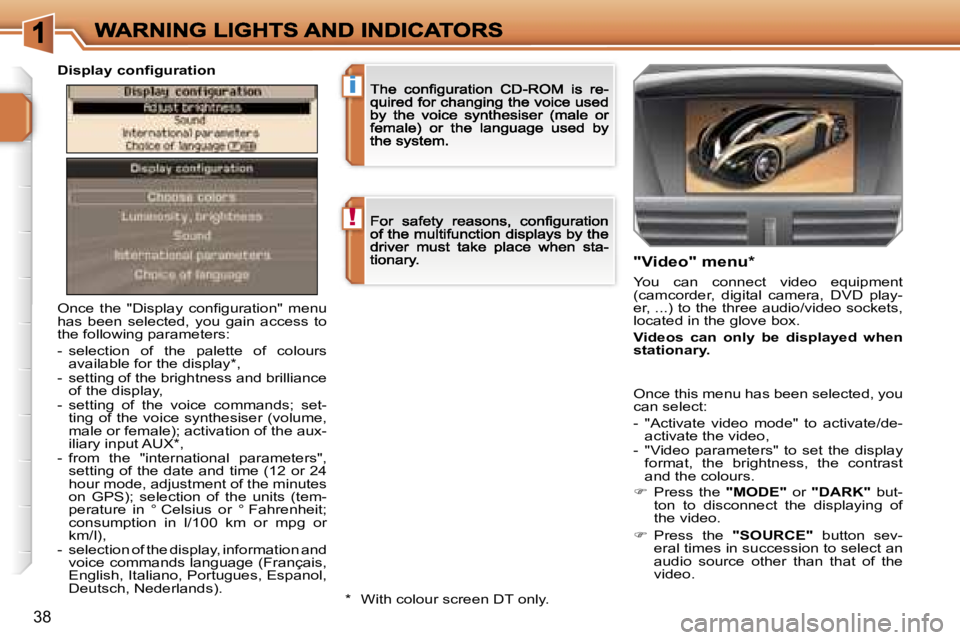

Once the "Display configuration" menu has been selected, you gain access to the following parameters:
- selection of the palette of colours available for the display*,- setting of the brightness and brilliance of the display,- setting of the voice commands; set-ting of the voice synthesiser (volume, male or female); activation of the aux-iliary input AUX*,- from the "international parameters", setting of the date and time (12 or 24 hour mode, adjustment of the minutes on GPS); selection of the units (tem-perature in ° Celsius or ° Fahrenheit; consumption in l/100 km or mpg or km/l),- selection of the display, information and voice commands language (Français, English, Italiano, Portugues, Espanol, Deutsch, Nederlands).
Display configuration
"Video" menu*
You can connect video equipment (camcorder, digital camera, DVD play-er, ...) to the three audio/video sockets, located in the glove box.
Videos can only be displayed when stationary.
Once this menu has been selected, you can select:
- "Activate video mode" to activate/de-activate the video,- "Video parameters" to set the display format, the brightness, the contrast and the colours. Press the "MODE" or "DARK" but-ton to disconnect the displaying of the video.
 Press the "SOURCE" button sev-eral times in succession to select an audio source other than that of the video.
* With colour screen DT only.

39

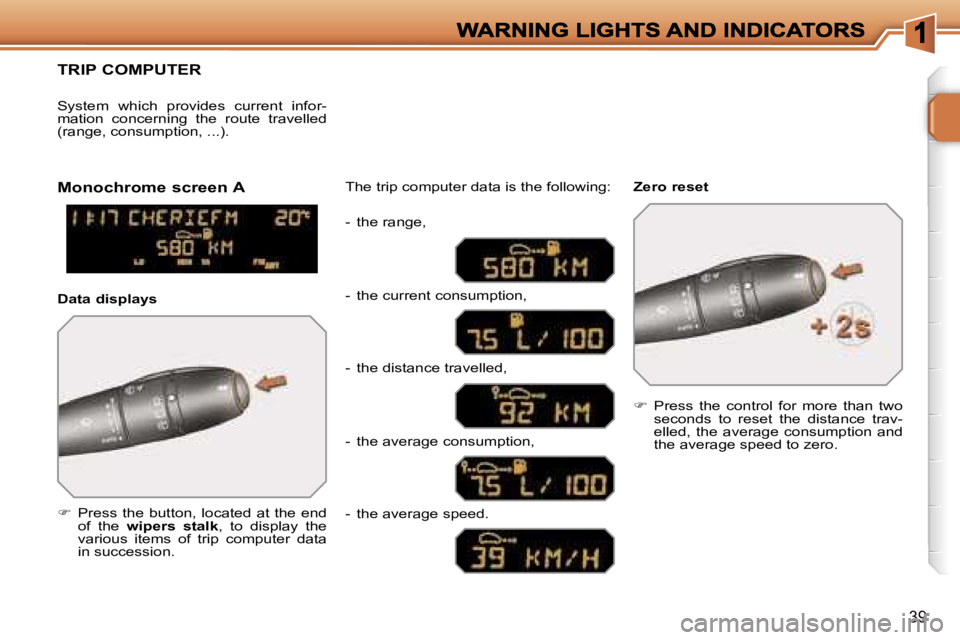

TRIP COMPUTER
 Press the button, located at the end of the wipers stalk, to display the various items of trip computer data in succession.
The trip computer data is the following:
System which provides current infor-mation concerning the route travelled (range, consumption, ...).
 Press the control for more than two seconds to reset the distance trav-elled, the average consumption and the average speed to zero.
Monochrome screen AZero reset
Data displays
- the range,
- the current consumption,
- the distance travelled,
- the average consumption,
- the average speed.
