2006 PEUGEOT 207 DAG Owners Manual

8
!
i
CHECKS
122
Avoid any prolonged contact of
used oil or fluids with the skin.
Most of these fluids are harmful to
health or indeed very corrosive.
Do not discard used oil or fluids
into sewers or onto the ground.
Empty used oil into the contain-
ers provided for this purpose in the
PEUGEOT network.

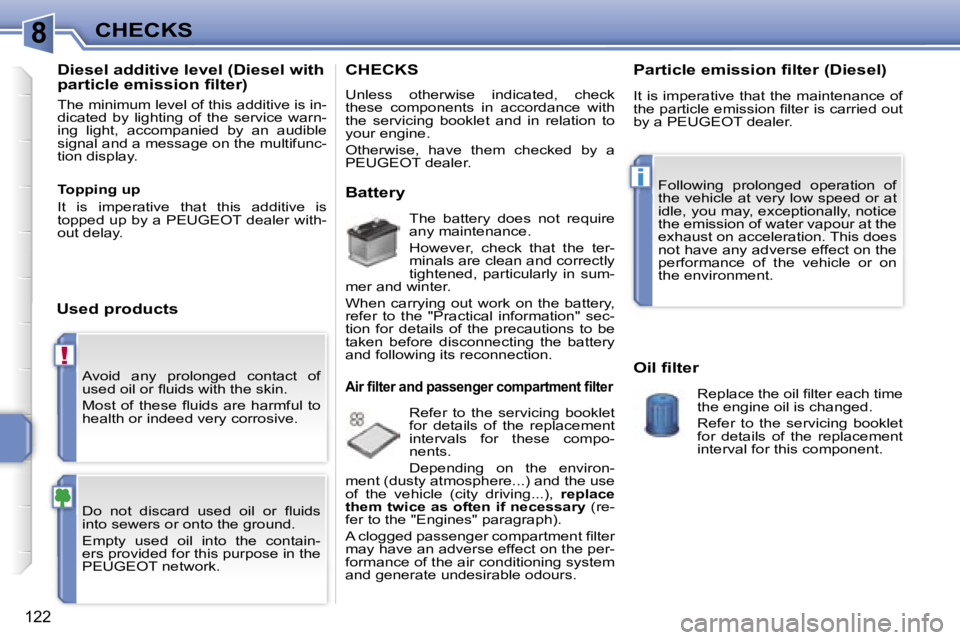

Diesel additive level (Diesel with
particle emission filter)
The minimum level of this additive is in-
dicated by lighting of the service warn-
ing light, accompanied by an audible
signal and a message on the multifunc-
tion display.
Used products
CHECKS
Unless otherwise indicated, check
these components in accordance with
the servicing booklet and in relation to
your engine.
Otherwise, have them checked by a
PEUGEOT dealer.
Battery
The battery does not require
any maintenance.
However, check that the ter-
minals are clean and correctly
tightened, particularly in sum-
mer and winter.
When carrying out work on the battery,
refer to the "Practical information" sec-
tion for details of the precautions to be
taken before disconnecting the battery
and following its reconnection.
Air filter and passenger compartment filter
Refer to the servicing booklet
for details of the replacement
intervals for these compo-
nents.
Depending on the environ-
ment (dusty atmosphere...) and the use
of the vehicle (city driving...), replace
them twice as often if necessary (re-
fer to the "Engines" paragraph).
A clogged passenger compartment filter
may have an adverse effect on the per-
formance of the air conditioning system
and generate undesirable odours.
Particle emission filter (Diesel)
It is imperative that the maintenance of
the particle emission filter is carried out
by a PEUGEOT dealer.
Oil filter
Replace the oil filter each time
the engine oil is changed.
Refer to the servicing booklet
for details of the replacement
interval for this component.
Following prolonged operation of
the vehicle at very low speed or at
idle, you may, exceptionally, notice
the emission of water vapour at the
exhaust on acceleration. This does
not have any adverse effect on the
performance of the vehicle or on
the environment.
Topping up
It is imperative that this additive is
topped up by a PEUGEOT dealer with-
out delay.

8
!
CHECKS
123

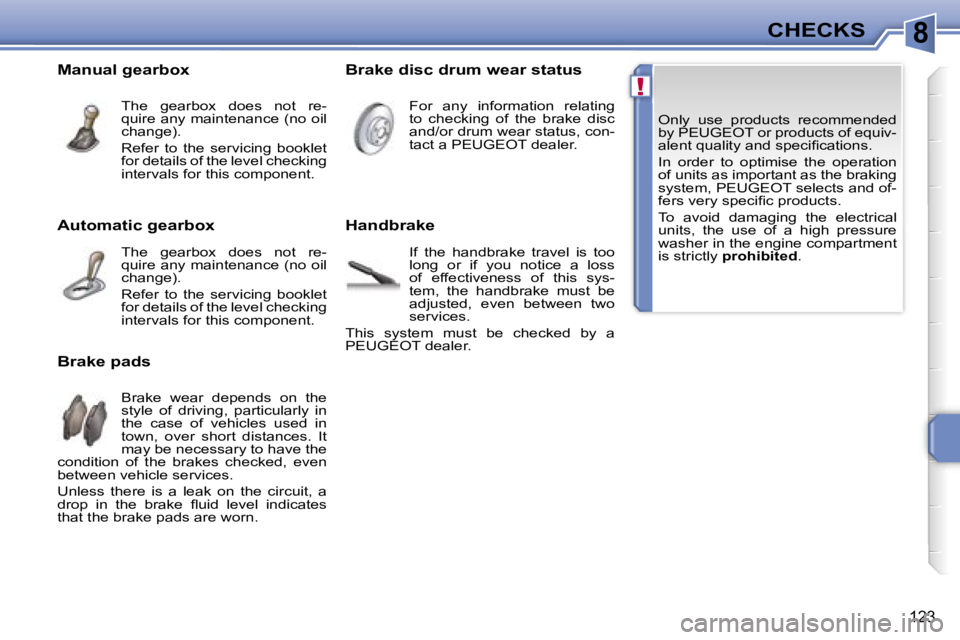

Only use products recommended
by PEUGEOT or products of equiv-
alent quality and specifications.
In order to optimise the operation
of units as important as the braking
system, PEUGEOT selects and of-
fers very specific products.
To avoid damaging the electrical
units, the use of a high pressure
washer in the engine compartment
is strictly prohibited .
Automatic gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component.
Brake disc drum wear status
For any information relating
to checking of the brake disc
and/or drum wear status, con-
tact a PEUGEOT dealer.
Manual gearbox
The gearbox does not re-
quire any maintenance (no oil
change).
Refer to the servicing booklet
for details of the level checking
intervals for this component.
Brake pads
Brake wear depends on the
style of driving, particularly in
the case of vehicles used in
town, over short distances. It
may be necessary to have the
condition of the brakes checked, even
between vehicle services.
Unless there is a leak on the circuit, a
drop in the brake fluid level indicates
that the brake pads are worn.
Handbrake
If the handbrake travel is too
long or if you notice a loss
of effectiveness of this sys-
tem, the handbrake must be
adjusted, even between two
services.
This system must be checked by a
PEUGEOT dealer.

9
i
PRACTICAL INFORMATION
124

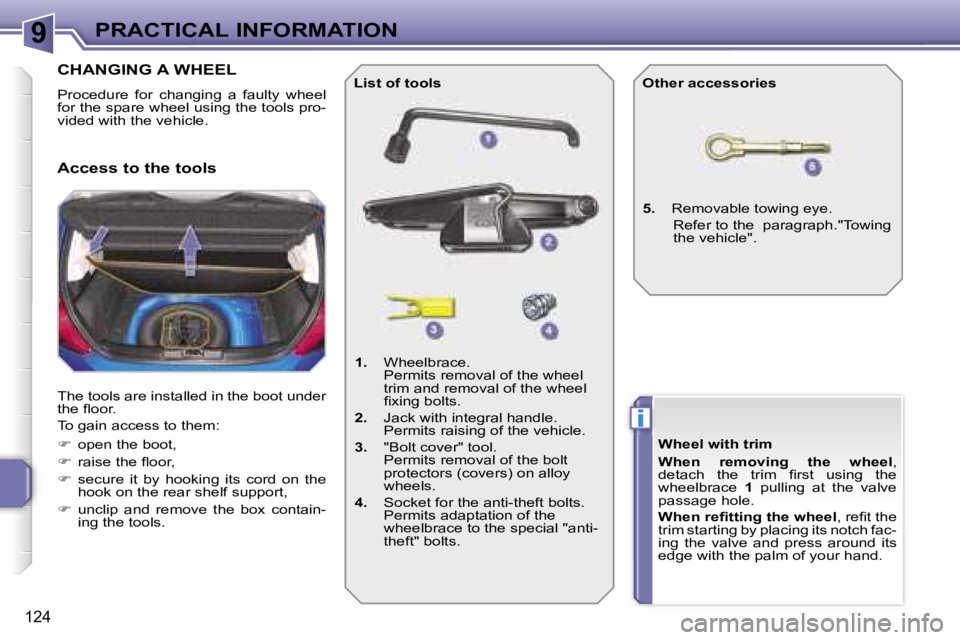

CHANGING A WHEEL
Procedure for changing a faulty wheel
for the spare wheel using the tools pro-
vided with the vehicle.
The tools are installed in the boot under
the floor.
To gain access to them:
 open the boot,
 raise the floor,
 secure it by hooking its cord on the
hook on the rear shelf support,
 unclip and remove the box contain-
ing the tools. 1.
Wheelbrace.
Permits removal of the wheel
trim and removal of the wheel
fixing bolts.
2. Jack with integral handle.
Permits raising of the vehicle.
3. "Bolt cover" tool.
Permits removal of the bolt
protectors (covers) on alloy
wheels.
4. Socket for the anti-theft bolts.
Permits adaptation of the
wheelbrace to the special "anti-
theft" bolts.
List of tools Other accessories
5. Removable towing eye.
Refer to the paragraph."Towing
the vehicle".
Access to the tools
Wheel with trim
When removing the wheel ,
detach the trim first using the
wheelbrace 1 pulling at the valve
passage hole.
When refitting the wheel , refit the
trim starting by placing its notch fac-
ing the valve and press around its
edge with the palm of your hand.

9
i
PRACTICAL INFORMATION
125
Fixing the steel spare
wheel
If your vehicle is fitted with alloy
wheels, it is normal to notice, when
tightening the bolts on fitting, that
the washers do not come into con-
tact with the steel spare wheel. The
wheel is secured by the conical
contact of each bolt.
Tyre under-inflation detection
The spare wheel is not fitted with a
sensor. The punctured wheel must
be repaired by a PEUGEOT dealer.
Access to the spare wheel
The spare wheel is installed in the boot
under the floor.
To gain access to it, refer to the para-
graph "Access to the tools" on the pre-
vious page.Taking out the wheel

Unscrew the yellow central bolt.
 Raise the spare wheel towards you
from the rear.
 Take the wheel out of the boot.
Putting the wheel back in place
 Put the wheel back in its housing.
 Unscrew the yellow central bolt by a
few turns then put it in place in the
centre of the wheel.
 Tighten fully until the central bolt
clicks to retain the wheel correctly.
 Put the box back in place in the cen-
tre of the wheel and clip it.
 Put the boot floor back in place.

9
i
PRACTICAL INFORMATION
126
Parking the vehicle
Immobilise the vehicle where it
does not block traffic: if possible,
park the vehicle on level, stable
and non-slippery ground.
Apply the handbrake, switch off the
ignition and engage first gear* to
lock the wheels.
If necessary, place a chock under
the wheel diagonally opposite the
wheel to be changed.
Never go underneath a vehicle
raised using a jack.
* position R for the "2 Tronic" gear-
box; P for the automatic gear-
box.

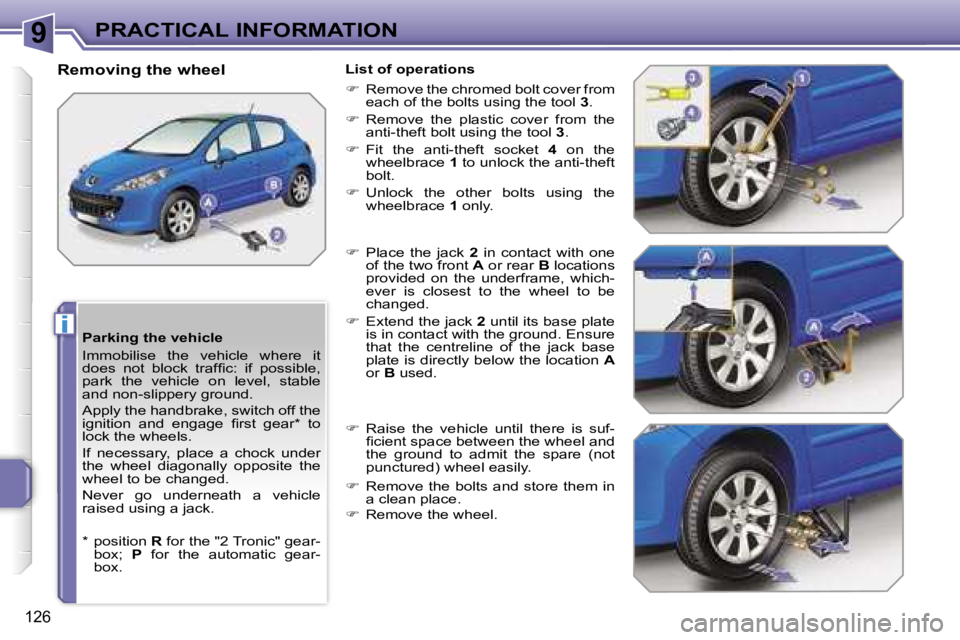

Removing the wheelList of operations
 Remove the chromed bolt cover from
each of the bolts using the tool 3.
 Remove the plastic cover from the
anti-theft bolt using the tool 3.
 Fit the anti-theft socket 4 on the
wheelbrace 1 to unlock the anti-theft
bolt.
 Unlock the other bolts using the
wheelbrace 1 only.
 Place the jack 2 in contact with one
of the two front A or rear B locations
provided on the underframe, which-
ever is closest to the wheel to be
changed.
 Extend the jack 2 until its base plate
is in contact with the ground. Ensure
that the centreline of the jack base
plate is directly below the location A
or B used.
 Raise the vehicle until there is suf-
ficient space between the wheel and
the ground to admit the spare (not
punctured) wheel easily.
 Remove the bolts and store them in
a clean place.
 Remove the wheel.

9
i
PRACTICAL INFORMATION
127
After changing a wheel
To store the punctured wheel in the
boot correctly, first remove the cen-
tral cover.
Have the tightening of the bolts and
the pressure of the spare wheel
checked by a PEUGEOT dealer
without delay.
Have the punctured wheel repaired
and replace it on the vehicle as
soon as possible.
Fitting the wheelList of operations
 Put the wheel in place on the hub.
 Screw in the bolts by hand to the
stop.
 Pre-tighten the anti-theft bolt using
the wheelbrace 1 fitted with the anti-
theft socket 4.
 Pre-tighten the other bolts using the
wheelbrace 1 only.
 Lower the vehicle fully.
 Fold the jack 2 and detach it.
 Lock the anti-theft bolt using the
wheelbrace 1 fitted with the anti-theft
socket 4.
 Lock the other bolts using the wheel-
brace 1 only.
 Refit the plastic cover on the anti-
theft bolt and the chromed bolt cov-
ers on each of the bolts.
 Store the wheel and the tools in the
boot.

9
!
i
i
PRACTICAL INFORMATION
128

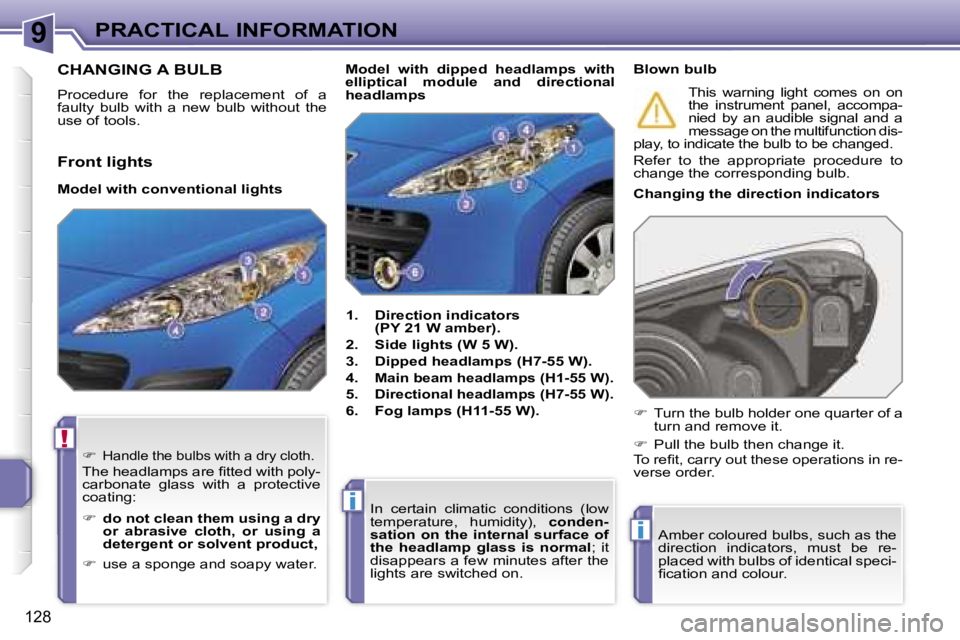

CHANGING A BULB
Procedure for the replacement of a
faulty bulb with a new bulb without the
use of tools.1. Direction indicators(PY 21 W amber).
2. Side lights (W 5 W).
3. Dipped headlamps (H7-55 W).
4.
Main beam headlamps (H1-55 W).
5. Directional headlamps (H7-55 W).
6. Fog lamps (H11-55 W). Changing the direction indicators

Handle the bulbs with a dry cloth.
The headlamps are fitted with poly-
carbonate glass with a protective
coating:
 do not clean them using a dry
or abrasive cloth, or using a
detergent or solvent product,
 use a sponge and soapy water. In certain climatic conditions (low
temperature, humidity),
conden-
sation on the internal surface of
the headlamp glass is normal ; it
disappears a few minutes after the
lights are switched on.
Model with dipped headlamps with
elliptical module and directional
headlamps
Amber coloured bulbs, such as the
direction indicators, must be re-
placed with bulbs of identical speci-
fication and colour.

Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb then change it.
To refit, carry out these operations in re-
verse order.
Front lights
Model with conventional lights Blown bulb
This warning light comes on on
the instrument panel, accompa-
nied by an audible signal and a
message on the multifunction dis-
play, to indicate the bulb to be changed.
Refer to the appropriate procedure to
change the corresponding bulb.

9PRACTICAL INFORMATION
129

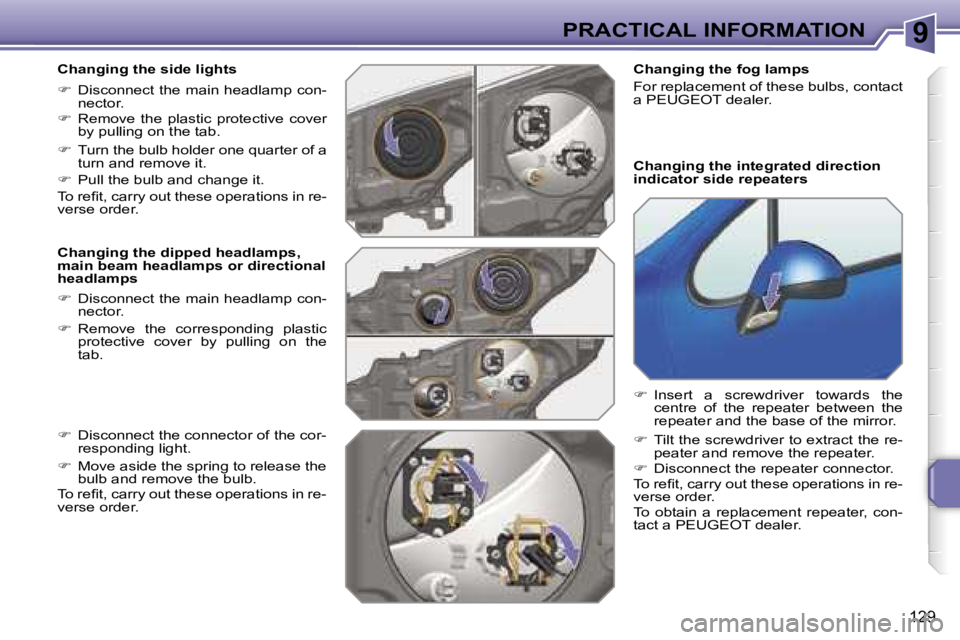

Changing the side lights
 Disconnect the main headlamp con-
nector.
 Remove the plastic protective cover
by pulling on the tab.
 Turn the bulb holder one quarter of a
turn and remove it.
 Pull the bulb and change it.
To refit, carry out these operations in re-
verse order.
Changing the dipped headlamps,
main beam headlamps or directional
headlamps
 Disconnect the main headlamp con-
nector.
 Remove the corresponding plastic
protective cover by pulling on the
tab. Changing the integrated direction
indicator side repeaters

Insert a screwdriver towards the
centre of the repeater between the
repeater and the base of the mirror.
 Tilt the screwdriver to extract the re-
peater and remove the repeater.
 Disconnect the repeater connector.
To refit, carry out these operations in re-
verse order.
To obtain a replacement repeater, con-
tact a PEUGEOT dealer.

Disconnect the connector of the cor-
responding light.
 Move aside the spring to release the
bulb and remove the bulb.
To refit, carry out these operations in re-
verse order. Changing the fog lamps
For replacement of these bulbs, contact
a PEUGEOT dealer.
