2006 NISSAN XTERRA Navigation Manual

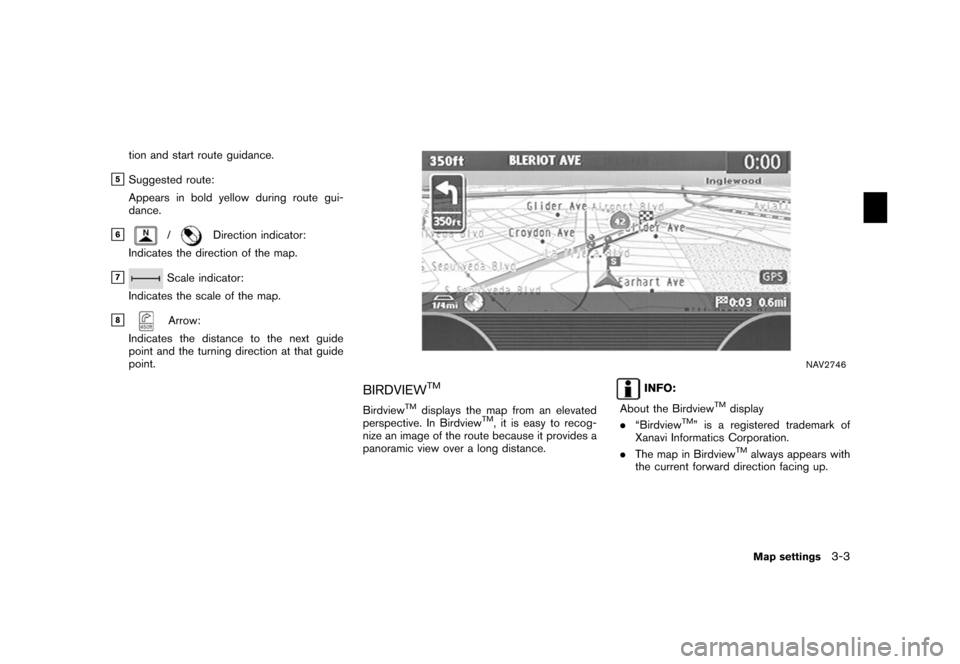

tion and start route guidance.
&5Suggested route:
Appears in bold yellow during route gui-
dance.
&6
/
Direction indicator:
Indicates the direction of the map.
&7
Scale indicator:
Indicates the scale of the map.
&8
Arrow:
Indicates the distance to the next guide
point and the turning direction at that guide
point.
NAV2746
BIRDVIEW
TM
Birdview
TM
displays the map from an elevated
perspective. In Birdview
TM, it is easy to recog-
nize an image of the route because it provides a
panoramic view over a long distance.
INFO:
About the Birdview
TM
display
. “Birdview
TM” is a registered trademark of
Xanavi Informatics Corporation.
. The map in Birdview
TM
always appears with
the current forward direction facing up.Map settings
3-3

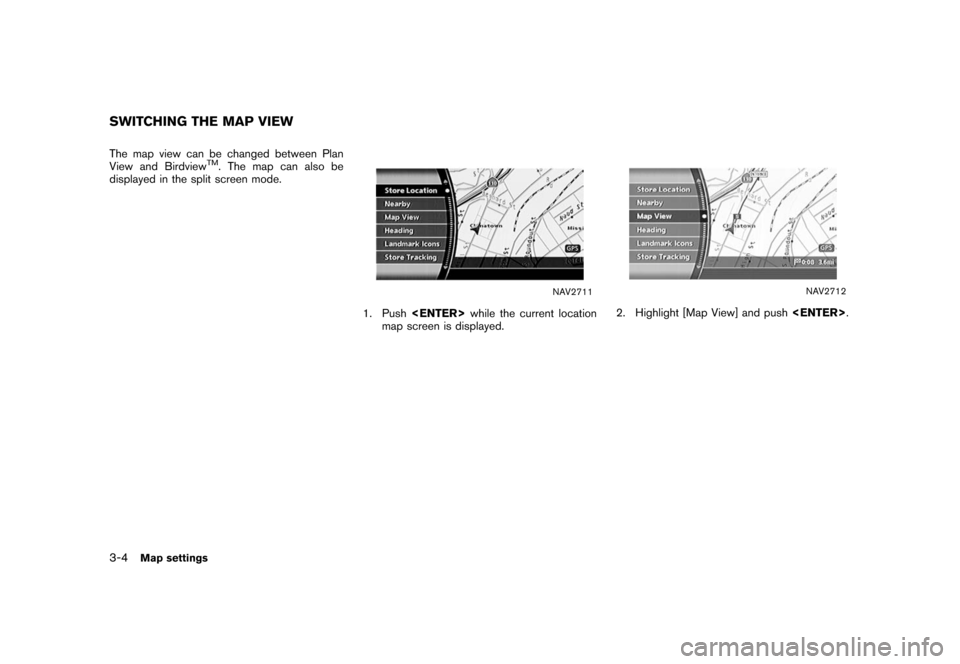

The map view can be changed between Plan
View and Birdview
TM. The map can also be
displayed in the split screen mode.
NAV2711
1. Push while the current location
map screen is displayed.
NAV2712
2. Highlight [Map View] and push
.
SWITCHING THE MAP VIEW3-4
Map settings

NAV2747

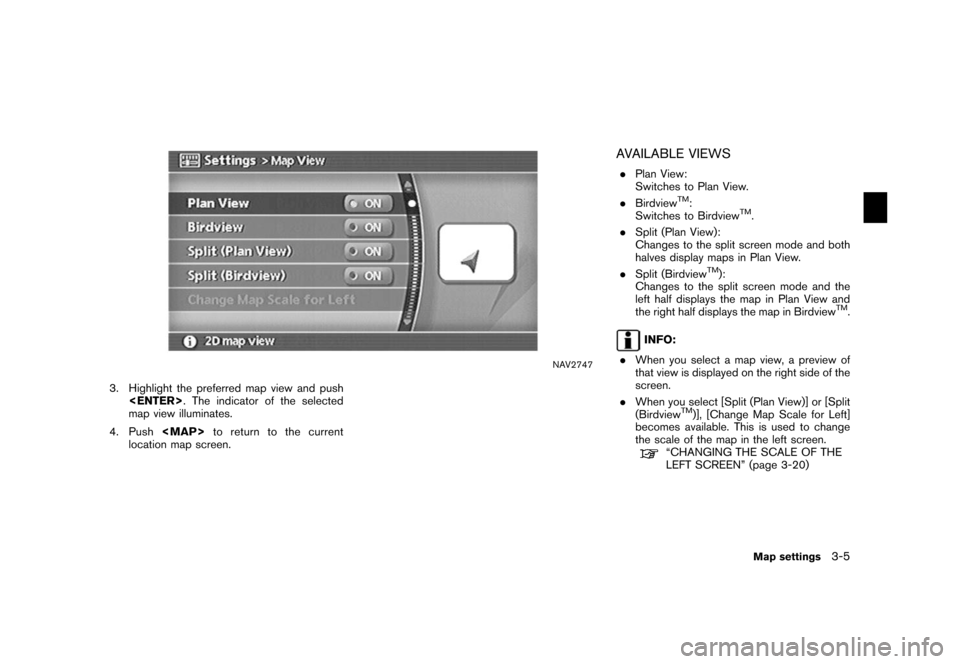

3. Highlight the preferred map view and push . The indicator of the selected
map view illuminates.
4. Push

NAV2748
Split (Plan View)
NAV2749
Split (Birdview
TM)
NAV2750
INFO:
You can also set the map view using the
following procedure.
1) Push .
2) Highlight [Navigation] and push
.
3) Highlight [Map View] and push .
3-6
Map settings

NAI0408

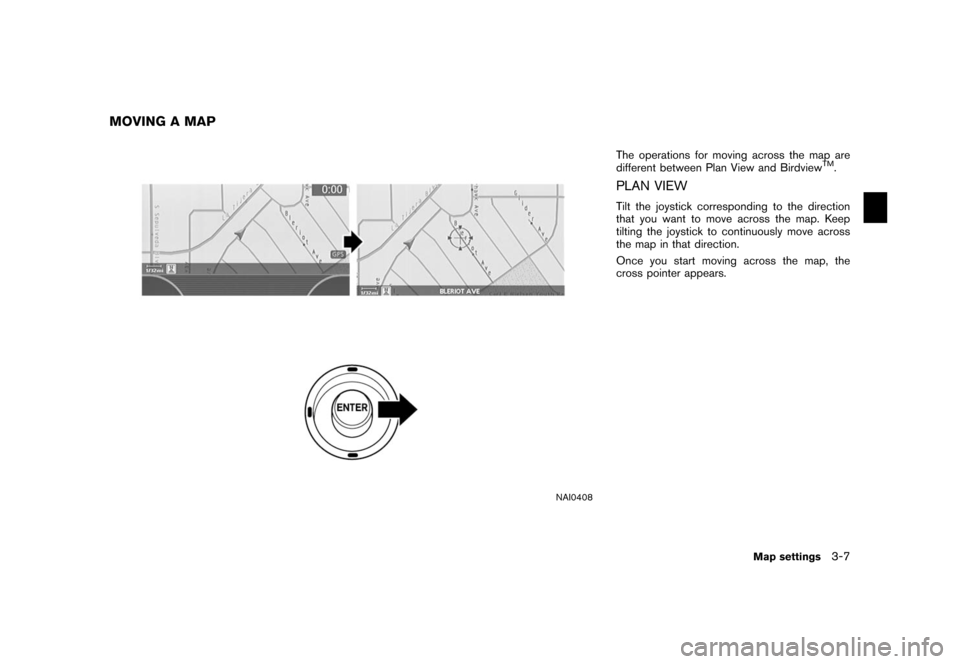

The operations for moving across the map are
different between Plan View and Birdview
TM.
PLAN VIEWTilt the joystick corresponding to the direction
that you want to move across the map. Keep
tilting the joystick to continuously move across
the map in that direction.
Once you start moving across the map, the
cross pointer appears.
MOVING A MAP
Map settings
3-7

NAI0414
BIRDVIEW
TM
The joystick allows movement in the following
ways.
Keep tilting the joystick to continuously move
across the map in that direction.&1Rotates the map clockwise.
&2Rotates the map counterclockwise.
&3Moves the cross pointer on the map upward.
&4Moves the cross pointer on the map down-
ward.
Once you start moving on the map, the cross
pointer appears.
3-8
Map settings

NAI0415

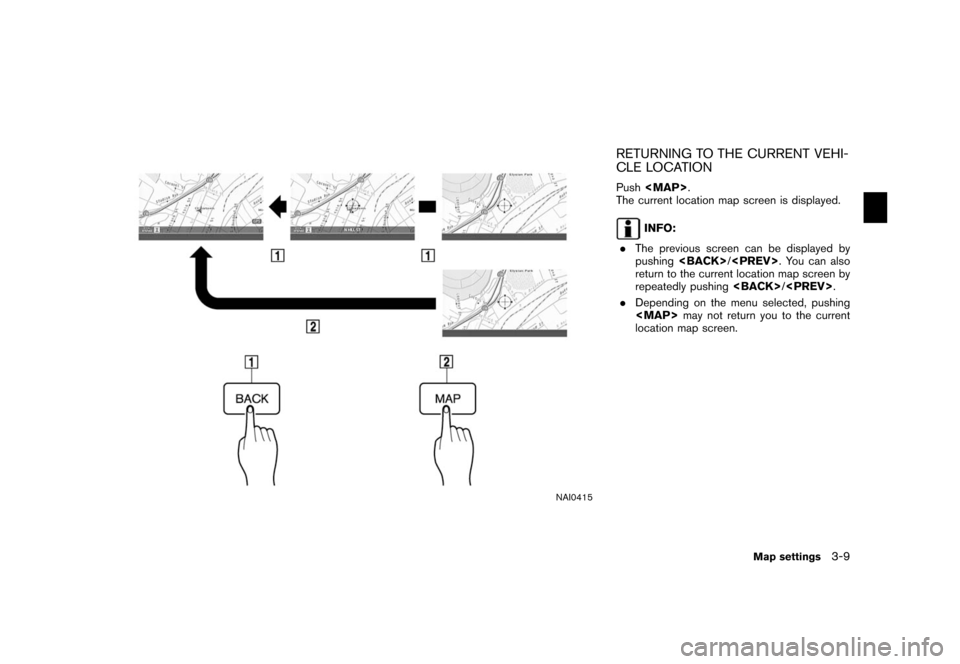

RETURNING TO THE CURRENT VEHI-
CLE LOCATIONPush

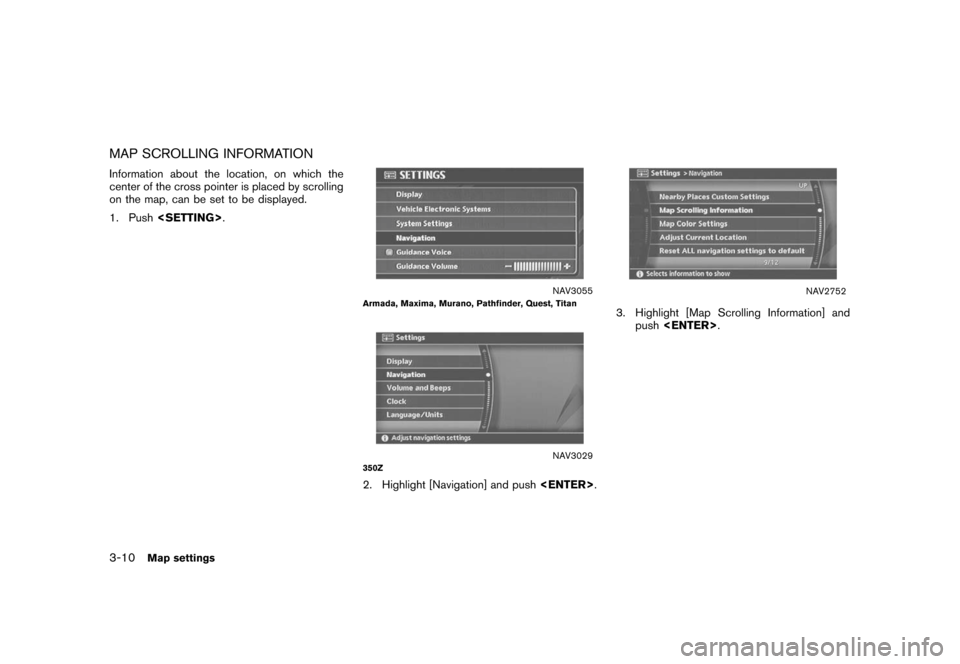

MAP SCROLLING INFORMATIONInformation about the location, on which the
center of the cross pointer is placed by scrolling
on the map, can be set to be displayed.
1. Push .
NAV3055
Armada, Maxima, Murano, Pathfinder, Quest, Titan
NAV3029
350Z2. Highlight [Navigation] and push

.
NAV2752
3. Highlight [Map Scrolling Information] and
push .
3-10
Map settings
