2006 NISSAN XTERRA Navigation Manual

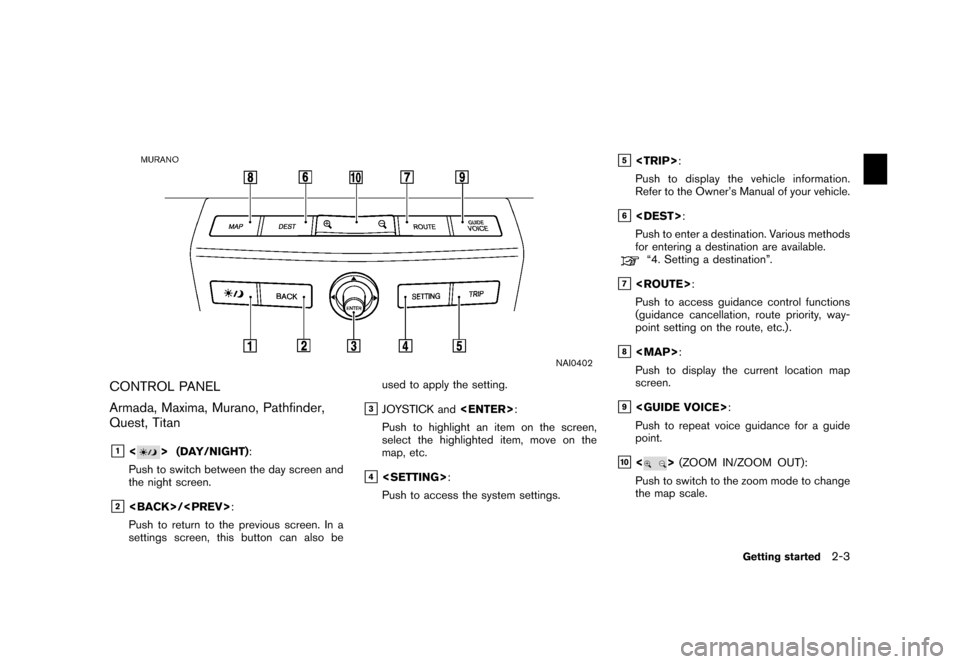

NAI0402
CONTROL PANEL
Armada, Maxima, Murano, Pathfinder,
Quest, Titan&1<
> (DAY/NIGHT):
Push to switch between the day screen and
the night screen.
&2/ :
Push to return to the previous screen. In a
settings screen, this button can also be used to apply the setting.
&3JOYSTICK and
:
Push to highlight an item on the screen,
select the highlighted item, move on the
map, etc.
&4 :
Push to access the system settings.
&5 :
Push to display the vehicle information.
Refer to the Owner’s Manual of your vehicle.
&6 :
Push to enter a destination. Various methods
for entering a destination are available.“4. Setting a destination”.
&7 :
Push to access guidance control functions
(guidance cancellation, route priority, way-
point setting on the route, etc.) .
&8

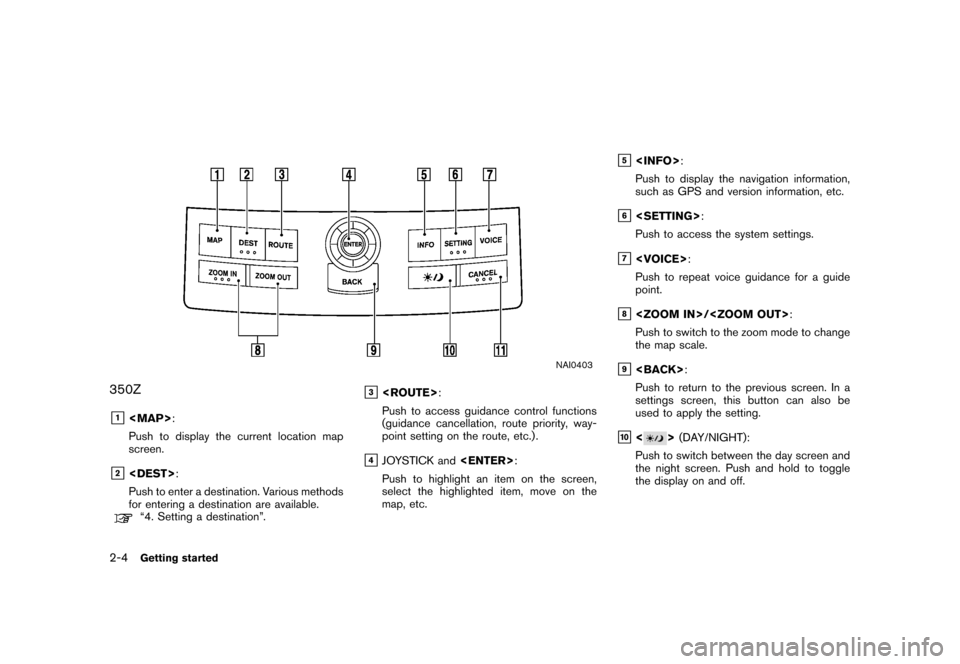

NAI0403
350Z&1

&11
:
Push to return to the map screen or cancel
the route that has already been set. When you use this system, make sure the
engine is running.
NOTE:
If you use the system with the engine not
running (ignition in the ON or ACC posi-
tion) for long periods of time, this may
drain the battery, making it difficult to start
the engine.
HOW TO OPEN THE COVER OF THE
LCD
CAUTION
. Do not place any objects on the
instrument panel. If you drop any
objects onto the instrument panel or
spill liquid on it, it may result in a
system malfunction.
. To protect the liquid crystal display,
close it when it is not being used.

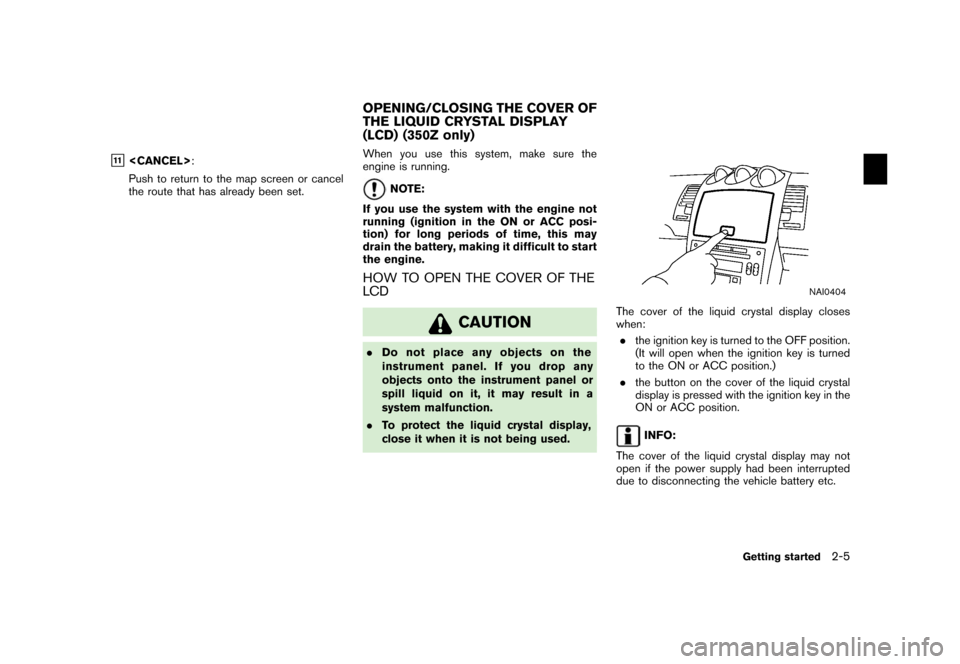

NAI0404
The cover of the liquid crystal display closes
when:
. the ignition key is turned to the OFF position.
(It will open when the ignition key is turned
to the ON or ACC position.)
. the button on the cover of the liquid crystal
display is pressed with the ignition key in the
ON or ACC position.
INFO:
The cover of the liquid crystal display may not
open if the power supply had been interrupted
due to disconnecting the vehicle battery etc.
OPENING/CLOSING THE COVER OF
THE LIQUID CRYSTAL DISPLAY
(LCD) (350Z only)
Getting started
2-5

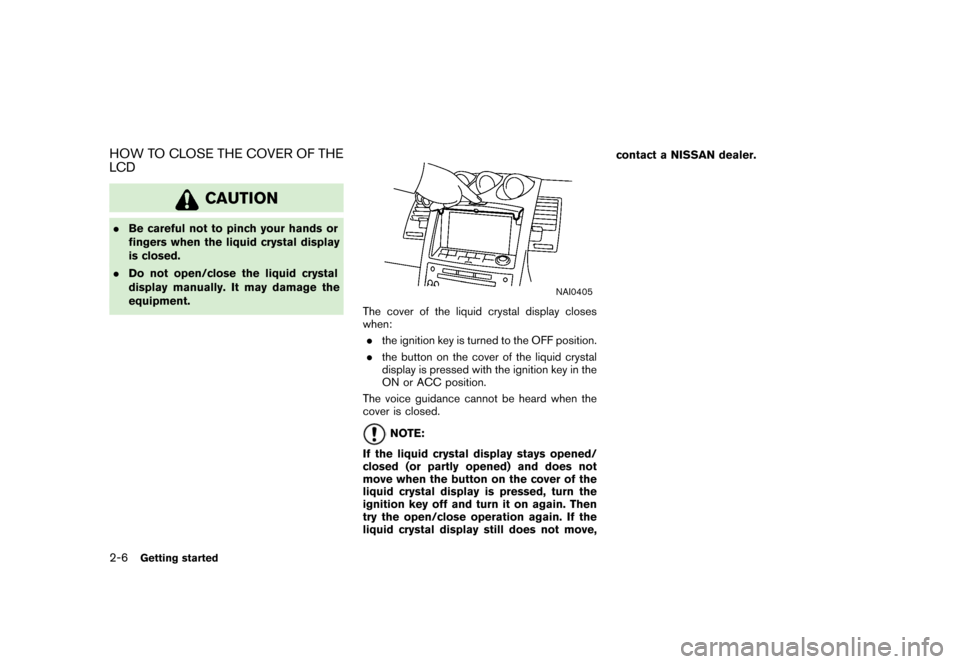

HOW TO CLOSE THE COVER OF THE
LCD
CAUTION
.Be careful not to pinch your hands or
fingers when the liquid crystal display
is closed.
. Do not open/close the liquid crystal
display manually. It may damage the
equipment.
NAI0405
The cover of the liquid crystal display closes
when:
. the ignition key is turned to the OFF position.
. the button on the cover of the liquid crystal
display is pressed with the ignition key in the
ON or ACC position.
The voice guidance cannot be heard when the
cover is closed.
NOTE:
If the liquid crystal display stays opened/
closed (or partly opened) and does not
move when the button on the cover of the
liquid crystal display is pressed, turn the
ignition key off and turn it on again. Then
try the open/close operation again. If the
liquid crystal display still does not move, contact a NISSAN dealer.
2-6
Getting started

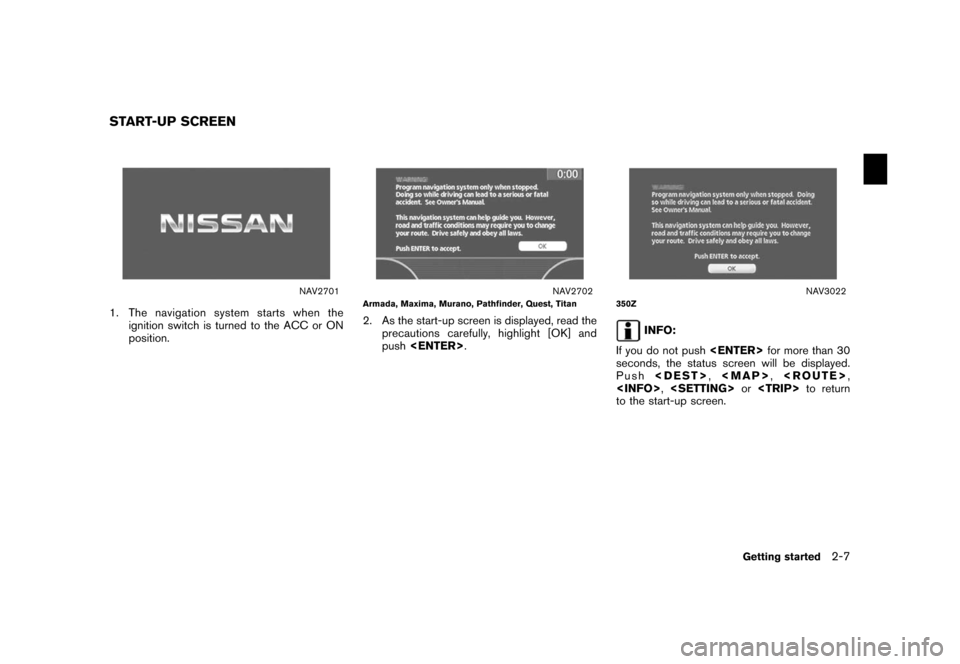

NAV2701
1. The navigation system starts when theignition switch is turned to the ACC or ON
position.
NAV2702
Armada, Maxima, Murano, Pathfinder, Quest, Titan2. As the start-up screen is displayed, read the
precautions carefully, highlight [OK] and
push .
NAV3022
350Z
INFO:
If you do not push for more than 30
seconds, the status screen will be displayed.
Push ,

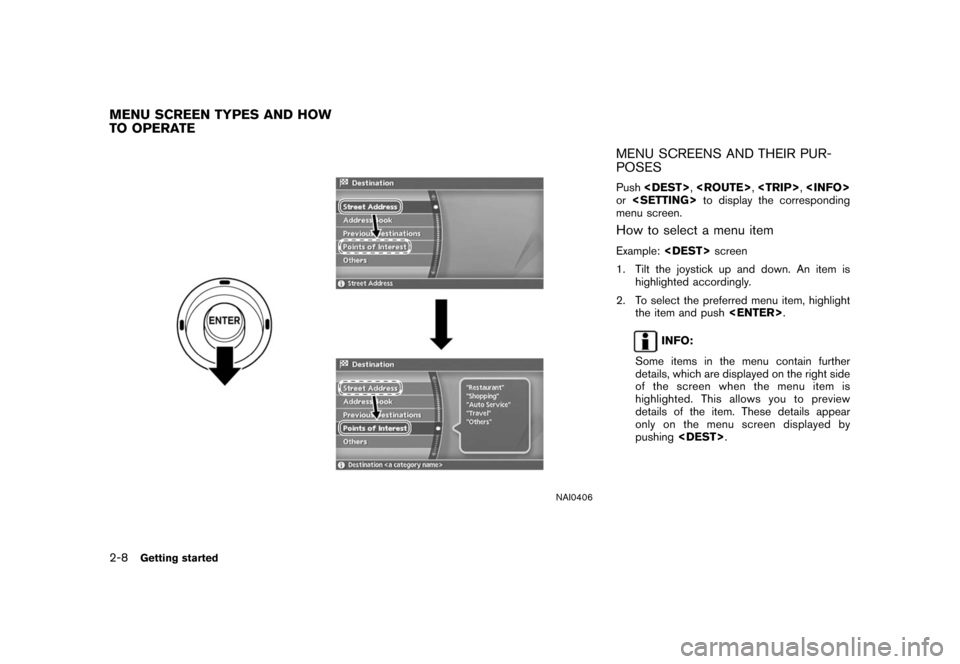

NAI0406
MENU SCREENS AND THEIR PUR-
POSESPush ,
,
,

or to display the corresponding
menu screen.How to select a menu itemExample: screen
1. Tilt the joystick up and down. An item is highlighted accordingly.
2. To select the preferred menu item, highlight the item and push .
INFO:
Some items in the menu contain further
details, which are displayed on the right side
of the screen when the menu item is
highlighted. This allows you to preview
details of the item. These details appear
only on the menu screen displayed by
pushing
.
MENU SCREEN TYPES AND HOW
TO OPERATE2-8
Getting started

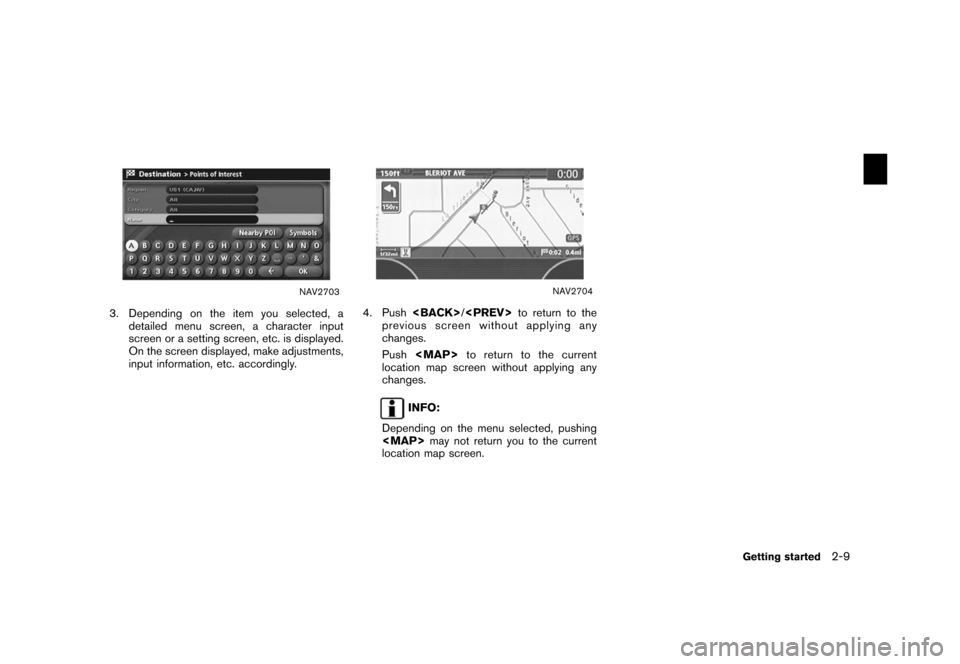

NAV2703
3. Depending on the item you selected, adetailed menu screen, a character input
screen or a setting screen, etc. is displayed.
On the screen displayed, make adjustments,
input information, etc. accordingly.
NAV2704
4. Push /
to return to the
previous screen without applying any
changes.
Push

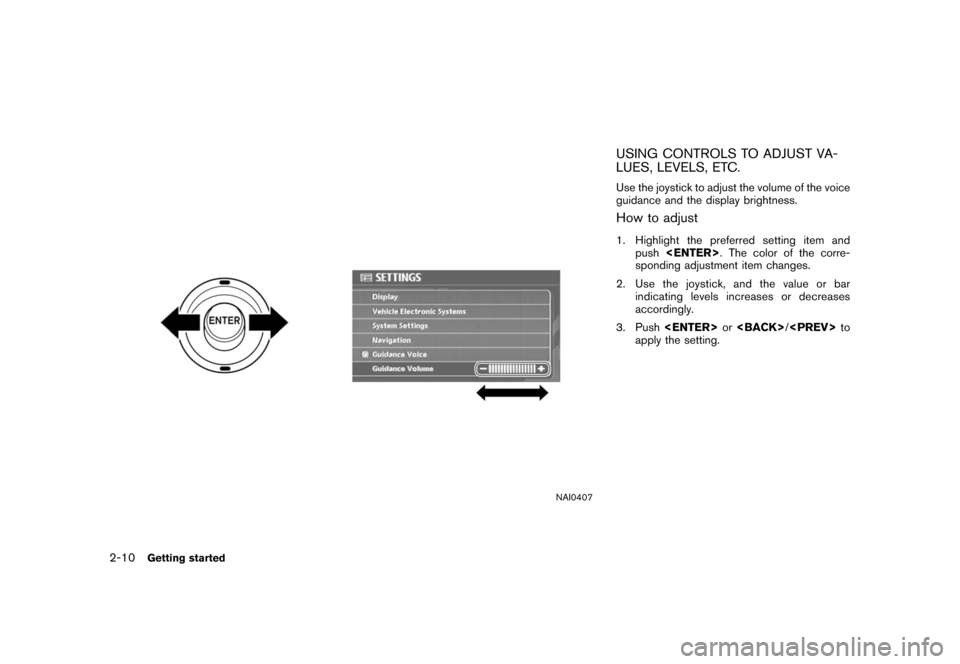

NAI0407
USING CONTROLS TO ADJUST VA-
LUES, LEVELS, ETC.Use the joystick to adjust the volume of the voice
guidance and the display brightness.How to adjust1. Highlight the preferred setting item andpush . The color of the corre-
sponding adjustment item changes.
2. Use the joystick, and the value or bar indicating levels increases or decreases
accordingly.
3. Push or
/
to
apply the setting.
2-10
Getting started
