2006 NISSAN MURANO engine

d. You have had an accident involv-
ing damage to the exhaust system,
underbody, or rear of the vehicle.
THREE-WAY CATALYSTThe three-way catalyst is an emission control
device installed in the exhaust system. Exhaust
gases in the converter are burned at high tem-
peratures to help reduce pollutants.
WARNING

The exhaust gas and the exhaust sys-
tem are very hot. Keep people, ani-
mals or flammable materials away
from the exhaust system compo-
nents.

Do not stop or park the vehicle over
flammable materials such as dry
grass, waste paper or rags. They may
ignite and cause a fire.
CAUTION

Do not use leaded gasoline. Deposits
from leaded gasoline will seriously
reduce the three-way catalyst’s abil-
ity to help reduce exhaust pollutants.

Keep your engine tuned up. Malfunc-
tions in the ignition, fuel injection, or
electrical systems can cause overrich
fuel flow into the three-way catalyst,
causing it to overheat. Do not keep
driving if the engine misfires, or if
noticeable loss of performance or
other unusual operating conditions
are detected. Have the vehicle in-
spected promptly by a NISSAN
dealer.

Avoid driving with an extremely low
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the three-way catalyst.

Do not race the engine while warm-
ing it up.

Do not push or tow your vehicle to
start the engine.
TIRE PRESSURE MONITORING
SYSTEM (TPMS) (if so equipped)Each tire, including the spare (if provided),
should be checked monthly when cold and
inflated to the inflation pressure recommended
by the vehicle manufacturer on the vehicle plac-
ard or tire inflation pressure label. (If your vehicle
has tires of a different size than the size indicated
on the vehicle placard or tire inflation pressure
label, you should determine the proper tire infla-
tion pressure for those tires.)
As an added safety feature, your vehicle has
been equipped with a tire pressure monitoring
system (TPMS) that illuminates a tire pressure
telltale when one or more of your tires is signifi-
cantly under-inflated. Accordingly, when the low
tire pressure telltale illuminates, you should stop
and check your tires as soon as possible, and
inflate them to the proper pressure. Driving on a
significantly under-inflated tire causes the tire to
overheat and can lead to tire failure. Under-
inflation also reduces fuel efficiency and tire
tread life, and may affect the vehicle’s handling
and stopping ability.
Please note that the TPMS is not a substitute for
proper tire maintenance, and it is the driver’s
responsibility to maintain correct tire pressure,
even if under-inflation has not reached the level
Starting and driving
5-3


05.8.26/Z50-D/V5.0

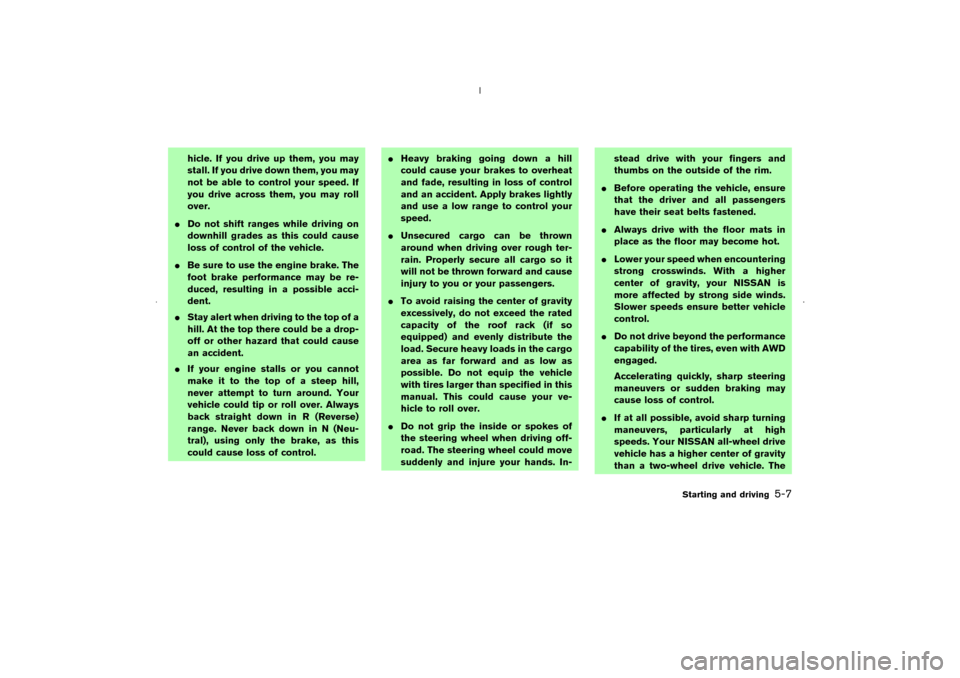

hicle. If you drive up them, you may
stall. If you drive down them, you may
not be able to control your speed. If
you drive across them, you may roll
over.

Do not shift ranges while driving on
downhill grades as this could cause
loss of control of the vehicle.

Be sure to use the engine brake. The
foot brake performance may be re-
duced, resulting in a possible acci-
dent.

Stay alert when driving to the top of a
hill. At the top there could be a drop-
off or other hazard that could cause
an accident.

If your engine stalls or you cannot
make it to the top of a steep hill,
never attempt to turn around. Your
vehicle could tip or roll over. Always
back straight down in R (Reverse)
range. Never back down in N (Neu-
tral), using only the brake, as this
could cause loss of control.
Heavy braking going down a hill
could cause your brakes to overheat
and fade, resulting in loss of control
and an accident. Apply brakes lightly
and use a low range to control your
speed.

Unsecured cargo can be thrown
around when driving over rough ter-
rain. Properly secure all cargo so it
will not be thrown forward and cause
injury to you or your passengers.

To avoid raising the center of gravity
excessively, do not exceed the rated
capacity of the roof rack (if so
equipped) and evenly distribute the
load. Secure heavy loads in the cargo
area as far forward and as low as
possible. Do not equip the vehicle
with tires larger than specified in this
manual. This could cause your ve-
hicle to roll over.

Do not grip the inside or spokes of
the steering wheel when driving off-
road. The steering wheel could move
suddenly and injure your hands. In-stead drive with your fingers and
thumbs on the outside of the rim.

Before operating the vehicle, ensure
that the driver and all passengers
have their seat belts fastened.

Always drive with the floor mats in
place as the floor may become hot.

Lower your speed when encountering
strong crosswinds. With a higher
center of gravity, your NISSAN is
more affected by strong side winds.
Slower speeds ensure better vehicle
control.

Do not drive beyond the performance
capability of the tires, even with AWD
engaged.
Accelerating quickly, sharp steering
maneuvers or sudden braking may
cause loss of control.

If at all possible, avoid sharp turning
maneuvers, particularly at high
speeds. Your NISSAN all-wheel drive
vehicle has a higher center of gravity
than a two-wheel drive vehicle. The
Starting and driving
5-7


05.8.26/Z50-D/V5.0


vehicle is not designed for cornering
at the same speeds as conventional
two-wheel drive vehicles. Failure to
operate this vehicle correctly could
result in loss of control and/or a
rollover accident.

Always use tires of the same type,
size, brand, construction (bias, bias-
belted or radial), and tread pattern on
all four wheels. Install tire chains on
the front wheels when driving on slip-
pery roads and drive carefully.

Be sure to check the brakes immedi-
ately after driving in mud or water.
See “Brake system” later in this sec-
tion for wet brakes.

Avoid parking your vehicle on steep
hills. If you get out of the vehicle and
it rolls forward, backward or side-
ways, you could be injured.

Whenever you drive off-road through
sand, mud or water as deep as the
wheel hub, more frequent mainte-
nance may be required. See “Periodic maintenance” in the “Service
and Maintenance Guide”.

Do not drive continuously on sandy
or muddy roads with the front wheels
spinning. The AWD warning light
blinks and the driving mode changes
to 2WD. This could reduce traction
force remarkably. Be especially care-
ful when towing a trailer. (AWD mod-
els)

Do not use 2-wheel chassis dyna-
mometers or 2-wheel free rollers.
(AWD models)

Never operate the accelerator pedal
with the front wheels raised and the
rear wheels on the ground while jack-
ing up or with the front wheels on the
roller and the rear wheels on the
ground. Otherwise, the vehicle could
jump. (AWD models)

When a wheel is suspended due to
running off the road, do not idle the
wheel excessively. (AWD models)

When the vehicle is on a free roller orthe front or rear wheels are jacked
up, do not start the engine. (AWD
models)
5-8
Starting and driving


05.8.26/Z50-D/V5.0


On CVT (Continuously Variable Transmission)
models, the ignition lock is designed so that the
key cannot be turned to LOCK and removed
until the selector lever is moved to the P (Park)
position.
When removing the key from the ignition, make
sure the selector lever is in the P (Park) position.
If the selector lever is not returned to P (Park)
position, the key cannot be moved toward
LOCK.
When the key cannot be turned toward the
LOCK position, proceed as follows to remove
the key:1. Move the selector lever into the P (Park)
position.
2. Turn the ignition key slightly in the ON direc-
tion.
3. Turn the key toward the LOCK position.
4. Remove the key.
If the key is removed from the ignition switch, the
selector lever cannot be moved from P (Park)
position.The selector lever can be moved if
the ignition switch is in the ONposition
and the foot brake pedal is depressed.
There is an OFF position
1
in between LOCK
and ACC, although it does not show on the lock
cylinder. When the ignition is in OFF the steering
wheel is not locked.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn clockwise
from the straight up position.
To lock the steering wheel, turn the key to
the LOCK position. Remove the key. To
unlock the steering wheel, insert the key
and turn it gently while rotating the steer-
ing wheel slightly right and left.

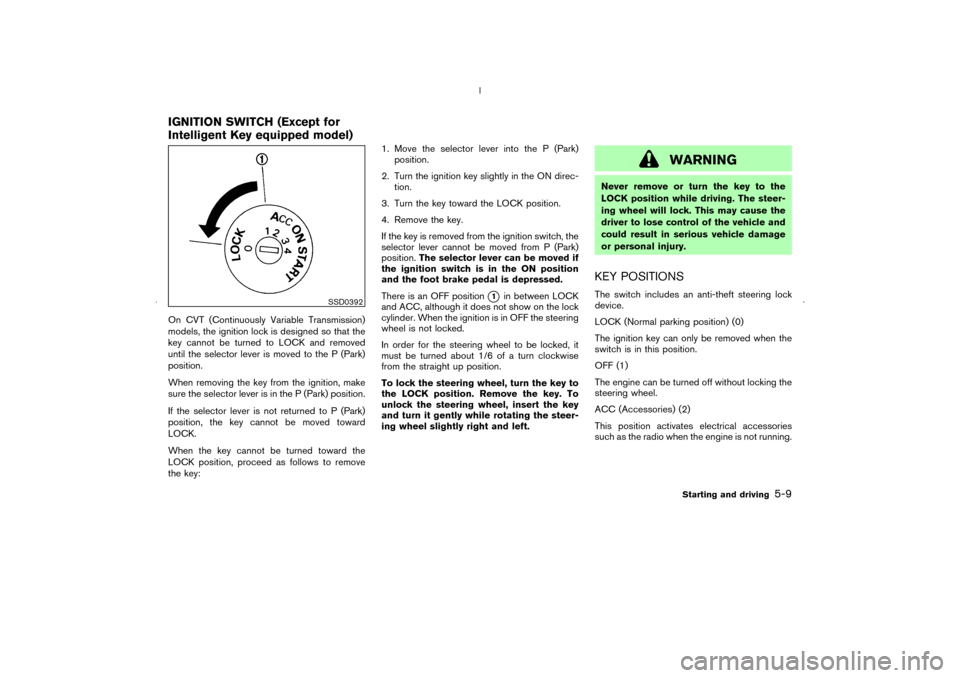

WARNING
Never remove or turn the key to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
or personal injury.KEY POSITIONSThe switch includes an anti-theft steering lock
device.
LOCK (Normal parking position) (0)
The ignition key can only be removed when the
switch is in this position.
OFF (1)
The engine can be turned off without locking the
steering wheel.
ACC (Accessories) (2)
This position activates electrical accessories
such as the radio when the engine is not running.
SSD0392
IGNITION SWITCH (Except for
Intelligent Key equipped model)
Starting and driving
5-9


05.8.26/Z50-D/V5.0


ON (Normal operating position) (3)
This position turns on the ignition system and the
electrical accessories.
START (4)
This position activates the starter motor, starting
the engine.NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS)The NISSAN Vehicle Immobilizer System (NVIS)
will not allow the engine to start without the use
of the registered NISSAN Vehicle Immobilizer
System key.
If the engine fails to start using the registered
NVIS key, it may be due to interference caused
by another NVIS key, an automated toll road
device or automated payment device on the key
ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)separate from the registered NVIS key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NVIS key on a separate key ring to avoid inter-
ference from other devices.
The ignition lock is designed so that the ignition
switch cannot be turned to LOCK and removed
until the selector lever is moved to the P (Park)
position.
When turning the ignition switch, make sure the
selector lever is in the P position.
If the selector lever is not returned to the P
position, the ignition switch cannot be moved
toward LOCK.
When the ignition switch cannot be turned
toward the LOCK position while keeping the
Intelligent Key, proceed as follows:
1. Move the selector lever into the P position.
SSD0417
IGNITION SWITCH (Intelligent Key
System equipped model)
5-10
Starting and driving


05.8.26/Z50-D/V5.0


2. Turn the ignition switch slightly in the ON
direction.
3. Turn the key toward the LOCK position.
The selector lever can be moved from P
position if the ignition switch is in the ON
position and the foot brake pedal is de-
pressed.
There is an OFF position in between LOCK and
ACC, although it does not show on the lock
cylinder. When the ignition is in OFF the steering
wheel is not locked.
In order for the steering wheel to be locked, it
must be turned about 1/6 of a turn counterclock-
wise from the straight up position.
To lock the steering wheel, turn the igni-
tion switch to the LOCK position. To unlock
the steering wheel, push the ignition
switch in and turn it gently while rotating
the steering wheel slightly right and left.
If the battery of the vehicle equipped with
the Intelligent Key system is discharged,
the ignition switch cannot be turned from
the LOCK position, even using the me-
chanical key or valet key.

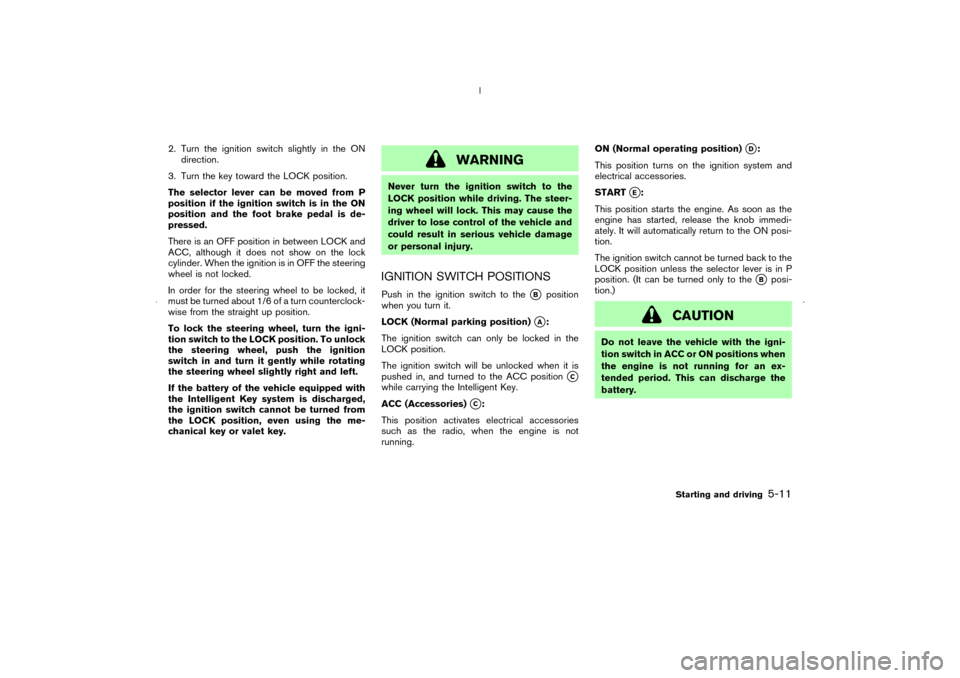

WARNING
Never turn the ignition switch to the
LOCK position while driving. The steer-
ing wheel will lock. This may cause the
driver to lose control of the vehicle and
could result in serious vehicle damage
or personal injury.IGNITION SWITCH POSITIONSPush in the ignition switch to the
B
position
when you turn it.
LOCK (Normal parking position)
A:
The ignition switch can only be locked in the
LOCK position.
The ignition switch will be unlocked when it is
pushed in, and turned to the ACC position
C
while carrying the Intelligent Key.
ACC (Accessories)
C:
This position activates electrical accessories
such as the radio, when the engine is not
running.ON(Normal operating position)
D:
This position turns on the ignition system and
electrical accessories.
START
E:
This position starts the engine. As soon as the
engine has started, release the knobimmedi-
ately. It will automatically return to the ON posi-
tion.
The ignition switch cannot be turned back to the
LOCK position unless the selector lever is in P
position. (It can be turned only to the
B
posi-
tion.)
CAUTION
Do not leave the vehicle with the igni-
tion switch in ACC or ONpositions when
the engine is not running for an ex-
tended period. This can discharge the
battery.
Starting and driving
5-11


05.8.26/Z50-D/V5.0


NISSAN VEHICLE IMMOBILIZER
SYSTEM (NVIS)The NISSAN Vehicle Immobilizer System (NVIS)
will not allow the engine to start without the use
of the registered NVIS key.
If the engine fails to start using the registered
NVIS key, it may be due to interference caused
by another NVIS key, an automated toll road
device or an automated payment device on the
key ring. Restart the engine using the following
procedures:
1. Leave the ignition switch in the ON position
for approximately 5 seconds.
2. Turn the ignition switch to the OFF or LOCK
position and wait approximately 10 seconds.
3. Repeat step 1 and 2 again.
4. Restart the engine while holding the device
(which may have caused the interference)
separate from the registered NVIS key.
If this procedure allows the engine to start,
NISSAN recommends placing the registered
NVIS key on a separate key ring to avoid inter-
ference from other devices.
Make sure the area around the vehicle is
clear.

Maintenance items should be checked peri-
odically, for example, each time you check
engine oil.

Check that all windows and lights are clean.

Visually inspect tires for their appearance and
condition. Also, check tires for proper infla-
tion.

Lock all doors.

Position seat and adjust head restraints.

Adjust inside and outside mirrors.

Adjust the pedal position.

Fasten seat belts and ask all passengers to
do likewise.

Check the operation of warning lights when
the ignition switch is turned to the ON posi-
tion.1. Apply the parking brake.
2. Move the selector lever to P (Park) or N
(Neutral). (P preferred.)
The starter is designed not to operate if the
selector lever is in one of the driving posi-
tions.
3. Crank the enginewith your foot off the
accelerator pedalby turning the ignition
key to START. Release the key when the
engine starts. If the engine starts, but fails to
run, repeat the above procedure.

If the engine is very hard to start in extremely
cold weather or when restarting, depress the
accelerator pedal a little (approximately 1/3
to the floor) and hold it then crank the engine.
Release the key and the accelerator pedal
when the engine starts.

If the engine is very hard to start because it is
flooded, depress the accelerator pedal all the
way to the floor and hold it. Crank the engine
for 5 to 6 seconds. After cranking the engine,
release the accelerator pedal. Crank the en-
ginewith your foot off the accelerator
pedalby turning the ignition switch to
START. Release the key when the engine
starts. If the engine starts, but fails to run,
repeat the above procedure.
BEFORE STARTING THE ENGINE STARTING THE ENGINE
5-12
Starting and driving


05.8.26/Z50-D/V5.0


CAUTION
Do not operate the starter for more than
15 seconds at a time. If the engine does
not start, turn the key off and wait 10
seconds before cranking again, other-
wise the starter could be damaged.
4.Warm-up
Allow the engine to idle for at least 30
seconds after starting. Do not race the en-
gine while warming it up. Drive at moderate
speed for a short distance first, especially in
cold weather.
In cold weather, keep the engine running for
a minimum of2-3minutes before shutting it
off. Starting and stopping the engine over a
short period of time may make the vehicle
more difficult to start.
CVT (Continuously Variable
Transmission)
Gate type shiftThe CVT in your vehicle is electronically con-
trolled by a transmission control module to pro-
duce maximum power and smooth operation.
Shown on the following pages are the recom-
mended operating procedures for this transmis-
sion. Follow these procedures for maximum ve-
hicle performance and driving enjoyment.Starting the vehicleAfter starting the engine, fully depress the foot
brake pedal before shifting the selector lever to
the R (Reverse), N (Neutral), D (Drive), S (Sec-
ond) or L (Low) position. Be sure the vehicle is
fully stopped before attempting to shift the se-
lector lever.
This CVT model is designed so that the
foot brake pedal must be depressed be-
fore shifting from P (Park) to any drive
position while the ignition switch is ON.
The selector lever cannot be moved out of
P (Park) position and into any of the other
shift range if the ignition switch is turned
to the LOCK, OFF or ACC position or if the
key is removed from the switch.1. Keep the foot brake pedal depressed and
shift into a driving range.
2. Release the parking brake and foot brake,
then gradually start the vehicle in motion.
WARNING

Do not depress the accelerator pedal
while shifting from P (Park) or N
(Neutral) to R (Reverse), or D (Drive)
or manual shift mode. Failure to do
so could cause you to lose control
and have an accident.

Cold engine idle speed is high, so use
caution when shifting into a forward
or reverse range before the engine
has warmed up.

On slippery roads, do not downshift.
This may cause a loss of control.

Never shift to P (Park) or R (Reverse)
while the vehicle is moving. Failure to
do so could cause you to lose control
and have an accident.
DRIVING THE VEHICLE
Starting and driving
5-13


05.8.26/Z50-D/V5.0
