Driving could be dangerous. If you
judge it to be safe, drive carefully to
the nearest service station for re-
pairs. Otherwise, have your vehicle
towed because driving it could be
dangerous.

Pressing the brake pedal with the
engine stopped and/or a low brake
fluid level may increase your stop-
ping distance and braking will re-
quire greater pedal effort as well as
pedal travel.

If the brake fluid level is below the
MINIMUM or MIN mark on the brake
fluid reservoir, do not drive until the
brake system has been checked at a
NISSAN dealer.
Anti-lock brake system warning indicator:
When the parking brake is released and the
brake fluid level is sufficient, if both the brake
warning light and the anti-lock brake warning
light illuminate, it may indicate the anti-lock brake
system is not functioning properly. Have the
brake system checked by a NISSAN dealer. See“Anti-lock brake warning light” earlier in this
section.
Charge warning light
If the light comes on while the engine is running,
it may indicate that the charging system is not
functioning properly. Turn the engine off and
check the generator belt. If the belt is loose,
broken, missing or if the light remains on, see a
NISSAN dealer immediately.
CAUTION
Do not continue driving if the generator
belt is loose, broken or missing.
Door open warning light
This light comes on when any of the doors are
not closed securely while the ignition switch is
ON.
Engine oil pressure warning
light
This light warns of low engine oil pressure. If the
light blinks or comes on during normal driving,
pull off the road in a safe area, stop the engine
immediatelyand call a NISSAN dealer or other
authorized repair shop.The oil pressure warning light is not de-
signed to indicate a low oil level. Use the
dipstick to check the oil level.See “Engine
oil” in the “8. Maintenance and do-it-yourself”
section.
CAUTION
Running the engine with the engine oil
pressure warning light on could cause
serious damage to the engine almost
immediately. Turn off the engine as
soon as it is safe to do so.
Intelligent Key warning light
(for Intelligent Key system) (if
so equipped)
This light comes on in green when it is possible
to turn the ignition switch.
When the light comes on in red, it is not possible
to turn the ignition switch.

The warning light blinks in red when the
Intelligent Key is outside the vehicle with the
ignition switch in the ACC or ON position.
Confirm the location of the key as soon as
possible when the warning light blinks in red.
Be sure to carry the Intelligent Key with you
Instruments and controls
2-11


05.8.26/Z50-D/V5.0


on steady if the fuel-filler cap is loose or missing,
or if the vehicle runs out of fuel. Check to make
sure the fuel-filler cap is installed and closed
tightly, and that the vehicle has at least three
gallons of fuel in the fuel tank.
After a few driving trips, the
lamp should
turn off if no other potential emission control
system malfunction exists.
If this indicator lamp comes on continuously for
20 seconds and then blinks for 10 seconds
when the engine is not running, it indicates that
the vehicle is not ready for an emission control
system inspection/maintenance test. See
“Readiness for inspection/maintenance (I/M)
test” in the “9. Technical and consumer informa-
tion” section of this manual.
Operation:
The malfunction indicator lamp will come on in
one of two ways:

Malfunction indicator lamp on steady — An
emission control system and/or CVT mal-
function has been detected. Turn the ignition
switch to OFF and check the fuel-filler cap. If
the fuel-filler cap is loose or missing, tighten
or install the cap and continue to drive the
vehicle. The
lamp should turn off after a
few driving trips. If the
lamp does not
turn off after a few driving trips, have thevehicle inspected by a NISSAN dealer. You
do not need to have your vehicle towed to the
dealer.

Malfunction indicator lamp blinking — An
engine misfire has been detected which may
damage the emission control system. To re-
duce or avoid emission control system dam-
age:
a) Do not drive at speeds above 45 MPH
(72 km/h).
b) Avoid hard acceleration or deceleration.
c) Avoid steep uphill grades.
d) If possible, reduce the amount of cargo
being hauled or towed.
The malfunction indicator lamp may stop
blinking and come on steady.
Have the vehicle inspected by a NISSAN
dealer. You do not need to have your vehicle
towed to the dealer.
CAUTION
Continued vehicle operation without
having the emission control system
checked and repaired as necessary
could lead to poor driveability, reducedfuel economy, and possible damage to
the emission control system.
Security indicator light
Model without Intelligent Key system:
This light blinks whenever the ignition switch is in
the LOCK, OFF or ACC position.
Model with Intelligent Key system:
This light blinks whenever the ignition switch is
not pushed in or the mechanical key is removed
from the ignition switch.
This function indicates the security systems
equipped on the vehicle are operational.
For additional information, see “Security sys-
tems” later in this section.
Slip indicator light (if so
equipped)
This indicator will blink when the VDC system or
the traction control system is operating, thus
alerting the driver to the fact that the road
surface is slippery and the vehicle is nearing its
traction limits.
You may feel or hear the system working, but this
is normal.
Instruments and controls
2-15


05.8.26/Z50-D/V5.0


The windshield wiper and washer operates
when the ignition switch is in the ON position.
Push the lever down to operate the wiper at the
following speed:1Intermittent (INT) — intermittent operation
can be adjusted by turning the knob towardA
(Slower) or
B
(Faster).
2Low (LO) — continuous low speed operation
3High (HI) — continuous high speed operation
Push the lever up
4
to have one sweep
operation (MIST) of the wiper.
Pull the lever toward you5
to operate thewasher. Then the wiper will also operate several
times.

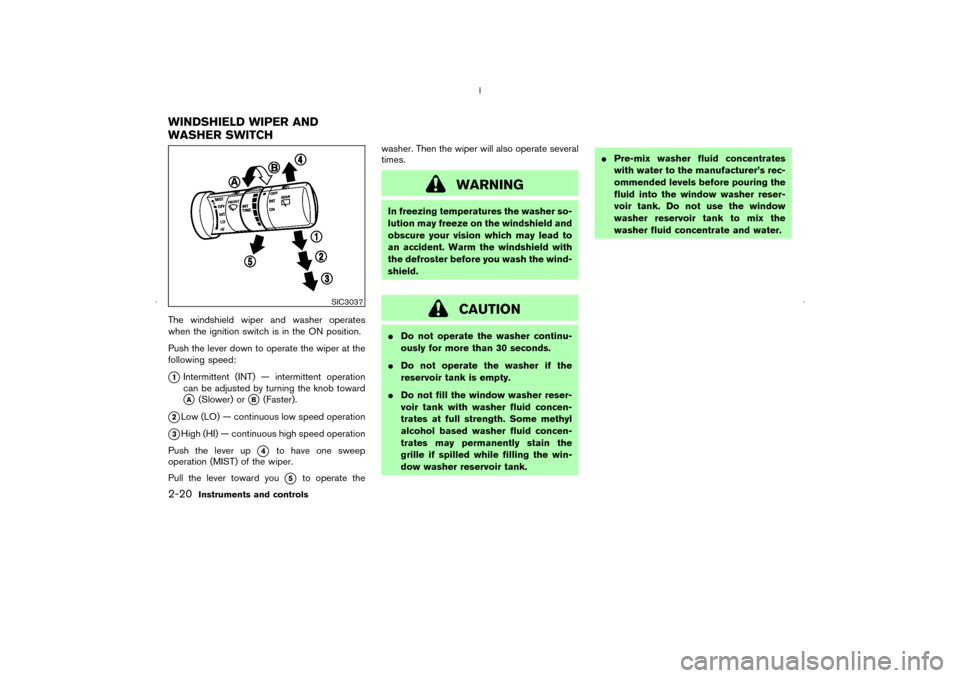

WARNING
In freezing temperatures the washer so-
lution may freeze on the windshield and
obscure your vision which may lead to
an accident. Warm the windshield with
the defroster before you wash the wind-
shield.
CAUTION

Do not operate the washer continu-
ously for more than 30 seconds.

Do not operate the washer if the
reservoir tank is empty.

Do not fill the window washer reser-
voir tank with washer fluid concen-
trates at full strength. Some methyl
alcohol based washer fluid concen-
trates may permanently stain the
grille if spilled while filling the win-
dow washer reservoir tank.
Pre-mix washer fluid concentrates
with water to the manufacturer’s rec-
ommended levels before pouring the
fluid into the window washer reser-
voir tank. Do not use the window
washer reservoir tank to mix the
washer fluid concentrate and water.
SIC3037
WINDSHIELD WIPER AND
WASHER SWITCH2-20
Instruments and controls


05.8.26/Z50-D/V5.0


The autolight system can turn on the headlights
automatically when it is dark, turn off the head-
lights when it is light, and keep the headlights on
for up to 45 seconds after you turn the ignition
switch to the OFF position and open any door
then close all the doors. The headlight off time
can be adjusted on the system setting display.
See the “4. Display screen, heater, air condi-
tioner and audio system” section.
If the ignition switch is turned OFF and one of
the doors is opened and this condition is con-
tinued, the headlights remain ON for 5 minutes.
Be sure not to put anything on top of the
photo sensor
A
located on the top left-
hand side of the instrument panel. The
photo sensor controls the autolight; if it is
covered, the photo sensor reacts as if it is
dark and the headlights will illuminate.
Headlight beam select
1To select the low beam, put the lever in the
neutral position as shown.
2To select the high beam, push the lever
forward while the switch is in the
po-
sition. Pull it back to select the low beam.
3Pulling the lever toward you will flash the
headlight high beam.
SIC2052
SIC2048
2-24
Instruments and controls


05.8.26/Z50-D/V5.0


TONNEAU COVER (if so equipped)The tonneau cover keeps the luggage compart-
ment contents hidden from the outside.
To use the tonneau cover, pull it out
1, hang
both sides on the hooks
2
and open the flap
3.
To use the subcover, pull out
4and hang both
sides on the hooks behind the rear seat head
restraint
5.
To stow the tonneau cover and the subcover,
remove them from the hooks and hold until they
are retracted.
To remove the tonneau cover, stow the cover
and pull the holder to the opposite side
6.

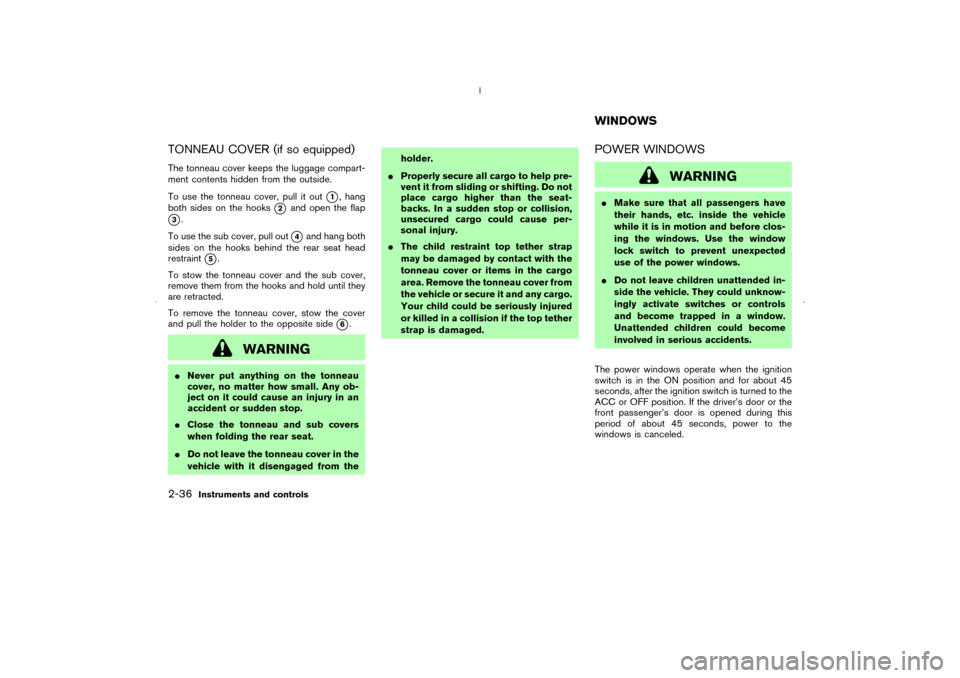

WARNING

Never put anything on the tonneau
cover, no matter how small. Any ob-
ject on it could cause an injury in an
accident or sudden stop.

Close the tonneau and sub covers
when folding the rear seat.

Do not leave the tonneau cover in the
vehicle with it disengaged from theholder.

Properly secure all cargo to help pre-
vent it from sliding or shifting. Do not
place cargo higher than the seat-
backs. In a sudden stop or collision,
unsecured cargo could cause per-
sonal injury.

The child restraint top tether strap
may be damaged by contact with the
tonneau cover or items in the cargo
area. Remove the tonneau cover from
the vehicle or secure it and any cargo.
Your child could be seriously injured
or killed in a collision if the top tether
strap is damaged.
POWER WINDOWS
WARNING

Make sure that all passengers have
their hands, etc. inside the vehicle
while it is in motion and before clos-
ing the windows. Use the window
lock switch to prevent unexpected
use of the power windows.

Do not leave children unattended in-
side the vehicle. They could unknow-
ingly activate switches or controls
and become trapped in a window.
Unattended children could become
involved in serious accidents.
The power windows operate when the ignition
switch is in the ON position and for about 45
seconds, after the ignition switch is turned to the
ACC or OFF position. If the driver’s door or the
front passenger’s door is opened during this
period of about 45 seconds, power to the
windows is canceled.WINDOWS
2-36
Instruments and controls


05.8.26/Z50-D/V5.0


To close the roof, slide the switch to the
side
2.
Sliding position of lid can be chosen according
to sliding amount of switch.
To fully open or close the roof, completely move
the switch to the
1
or
2
side.
Tilting the sunroofTo tilt up, push the
side
3
of the tilt
switch. When the roof is open, it will automati-
cally close and then tilt up. To tilt down the
sunroof, push the
side
4. When the roof
is open, it will automatically close.
Restarting the sunroof sliding switchThe sliding switch will become inoperable after
the battery terminal is disconnected, the electri-
cal supply interrupted and/or some abnormality
detected. Use the following re-set procedure to
return sunroof operation to normal.
1. Keep pushing the tilting switch toward tilt UP.
2. After the lid has tilted up gradually, it will
automatically close all the way, then return to
normal operation.Auto reverse function (When closing
the sunroof)If the control unit detects something caught inthe sunroof as it moves to the front or tilts down,
the sunroof will immediately open backward or
tilt up.
The auto reverse function can be activated when
the sunroof is closed by automatic operation
when the ignition switch is in the ON position or
for about 45 seconds after the ignition switch is
turned to the ACC, OFF or LOCK position.
Depending on the environment or driving
conditions, the auto reverse function may
be activated if an impact or load similar to
something being caught in the sunroof
occurs.
If the auto reverse function malfunctions and
repeats opening or tilting up the sunroof, keep
pushing toward the close position or keep push-
ing the tilt down switch within 5 seconds after it
happens, then the sunroof will fully close gradu-
ally. In this case, make sure nothing is caught in
the sunroof.
WARNING
There are some small distances imme-
diately before the closed position which
cannot be detected. Make sure that all
passengers have their hands, etc., in-side the vehicle before closing the
sunroof.
Sun shadeOpen or close the sun shade by sliding it
backward or forward.
The shade will open automatically when the
sunroof is opened. However, it must be closed
manually.Comfortable position (
A)
Depending on the driving speed and air recircu-
lating conditions, wind noise may occur when
the sunroof is fully opened. Closing the sunroof
one step toward the front position
A
from full
open will decrease the wind noise.
WARNING

In an accident you could be thrown
from the vehicle through an open
sunroof. Always use seat belts and
child restraints.

Do not allow anyone to stand up or
extend any portion of their body out
Instruments and controls
2-39


05.8.26/Z50-D/V5.0


The Intelligent Key uses coded radio signals to
communicate with the vehicle. When the Intelli-
gent Key is near the vehicle, such as when
standing near the vehicle with the Intelligent Key
in your pocket or purse, it allows the vehicle to
be locked or unlocked. And, when you are inside
the vehicle while carrying the Intelligent Key with
you, it allows the engine to be started without
inserting the key to the ignition switch. It is also
possible to use the remote keyless entry func-
tion.
CAUTION

Be sure to carry the Intelligent Key
with you.

Do not leave the vehicle with the
Intelligent Key inside.

The Intelligent Key may not function
correctly depending on the environment
or operating conditions. It could also
malfunction if you do not use it cor-
rectly.

The Intelligent Key transmits faint radio
waves.
In the following situations, the Intelli-
gent Key and remote keyless entry func-tions may not operate correctly, and you
may have to use the metal key (me-
chanical key or valet key):
•when there are strong signals com-
ing from a television tower, power
station or broadcasting station.
•when you have wireless equipment
or a cellular phone with you.
•when the Intelligent Key is in contact
with or covered by a metallic mate-
rial.
•when radio wave-type remote control
entry is used nearby.
•when the Intelligent Key is placed
near an electric appliance such as a
personal computer.

The Intelligent Key continually con-
sumes battery power as the key receives
a signal to communicate with the ve-
hicle. Battery life of the Intelligent Key is
about 2 years, although it varies de-
pending on the operating conditions.
When the battery of the Intelligent Key
is low, the green blinking key warning
light goes out about 30 seconds after
the ignition switch is turned to ON. If the
battery runs down, replace it with a new
one.
If the Intelligent Key receives strong
signal over an extended period of time,
the battery of the Intelligent Key could
quickly run down. Do not place the In-
telligent Key near an electric appliance
such as a television set or personal
computer.

Because the ignition switch is electroni-
cally controlled, if the vehicle battery is
completely discharged when the igni-
tion switch is in the LOCK position, the
steering lock cannot be released or the
ignition switch cannot be turned (not by
the mechanical key either).

In case the vehicle battery is completely
discharged, make sure to recharge the
vehicle battery immediately.INTELLIGENT KEY SYSTEM (if so
equipped)
Pre-driving checks and adjustments
3-9


05.8.26/Z50-D/V5.0


in the “5. Starting and driving” section
for exhaust gas.
Emergency unlock leverIf the lift gate cannot be opened with the door
lock switch or remote controller due to a dis-
charged battery, follow the next steps.
1. Remove the cover inside of the lift gate with a
suitable tool.
2. Move the lever toward the direction
A
as
illustrated to open the lift gate.
Contact a NISSAN dealer as soon as possible.
WARNING

Always be sure the lift gate has been
closed securely to prevent it from
opening while driving.

Do not drive with the lift gate open.
This could allow dangerous exhaust
gases to be drawn into the vehicle.
SPA1915
Pre-driving checks and adjustments
3-25


05.8.26/Z50-D/V5.0
