2006 MERCEDES-BENZ SLR engine

249 Operation
Engine compartment
Adding engine oil

Using a rag, unscrew filler cap2 from
filler neck.

Add engine oil as required. Be careful
not to overfill with oil.Be careful not to spill any oil when adding.
Avoid environmental damage caused by oil
entering the ground or water.

Screw the filler cap back on filler neck.
You will find further information about en-
gine oil in the “Technical data” section
(
page 378) and (
page 377).
Transmission fluid level
The transmission fluid level does not need
to be checked. If you notice transmission
fluid loss or gear shifting malfunctions,
have an authorized Mercedes-Benz Center
check the transmission.
Warning!
G
The filler cap on the filler neck could be hot.
Use a rag when you unscrew the filler cap.
Otherwise you could burn yourself.
!Only use approved engine oils and oil
filters required for vehicles with
Maintenance System. For a listing of
approved engine oils and oil filters,
refer to the Factory Approved Service
Products pamphlet in your vehicle
literature portfolio, or contact an
authorized Mercedes-Benz Center.
Using engine oils and oil filters of
specification other than those
expressly required for the Maintenance
System, or changing of oil and oil filter
at change intervals longer than those
called for by the Maintenance System
will result in engine damage not cov-
ered by the Mercedes-Benz Limited
Warranty.
!Excess oil must be siphoned or drained
off. It could cause damage to the
engine and catalytic converter not
covered by the Mercedes-Benz Limited
Warranty.

250 OperationEngine compartmentCoolant
The engine coolant is a mixture of water
and anticorrosion/antifreeze. To check
the coolant level, the vehicle must be
parked on level ground and the engine
must be cool.
The coolant expansion tank is located on
the passenger side of the engine compart-
ment.
1Expansion tank

Using a rag, turn cap slowly approxi-
mately one half turn to the left to
release any excess pressure.

Continue turning the cap to the left and
remove it.
The coolant level is correct if the level

for cold coolant: reaches the upper
mark on the bracing rib of the ex-
pansion tank (arrow)


for warm coolant: is approximately
0.4 in (1 cm) higher

Add coolant as required.

Replace and tighten cap.
For more information, see “Coolants”
(
page 381).
Warning!
G
In order to avoid any possibly serious burns:

Use extreme caution when opening the
hood if there are any signs of steam or
coolant leaking from the cooling system,
or if the coolant temperature gauge indi-
cates that the coolant is overheated.


Do not remove pressure cap on coolant
reservoir if coolant temperature is
above 194°F (90°C). Allow engine to
cool down before removing cap. The
coolant reservoir contains hot fluid and
is under pressure.


Using a rag, slowly open the cap
approximately
1/2 turn to relieve excess
pressure. If opened immediately, scald-
ing hot fluid and steam will be blown out
under pressure.


Do not spill antifreeze on hot engine
parts. Antifreeze contains ethylene
glycol which may burn if it comes into
contact with hot engine parts.

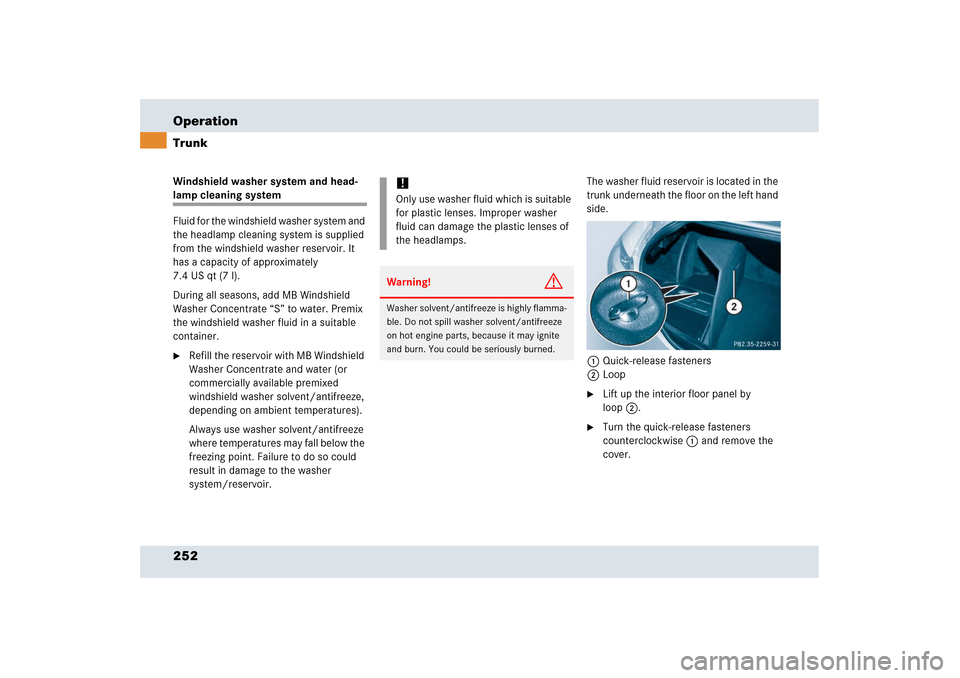

252 OperationTrunkWindshield washer system and head-lamp cleaning system
Fluid for the windshield washer system and
the headlamp cleaning system is supplied
from the windshield washer reservoir. It
has a capacity of approximately
7.4USqt(7l).
During all seasons, add MB Windshield
Washer Concentrate “S” to water. Premix
the windshield washer fluid in a suitable
container.
Refill the reservoir with MB Windshield
Washer Concentrate and water (or
commercially available premixed
windshield washer solvent/antifreeze,
depending on ambient temperatures).
Always use washer solvent/antifreeze
where temperatures may fall below the
freezing point. Failure to do so could
result in damage to the washer
system/reservoir.The washer fluid reservoir is located in the
trunk underneath the floor on the left hand
side.
1Quick-release fasteners
2Loop

Lift up the interior floor panel by
loop2.

Turn the quick-release fasteners
counterclockwise1 and remove the
cover.
!Only use washer fluid which is suitable
for plastic lenses. Improper washer
fluid can damage the plastic lenses of
the headlamps.Warning!
G
Washer solvent/antifreeze is highly flamma-
ble. Do not spill washer solvent/antifreeze
on hot engine parts, because it may ignite
and burn. You could be seriously burned.

287 Operation
Winter driving
Winter driving
Before the onset of winter, have your
vehicle winterized at an authorized
Mercedes-Benz Center. This service
includes:

Check of anticorrosion and antifreeze
concentration.


Addition of cleaning concentrate to the
water of the windshield and headlamp
cleaning system. Add MB Concentrate
“S” to a premixed windshield washer
solvent/antifreeze which is formulated
for below freezing temperatures
(page 383).


Battery test. Battery capacity drops
with decreasing ambient temperature.
A well charged battery helps to make
sure that the engine can be started,
even at low ambient temperatures.


Tire change. Mercedes-Benz recom-
mends M+S rated radial-ply tires with a
minimum tread depth of approximately 1/6in (4 mm) on all four wheels for the
winter season.
Winter tires*
Always use winter tires at temperatures
below 45°F (7°C) and whenever wintry
road conditions prevail. Not all M+S rated
tires provide special winter performance.
Make sure the tires you use show the
mountain/snowflake.marking on the
tire sidewall. These tires meet specific
snow traction performance requirements
of the Rubber Manufacturers Association
(RMA) and the Rubber Association of Can-
ada (RAC) and have been designed specif-
ically for use in snow conditions. Use of
winter tires is the only way to achieve the
maximum effectiveness of the ABS and
ESP
® in winter operation.For safe handling, make sure that all
mounted winter tires are of the same make
and have the same tread design.
Always observe the speed rating of the
winter tires installed on your vehicle. If the
maximum speed for which your tires are
rated is below the speed rating of your
vehicle, you must place a notice to this
effect where it will be seen by the driver.
Such notices are available from your tire
dealer or from any authorized
Mercedes-Benz Center.!A wheel change should only be carried
out at an authorized Mercedes-Benz
Center. Otherwise there is a danger of
damaging the vehicle by jacking it up
incorrectly.
Warning!
G
Winter tires with a tread depth under
1/6in
(4 mm) must be replaced. They are no
longer suitable for winter operation.

290 OperationMaintenanceMaintenance service term exceeded
If you have exceeded the suggested ser-
vice term, you will see the following mes-
sage in the right multifunction display:Service exceeded by .. days
Service exceeded by .. milesAny authorized Mercedes-Benz Center will
reset the maintenance service indicator
following a completed maintenance
service.
Calling up the service due date
Switch on the ignition (
page 40).

Press buttonè orÿ on the
multifunction steering wheel repeated-
ly until the standard display appears in
the multifunction display (
page 117).

Press button k or j on the
multifunction steering wheel until the
maintenance service indicator service
symbol 9 appears in the left multi-
function display and the service dead-
line appears in the right multifunction
display.
iIf the vehicle is not be used for a longer
period of time, do not disconnect the
consumer battery. Instead, maintain
the condition of the battery by using
the battery charger approved by
Mercedes-Benz for use on the SLR and
supplied with the car (
page 358).
This charger automatically controls the
charge rate, and can be left connected
to the car for long periods without dam-
age to the battery.
If the battery supplying the vehicle’s
electrical consumers is disconnected,
the days of disconnection will not be in-
cluded in the count shown by the ser-
vice indicator. To arrive at the true
service deadline, you will need to sub-
tract these days from the days shown
in the service indicator.
Do not confuse the maintenance
service indicator with the engine oil
level indicator:.

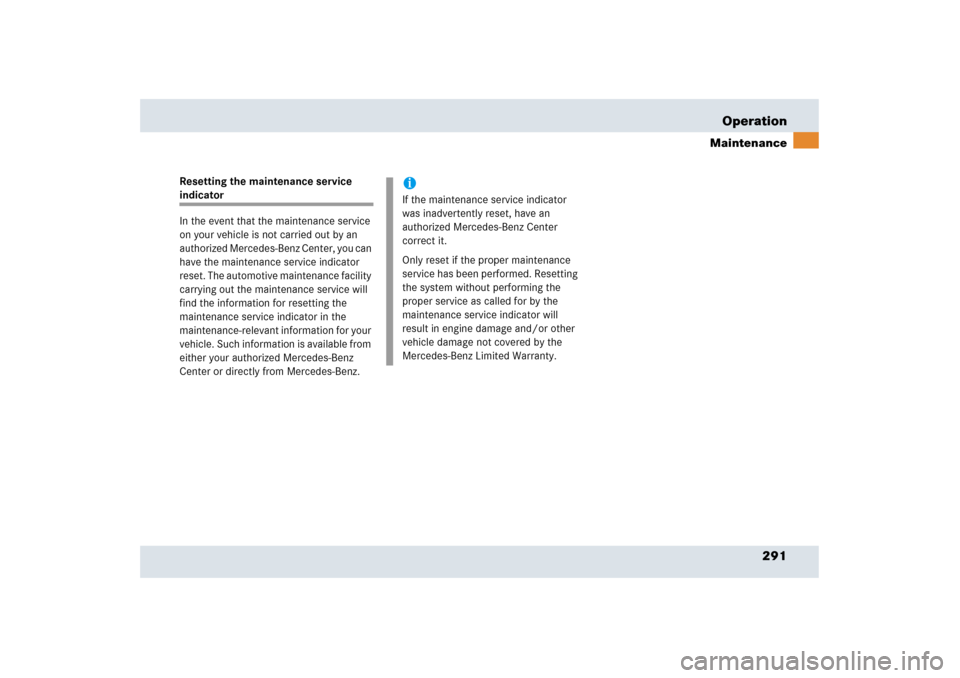

291 Operation
Maintenance
Resetting the maintenance service indicator
In the event that the maintenance service
on your vehicle is not carried out by an
authorized Mercedes-Benz Center, you can
have the maintenance service indicator
reset. The automotive maintenance facility
carrying out the maintenance service will
find the information for resetting the
maintenance service indicator in the
maintenance-relevant information for your
vehicle. Such information is available from
either your authorized Mercedes-Benz
Center or directly from Mercedes-Benz.
iIf the maintenance service indicator
was inadvertently reset, have an
authorized Mercedes-Benz Center
correct it.
Only reset if the proper maintenance
service has been performed. Resetting
the system without performing the
proper service as called for by the
maintenance service indicator will
result in engine damage and/or other
vehicle damage not covered by the
Mercedes-Benz Limited Warranty.

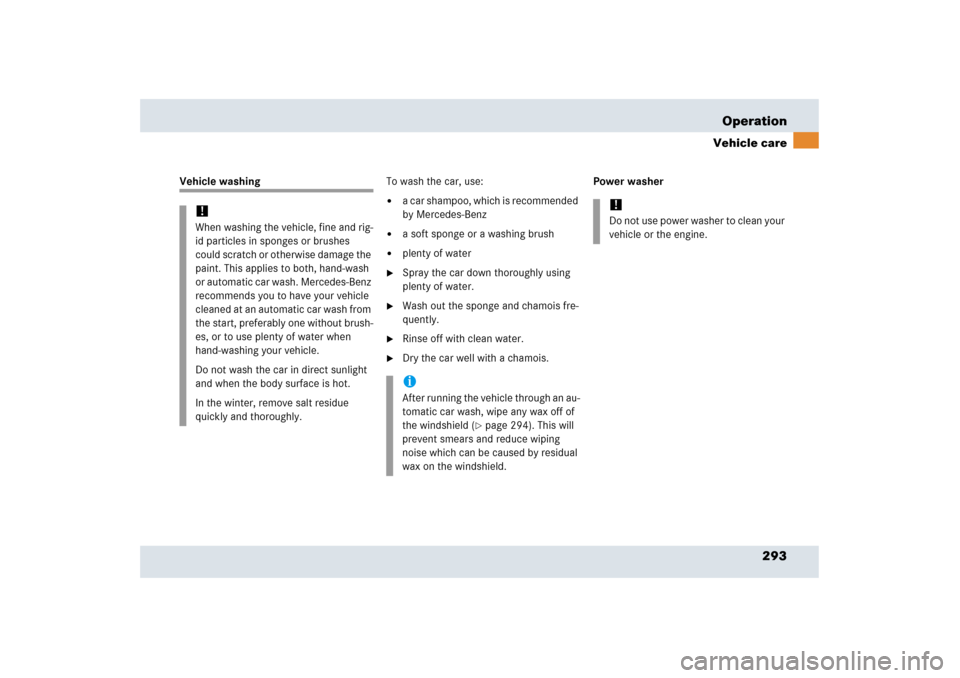

293 Operation
Vehicle care
Vehicle washingTo wash the car, use:


a car shampoo, which is recommended
by Mercedes-Benz


a soft sponge or a washing brush


plenty of water

Spray the car down thoroughly using
plenty of water.

Wash out the sponge and chamois fre-
quently.

Rinse off with clean water.

Dry the car well with a chamois.Power washer
!When washing the vehicle, fine and rig-
id particles in sponges or brushes
could scratch or otherwise damage the
paint. This applies to both, hand-wash
or automatic car wash. Mercedes-Benz
recommends you to have your vehicle
cleaned at an automatic car wash from
the start, preferably one without brush-
es, or to use plenty of water when
hand-washing your vehicle.
Do not wash the car in direct sunlight
and when the body surface is hot.
In the winter, remove salt residue
quickly and thoroughly.
iAfter running the vehicle through an au-
tomatic car wash, wipe any wax off of
the windshield (
page 294). This will
prevent smears and reduce wiping
noise which can be caused by residual
wax on the windshield.
!Do not use power washer to clean your
vehicle or the engine.

300 Practical hintsWhat to do if ...Problem
Possible cause/consequence
Suggested solutions
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving and
you hear a warning sound.
You are driving with the parking brake on.

Release the parking brake (
page 50).
There is a malfunction in the electrohy-
draulic brake system.

Read and observe messages in the multi-
function display (
page 307).
3
(Canada only)
;
(USA only)
The red brake warning lamp
comes on while driving.
There is insufficient brake fluid in the
reservoir.

Risk of accident! Carefully stop the vehicle in
a safe location and notify an authorized
Mercedes-Benz Center. Do not add brake
fluid! This will not solve the problem.
Warning!
G
Driving with the brake warning lamp illumi-
nated can result in an accident. Have your
brake system checked immediately if the
brake warning lamp stays on. Do not add
brake fluid before checking the brake sys-
tem.
Overfilling the brake fluid reservoir can re-
sult in spilling brake fluid on hot engine
parts and the brake fluid catching fire. You
can be seriously burned.
!If you find that the brake fluid in the
brake fluid reservoir has fallen to the
minimum mark or below, have the
brake system checked for brake pad
thickness and leaks.
