136 Navigation*
Destination entry
Selectable soft keys
Map soft key
Provides access to destination input di-
rectly via road map (
page 146),
Region soft key
Provides access to the region input
(
page 136),
Street soft key
Provides access to the input of the des-
tination street (
page 140),
CityCtr soft key
Provides access to the input of a city
section (center) (
page 139),
POIs soft key
Provides access to the input of a POI
(Point of interest) (
page 179),
List soft key
Allows selecting a destination city from
a city list (
page 138).In the Destination entry menu
(
page 135) the region currently selected
is indicated by the characters in parenthe-
sis in the status bar.
To change the region press the Region
soft key.
The region list appears.
i
The Street, CityCtr and POIs soft key
functions refer to the city on display.
If you wish to choose global POIs not
referring to a city (
page 179).
Selecting the region

137 Navigation*
Destination entry
Use or  to select a region.
The selected region appears black.
Press .
Selecting a different region deletes the
city last entered. The first city of the
newly selected region appears (in al-
phabetical order).
The Destination entry menu (
page 135)
represents the starting point.Enter city (USA) appears in the status bar.
The characters in parenthesis indicate the
selected region (
page 136).Accepting the displayed destination
Press and hold  for approx. 2 sec-
onds.
Entering a different city
Use the keypad menu or the 12 button
keypad to enter the data of the city
(
page 131).
After entering the city a selection list of
cities appears indicated by
Select city
displayed in the status bar. Now contin-
ue with selecting a city.
Entering a city
i
Do not confuse the button with the
symbol in the main screen.
ok


138 Navigation*
Destination entry
Switching to a selection list is possible at
any time while entering a city.
Press the List soft key.
A selection list appears indicated by
Se-
lect city
displayed in the status bar.
Now continue with selecting a city.
Selecting a city
Use or  to select the destina-
tion city.
The
Page soft keys allow scrolling
through the list page by page.
Press.
After selecting the desired city, one of
the following menus appears:
For larger cities with more than 15
streets:
Enter Street menu (
page 141).
For smaller cities with up to
15 streets:
Select Street menu (
page 141).
If no streets are registered for the
selected city:
Select City Center menu
(
page 139).
The appropriate menu can be identified
from the display in the status bar.
i
The selection is cancelled if the Back
soft key is pressed.

139 Navigation*
Destination entry
Besides entering a street name
(
page 140), the following soft keys are
available for narrowing the destination.
Map soft key
Provides access to destination input di-
rectly via road map (
page 146),
CityCtr soft key
Provides access to the input of a city
section (center) (
page 139),
POIs soft key
Provides access to the input of a POI
referring to the destination city
(
page 180).
After the destination city (
page 137) has
been entered, the associated city center
(section of the city) can be selected.
Press the CityCtr soft key.
Enter center is displayed in the status
bar.
Accepting the destination displayed
Press .
Narrowing of the destination after
selecting a city
Entering a city center

140 Navigation*
Destination entry
Entering a center
Use the keypad menu or the 12 button
keypad to enter the data of the center
(
page 131).
After entering the center a selection
list of centers appears indicated by
Se-
lect center
displayed in the status bar.
Now continue with selecting a center.
Switching to a selection list is possible at
any time while entering a center.
Press the List soft key.
A selection list appears indicated by
Se-
lect center
displayed in the status bar.
Now continue with selecting a center.Selecting a center
Use or  to select a city center.
The Page soft keys allow scrolling
through the list page by page.
Press .
The Start Route Guidance menu
(
page 152) appears.
The system accesses one of the following
menus after entering of a destination city
(
page 137):
For larger cities with more than 15
streets:
Enter Street menu (
page 141).
For smaller cities with up to 15 streets:
Select Street menu (
page 141).
Entering a street in the destination
city

141 Navigation*
Destination entry
If no streets are registered for the se-
lected city:
Select City Center menu (
page 139).
The appropriate menu can be identified
from the display in the status bar.

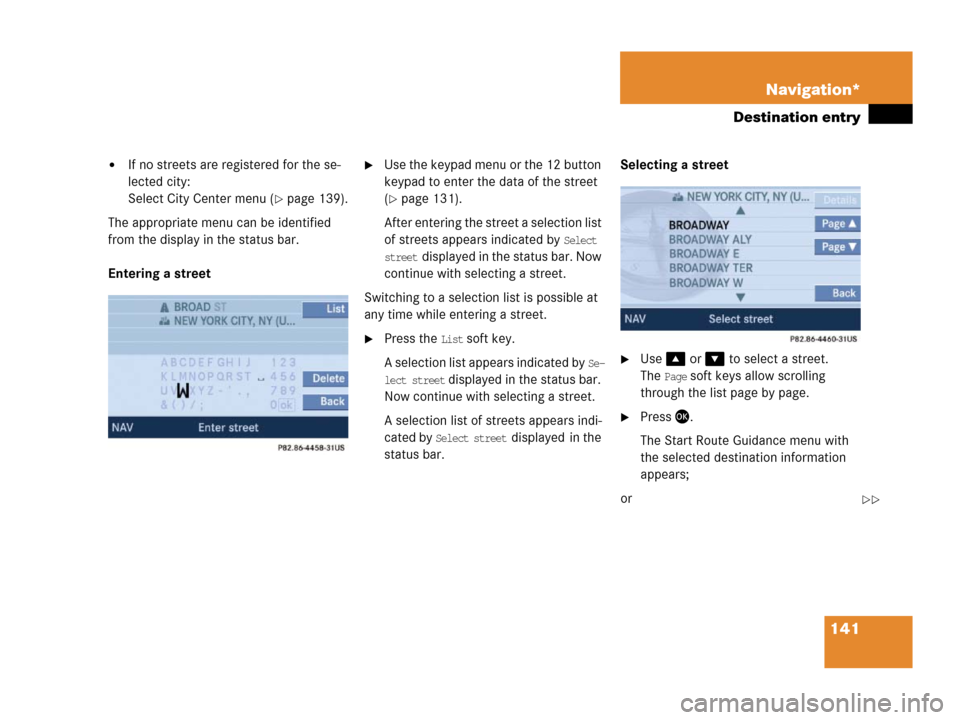

Entering a street
Use the keypad menu or the 12 button
keypad to enter the data of the street
(
page 131).
After entering the street a selection list
of streets appears indicated by
Select
street
displayed in the status bar. Now
continue with selecting a street.
Switching to a selection list is possible at
any time while entering a street.
Press the List soft key.
A selection list appears indicated by
Se-
lect street
displayed in the status bar.
Now continue with selecting a street.
A selection list of streets appears indi-
cated by
Select street displayed in the
status bar.Selecting a street
Use  or  to select a street.
The
Page soft keys allow scrolling
through the list page by page.
Press .
The Start Route Guidance menu with
the selected destination information
appears;
or


142 Navigation*
Destination entry
If the street extends through several
city centers, the list of city centers re-
ferring to the street selected appears.
Selecting the city center referring to
the street selected
The system distinguishes between streets
with the same name in a city by specifying
the center. After selecting a street, a list of
city centers may appear.
The status bar shows how many times the
system found the same street name within
a given city.
Use or  to select a center.
Press .
The Start Route Guidance menu with
the selected destination information
appears.The following soft keys are available to
continue narrowing the destination after
entering the street:
Narrowing of the destination after
selecting a street

143 Navigation*
Destination entry
Map soft key
Provides access to further destination
input directly via road map
(
page 146),
Intrsct. soft key
An intersection with the destination
street can be entered (
page 143),
Hse. no. soft key
A house number on the destination
street can be entered (
page 144),
POIs soft key
A POI on or near the destination street
can be entered (
page 180).The following soft keys can also be select-
ed:
Mode soft key
For setting the route mode
(
page 128),
Save soft key
Stores the entered destination in the
destination memory (
page 177).
After entering a street (
page 140), a
street intersecting with this street can be
entered.
Press the Intrsct. soft key.The Enter Intersection menu or a list of
all intersecting streets appears.
Enter Intersection menu
i
Only the entry of either an intersecting
road or a house number is possible.
Entering an intersection

i
The Intrsct. soft key is only available if
streets intersecting the destination
street are stored as intersections on
the navigation DVD.
