2006 MERCEDES-BENZ SL-Class key

202 System settings
System settings
Adjusting the display brightness
In the Display menu, press the
Bright. soft key.
Press h or H to adjust the
brightness.
or
Press the Bright. soft key longer than
2 seconds.
The display brightness changes
gradually.
Release the Bright. soft key.
Press the Back soft key.
or
Press E.
The brightness setting is applied.
Setting the display dimming
characteristics
In the Display menu, press the Mode
soft key.
Press G or g to select an entry.
Day Mode
The display is continuously set to
daylight design.
Night Mode
The display is continuously set to night-
time design.
Automatic
The display changes depending on the
ambient light sensor in the vehicle.
Press E.
The setting is applied. The System
settings menu will appear.
230_System_US_B.fm Seite 202 Mi ttwoch, 8. Dezember 2004 4:41 16

203
System settings
Voice control system*

Voice control system*
If your vehicle is equipped with the Voice
control system*, a help window can be
switched ON or OFF.
In the System settings menu, press the
VC Tips soft key.
The Voice control system* menu will
appear. The status of the help window
is displayed on the status bar.
Voice control system* menu
Activating and deactivating the Voice
control system* help window
Use g or G to select menu item
Help Window.
Press E.
The display changes. The status of the
help window is displayed on the status
bar.
Press g or G to select the desired
status of the help window.
Press E.
The help window is activated or
deactivated. Voice control system* individualization
Allows you to record your personal
language pattern for the Voice control
system*.
Press
g or G to select menu item
Individualization.
If available, time and date of the last
individualization session are indicated
on the status bar.
Press E.
The display changes.
Follow the instructions. For additional
information, refer to separate Voice
control system* operating
instructions.
Voice control sy stem* functions
OptionSymbol
Activated_
Deactivated-
i
Voice control system* individualization
is only possible while the vehicle
stands still.
230_System_US_B.fm Seite 203 Mi ttwoch, 8. Dezember 2004 4:41 16

204 System settings
Reset function

Reset function
Use this function to reset the current
settings of the COMAND to the factory
settings.
In the System settings menu, press the
Reset soft key.
An inquiry menu will appear. If you do not wish to reset to the factory
settings
Press
E and confirm with No.
The System settings menu will appear.
Accepting factory settings
Press H to select Yes and press E.
The inquiry menu Loss of
Data Are
You Sure You Want to Reset?
will
appear.
Press H to select Yes and press E.
The message
All Data Has Been
Reset COMAND Will Now Restart
will appear.
i
All your personal data, e.g. address
book entries, SMS messages and
destination memory entries, will be
deleted.
i
The factory settings are:
Time - Atlantic Time
Verification tone - On
Notification tone - On
Display setting - Automatic
230_System_US_B.fm Seite 204 Mi ttwoch, 8. Dezember 2004 4:41 16

206 Glossary
RoamingFor this function, the mobile phone
uses the network of a contract partner.
There are home type and non-home
type systems. The Roaming indicator in
the COMAND display indicates that a
call is being made using a non-home
type system.
Service source This includes the systems telephone*,
navigation (voice output during desti-
nation guidance) and ->Voice control
system
SMS (S
hort Message Service)
With this function you can receive, read
and delete short text messages (if SMS
service is provided by your carrier) Soft keys
Keys that activate different functions.
Function of key depends on the selec-
ted operating mode.
Surround Playback method resulting in an impro-
ved spatial listening experience com-
pared to conventional stereo playback.
Tele Aid* (Tele
matic Alarm Identification on De-
mand)
The Tele Aid system consists of three
types of response: automatic and ma-
nual emergency, roadside assistance,
and information. Tele Aid is initially ac-
tivated by completing a subscriber
agreement and placing an acquain-
tance call. Refer also to the vehicle op-
erating instructions. The Tele Aid system is operational pro-
vided that the vehicle’s battery is char-
ged, properly connected, not damaged,
and cellular and GPS coverage is avai-
lable.
Unlock code Your unlock code prevents unauthori-
zed persons from using your telephone.
The unlock code is a number string,
which you have to enter when switch-
ing on the telephone.
Voice output During a trip, apart from visual informa-
tions (symbol or map displays),
COMAND also provides all of the
necessary spoken route information
via voice output.
230_Fachwörter_US_B.fm Seite 206 Mittwoch, 8. Dezember 2004 4:42 16

210 Index
CD operation 44fast forward/reverse 52
general information 44
playback mode 53
switching to CD mode 46
Changing address book entry 179
map display 142
mobile phone internal memory entry 182
CHECK SIM CARD (EMERGENCY CALL "911" ONLY POSSIBLE WITH TEL.) 91
COMAND switching off 27
switching on 27
CONNECTING CALL 189
CONTINUE ROUTE GUIDANCE 118
Coordinates 137
Current vehicle location 141 D
DATA HAS BEEN SAVED 172, 174, 175
DEACTIVATING TELEPHONE 92
Deleting
address book entry 186
phone book entry 108
SMS message 175
Destination input 124
Destination memory 156
Details on a mobile phone internal memory entry 182
on an address book entry 178
Dialing subsequent dialing 99
Displaying phone book 104
route list 145
route on the map 145
subtitles (DVD operation) 73 DVD
loadinginto the CD/DVD drive 65
DVD operation DVD playback requirements 64
general information 63
E
Ejecting CD 47
DVD 66
MP3-CD 57
Emergency call "911" 93
Emergency call system 189
Ending call 98, 99
ENTER PIN 90
ENTER UNLOCK CODE 90
Entering data 193via 12-button keypad 195
via selection menu 193
230_US_Edition_B_2005SIX.fm Seite 210 Mittwoch, 8. Dezember 2004 4:42 16

211
Index
destination address 125
house number 132
intersection 131
name or number in the phone
book 107
parking 133
PIN code 95
PUK 96
street 129
telephone number 98
ENTRY IMPORTED TO ADDRESS BOOK 183
ERROR OCCURED WHILE SAVING DATA 174
Exporting address book entry 181
F
Frequency band 38
Frequency range 38 G
GPS 115
H
Hands-free microphone
switching on/off 103
I
Important notes Telephone 88
Importing mobile phone internal memory entry 183
Incoming call 97
L
Loading CDinto the CD changer* 47
into the CD/DVD drive 47
DVD into the CD/DVD drive 65
MP3-CD 56 into the CD/DVD drive 57 Loading/ejecting
navigation DVD 115
M
Making display settings 201
Map orientation 2D Heading Up 142
2D North Up 142
Memory destination memory 156
last destinations 155
Memory functions radio operation 40
Menu functions 25
main area 24
soft key sections 24
status bar 24
Menu display 24
Menu system 24
230_US_Edition_B_2005SIX.fm Seite 211 Mittwoch, 8. Dezember 2004 4:42 16

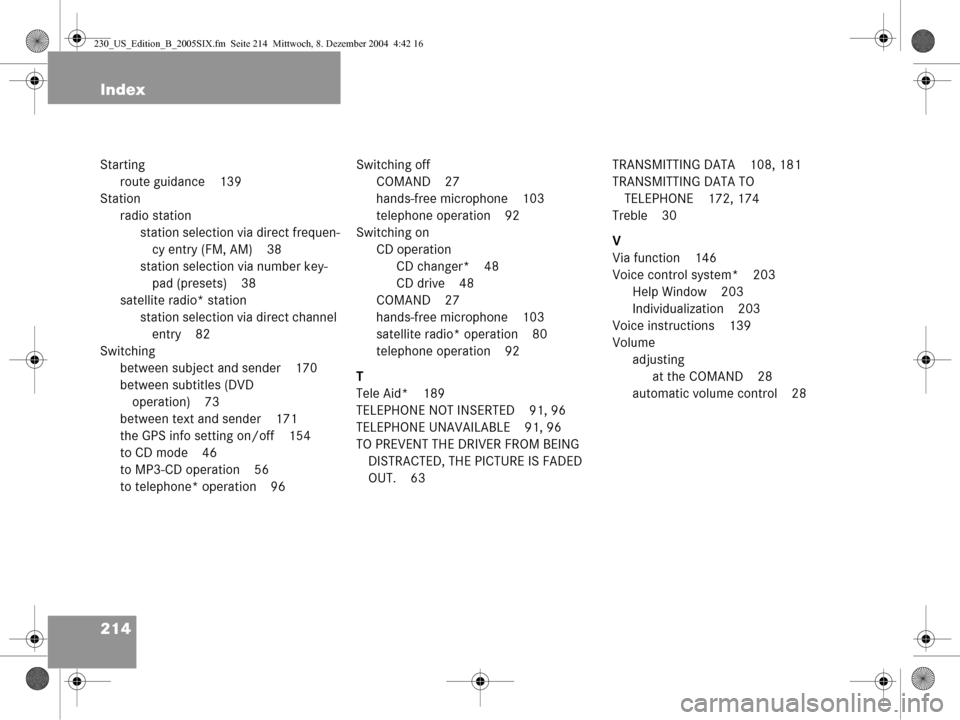

214 Index
Startingroute guidance 139
Station radio station station selection via direct frequen-cy entry (FM, AM) 38
station selection via number key- pad (presets) 38
satellite radio* station station selection via direct channel entry 82
Switching between subject and sender 170
between subtitles (DVD operation) 73
between text and sender 171
the GPS info setting on/off 154
to CD mode 46
to MP3-CD operation 56
to telephone* operation 96 Switching off
COMAND 27
hands-free microphone 103
telephone operation 92
Switching on CD operationCD changer* 48
CD drive 48
COMAND 27
hands-free microphone 103
satellite radio* operation 80
telephone operation 92
T
Tele Aid* 189
TELEPHONE NOT INSERTED 91, 96
TELEPHONE UNAVAILABLE 91, 96
TO PREVENT THE DR IVER FROM BEING
DISTRACTED, THE PICTURE IS FADED
OUT. 63 TRANSMITTING DATA 108, 181
TRANSMITTING DATA TO
TELEPHONE 172, 174
Treble 30
V
Via function 146
Voice control system* 203 Help Window 203
Individualization 203
Voice instructions 139
Volume adjustingat the COMAND 28
automatic volume control 28
230_US_Edition_B_2005SIX.fm Seite 214 Mittwoch, 8. Dezember 2004 4:42 16
