2006 MERCEDES-BENZ S-Class navigation system

Contents
Introduction . . . . . . . . . . . . . . . . . . . . . 7
Where to find it . . . . . . . . . . . . . . . . . . . 7
Symbols . . . . . . . . . . . . . . . . . . . . . . . . . 8
Operating safety. . . . . . . . . . . . . . . . . . . 9
At a glance . . . . . . . . . . . . . . . . . . . . . 11
Radio operating elements . . . . . . . . . . 12
CD operating elements . . . . . . . . . . . . 14
Satellite radio* operating elements . . . 16
Telephone* operating elements . . . . . . 18
Navigation operating elements . . . . . . 20
Service operating elements . . . . . . . . . 22
Menu system . . . . . . . . . . . . . . . . . . . . 24
Quick reference COMAND . . . . . . . . . . 27 Switching the COMAND
control unit on and off . . . . . . . . . . 27
Volume . . . . . . . . . . . . . . . . . . . . . . 27
Balance and fader. . . . . . . . . . . . . . 29
Bass and Treble . . . . . . . . . . . . . . . 30
Sound functions* . . . . . . . . . . . . . . 31
Audio . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Audio menu . . . . . . . . . . . . . . . . . . . . . 34 Opening the Audio menu . . . . . . . . 34
Selecting an audio source . . . . . . . 34
Muting . . . . . . . . . . . . . . . . . . . . . . 34
Radio operation . . . . . . . . . . . . . . . . . . 35 Switching the radio operation on . . 35
Changing the Radio band . . . . . . . . 35
Selecting a station . . . . . . . . . . . . . 37
Memory functions . . . . . . . . . . . . . . 40
CD operation . . . . . . . . . . . . . . . . . . . . 44 General Information
on CD operation . . . . . . . . . . . . . . . 44
Tips on caring for your CDs . . . . . . 45
Switching to CD operation . . . . . . . 46
Loading CDs . . . . . . . . . . . . . . . . . . 46
Switching on . . . . . . . . . . . . . . . . . . 48
Selecting a CD (CD changer* only). 49
Track select . . . . . . . . . . . . . . . . . . 50
Fast forward/reverse . . . . . . . . . . . 52
Muting . . . . . . . . . . . . . . . . . . . . . . 53
Playback mode . . . . . . . . . . . . . . . . 53 MP3-CD operation . . . . . . . . . . . . . . . . 55
General Information . . . . . . . . . . . . 55
Tips on caring for your MP3-CDs . . 56
Switching to MP3-CD operation . . . 56
MP3-CD main menu . . . . . . . . . . . . 57
Selecting a folder . . . . . . . . . . . . . . 58
Selecting a track . . . . . . . . . . . . . . . 58
Playback mode . . . . . . . . . . . . . . . . 60
MP3 options . . . . . . . . . . . . . . . . . . 61
DVD operation . . . . . . . . . . . . . . . . . . . 63 General information
on DVD operation . . . . . . . . . . . . . . 63
DVD playback requirements . . . . . . 64
Switching to DVD operation . . . . . . 64
Loading a DVD . . . . . . . . . . . . . . . . 65
Ejecting a DVD . . . . . . . . . . . . . . . . 66
Soft key display and status bar. . . . 67
Soft key functions . . . . . . . . . . . . . . 68
DVD menu. . . . . . . . . . . . . . . . . . . . 70
Settings menu. . . . . . . . . . . . . . . . . 71
Adjusting bright ness, contrast
and color . . . . . . . . . . . . . . . . . . . . . 74
Selecting a movie . . . . . . . . . . . . . . 74
Selecting a scene/chapter . . . . . . . 75
Fast forward/reverse . . . . . . . . . . . 75
220_US_A_2006IVZ.fm Seite 3 Mittwoch, 22. Dezember 2004 1:32 13

7
Where to find it
Introduction

Where to find it
This Operator’s Manual is designed to pro-
vide support information for you, the
COMAND operator. Each chapter has its
own guide color to provide fast access to
information.
At a glance
Here you will find an overview of
all COMAND control elements and system
components. If you are operating
COMAND for the first time or if you have
rented or borrowed the vehicle, this is the
chapter you should read first.
Audio
Here you will find all the information on
how to use the radio, CD player (CD,
MP3-CD), CD changer* and DVD drive.
Satellite radio*
This chapter provides information on how
to select a station and a program category.
Telephone*
Here you can learn in detail about the
many functions of the telephone, how to
initiate an emergency call and use the pho-
ne book.
Navigation
This chapter provides detailed information
on the following topics:
Destination input
Route guidance including detour
Last destinations and destination
memory
POIs
Service
Here you will find all the information about:
SMS
Address book
Tele Aid*
System settings
This chapter provides information on how
to adjust COMAND system settings.
Directories
The glossary explains the most important
technical terms.
The table of contents and index directory
will help you quickly locate the information
you need.
220_Einleitung_US_A_2006.fm Seite 7 M ittwoch, 22. Dezember 2004 1:31 13

9
Introduction
Operating safety

Operating safety
WarningG
Any alterations made to electronic compo-
nents and the software can cause malfunc-
tions.
The radio, amplifier, CD changer*, satellite
radio*, telephone*, navigation module and
voice control system* are interconnected.
When one of the components is not operati-
onal or has not been removed/replaced pro-
perly, the function of other components may
be impaired.
This condition might seriously impair the
operating safety of your vehicle.
We recommend that you have any service
work on electronic components carried out
only by qualif ied personnel.
WarningG
In order to avoid distraction which could
lead to an accident, th e driver should enter
system settings with the vehicle at a stand-
still and operate the system only when road
and traffic conditions permit.
Bear in mind that at a speed of just
30 mp/h (approximately 50 km/h), your car
is covering a distance of 44 feet (approxima-
tely 14 m) every second.
COMAND supplies you with information to
help you select your route more easily and
guide you conveniently and safely to your
destination. For safety reasons, we encoura-
ge the driver to stop the vehicle in a safe
place before answering or placing a call, or
consulting the COMAND screen to read na-
vigational maps, inst ructions, or downloa-
ded information.
While the navigation system provides direc-
tional assistance, the dr iver must remain fo-
cused on safe driving behavior, including
attention to traffic and street signs, and
should utilize the system’s audio cues while
driving.
The navigation system does not supply any
information on stop signs, yield signs, traffic
regulations or traffic safety rules. This al-
ways remains your pe rsonal responsibility
when you drive. DVD maps do not cover all
areas nor all routes within an area.
220_Einleitung_US_A_2006.fm Seite 9 M ittwoch, 22. Dezember 2004 1:31 13

11
At a glance
Radio operating elements
CD operating elements
Satellite radio* operating elements Telephone* operating elements
Navigation system operating elements Service operating elements Menu system
Quick reference COMAND
220_AeBlick_US_A_2006.fm Seite 11 M ittwoch, 22. Dezember 2004 1:22 13

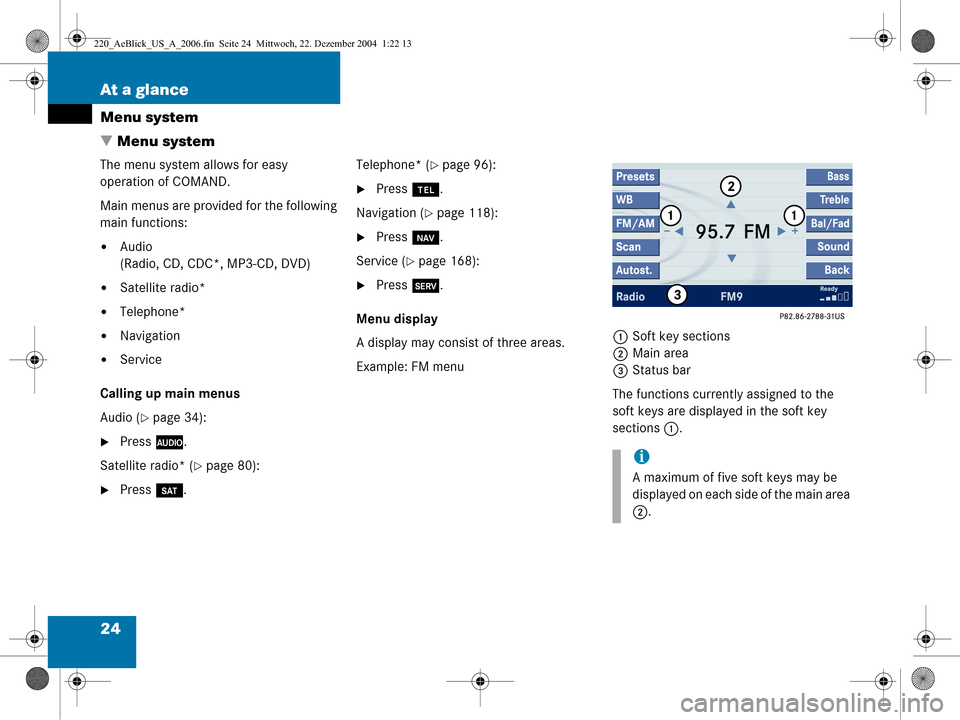

24 At a glance
Menu system

Menu system
The menu system allows for easy
operation of COMAND.
Main menus are provided for the following
main functions:
Audio
(Radio, CD, CDC*, MP3-CD, DVD)
Satellite radio*
Telephone*
Navigation
Service
Calling up main menus
Audio (
page 34):
Press A.
Satellite radio* (
page 80):
Press B. Telephone* (
page 96):
Press
a.
Navigation (
page 118):
Press b.
Service (
page 168):
Press C.
Menu display
A display may consist of three areas.
Example: FM menu 1
Soft key sections
2 Main area
3 Status bar
The functions currently assigned to the
soft keys are displayed in the soft key
sections 1.
i
A maximum of five soft keys may be
displayed on each side of the main area
2.
220_AeBlick_US_A_2006.fm Seite 24 M ittwoch, 22. Dezember 2004 1:22 13

27
At a glance
Quick reference COMAND

Quick reference COMAND
Switching on
Turn the key in the steering column
lock to position 1 or 2.
or
Press e.
In both cases, the system will activate
the operating mode which was active
when the system was switched off. Switching off
Turn the key in the steering column
lock to position 0 and pull the key out.
or
Press e.
The volume is adjusted jointly for the
telephone*, the navigation system and the
Voice control system.
The volume setting applies to other
operating modes as well: Radio, CD,
CD changer*, MP3-CD and DVD.
When you adjust the volume, the system
will automatically store the setting for the
current operating mode. The volume for
the navigation announcements can only be
changed while an announcement is being
made.
i
You have the following options to
control the system:
at the COMAND
at the multifunction steering wheel
(refer to vehicle Operator's Manual)
using the Voice control system*
(refer to separate operating
instructions for further information)
This Operator’s Manual describes the
control at the COMAND.
Unless otherwise indicated, the
descriptions and illustrations refer to
the COMAND.
Switching the COMAND control unit
on and off
i
If the key is not in the steering lock in
position 1 or 2, the system will
automatically stop after around 30
minutes. A warning is displayed prior to
the system switching off.
Volume
220_AeBlick_US_A_2006.fm Seite 27 M ittwoch, 22. Dezember 2004 1:22 13

29
At a glance
Quick reference COMAND
Common balance and fader settings apply
to the following sytems:
Radio operation
CD operation (single CD)
CD changer* operation
MP3-CD operation
DVD operation
Satellite radio*
Different balance and fader settings can be
set for navigation and telephone*. The balance/fader settings for navigation
announcements are described at “Audio
settings for the navigation
announcements” (
page 121).
When you change balance or fader
settings, the system will automatically
save the settings for the current operating
mode and others.
Setting balance and fader
In Radio, CD, CDC*, MP3-CD, DVD or
satellite radio* operation:
Press the Bal/Fad soft key.
Cross-hairs are displayed. The
horizontal line indicates the balance
setting. The vertical line indicates the
fader setting. You can now make
balance and fader settings.Balance and fader
220_AeBlick_US_A_2006.fm Seite 29 M ittwoch, 22. Dezember 2004 1:22 13

30 At a glance
Quick reference COMAND
Press H or h .
Move the cross-hairs horizontally and
adjust the balance.
or
Press g or G .
Move the cross-hairs vertically and
adjust the fader.
Press E or the Back soft key.
or
Wait until the display changes.
The new setting is saved. Different bass and treble settings are
possible for the following operating
modes:
Radio operation (FM and AM band)
CD operation (single CD)
CD changer* operation
MP3-CD operation
DVD operation
Satellite radio* operation
Navigation operation
The Bass/Treble settings for navigation
announcements are described at “Audio
settings for the navigation
announcements” (
page 121). When you adjust Bass or Treble, the
system will automatically save the settings
for the current operating mode.
Activating the Bass or Treble menu
In Radio, CD, CDC*, MP3-CD, DVD or
satellite radio* operation:
Press the Bass or Treble soft key.
The Bass or Treble menu will appear.
You can now make bass or treble
settings (
page 31).
i
Use
F and f to move the
cross-hairs diagonally.
Bass and Treble
220_AeBlick_US_A_2006.fm Seite 30 M ittwoch, 22. Dezember 2004 1:22 13
