2006 MERCEDES-BENZ G55AMG seat memory

Contents
Safety and Security........................... 61
Occupant safety................................... 62
Airbags ........................................... 63
Seat belts ....................................... 68
Children in the vehicle .................... 72
Blocking rear door window
operation ........................................ 78
Panic alarm .......................................... 79
Driving and safety systems .................. 80
ABS ................................................ 80
BAS ................................................ 82
4-ETS .............................................. 83
EBB................................................. 84
ESP ................................................. 84
Anti-theft systems................................ 88
Immobilizer..................................... 88
Anti-theft alarm .............................. 88
Tow-away alarm ............................. 89Controls in detail............................... 91
Locking and unlocking ......................... 92
SmartKey ....................................... 92
Opening the doors from the inside . 96
Opening the tailgate ....................... 97
Closing the tailgate ........................ 98
Automatic central locking .............. 98
Locking and unlocking from
the inside ....................................... 99
Seats ................................................. 100
Easy-entry/exit feature ................ 100
Removing and installing front seat
head restraints ............................. 101
Synchronizing head restraints
and seat adjustment fore
and aft for front seats .................. 102
Rear seat head restraints ............. 102
Multicontour seat* ....................... 104
Heated seats ................................ 104
Memory function ............................... 107
Storing positions into memory ..... 108
Recalling positions from memory . 108
Storing exterior rear view
mirror parking position................. 109Lighting ............................................. 110
Exterior lamp switch .................... 110
Combination switch ..................... 114
Hazard warning flasher ................ 115
Interior lighting ............................ 116
Rear interior lamps ...................... 117
Cargo compartment lamps .......... 118
Instrument cluster ............................. 120
Instrument cluster illumination .... 120
Coolant temperature display........ 120
Trip odometer .............................. 121
Tachometer .................................. 121
Outside temperature indicator ..... 122
Control system .................................. 123
Multifunction display.................... 123
Multifunction steering wheel........ 124
Menus .......................................... 126
Standard display menu ................ 128
AUDIO menu ................................ 128
NAVI menu ................................... 130
Vehicle status message
memory menu .............................. 131
Settings menu .............................. 132
Trip computer menu..................... 145
TEL menu ..................................... 146

31 At a glance

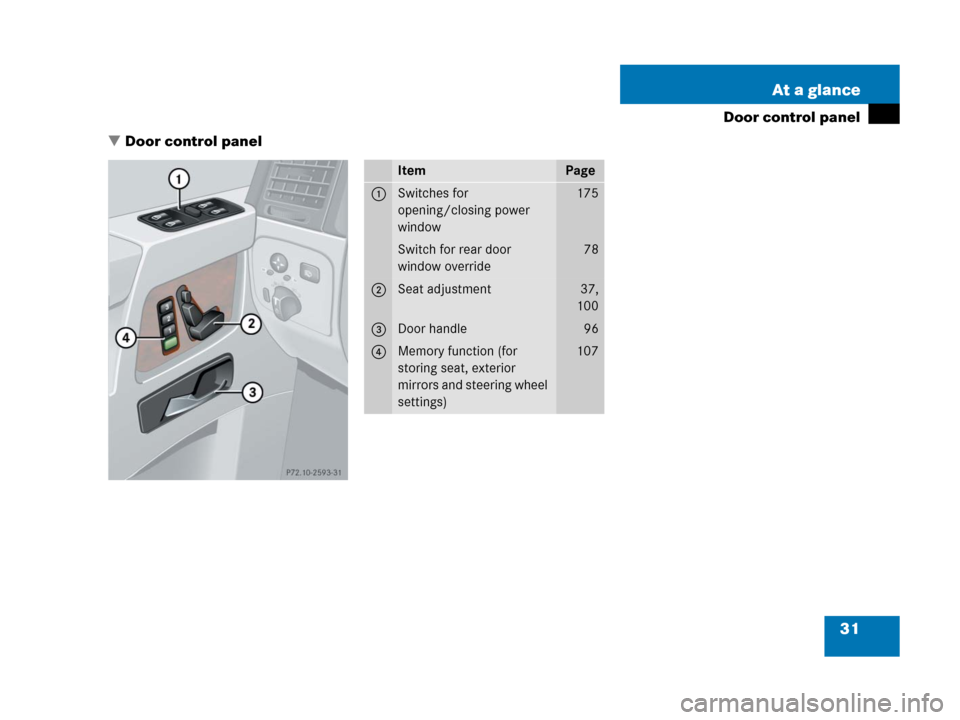

Door control panel
Door control panel
ItemPage
1Switches for
opening/closing power
window175
Switch for rear door
window override78
2Seat adjustment37,
100
3Door handle96
4Memory function (for
storing seat, exterior
mirrors and steering wheel
settings)107

38 Getting started
Adjusting
Seat adjustment
The seat adjustment switches are located
in each front door.
1Head restraint height
2Seat backrest tilt
3Seat fore and aft adjustment
4Seat cushion tilt
5Seat height
Switch on the ignition (page 35).
or
Open the respective front door.
Seat fore and aft adjustment
Press the switch forward or back in the
direction of arrow3.
Adjust to a comfortable seating posi-
tion that still allows you to reach the
accelerator/brake pedal safely. The
position should be as far to the rear as
possible, consistent with ability to
properly operate controls.
A child’s risk of serious or fatal injuries is
significantly increased if the child restraints
are not properly secured in the vehicle and
the child is not properly secured in the child
restraint.i
When moving the seat, be sure that

there are no items in the footwell or
behind the seats

the cup holder next to the armrest
is removed (
page 196)

the cup holder in the front passen-
ger footwell is folded closed
(
page 196)
Otherwise you could damage the seats
and/or cup holders.
The memory function (
page 107) lets
you store the setting for the seat posi-
tion together with the setting for the
steering wheel and the exterior rear
view mirrors.


40 Getting started
Adjusting
Steering wheelThe lever is located on the steering column
(lower left).
1Adjusting steering column, in or out
2Adjusting steering column, up or down
Switch on the ignition (page 35).
or
Open the driver’s door.Adjusting steering column in or out
Move lever forward or back in the di-
rection of arrow1 until a comfortable
steering wheel position is reached with
your arms slightly bent at the elbow.
Adjusting steering column up or down
Move lever up or down in the direction
of arrow2.
Make sure your legs can move freely
and that all the displays (incl. malfunc-
tion and indicator lamps) on the instru-
ment cluster are clearly visible.
For more information, see “Heated steer-
ing wheel” (
page 215).
Warning!G
Do not adjust the steering wheel while driv-
ing. Adjusting the steering wheel while driv-
ing could cause the driver to lose control of
the vehicle.
When leaving the vehicle, always remove the
SmartKey from the starter switch, take it
with you, and lock the vehicle.
Even with the SmartKey removed from the
starter switch, the steering wheel adjust-
ment feature can be operated when the driv-
er’s door is open. Therefore, do not leave
children unattended in the vehicle, or with
access to an unlocked vehicle. Unsuper-
vised use of vehicle equipment may cause
an accident and/or serious personal injury.
i
The memory function (page 107) lets
you store the setting for the steering
wheel together with the setting for the
seat position and the exterior rear view
mirrors.

42 Getting started
Adjusting
The buttons are located above the exterior
lamp switch.
1Adjustment button
2Driver’s side exterior rear view mirror
3Passenger-side exterior rear view
mirrorSwitch on the ignition (page 35).
Press switch2 or3 to select the
respective exterior rear view mirror.
Push adjustment button1 up, down,
left, or right according to the desired
setting.
For more information, see “Storing exterior
rear view mirror parking position”
(
page 109).
!
If an exterior rear view mirror housing
is forcibly pushed forward (hit from the
rear) or rearward (hit from the front),
reposition it by applying firm pressure
until it snaps into place. The exterior
rear view mirror housing is now proper-
ly positioned and you can adjust the
mirror normally.
i
At low ambient temperatures, the exte-
rior rear view mirrors will be heated au-
tomatically.
i
The memory function (page 107) lets
you store the setting for the exterior
rear view mirrors together with the set-
tings for the steering wheel and the
seat position.

91 Controls in detail
Locking and unlocking
Seats
Memory function
Lighting
Instrument cluster
Control system
Automatic transmission
Transfer case
Differential locks
Good visibility
Climate control
Power windows
Power tilt/sliding sunroof
Driving systems
Loading
Useful features

100 Controls in detail
Seats
For more information on seat adjustment,
see the “Getting started” section
(
page 37).
Easy-entry/exit feature
This feature allows for easier entry into and
exit from the vehicle.
The easy-entry/exit feature can be
switched on or off, see “Activating
easy-entry/exit feature” (
page 143).
When the SmartKey is inserted in the start-
er switch and the driver’s door is closed,
the steering wheel returns to the last set
position.When exiting the vehicle with the
easy-entry/exit feature activated, the
steering wheel tilts upwards when you

remove the SmartKey from the starter
switch,
or

open the driver’s door with the
SmartKey in starter switch
position0or1.
Warning!G
You must make sure no one can become
trapped or injured by the moving steering
wheel when the easy-entry/exit feature is
activated.
To stop steering wheel movement, do one of
the following

Move steering column lever
(
page 40).

Press memory position switch
(
page 108).
Do not leave children unattended in the ve-
hicle, or with access to an unlocked vehicle.
Children could open the driver’s door an un-
intentionally activate the easy-entry/exit
feature, which could result in an accident
and/or serious personal injury.
i
If the current position for the steering
wheel is in the uppermost tilt position,
the steering wheel will no longer be
able to move upward when the
easy-entry/exit feature is activated.

107 Controls in detail
Memory function
Memory function
The memory button and stored position
switch are located on the door.
You can store up to three different settings
per SmartKey.
The following settings are saved for each
stored position:

Driver’s seat and seat backrest posi-
tion, head restraint position

Steering wheel position

Driver’s side exterior rear view mirror
position

Passenger-side exterior rear view
mirror positionThe following settings are not key-depen-
dent. They are stored when using the but-
tons on the front passenger door:

Front passenger seat and backrest po-
sition, head restraint position.
These key-dependent memory settings
can be deactivated if desired
(
page 144).
!
Prior to operating the vehicle, the driv-
er should check and adjust the seat
height, seat position fore and aft, and
seat backrest angle if necessary, to
ensure adequate control, reach and
comfort. The head restraint should also
be adjusted for proper height. See also
the section on airbags (
page 63) for
proper seat positioning.
In addition, adjust the steering wheel to
ensure adequate control, reach, opera-
tion and comfort. Both the interior and
exterior rear view mirrors should be ad-
justed for adequate rear vision.
Fasten seat belts. Infants and small
children should be seated in a properly
secured restraint system that complies
with U.S. Federal Motor Vehicle Safety
Standards 213 and 225 and Canadian
Motor Vehicle Safety Standards 213
and 210.2.
Warning!G
Do not activate the memory function while
driving. Activating the memory function
while driving could cause the driver to lose
control of the vehicle.
