392 Practical hintsWhat to do if …Display
Display message
Possible cause/consequence
Possible solution
ESP
Display malfunction
Visit workshop
The ESP
® or the ESP
® display is
malfunctioning.

Continue driving with added caution.

Have the system checked at an authorized
Mercedes-Benz Center as soon as possible.
Failure to follow these instructions increases
the risk of an accident.
P
Gear selector lever
in Park
You have attempted to turn off the
engine with the KEYLESS-GO*
start/stop button with the gear se-
lector lever not inP. You have
opened the driver’s door with the
gear selector lever not inP.

Place the gear selector lever in positionP.
P/N
Shift to
Neutral or Park
You have attempted to start the en-
gine with the KEYLESS-GO*
start/stop button while the gear se-
lector lever was in positionR orD.

Place the gear selector lever in positionP
orN. Make sure the brake pedal is de-
pressed.

393 Practical hints
What to do if …
Display messages
Possible cause/conse-
quence
Possible solution
Front passenger
airbag
activated
See Operator’s Manual
Front passenger front air bag is
activated while driving even
though a child, small individual,
or object below the system’s
weight threshold is on the front
passenger seat, or the front
passenger seat is empty. Ob-
jects on the seat or forces act-
ing on the seat may make the
system sense supplemental
weight.
Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (
page 36).

Open the front passenger door.

Remove child and child restraint from front passenger seat and
properly secure the child in rear seat employing the child restraint
if necessary.

Remove any other items from on and around the front passenger
seat and make sure the storage pocket on the back of the front pas-
senger seat is empty.

Make sure that no objects which apply forces to the seat are
present (e.g. objects such as books, briefcases etc. lodged behind
or around the seat, head restraints pushing against roof etc.). The
system may recognize such forces as supplemental weight and
sense that an occupant on the front passenger seat is of a greater
weight than actually present.

Keep the seat unoccupied, close the front passenger door and turn
on the ignition (
page 36).
(Continued on next page)

394 Practical hintsWhat to do if …Display messages
Possible cause/con-
sequence
Possible solution
Front passenger
airbag
activated
See Operator’s Manual
Monitor the 75 indicator lamp on the center console (
page 27) and
the multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,


the 75 indicator lamp on the center console should illuminate and re-
main illuminated, indicating that the OCS (
page 81) has deactivated the front
passenger front air bag.


the message
Front passenger airbag activated See Operator’s Manual
or
the message
Front passenger airbag deactivated See Operator’s Manual

should not appear in the multifunction display at any time the seat is unoccu-
pied. Wait at last 60 seconds for the system to complete the necessary check
cycles and to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. De-
pending on the front passenger classification sensed by the OCS (
page 81), the
75 indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the sys-
tem checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the
75
indicator lamp remains
out even after performing the above correc-
tive steps, do not have any children 12 years
old and under and other small individuals
use the front passenger seat until the sys-
tem has been repaired.

395 Practical hints
What to do if …
Display messages
Possible cause/conse-
quence
Possible solution
Front passenger
airbag
deactivated
See Operator’s Manual
Front passenger front air bag is
deactivated while driving even
though an adult or someone
larger than a small individual is
occupying the front passenger
seat. Forces acting on the seat
may make the system sense a
decrease in weight.
Stop the vehicle in a safe location as soon as possible and check the
front passenger seat for the following:
Switch off the ignition (
page 36).

Have the front passenger vacate the seat and exit the vehicle.

Adjust the seat in a height position (
page 41).

Make sure that no objects which apply forces to the seat are
present (e.g. objects such as books, briefcases etc. lodged under-
neath, behind or around the seat). Such forces may cause the sys-
tem to sense that an occupant of a lesser weight than actually
present is on the front passenger seat.

Keep the seat unoccupied, close the front passenger door and turn
on the ignition (
page 36).
(Continued on next page)

396 Practical hintsWhat to do if …Display messages
Possible cause/con-
sequence
Possible solution
Front passenger
airbag
deactivated
See Operator’s Manual
Monitor the 75 indicator lamp on the center console (
page 27) and the
multifunction display in the instrument cluster (
page 26) for the following:
With the seat unoccupied and the ignition turned on,


the 75 indicator lamp on the center console should illuminate and re-
main illuminated, indicating that the OCS (
page 81) has deactivated the front
passenger front air bag.


the message
Front passenger airbag activated See Operator’s Manual
or
the message
Front passenger airbag deactivated See Operator’s Manual

should not appear in the multifunction display at any time the seat is unoccu-
pied. Wait at last 60 seconds for the system to complete the necessary check
cycles and to make sure neither message appears in the multifunction display.
If above conditions are met, you can occupy the front passenger seat again. De-
pending on the front passenger classification sensed by the OCS (
page 81), the
75 indicator lamp will remain illuminated or go out.
If above conditions are not met, the system is not working properly. Have the sys-
tem checked as soon as possible by an authorized Mercedes-Benz Center.
Warning!
G
If the 75 indicator lamp remains
illuminated with an adult occupant on the
front passenger seat even after performing
the above corrective steps, do not have any
passenger use the front passenger seat until
the system has been repaired.

397 Practical hints
What to do if …
Display message
Possible cause/consequence
Possible solution
Tire pres. monitor
inoperative
The TPMS* is malfunctioning.

Have the TPMS* checked by an authorized
Mercedes-Benz Center.
Tire pres. monitor
inoperative
No wheel sensors
There are wheels without wheel sensors
mounted (e.g. winter tires).

Have the TPMS* checked by an authorized
Mercedes-Benz Center.

Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
Tire pres. monitor
Wheel sensor missing
One or more sensors malfunction (e.g. bat-
tery in one or more wheel sensor is empty).
One or more wheels without wheel sensors
mounted (e.g. spare tire).

Have the TPMS* checked by an authorized
Mercedes-Benz Center.

Have the wheel sensors installed by an authorized
Mercedes-Benz Center.
The tire pressure for the respective tire is shown in the
multifunction display.
Tire pres. monitor
currently unavailable
The TPMS* is unable to monitor the tire
pressure due to

a nearby radio interference source.


excessive wheel sensor temperatures.

As soon as the causes for the malfunction are no longer
present, the TPMS* automatically becomes active again
after a few minutes driving.

398 Practical hintsWhat to do if …Symbol messagesDisplay symbol
Display messages
Possible cause/consequence
Possible solution
#
Low voltage
Switch off
consumers
The battery has insufficient voltage.

Turn off unnecessary electrical con-
sumers.
Visit workshop
The battery was charged with a battery
charger or jump started.

Have the battery checked at a service
station.
The battery is no longer charging.
Possible causes:

alternator malfunctioning


broken poly-V-belt
Do not forget that the brake system re-
quires electrical energy and may be oper-
ating with restricted capability.
Considerably greater brake pedal force is
required and the stopping distance is in-
creased.

Stop immediately in a safe location or
as soon as it is safe to do so and
check the poly-V-belt.
If it is broken:

Do not continue to drive. Otherwise
the engine will overheat due to an in-
operative water pump which may re-
sult in damage to the engine. Notify
an authorized Mercedes-Benz Center.
If it is intact:

Drive immediately to the nearest au-
thorized Mercedes-Benz Center. Ad-
just driving to be consistent with
reduced braking responsiveness.

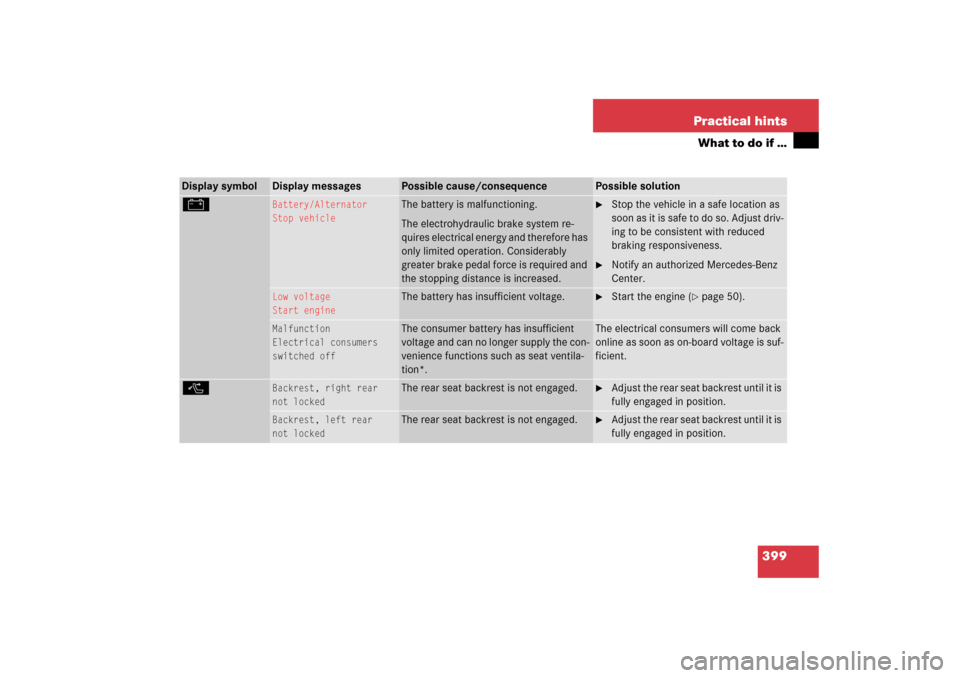

399 Practical hints
What to do if …
Display symbol
Display messages
Possible cause/consequence
Possible solution
#
Battery/Alternator
Stop vehicle
The battery is malfunctioning.
The electrohydraulic brake system re-
quires electrical energy and therefore has
only limited operation. Considerably
greater brake pedal force is required and
the stopping distance is increased.

Stop the vehicle in a safe location as
soon as it is safe to do so. Adjust driv-
ing to be consistent with reduced
braking responsiveness.

Notify an authorized Mercedes-Benz
Center.
Low voltage
Start engine
The battery has insufficient voltage.

Start the engine (
page 50).
Malfunction
Electrical consumers
switched off
The consumer battery has insufficient
voltage and can no longer supply the con-
venience functions such as seat ventila-
tion*.
The electrical consumers will come back
online as soon as on-board voltage is suf-
ficient.
(
Backrest, right rear
not locked
The rear seat backrest is not engaged.

Adjust the rear seat backrest until it is
fully engaged in position.
Backrest, left rear
not locked
The rear seat backrest is not engaged.

Adjust the rear seat backrest until it is
fully engaged in position.
