2006 MERCEDES-BENZ CL-Class display

79
Satellite radio*
Important notes
Press
B to switch to satellite radio
operation.
One of the two following screens will
appear:
the Satellite radio main menu dis-
playing the Preview channel or
the Service information display
Satellite radio main menu (Preview channel)
The Satellite radio main menu displays the
Preview channel. You cannot select any
other station.
Press the SIRIUS soft key to display the
Service information display.
Service information display
1 Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2 The Electronical Serial Number (ESN)
of your satellite receiver
Contact satellite radio service provider
at the telephone number displayed in
the screen.
Subscribing to satellite radio
i
If the Satellite radio function has not yet
been subscribed to or not subscribed
again, you have to contact the satellite
radio service provider.
220_SAT_Radio_US_A_2006.fm Seite 79 Mittwoch, 22. Dezember 2004 1:19 13

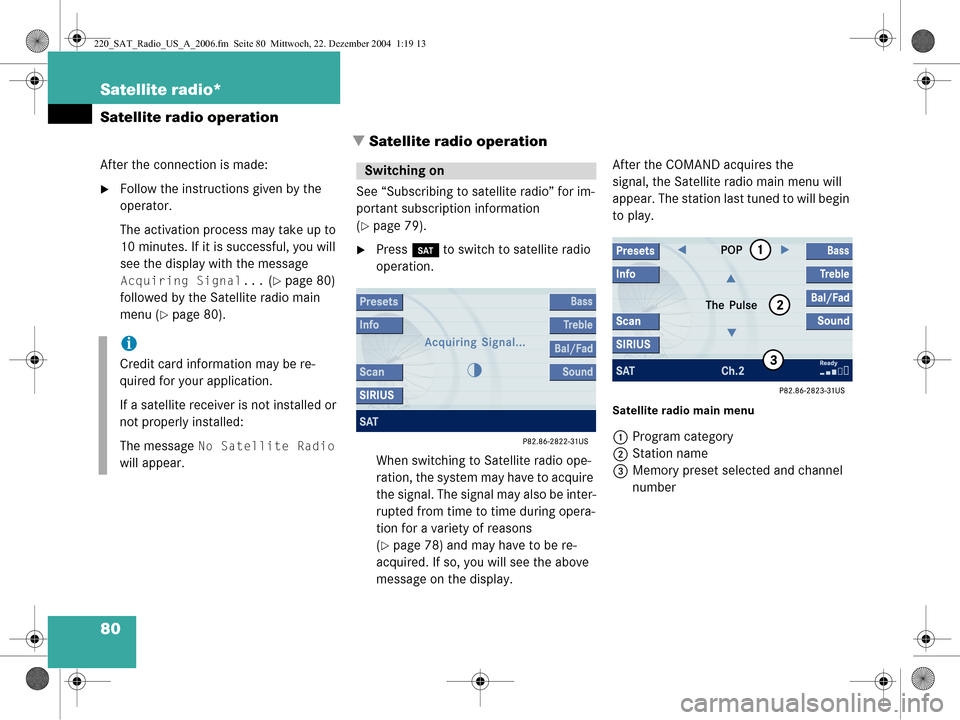

80 Satellite radio*
Satellite radio operation
Satellite radio operation
After the connection is made:
Follow the instructions given by the
operator.
The activation process may take up to
10 minutes. If it is successful, you will
see the display with the message
Acquiring Signal... (page 80)
followed by the Satellite radio main
menu (
page 80). See “Subscribing to satellite radio” for im-
portant subscription information
(
page 79).
Press
B to switch to satellite radio
operation.
When switching to Satellite radio ope-
ration, the system may have to acquire
the signal. The signal may also be inter-
rupted from time to time during opera-
tion for a variety of reasons
(
page 78) and may have to be re-
acquired. If so, you will see the above
message on the display. After the COMAND acquires the
signal, the Satellite radio main menu will
appear. The station last tuned to will begin
to play.
Satellite radio main menu
1
Program category
2 Station name
3 Memory preset selected and channel
number
i
Credit card information may be re-
quired for your application.
If a satellite receiver is not installed or
not properly installed:
The message
No Satellite Radio
will appear.
Switching on
220_SAT_Radio_US_A_2006.fm Seite 80 Mittwoch, 22. Dezember 2004 1:19 13

81
Satellite radio*
Satellite radio operation
Muting
Press
J while listening to the satel-
lite radio.
The symbol R will appear in the symbol
bar.
Press J again to resume listening to
the current station.
The symbol R will have disappeared. Satellite radio stations are split up into ca-
tegories. You can select between various
c a t e g o r i e s s u c h a s N e w s , S p o r t s N e w s a n d
Country Music, if available. The category
list is sorted alphabetically.
Selecting a program category
Use
H or h while the Satellite radio
main menu (
page 80) is being
displayed.
The previous or next program category
(alphabetical order) will appear in the
display. The station last tuned in the
new category will begin to play. You can use the following functions:
Automatic tuning
Automatic station scan (page 82)
Station selection via direct channel
entry (
page 82)
Station selection from the preset menu
(
page 84)
Automatic tuning
Use G or g while the Satellite radio
main menu is being displayed.
or
Press d or D .
The satellite radio will tune in to the nu-
merically previous or next receivable
station in the selected category.
i
You can display 2 in full:
Station information (page 84)
i
Muting will also be canceled if you
switch to an audio source, e.g. normal
radio, or if you alter the volume.
Changing the program categorySelecting a station
220_SAT_Radio_US_A_2006.fm Seite 81 Mittwoch, 22. Dezember 2004 1:19 13

82 Satellite radio*
Satellite radio operation
Automatic station scan
The stations in the selected category can
be scanned in numerical order for 8 se-
conds each.
In the Satellite radio main menu, press
the
Scan soft key.
The scan function will begin.
Scan will
appear in black lettering. Ending scan function and playing a
station
Press the Scan soft key again.
The station selected will appear with
the station name.
Scan will appear in
white lettering again.
Station selection via direct channel
entry
Press *.
Input line will appear.
Enter the number of the channel you
wish to select, e.g. 55.
The channel you have selected will be-
gin to play. The corresponding station
name will appear, if station is available.
i
If the selected channel is not subscri-
bed, the system displays
Channel Not
subscribed
.
If no content is being broadcast on the
selected channel, the system displays
the message
Invalid Channel.
220_SAT_Radio_US_A_2006.fm Seite 82 Mittwoch, 22. Dezember 2004 1:19 13

84 Satellite radio*
Satellite radio operation
Selecting a station on the memory list
In the Satellite radio main menu, press
the
Presets soft key.
The SAT preset memory will appear.
Use g or G to highlight a memory
preset.
Press E.
The Satellite radio main menu will then
appear automatically after 8 seconds,
indicating the memory preset number
in the status line.
In the Satellite radio main menu, press
the
Info soft key.
The information display will appear.
You will see (if available)
the full station name
additional program information
Press the Back soft key to switch back
to the Satellite radio main menu.Displaying information
220_SAT_Radio_US_A_2006.fm Seite 84 Mittwoch, 22. Dezember 2004 1:19 13

85
Satellite radio*
Satellite radio operation
You can call the provider service center for
questions or releases, whenever you need.
Press the SIRIUS soft key.
The Service information display will ap-
pear.
1 Phone number of the provider,
(SIRIUS) or “Call Service Provider”
2 The Electronical Serial Number (ESN)
of your SAT tuner
Press the Back soft key to switch back
to the Satellite radio main menu.
Refer to chapter “At a glance” on how to
adjust sound settings.
You can set
the sound Bass/Treble individually
the sound-center (Fader and Balance)
select predefined sound optimization
Displaying service information
Sound settings
220_SAT_Radio_US_A_2006.fm Seite 85 Mittwoch, 22. Dezember 2004 1:19 13

89
Telephone*
Important notes
i
If you have a Mercedes-Benz specified
integrated mobile telephone (TDMA/
CDMA or GSM) and the telephone is
inserted in the cradle, the telephone
functions can be used as follows:
at the COMAND
at the multifunction steering wheel
with the Voice control system*
This instruction manual describes the
operation at the COMAND. Unless
otherwise indicated, the descriptions
and illustrations refer to the COMAND.
Operation at the mobile phone and
operation with the Voice control
system* are described in separate
operating guides. Refer to the vehicle
Operator’s Manual for operation of the
telephone using the multifunction
steering wheel.
Which soft key functions are available
depends on the mobile phone variant.
i
The COMAND can display phone
number and name of the other party
(e.g. if the COMAND detects an
incoming call, but also in other menus).
For the number to be displayed, the
number information must be
transmitted with the incoming call. The
same goes for the name display which
additionally requires that the caller’s
number and name are saved in the
phone book.
i
No ring or DTMF tones will be heard
when a phone set to silent mode is in-
serted into the cradle.
For ringtone settings, refer to the sepa-
rate operating instructions for the
mobile phone.
220_Telefon_US_A_2006.fm Seite 89 Mi ttwoch, 22. Dezember 2004 1:17 13

94 Telephone*
Telephone operation
Initiating an emergency call
Telephone is locked
Press the 911 soft key.
The system opens an inquiry menu
prompting if you want to dial a “911”
call.
The selection marker in the inquiry
menu should be on
Yes.
If necessary, press H to select
Yes.
Press E to confirm Yes if you want to
place the “911” emergency call.
The emergency call will be placed.
Wait until the emergency rescue
station answers and describe the
emergency.
If you do not want to place the emergency
call:
Press h to select No when the
inquiry menu appears.
Press E to confirm No.
Telephone is ready for operation
Press a repeatedly until the
telephone menu is displayed.
Press 9, 1 and 1 one after the
other.
Press E or press the Send soft key.
The emergency call will be placed.
Wait until the emergency rescue
station answers and describe the
emergency.
i
Ending the emergency call:
Depending on the cellular network, it
may be necessary to press the K
button on the mobile phone.
220_Telefon_US_A_2006.fm Seite 94 Mi ttwoch, 22. Dezember 2004 1:17 13
