170 Controls in detail
Good visibility
Activating exterior rear view mirror
parking position
Follow these steps to activate the mirror
parking position so that the passenger-
side exterior rear view mirror will be turned
downward to the stored position.
The buttons are located above the exterior
lamp switch.
1Driver’s side exterior rear view mirror
button
2Passenger-side exterior rear view
mirror button
Make sure you have stored a parking
position for the passenger-side exterior
rear view mirror (
page 113).
Warning!G
The auto-dimming function does not react if
incoming light is not aimed directly at
sensors in the interior rear view mirror.
The interior rear view mirror and the exterior
rear view mirror on the driver’s side do not
react, for example, if the rear window
sunshade* is in raised position.
Glare can endanger you and others.
Warning!G
In case of an accident, liquid electrolyte may
escape from the mirror housing if the mirror
glass breaks.
Electrolyte has an irritating effect. Do not
allow the liquid to come into contact with
eyes, skin, clothing, or respiratory system.
In case it does, immediately flush affected
area with water, and seek medical help if
necessary.
!
Electrolyte drops coming into contact
with the vehicle paint finish can be
completely removed only while in the
liquid state and by applying plenty of
water.
Warning!G
Exercise care when using the passen-
ger-side exterior rear view mirror. The mirror
surface is convex (outwardly curved surface
for a wider field of view). Objects in mirror
are closer than they appear. Check your
interior rear view mirror or glance over your
shoulder before changing lanes.
171 Controls in detail
Good visibility
Make sure the Mirror set. parking
aid
function in the Convenience
submenu of the control system is
switched to
On (page 149).
Switch on the ignition (page 33).
Press button2 for the passenger-side
exterior rear view mirror.
Place the gear selector lever in reverse
gearR.
The passenger-side exterior rear view
mirror will be turned downward to the
stored position.
The exterior rear view mirror returns to its
previously stored driving position:
10 seconds after you shifted out of re-
verse gearR
immediately once your vehicle exceeds
a speed of approximately 6 mph
(10 km/h)
immediately when you press button1
for the driver’s side mirror
Sun visors
The sun visors protect you from sun glare
while driving.1Mounting
2Mirror cover
3Mirror lamp
4Sun visor
Swing sun visor4 down when you
experience glare.
To use illuminated mirror, lift up mirror
cover2.
Warning!G
Do not use the vanity mirror while driving.
Keep the mirrors in the sun visors closed
while vehicle is in motion. Reflected glare
can endanger you and others.
i
If sun visor4 is disengaged from
mounting1 with mirror cover2
open, mirror lamp3 will switch off.
i
If sunlight enters through a side
window, close mirror cover2
(if open), disengage sun visor4 from
mounting1 and pivot to the side.
266 Controls in detail
Useful features
System self-check
Initially, after switching on ignition, mal-
functions are detected and indicated (the
indicator lamps in the SOS button, the
Roadside Assistance button• and the
Information button¡ stay on longer
than 10 seconds or do not come on). The
message
Malfunction. Drive to work-
shop
appears in the multifunction display.Emergency calls
An emergency call is initiated automatical-
ly following an accident in which the emer-
gency tensioning devices (ETDs) or
air bags deploy.
An emergency call can also be initiated
manually by opening the cover next to the
interior rear view mirror labeled SOS, then
briefly pressing the button located under
the cover. See (
page 267) for
instructions on initiating an emergency call
manually.
Once the emergency call is in progress, the
indicator lamp on the SOS button will
begin to flash. The message
Connecting Call appears in the multifunc-
tion display. When the connection is estab-
lished, the message
Call connected
appears in the multifunction display. All in-
formation relevant to the emergency, such
as the location of the vehicle (determined
by the GPS satellite location system), vehi-
cle model, identification number and color
are generated.
i
When a Tele Aid call has been initiated,
the audio system or COMAND* System
unit is muted and the selected mode
(radio, tape or CD) pauses. The optional
cellular phone (if installed) and inserted
in cradle switches off. If you must use
this phone, we recommend that you
use it only with the vehicle at a stand-
still in a safe location. Remove the
phone from the cradle and place the
call. The navigation* system (if en-
gaged) will continue to run. The multi-
function display in the instrument
cluster is available for use, and spoken
commands are only available by press-
ing the RPT button on audio system or
COMAND* System unit. A pop-up win-
dow will appear in the audio system or
COMAND* System unit display to indi-
cate that a Tele Aid call is in progress.
After the TeleAid call has ended, the
optional cellular phone switches on
again. A PIN entry might be necessary.
Warning!G
If the indicator lamps on the SOS button, on
the Roadside Assistance button, and/or on
the Information button remain illuminated
continuously in red and/or the message
Malfunction. Drive to workshop is
displayed in the multifunction display after
the system self-check, a malfunction in the
system has been detected.
If a malfunction is indicated as outlined
above, the system may not operate as
expected. Have the system checked at the
nearest Mercedes-Benz Center as soon as
possible.
273 Controls in detail
Useful features
Garage door opener
The integrated remote control is capable of
operating up to three separately controlled
devices. It provides a convenient way to re-
place up to three hand-held remote con-
trols used to operate devices such as
garage door openers, gate openers, or oth-
er devices compatible with HomeLink
® or
some other systems.
Before the integrated remote control can
be used, it must be programmed to the ga-
rage door opener, gate operator or other
device you wish to operate. See the follow-
ing instructions for programming informa-
tion.

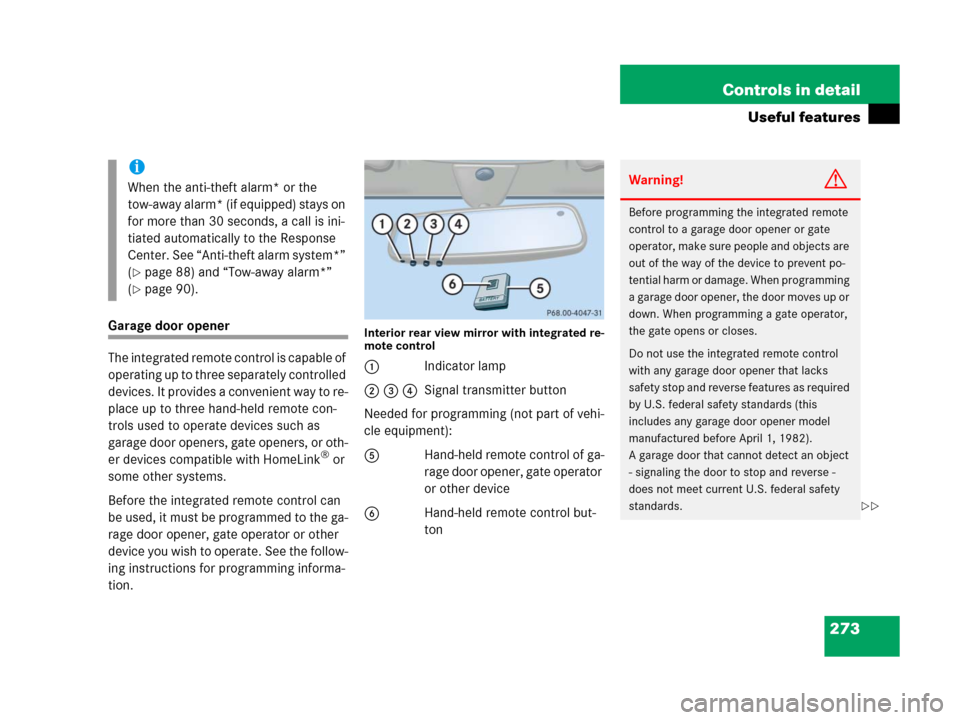

Interior rear view mirror with integrated re-
mote control
1Indicator lamp
2 3 4Signal transmitter button
Needed for programming (not part of vehi-
cle equipment):
5Hand-held remote control of ga-
rage door opener, gate operator
or other device
6Hand-held remote control but-
ton
i
When the anti-theft alarm* or the
tow-away alarm* (if equipped) stays on
for more than 30 seconds, a call is ini-
tiated automatically to the Response
Center. See “Anti-theft alarm system*”
(
page 88) and “Tow-away alarm*”
(
page 90).
Warning!G
Before programming the integrated remote
control to a garage door opener or gate
operator, make sure people and objects are
out of the way of the device to prevent po-
tential harm or damage. When programming
a garage door opener, the door moves up or
down. When programming a gate operator,
the gate opens or closes.
Do not use the integrated remote control
with any garage door opener that lacks
safety stop and reverse features as required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an object
- signaling the door to stop and reverse -
does not meet current U.S. federal safety
standards.
344 Operation
Vehicle care
Ornamental moldings
For regular cleaning and care of ornamen-
tal moldings, use a damp cloth.Headlamps, tail lamps, side markers,
turn signal lenses
Use a mild car wash detergent, such as
Mercedes-Benz approved Car Sham-
poo, with plenty of water.
!
Due to the width of the vehicle, fold in
exterior rear view mirrors prior to run-
ning the vehicle through an automatic
car wash to prevent damage to the
mirrors.
Make sure that the windshield wiper
switch is set to0 (
page 50). Other-
wise, the rain sensor could activate and
cause the wipers to move unintention-
ally. This may lead to vehicle damage.
i
After running the vehicle through an au-
tomatic car wash, wipe any wax off of
the windshield (
page 345). This will
prevent smears and reduce wiping
noise which can be caused by residual
wax on the windshield.
When leaving the car wash, make sure
that the mirrors are folded out. Other-
wise they may vibrate.
!
Do not use chrome cleaner on orna-
mental moldings. Although ornamental
moldings may have chrome appear-
ance, they could be made of anodized
aluminum that will be damaged when
cleaned with chrome cleaner. Instead,
use a damp cloth to clean those orna-
mental moldings.
For very dirty ornamental moldings of
which you are sure are chrome-plated,
use a chrome cleaner. If in doubt
whether an ornamental molding is
chrome-plated, contact an authorized
Mercedes-Benz Center.!
Only use window cleaning solutions
that are suitable for plastic lamp lens-
es. Window cleaning solutions which
are not suitable may damage the plas-
tic lamp lenses of the headlamps.
Therefore, do not use abrasives, sol-
vents or cleaners that contain solvents.
Never apply strong force and only use a
soft, non-scratching cloth when clean-
ing the lenses. Do not attempt to wipe
dirty lenses with a dry cloth or sponge.
Otherwise you may scratch or damage
the lens surface.
397 Practical hints
Replacing bulbs
Have the LEDs and bulbs for the following
lamps replaced by an authorized
Mercedes-Benz Center:
Additional turn signals in the exterior
rear view mirrors
High mounted brake lamp
Xenon* lamps
Front fog lamps
Front side marker lamps
Replacing bulbs for front lamps
Before you start to replace a bulb for a
front lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 114).
Open the hood (page 297).
Halogen headlamp
1Housing cover for low beam headlamp
2Housing cover for high beam head-
lamp, parking and standing lamp3Bulb socket for turn signal lamp bulb
4Bulb socket for low beam bulb
5Bulb socket for high beam bulb
6Bulb socket for parking and standing
lamp bulb
i
Have the headlamp adjustment
checked regularly.
400 Practical hints
Replacing bulbs
Front turn signal lamp bulb
Turn bulb socket3 with the bulb
counterclockwise and remove it.
Press gently onto the bulb and turn it
counterclockwise out of bulb
socket3.
Press new bulb gently into bulb
socket3 and turn clockwise until it
engages.
Place bulb socket3 back into the
lamp and turn it clockwise.
Parking and standing lamp bulb
Press the clamp on housing cover2
and remove it.
Pull out bulb socket5 with the bulb.
Pull the bulb out of bulb socket5.
Press the new bulb into bulb socket5.
Press bulb socket5 back into the
lamp.
Align housing cover2 and press until
it engages.Additional turn signal lamp bulbs
The additional turn signal lamps in the
exterior rear view mirrors have LEDs.
If a malfunction occurs or LEDs fail to func-
tion, the entire turn signal unit must be re-
placed. Have the turn signal unit replaced
by an authorized Mercedes-Benz Center.
Front side marker lamp bulbs
Since replacing the side marker lamp bulbs
is a technically highly demanding process,
we recommend you have the side marker
lamp bulbs replaced by an authorized
Mercedes-Benz Center.
Replacing bulbs for rear lamps
Before you start to replace a bulb for a rear
lamp, do the following first:
Turn the exterior lamp switch to
positionM (
page 114).
Open the trunk (page 99).
Tail lamp unit
1Latch
435 Technical data
Main dimensions and weights
Main dimensions and weights
Main dimensions
Weights
ModelC55AMG
Overall vehicle length181.8 in (4 617 mm)
Overall vehicle width (exterior rear
view mirrors folded out)77.8 in (1977 mm)
Overall vehicle height55.6 in (1 412 mm)
Wheelbase106.9 in (2 715 mm)
Track, front59.3 in (1 507 mm)
Track, rear58.0 in (1 474 mm)
Roof load max.220 lbs (100 kg)
Trunk load max.220 lbs (100 kg)
