2006 MAZDA MODEL SPEED 6 Owners Manual

Black plate (345,1)

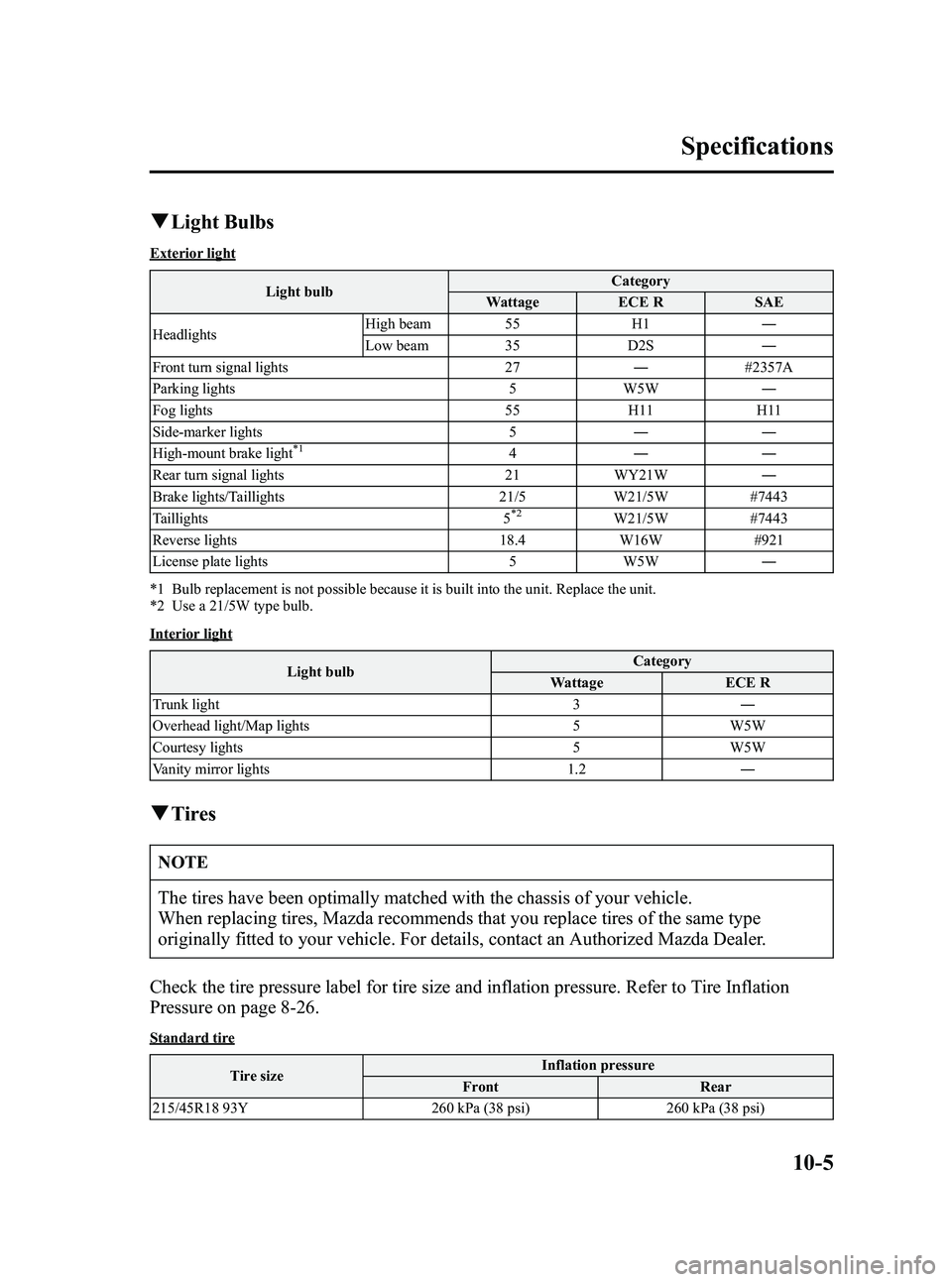

qLight Bulbs
Exterior light
Light bulb Category
Wattage ECE R SAE
Headlights High beam 55 H1
―
Low beam 35 D2S ―
Front turn signal lights 27 ―#2357A
Parking lights 5 W5W ―
Fog lights 55 H11 H11
Side-marker lights 5 ――
High-mount brake light
*14 ――
Rear turn signal lights 21 WY21W ―
Brake lights/Taillights 21/5 W21/5W #7443
Taillights 5
*2W21/5W #7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Bulb replacement is not possible because it is built into the unit. Replace the unit.
*2 Use a 21/5W type bulb.
Interior light
Light bulb Category
Wattage ECE R
Trunk light 3 ―
Overhead light/Map lights 5 W5W
Courtesy lights 5 W5W
Vanity mirror lights 1.2 ―
qTires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure. Refer to Tire Inflation
Pressure on page 8-26.
Standard tire Tire size Inflation pressure
Front Rear
215/45R18 93Y 260 kPa (38 psi) 260 kPa (38 psi)
Specifications
10-5
Mazdaspeed6_8U01-EA-05H_Edition2 Page345
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (346,1)
Temporary spare tireTire size Inflation pressure
T145/70D17 106M 420 kPa (60 psi)
q Fuses
Refer to the fuse rating on page 8-36.
10-6
Specifications
Mazdaspeed6_8U01-EA-05H_Edition2 Page346
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (347,1)
11Index
11-1
Mazdaspeed6_8U01-EA-05H_Edition2 Page347
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (348,1)
A
Accessory Socket .............................. 6-49
Add-On Non-Genuine Parts and
Accessories ....................................... 9-13
Advanced KeyAdvanced key maintenance ......... 3-5
Auxiliary key .............................. 3-15
Keyless entry system .................. 3-13
Locking, unlocking with request
switch ........................................... 3-8
Operational range ......................... 3-7
Service ......................................... 3-6
Air Bag Systems ............................... 2-38
Air Filter ............................................ 8-21
All-Wheel Drive
(AWD) Operation .............................. 5-11 AWD Warning light ................... 5-11
Ambient Temperature Display .......... 6-42
Antenna ............................................. 6-10
Anti-Lock Brake System (ABS) ......... 5-7 Warning light ............................... 5-7
Appearance Care ............................... 8-41
Ashtray .............................................. 6-44
Audio System ................................... 6-10 Audio control switch .................. 6-35
Audio set .................................... 6-21
Operating tips for audio
system ........................................ 6-10
Safety certification ..................... 6-37
B
BatteryEmergency starting .................... 7-13
Maintenance ............................... 8-24
Specifications ............................. 10-3
B
Beep soundsIgnition key reminder ................. 5-35
Lights-on reminder ..................... 5-35
Seat belt warning beep ............... 5-35
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-20
Bottle Holder ..................................... 6-46
Brake/Clutch Fluid ........................................... 8-18
Brakes Anti-lock brake system (ABS) ..... 5-7
Foot brake .................................... 5-5
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-30
C
Capacities .......................................... 10-4
Carbon Monoxide ............................... 4-5
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-14
Center Box ........................................ 6-47
Center Console .................................. 6-48
Child Restraint Installing child-restraint
systems ....................................... 2-27
LATCH child-restraint
systems ....................................... 2-34
Child Safety Locks for Rear Doors ... 3-29
Cigarette Lighter ............................... 6-43
Climate Control System ...................... 6-2 Gas specifications ...................... 10-4
Clock ................................................. 6-42
11-2
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page348
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (349,1)
C
Courtesy Lights ................................. 6-40
Cruise Control ................................... 5-13
Cup Holder ........................................ 6-45
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-23
Daytime Running Lights ................... 5-37
DefrosterRear window .............................. 5-40
Dimensions ....................................... 10-4
Door Locks ....................................... 3-26
Driving In Flooded Area ................... 4-10
Driving Tips ........................................ 4-7 Break-in period ............................ 4-7
Driving in flooded area .............. 4-10
Hazardous driving ........................ 4-8
Money-saving suggestions ........... 4-7
Rocking the vehicle ...................... 4-8
Turbocharged vehicles ............... 4-11
Winter driving .............................. 4-9
Dynamic Stability Control (DSC) ..... 5-18 DSC OFF indicator light ............ 5-19
DSC OFF switch ........................ 5-19
TCS/DSC Indicator light ............ 5-18
E
Emergency Starting ........................... 7-13Jump-starting .............................. 7-14
Push-starting .............................. 7-17
Emergency Towing ........................... 7-18
Emission Control System .................... 4-3
E
Engine Coolant ....................................... 8-15
Exhaust gas .................................. 4-5
Hood release .............................. 3-44
Oil .............................................. 8-12
Overheating ................................ 7-11
Starting ......................................... 5-4
Engine Compartment Overview ........ 8-11
Engine Coolant Overheating ................................ 7-11
Engine Coolant Temperature
Gauge ................................................ 5-22
Exhaust Gas ........................................ 4-5
Exterior Care ..................................... 8-43
F
Flasher Hazard warning .......................... 5-42
Headlights .................................. 5-36
Flat Tire ............................................... 7-3 Changing ...................................... 7-5
Spare tire and tool storage ............ 7-3
Fluids Classification .............................. 10-3
Owner maintenance ..................... 8-8
Fog Lights ......................................... 5-38
Foot Brake .......................................... 5-5
Front Seats
(Electrically Operated Seats) ............... 2-5
Front Seats
(Manually Operated Seats) ................. 2-2
Fuel Filler lid and cap ........................ 3-42
Gauge ......................................... 5-23
Requirements ............................... 4-2
Tank capacity ............................. 10-4
Index
11-3
Mazdaspeed6_8U01-EA-05H_Edition2 Page349
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (350,1)
F
Fuses ................................................. 8-36Panel description ........................ 8-38
Replacement ............................... 8-36
G
Glove Box ......................................... 6-48
H
Hazard Warning Flasher .................... 5-42
Hazardous Driving .............................. 4-8
HeadlightsControl ....................................... 5-36
Flashing ...................................... 5-37
High-low beam .......................... 5-37
Leveling ..................................... 5-37
On reminder ............................... 5-36
Hood Release .................................... 3-44
Horn .................................................. 5-41
I
Ignition Keys ........................................... 3-20
Switch .......................................... 5-2
Illuminated Entry System ................. 6-38
Immobilizer System
(with Advanced Key) ........................ 3-47
Immobilizer System
(without Advanced Key) ................... 3-50
I
Indicator Lights ................................. 5-24 Cruise Main ................................ 5-34
Cruise set .................................... 5-34
DSC OFF .................................... 5-34
Headlight high-beam .................. 5-33
Security ...................................... 5-33
TCS/DSC ................................... 5-33
Turn-signal/hazard warning ....... 5-34
Information Display .......................... 6-41 Ambient temperature display ..... 6-42
Audio display ............................. 6-43
Climate control display .............. 6-43
Clock .......................................... 6-42
Information display functions .... 6-41
Inside Trunk Release Lever ............... 3-33
Instrument Cluster ............................. 5-20
Interior Care ...................................... 8-46
Interior Lights ................................... 6-38
J
Jump-Starting .................................... 7-14
K
Keyless Entry System ....................... 3-21
Keys .................................................. 3-20
L
Label Information ............................. 10-2
Lane-Change Signals ........................ 5-38
Light Bulbs
Replacement ............................... 8-30
Specifications ............................. 10-5
Lighter ............................................... 6-43
Lighting Control ............................... 5-36
Lubricant Quality .............................. 10-3
11-4
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page350
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (351,1)
M
MaintenanceIntroduction .................................. 8-2
Owner maintenance precautions ... 8-9
Owner maintenance schedule ....... 8-8
Scheduled ..................................... 8-3
Manual Transaxle Operation ............... 5-9 Recommendations for shifting.... 5-10
Map Lights ........................................ 6-39
Mirrors Outside mirrors .......................... 3-55
Rearview mirror ......................... 3-56
Money-Saving Suggestions ................ 4-7
Moonroof .......................................... 3-45
O
Odometer and Trip Meter .................. 5-21
Outside Mirrors ................................. 3-55
Overhead Console ............................. 6-47
Overhead Lights ................................ 6-39
Overheating ....................................... 7-11
Overloading ...................................... 4-10
P
Paint Damage .................................... 8-41
Parking Brake ..................................... 5-5
Parking in an Emergency .................... 7-2
Power Door Locks ............................ 3-27
Power Steering .................................. 5-11 Fluid ........................................... 8-19
Power Windows ................................ 3-34
Push-Starting ..................................... 7-17
R
Rear Door Child Safety Locks .......... 3-29
Rear Seat ............................................. 2-9
R
Rear Window Defroster .................... 5-40
Rearview Mirror ................................ 3-56
Recreational Towing ......................... 7-21
Registering Your Vehicle in A Foreign
Country ............................................. 9-12
Rocking the Vehicle ............................ 4-8
S
Safety Defects, Reporting ................. 9-38
Seat Belt System Automatic locking ...................... 2-13
Belt minder ................................. 2-21
Center-rear lap/shoulder ............. 2-18
Emergency locking .................... 2-13
Except center-rear position ......... 2-14
Extender ..................................... 2-20
Pregnant women ........................ 2-12
Pretensioner and load limiting .... 2-16
Seat belt precautions .................. 2-11
Warning light/beep ..................... 2-21
Seats Front seat
(Electrically operated seats) ......... 2-5
Front seat
(Manually operated seats) ............ 2-2
Rear seat ....................................... 2-9
Security System Immobilizer system
(with advanced key) ................... 3-47
Immobilizer system
(without advanced key) .............. 3-50
Theft-deterrent system ............... 3-53
Service Publications .......................... 9-40
Spare Tire and Tool Storage ................ 7-3
Specifications .................................... 10-3
Speedometer ...................................... 5-21
Index
11-5
Mazdaspeed6_8U01-EA-05H_Edition2 Page351
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (352,1)
S
SRS Air BagsHow the Air Bags Work ............. 2-46
Supplemental restraint systems
precautions ................................. 2-38
Starting the Engine .............................. 5-4
Steering Wheel .................................. 3-55 Horn ........................................... 5-41
Storage Compartments ...................... 6-47 Center box .................................. 6-47
Center console ............................ 6-48
Glove box ................................... 6-48
Overhead console ....................... 6-47
Storage pocket ............................ 6-47
Storage Pocket .................................. 6-47
Sunshade ........................................... 3-46
Sunvisors .......................................... 6-38
T
Tachometer ........................................ 5-22
Temporary Spare Tire ....................... 8-28
Theft-Deterrent System ..................... 3-53
Tiedown Hook .......................................... 7-19
Tire Information ................................ 9-18
Tires
Flat Tire ........................................ 7-3
Inflation pressure ........................ 8-26
Replacement ............................... 8-28
Rotation ...................................... 8-27
Snow tires .................................... 4-9
Spare tire and tool storage ............ 7-3
Specifications ............................. 10-5
Tire chains .................................... 4-9
Uniform tire quality grading system
(UTQGS) ................................... 9-16
Tool ..................................................... 7-3
T
Towing Description ................................. 7-18
Emergency towing ..................... 7-18
Recreational towing ................... 7-21
Trailer towing ............................. 4-12
Traction Control System (TCS) ........ 5-17 TCS/DSC indicator light ............ 5-17
Trailer Towing .................................. 4-12
Trip Meter ......................................... 5-21
Trunk Lid .......................................... 3-29 Inside trunk release lever ............ 3-33
Trunk Light ....................................... 3-32
Turn and Lane-Change Signals ......... 5-38
V
Vanity Mirrors ................................... 6-38
Vehicle Information Labels ............... 10-2
W
Warning Light KEY Warning Light
(Red)/KEY Indicator Light
(Green) ....................................... 5-31
11-6
Index
Mazdaspeed6_8U01-EA-05H_Edition2 Page352
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H
