CAUTION
lDon't use your temporary spare tire
rim with a snow tire or a
conventional tire. Neither will
properly fit and could damage both
tire and rim.
lThe temporary spare tire has a tread
life of less than 5,000 km (3,000
miles). The tread life may be shorter
depending on driving conditions.
lThe temporary spare tire is for
limited use, however, if the tread
wear solid-band indicator appears,
replace the tire with the same type of
temporary spare (page 8-28).
NOTE
Tires degrade over time, even when
they are not being used on the road. It is
recommended that tires generally be
replaced when they are 6 years or older.
Heat caused by hot climates or frequent
high loading conditions can accelerate
the aging process. You should replace
the spare tire when you replace the
other road tires due to the aging of the
spare tire. Regarding the manufacturing
week and year is indicated with 4 digit.
Refer to The tire labeling on page 9-18.
qReplacing a Wheel
WARNING
Using a Wrong-Sized Wheel:
Using a wrong-sized wheel is
dangerous. Braking and handling
could be affected, leading to loss of
control and an accident. Always use
wheels of the correct size on your
vehicle.
CAUTION
A wrong-sized wheel may adversely
affect:
lTire fit
lWheel and bearing life
lGround clearance
lSpeedometer calibration
lHeadlight aim
lBumper height
When replacing a wheel, make sure the
new one is the same as the original factory
wheel in diameter, rim width, and offset.
Proper tire balancing provides the best
riding comfort and helps reduce tread
wear. Out-of-balance tires can cause
vibration and uneven wear, such as
cupping and flat spots.
Maintenance and Care
Owner Maintenance
8-29
Mazdaspeed6_8U01-EA-05H_Edition2 Page281
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (282,1)

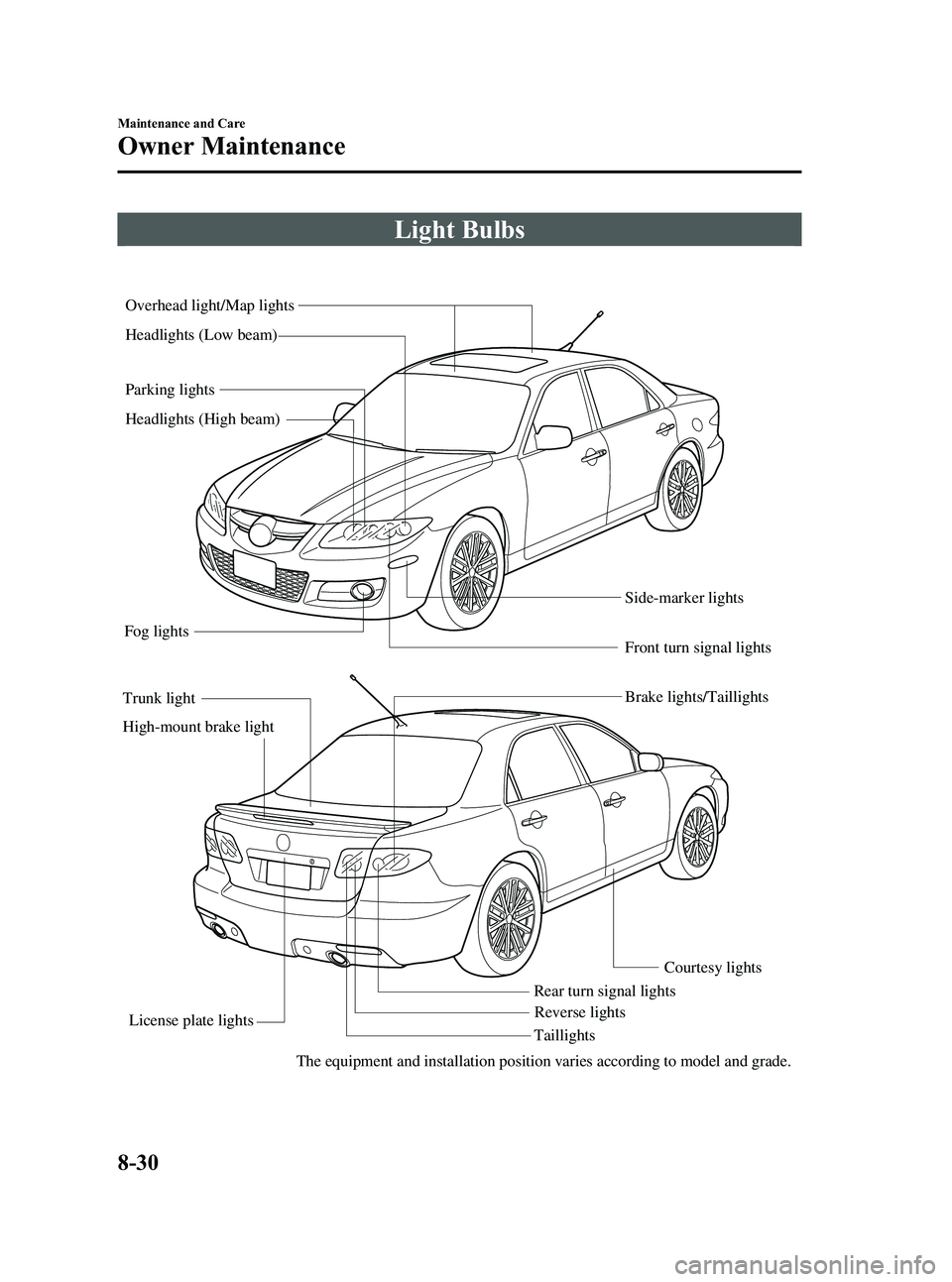

Light Bulbs
Overhead light/Map lights
Fog lights
High-mount brake light Trunk light Brake lights/Taillights
Rear turn signal lights Reverse lights
Parking lights
Front turn signal lights
Headlights (Low beam)
Headlights (High beam)
Courtesy lights
License plate lights
Side-marker lights
Taillights
The equipment and installation position varies according to model and grade.
8-30
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8U01-EA-05H_Edition2 Page282
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (283,1)
WARNING
Xenon Fusion Bulb Replacement:
Replacing the xenon fusion bulbs
yourself is dangerous. Because the
xenon fusion bulbs require high
voltage, you could receive an electric
shock if the bulbs are handled
incorrectly. Do not replace the xenon
fusion bulbs yourself. Consult an
Authorized Mazda Dealer when the
replacement is necessary.
Handling Halogen Bulbs:
When a halogen bulb breaks, it is
dangerous. These bulbs contain
pressurized gas. If one is broken, it
will explode and serious injuries could
be caused by the flying glass.
If the glass portion is touched with
bare hands, body oil could cause the
bulb to overheat and explode when lit.
Never touch the glass portion of the
bulb with your bare hands and always
wear eye protection when handling or
working around halogen bulbs.
Children and Halogen Bulbs:
Playing with a halogen bulb is
dangerous. Serious injuries could be
caused by dropping a halogen bulb or
breaking it some other way.
Always keep halogen bulbs out of the
reach of children.

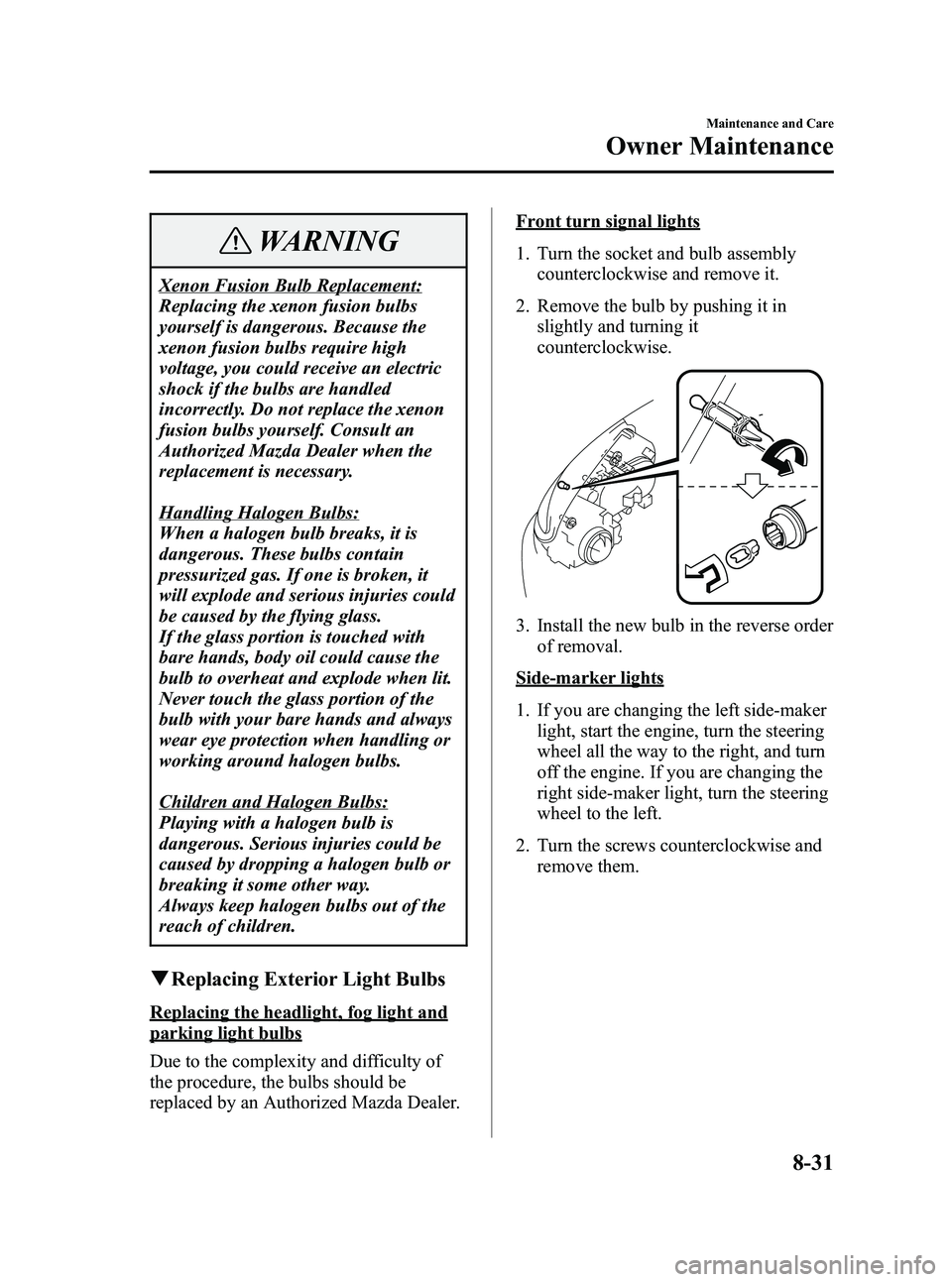

qReplacing Exterior Light Bulbs
Replacing the headlight, fog light and
parking light bulbs
Due to the complexity and difficulty of
the procedure, the bulbs should be
replaced by an Authorized Mazda Dealer.
Front turn signal lights
1. Turn the socket and bulb assembly
counterclockwise and remove it.
2. Remove the bulb by pushing it in slightly and turning it
counterclockwise.
3. Install the new bulb in the reverse order
of removal.
Side-marker lights
1. If you are changing the left side-makerlight, start the engine, turn the steering
wheel all the way to the right, and turn
off the engine. If you are changing the
right side-maker light, turn the steering
wheel to the left.
2. Turn the screws counterclockwise and remove them.
Maintenance and Care
Owner Maintenance
8-31
Mazdaspeed6_8U01-EA-05H_Edition2 Page283
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (284,1)
3. Turn the center section of the plasticretainers counterclockwise and remove
them, and partially peel back the
mudguard.
Removal
Installation
4. Turn the socket and bulb assemblycounterclockwise and remove it.
5. Disconnect the bulb from the socket.
Brake lights/Taillights, Rear turn signal
lights
1. Pull the center section of the plastic retainer and remove the retainers and
partially open the trunk side trim.
Removal
Installation
2. Turn the socket and bulb assembly counterclockwise and remove it.
3. Disconnect the bulb from the socket.
Brake lights/Taillights
8-32
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8U01-EA-05H_Edition2 Page284
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (285,1)
Rear turn signal lights
4. Install the new bulb in the reverse orderof removal.
NOTE
To replace the bulb, contact an
Authorized Mazda Dealer.
Reverse lights, Taillights
1. Pull the center section of the plastic
retainer and remove the retainers, then
remove the trunk rear trim.
Installation
Removal
2. Turn the socket and bulb assembly
counterclockwise and remove it. 3. Disconnect the bulb from the socket.
Reverse lights
Taillights
4. Install the new bulb in the reverse order
of removal.
License plate lights
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the lens and
remove the lens by carefully prying on
the edge of the lens.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-33
Mazdaspeed6_8U01-EA-05H_Edition2 Page285
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (286,1)
qReplacing Interior Light Bulbs
Overhead light/Map lights (Front)
1. Remove the screws.
2. Wrap a flathead screwdriver with a soft
cloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
3. Turn the socket and bulb assemblycounterclockwise and remove it.
4. Disconnect the bulb from the socket.
5. Install the new bulb in the reverse order of removal.
Overhead light/Map lights (Rear)
1. Wrap a flathead screwdriver with a softcloth to prevent damage to the trim and
gently insert it in the overhead light as
shown in the figure, and then remove
the overhead light unit.
2. Turn the socket and bulb assemblycounterclockwise and remove it.
3. Disconnect the bulb from the socket.
4. Install the new bulb in the reverse order of removal.
8-34
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8U01-EA-05H_Edition2 Page286
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (287,1)
Courtesy lights, Vanity mirror lights
1. Wrap a small flathead screwdriver witha soft cloth to prevent damage to the
lens and remove the lens by carefully
prying on the edge of the lens.
2. Disconnect the bulb by pulling it out.
Edge
Courtesy lights
Vanity mirror lights
Edge
3. Install the new bulb in the reverse orderof removal.
Trunk light
1. Press both sides of the lens cap toremove it.
2. Disconnect the bulb by pulling it out.
3. Install the new bulb in the reverse order of removal.
Maintenance and Care
Owner Maintenance
8-35
Mazdaspeed6_8U01-EA-05H_Edition2 Page287
Thursday, September 29 2005 5:33 PM
Form No.8U01-EA-05H

Black plate (288,1)
Fuses
Your vehicle's electrical system is
protected by fuses.
If any lights, accessories, or controls don't
work, inspect the appropriate circuit
protector. If a fuse has blown, the inside
element will be melted.
If the same fuse blows again, avoid using
that system and consult an Authorized
Mazda Dealer as soon as possible.
qFuse Replacement
Replacing the fuses on the driver's side
kick-panel
If the electrical system doesn't work, first
inspect fuses on the driver's side kick-
panel.
1. Turn off the ignition switch and other
switches.
2. Open the fuse panel cover by sliding the cover straight back toward you.
CAUTION
Pulling the cover off sideways may
break the retaining tabs off. 3. Pull the fuse straight out with the fuse
puller provided on the fuse block
located in the engine compartment.
4. Inspect it and replace if it's blown.
Normal Blown
5. Push in a new fuse of the same
amperage rating, and make sure it fits
tightly. If it doesn't, have an Authorized
Mazda Dealer install it.
If you have no spare fuses, borrow one
of the same rating from a circuit not
essential to vehicle operation, such as
the AUDIO or CIGAR circuit.
WARNING
Always replace a fuse with one of the
same rating. Otherwise you may
damage the electric system.
8-36
Maintenance and Care
Owner Maintenance
Mazdaspeed6_8U01-EA-05H_Edition2 Page288
