2006 MAZDA MODEL 6 SPORT WAGON Owners Manual

Black plate (377,1)

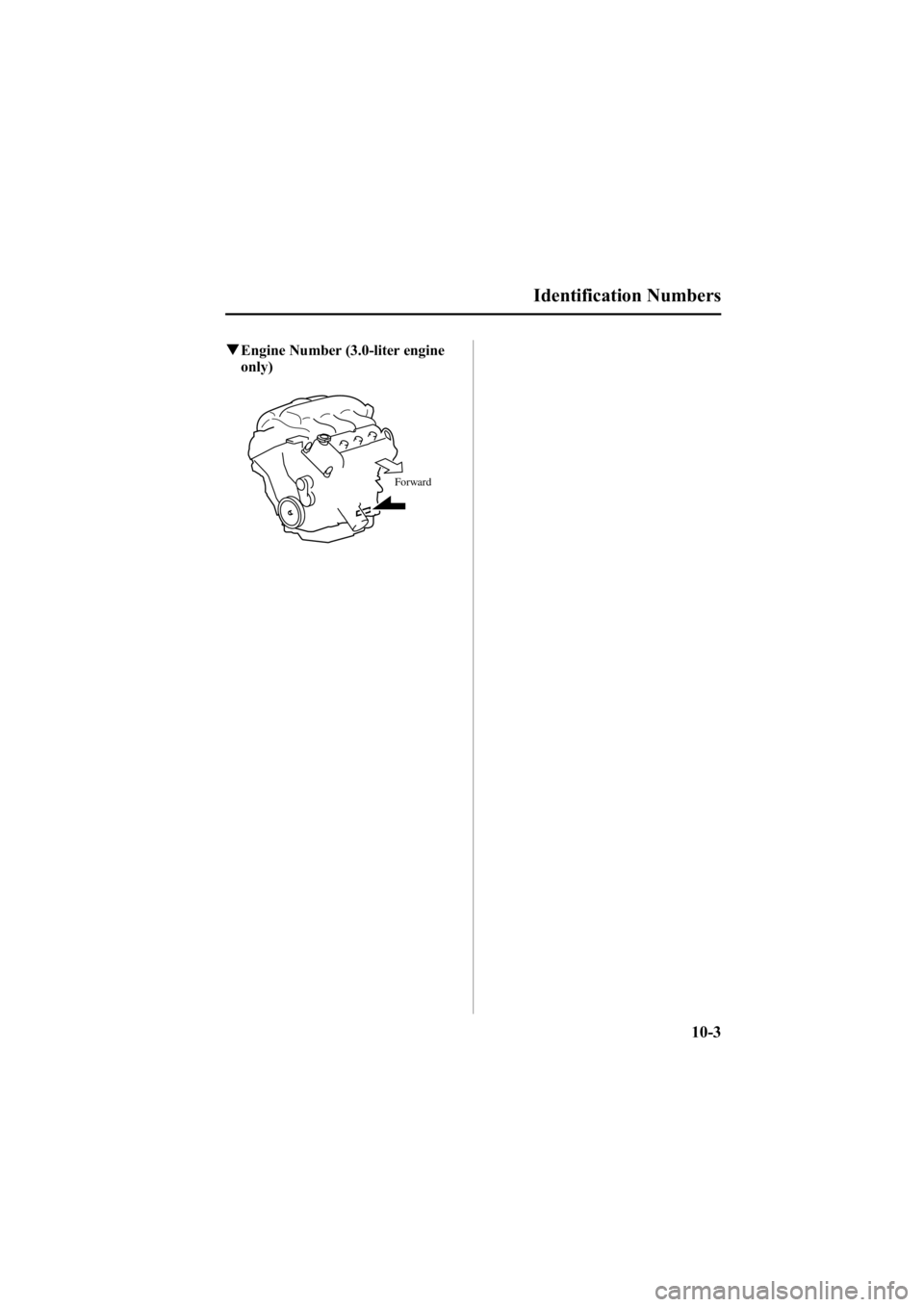

qEngine Number (3.0-liter engine
only)
Forward
Identification Numbers
10-3
Mazda6_8V40-EA-05L_Edition1 Page377
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (378,1)
Specifications
qEngine
Item Specification
2.3-liter engine 3.0-liter engine
Type DOHC-16V in-line, 4-cylinder DOHC-24V 60°V, 6-cylinder
Bore×Stroke 87.5 × 94.0 mm (3.44 × 3.70 in) 89.0 × 79.5 mm (3.50 × 3.13 in)
Displacement 2,261 ml (2,261 cc, 137.9 cu in) 2,967 ml (2,967 cc, 181.0 cu in)
Compression ratio 9.7 10.0
q Electrical System
Item Classification
Battery 12V-50AH/5HR
Alternator 2.3-liter engine
12 V - 100 A
3.0-liter engine 12 V - 110 A
Starter 12 V - 1.4 kW
Spark-plug number 2.3-liter engine LFG1 18 110
*
L3Y2 18 110
3.0-liter engine AJ57 18 110*
Spark-plug gap 2.3-liter engine 1.25
―1.35 mm (0.049 ―0.053 in)
3.0-liter engine 1.29 ―1.45 mm (0.051 ―0.057 in)
* ex factory
q Lubricant Quality
Lubricant Classification
Engine oil Refer to the recommended SAE viscosity numbers
on page 8-18.
Manual transmission
oil 2.3-liter engine
Any temperature
API Service
GL-4 or GL-5
SAE 75W-90
Above 10°C (50°F) API Service
GL-4 or GL-5
SAE 80W-90
3.0-liter engine API Service
GL-4 or GL-5
SAE 75W-90
Automatic transaxle fluid 2.3-liter engine
ATF M-V
3.0-liter engine JWS3309
Power steering fluid ATF M-III, M-V, or equivalent (e.g. Dexron® III)
Brake fluid SAE J1703, or FMVSS116 DOT-3
10-4
Specifications
Mazda6_8V40-EA-05L_Edition1 Page378
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (379,1)
qCapacities
(Approximate Quantities)
Item Unit
L US qt Imp qt
Engine oil 2.3-liter engine
With oil filter
replacement
4.3 4.5 3.8
Without oil filter
replacement 3.9 4.1 3.4
3.0-liter engine With oil filter
replacement
5.7 6.0 5.0
Without oil filter
replacement 5.2 5.5 4.6
Coolant 2.3-liter engine 7.0 7.4 6.2
3.0-liter engine 8.5 9.0 7.5
Manual transaxle oil 2.3-liter engine 2.87 3.0 2.5
3.0-liter engine 2.3 2.4 2.0
Automatic transaxle fluid 2.3-liter engine 8.04 8.5 7.3
3.0-liter engine 7.0 7.4 6.1
Fuel tank 68 18.0 (US gal) 15.0
(Imp gal)
Check oil and fluid levels with dipsticks or reservoir gauges.
q Dimensions
Item Specification
Overall length Sedan
4,745 mm (186.8 in)
5-Door 4,745 mm
*3(186.8 in), 4,765 mm*4(187.6 in)
Sport Wagon 4,770 mm*3(187.8 in), 4,785 mm*4(188.4 in)
Overall width 1,780 mm (70.1 in)
Overall height Sedan/5-Door 1,440 mm (56.7 in)
Sport Wagon 1,455 mm (57.3 in)
Track, front 1,540 mm
*1(60.6 in), 1,530 mm*2(60.2 in)
Track, rear 1,540 mm*1(60.6 in), 1,530 mm*2(60.2 in)
Wheelbase 2,675 mm (105.3 in)
*1 16 inch wheel vehicle
*2 17 inch wheel vehicle
*3 Without license plate holder
*4 With license plate holder
Specifications
10-5
Mazda6_8V40-EA-05L_Edition1 Page379
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (380,1)
qWeights
Specification ItemWeight
2.3-liter engine GVWR (Gross Vehicle Weight Rating)
1,940 kg (4,279 lbs)
GAWR (Gross Axle Weight Rating) Front
1,005 kg (2,216 lbs)
Rear 936 kg (2,064 lbs)
3.0-liter engine GVWR (Gross Vehicle Weight Rating)
2,052 kg (4,526 lbs)
GAWR (Gross Axle Weight Rating) Front
1,084 kg (2,390 lbs)
Rear 968 kg (2,136 lbs)
qAir Conditioner
Gas complies with SAE J639 Maximum operating charge
HFC134a (R-134a) 0.5 kg (17.6 oz)
qLight Bulbs
Exterior light
Light bulb Category
Wattage ECER SAE
Headlights High beam 55 H1
―
Low beam Halogen 55 H1
―
Xenon
fusion 35
D2S ―
Front turn signal lights 27―#2357A
Parking lights 5W5W ―
Fog lights
í55 H11 H11
Side-marker lights 5W5W ―
High-mount brake light Sedan
18.4W16W #921
5-Door/Sport Wagon 21W21W #7440
Rear turn signal lights Sedan/5-Door
21WY21W ―
Sport Wagon 21W21W #7440
Brake lights/Taillights 21/5W21/5W #7443
Taillights 5
*1W21/5W#7443
Reverse lights 18.4W16W #921
License plate lights 5W5W ―
*1 Use a 21/5W type bulb.
10-6íSome models.
Specifications
Mazda6_8V40-EA-05L_Edition1 Page380
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (381,1)
Interior lightLight bulb Category
Wattage ECE R
Trunk light (Sedan) 3―
Overhead light/Map lights 5W5W
Courtesy lights 5W5W
Vanity mirror lights
*Type A 1.2―
Type B 3―
Luggage compartment light 5-Door
5―
Sport Wagon 10―
* Vanity mirror lights
Type B
Type A
q Tires
NOTE
The tires have been optimally matched with the chassis of your vehicle.
When replacing tires, Mazda recommends that you replace tires of the same type
originally fitted to your vehicle. For details, contact an Authorized Mazda Dealer.
Check the tire pressure label for tire size and inflation pressure.
Refer to Tire Inflation Pressure on page 8-39.
Standard tire
Tire size Inflation pressure
Front Rear
P205/60R16 91V 220 kPa
(2.2 kgf/cm
2, 32 psi or lb/po2) 220 kPa
(2.2 kgf/cm2, 32 psi or lb/po2)
P215/50R17 93V
215/45R18 93W 240 kPa
(2.4 kgf/cm
2, 35 psi or lb/po2) 240 kPa
(2.4 kgf/cm2, 35 psi or lb/po2)
Specifications
10-7
Mazda6_8V40-EA-05L_Edition1 Page381
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (382,1)

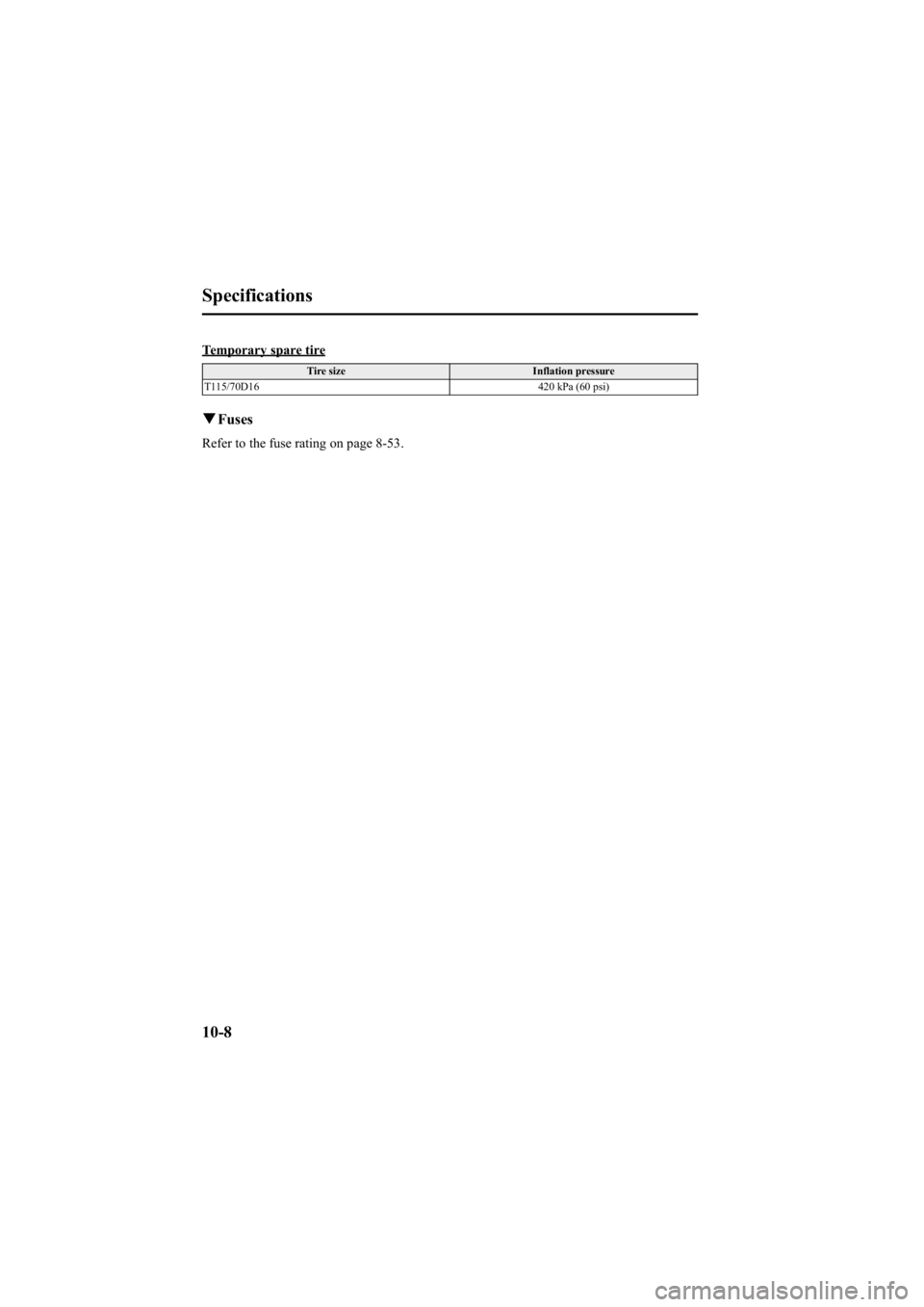

Temporary spare tire
Tire sizeInflation pressure
T115/70D16 420 kPa (60 psi)
qFuses
Refer to the fuse rating on page 8-53.
10-8
Specifications
Mazda6_8V40-EA-05L_Edition1 Page382
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (383,1)

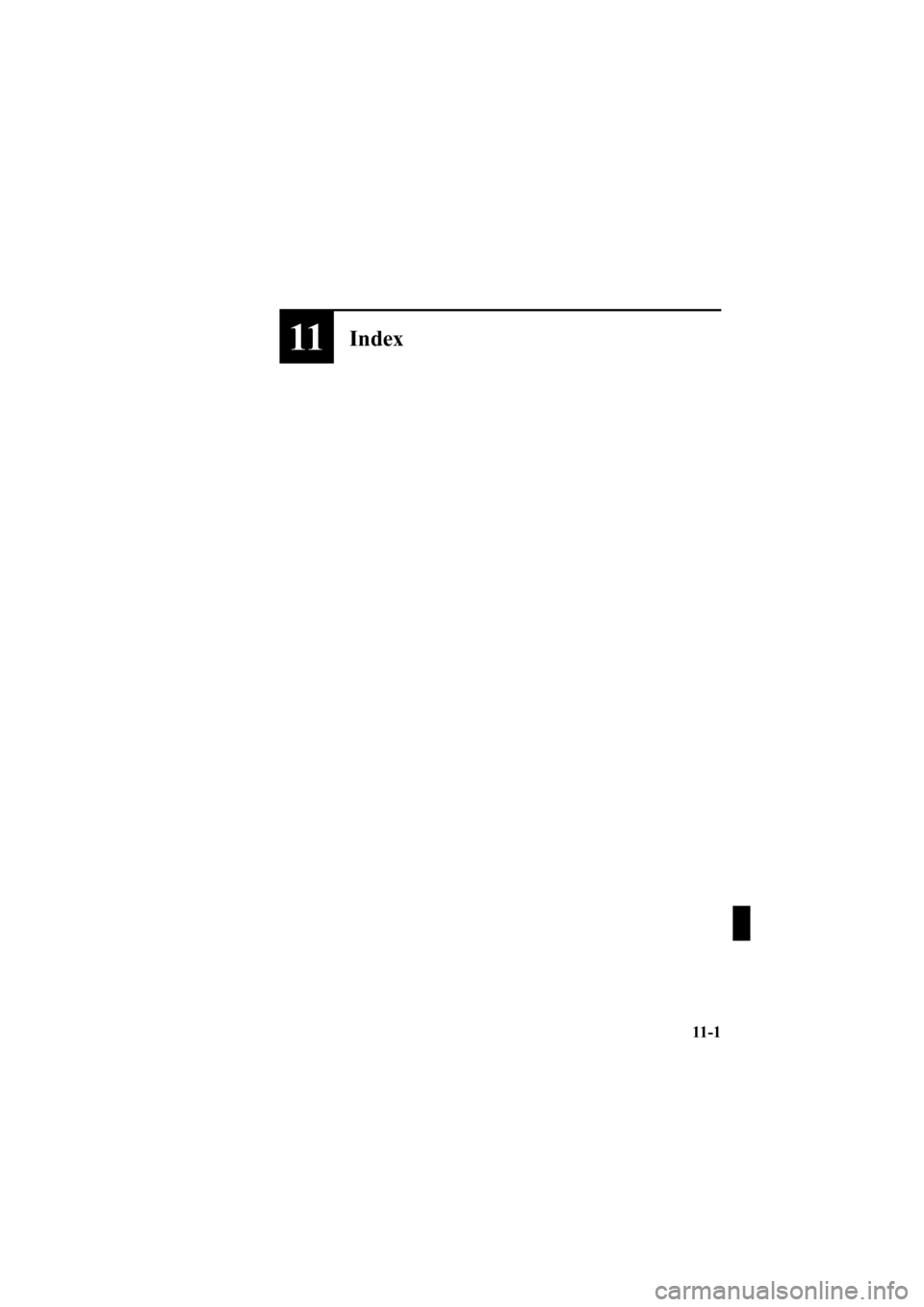

11Index
11-1
Mazda6_8V40-EA-05L_Edition1 Page383
Monday, November 28 2005 6:11 PM
Form No.8V40-EA-05L

Black plate (384,1)
A
Add-On Non-Genuine Parts and
Accessories ....................................... 9-16
Air Bag Systems ............................... 2-45
Air Filter ............................................ 8-30
Ambient Temperature Display .......... 6-51
Antenna ............................................. 6-16
Anti-Lock Brake System (ABS) ......... 5-6Warning light ............................... 5-7
Appearance Care ............................... 8-58
Audio System ................................... 6-16 Audio control switch .................. 6-43
Audio set .................................... 6-27
Operating tips for audio
system ........................................ 6-16
Safety certification ..................... 6-46
Automatic Transaxle Driving tips ................................ 5-17
Fluid ........................................... 8-26
Manual shift mode ..................... 5-13
Shift-lock system ....................... 5-12
Transaxle ranges ......................... 5-11
B
BatteryEmergency starting .................... 7-17
Maintenance ............................... 8-37
Specifications ............................. 10-4
Beep sounds
Ignition key reminder ................. 5-40
Lights-on reminder ..................... 5-40
Seat belt warning beep ............... 5-40
Before Starting the Engine .................. 4-6 After getting in ............................. 4-6
Before getting in .......................... 4-6
Body Lubrication .............................. 8-30
Bottle Holder ..................................... 6-53
B
Brake/Clutch Fluid ........................................... 8-24
Brakes Anti-lock brake system (ABS) ..... 5-6
Foot brake .................................... 5-4
Pad wear indicator ........................ 5-8
Parking brake ............................... 5-5
Warning light ............................... 5-6
Break-In Period ................................... 4-7
Bulb Replacement ............................. 8-43
C
Capacities .......................................... 10-5
Carbon Monoxide ............................... 4-5
Cargo Securing Loops ...................... 6-56
Cargo Sub-Compartment .................. 6-57
Catalytic Converter ............................. 4-3
Cell Phones ....................................... 9-17
Center Box ........................................ 6-54
Center Console .................................. 6-55
Child Restraint Installing child-restraint
systems ....................................... 2-33
LATCH child-restraint
systems ....................................... 2-40
Child Safety Locks for Rear Doors ... 3-11
Climate Control System ...................... 6-2 Gas specifications ...................... 10-6
Clock ................................................. 6-51
Courtesy Lights ................................. 6-49
Cruise Control ................................... 5-18
Cup Holder ........................................ 6-52
Customer Assistance ........................... 9-2
D
Dashboard Illumination .................... 5-28
