2006 MAZDA MODEL 3 HATCHBACK Owner's Manual (in English)

Black plate (209,1)
qChanging the Source
Press the mode switch () to change
the audio source (FM1 radio> FM2 radio>
AM radio> CD player or CD changer>
Cassette tape player> SIRIUS1>
SIRIUS2> SIRIUS3> cyclical).
NOTE
Cassette tape, CD, CD changer and
SIRIUS digital satellite radio modes
cannot be selected in the following
cases:
lA cassette deck, CD, CD changer, or
SIRIUS digital satellite radio unit is
not equipped on the audio system.
lA cassette tape, or CD has not been
inserted.
qSeek Switch
When listening to the radio
Press the seek switch (
,), the radio
switches to the next/previous stored
station in the order that it was stored
(1―6).
Press the seek switch (
,) for about 2
seconds until a beep sound is heard to
seek all usable stations at a higher or
lower frequency whether programmed or
not.
When playing a cassette tape
Press the seek switch (
), release, and it
will advance to the next selection.
Press the seek switch (
), release, and it
will repeat the selection being played.
When playing a CD
Press the seek switch (
) to skip to the
next track.
Press the seek switch (
) to repeat the
current track.
Interior Comfort
Audio System
6-39
Mazda3_8U55-EA-05G_Edition2 Page209
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (210,1)
qMute Switch
Press the mute switch () once to mute
audio, press it again to resume audio
output.
NOTE
If the ignition switch is turned to the
LOCK position with the audio muted,
the mute will be canceled.
Therefore, when the engine is restarted,
the audio is not muted. To mute the
audio again, press the mute switch (
).
6-40
Interior Comfort
Audio System
Mazda3_8U55-EA-05G_Edition2 Page210
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (211,1)
Safety Certification
This CD player is made and tested to meet exacting safety standards. It meets FCC
requirements and complies with safety performance standards of the U.S. Department of
Health and Human Services.
CAUTION
lThis CD player should not be adjusted or repaired by anyone except qualified service
personnel.
If servicing is required, contact an Authorized Mazda Dealer.
lUse of controls or adjustments or performance of procedures other than those
specified herein may result in hazardous laser exposure. Never operate the CD player
with the top case of the unit removed.
lChanges or modifications not expressly approved by the party responsible for
compliance could void the user's authority to operate this equipment.
NOTE
For CD player section:
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and (2)
this device must accept any interference received, including interference that may cause
undesired operation.
NOTE
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to part 15 of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not occur in a
particular installation.
Interior Comfort
Audio System
6-41
Mazda3_8U55-EA-05G_Edition2 Page211
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (212,1)
Sunvisors
When you need a sunvisor, lower it for
use in front or swing it to the side.
Sunvisor
qVanity Mirrors
To use the vanity mirror, lower the
sunvisor.
Interior Lights
qIlluminated Entry Systemí
When the illuminated entry system
operates, the overhead light (switch is in
the DOOR position) turns on for:
lAbout 30 seconds after the driver's
door is unlocked and the ignition key is
removed.
lAbout 15 seconds after all doors are
closed.
lAbout 15 seconds after the key is
removed from the ignition with all
doors closed.
The light also turns off when:
lThe ignition switch is turned to the ON
position and all doors are closed.
lThe driver's door is locked.
NOTE
Battery saver
If any door is left opened, the light goes
out after about 5 minutes to save the
battery.
The light turns on again when the
ignition switch is turned to the ON
position, or when any door is opened
after all doors have been closed.
6-42
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8U55-EA-05G_Edition2 Page212
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (213,1)

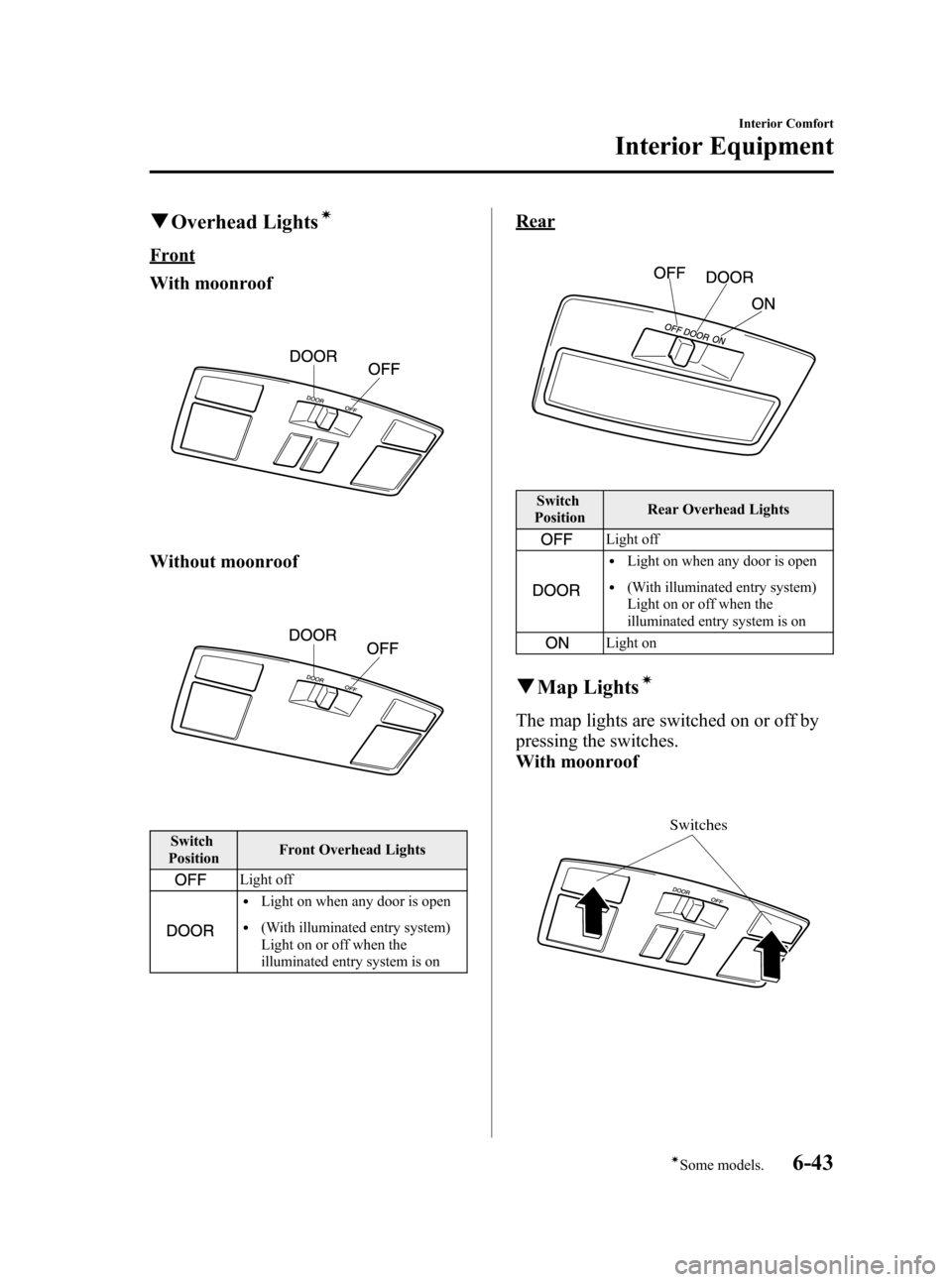

qOverhead Lightsí
Front
With moonroof
Without moonroof
Switch
PositionFront Overhead Lights
Light off
lLight on when any door is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Rear
Switch
PositionRear Overhead Lights
Light off
lLight on when any door is open
l(With illuminated entry system)
Light on or off when the
illuminated entry system is on
Light on
qMap Lightsí
The map lights are switched on or off by
pressing the switches.
With moonroof
Switches
Interior Comfort
Interior Equipment
6-43íSome models. Mazda3_8U55-EA-05G_Edition2 Page213
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (214,1)
Without moonroof
Switches
qLuggage Compartment Light (5
Door)
ONOFF
Switch
PositionLuggage Compartment Light
Light off
Light on when the liftgate is open
6-44
Interior Comfort
Interior Equipment
Mazda3_8U55-EA-05G_Edition2 Page214
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (215,1)
Information Display
With trip computer
Without trip computerTrip computer/ClockAudio display
Climate control display/Ambient
temperature display
qInformation Display Functions
The information display has the following functions:
lClock
lAmbient Temperature Display (Outside Temperature Display)í
lClimate Control Display (Fully Automatic Type)
lAudio Display
lTrip Computerí
Interior Comfort
Interior Equipment
6-45íSome models. Mazda3_8U55-EA-05G_Edition2 Page215
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G

Black plate (216,1)
qClock
NOTE
When the trip computer is being
displayed, press the CLOCK button to
change the display to the time.
When the ignition switch is in the ACC or
ON position, the time is displayed.
Time setting
NOTE
For trip computer-equipped vehicles,
press the INFO button instead of the
SET button when setting the time.
1. Press the CLOCK button until a beep
sounds, and“12Hr”and“24Hr”will be
displayed.
2. Press the SET button to switch between
“12Hr”and“24Hr”displays. The
selected display will flash.
To select the desired clock setting,
press the CLOCK button again while
the preferred setting is flashing.3.“Hr. ADJUST”will be displayed next,
and the hour portion of the display will
flash. Press the SET button to set the
hour, then press the CLOCK button.
4.“Min. ADJUST”will be displayed
next, and the minutes portion of the
display will flash. Press the SET button
to set the minutes, then press the
CLOCK button.
Time resetting
NOTE
For trip computer-equipped vehicles,
press the INFO button instead of the
SET button when resetting the time.
While the clock is displayed, press the
SET button 1.5 seconds or more. When
the button is released, a beep will sound
and the clock will be reset as follows:
(Example)
12:01―12:29→12:00
12:30―12:59→1:00
NOTE
When the SET button is released, the
seconds are reset to“00”.
qAmbient Temperature Displayí
With manual type air conditioner
When the ignition switch is in the ON
position, the ambient temperature is
displayed.
6-46
Interior Comfort
íSome models.
Interior Equipment
Mazda3_8U55-EA-05G_Edition2 Page216
Thursday, June 23 2005 2:55 PM
Form No.8U55-EA-05G
