2006 MAZDA MODEL 3 HATCHBACK Owner's Manual (in English)

Black plate (97,1)
qTo Stop an Alarm
A triggered alarm can be turned off by
any one of the following methods:
lUnlock a door or the trunk lid with the
key.
lPress the unlock button on the keyless
entry system transmitter.
NOTE
If you have any problem with the theft-
deterrent system, consult an Authorized
Mazda Dealer.
qTheft-Deterrent Labels
A label indicating that your vehicle is
equipped with a Theft-Deterrent System is
in the glove box.
Mazda recommends that you affix it to the
lower rear corner of a front door window.
Knowing Your Mazda
Security System
3-27
Mazda3_8U55-EA-05G_Edition2 Page97
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (98,1)
Steering Wheel
WARNING
Adjusting the Steering Wheel:
Adjusting the steering wheel while the
vehicle is moving is dangerous.
Moving it can very easily cause the
driver to abruptly turn to the left or
right. This can lead to loss of control
or an accident. Never adjust the
steering wheel while the vehicle is
moving.
qSteering Wheel Adjustment
To change the angle or length of the
steering wheel:
1. Stop the vehicle, pull down the lock
release lever under the steering
column.
Lock release lever
2. Tilt the steering wheel and/or adjust the
steering column length to the desired
positions, push the lever up to lock the
column.
3. Push the wheel up and down to be
certain it's locked before driving.
Mirrors
qOutside Mirrors
Check the mirror angles before driving.
Mirror type
Flat type (driver's side)
Flat surface mirror.
Convex type (front passenger side)
The mirror has single curvature on its
surface.
WARNING
Convex Mirror:
Changing lanes without taking into
account the actual distance of the
vehicle in the convex mirror is
dangerous. You could have a serious
accident. What you see in the convex
mirror is closer than it appears. Be
sure to look over your shoulder before
changing lanes.
Power control mirror
The ignition switch must be in the ACC
or ON position.
To adjust:
1. Move the selector switch to the left or
right to choose the left or right side
mirror.
3-28
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda3_8U55-EA-05G_Edition2 Page98
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (99,1)

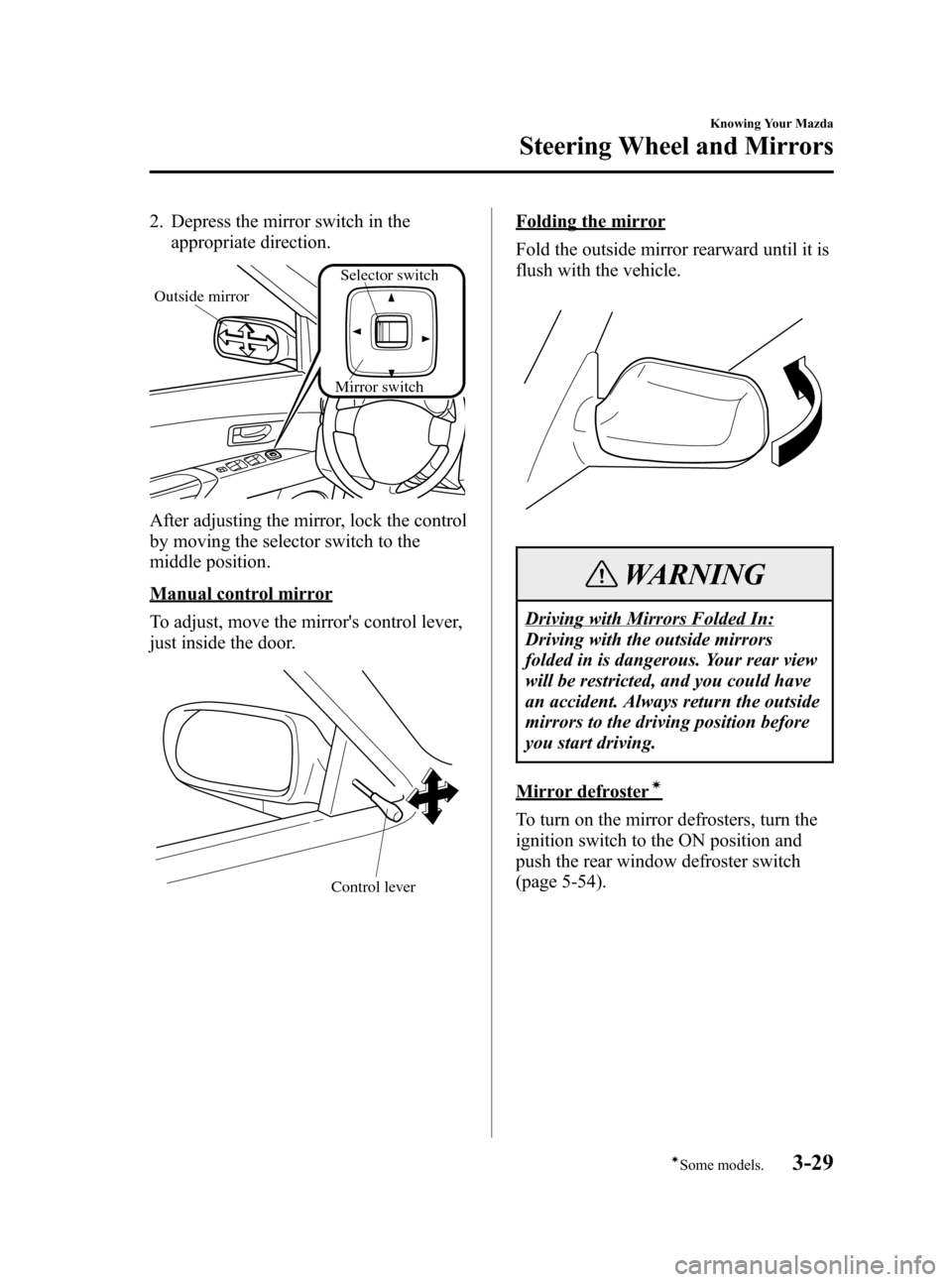

2. Depress the mirror switch in the
appropriate direction.
Mirror switch
Outside mirror
Selector switch
After adjusting the mirror, lock the control
by moving the selector switch to the
middle position.
Manual control mirror
To adjust, move the mirror's control lever,
just inside the door.
Control lever
Folding the mirror
Fold the outside mirror rearward until it is
flush with the vehicle.
WARNING
Driving with Mirrors Folded In:
Driving with the outside mirrors
folded in is dangerous. Your rear view
will be restricted, and you could have
an accident. Always return the outside
mirrors to the driving position before
you start driving.
Mirror defrosterí
To turn on the mirror defrosters, turn the
ignition switch to the ON position and
push the rear window defroster switch
(page 5-54).
Knowing Your Mazda
Steering Wheel and Mirrors
3-29íSome models. Mazda3_8U55-EA-05G_Edition2 Page99
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (100,1)
qRearview Mirror
Rearview mirror adjustment
Before driving, adjust the rearview mirror
to center on the scene through the rear
window.
Reducing glare from headlights
Do this with the day/night lever in the day
position.
Push the lever forward for day driving.
Pull it back to reduce glare from
headlights.
Night DayDay/Night lever
WARNING
Blocked View:
Cargo stacked higher than the
seatbacks is dangerous. It can block
your view in the rearview mirror,
which might cause you to hit another
car when changing lanes. Don't stack
things higher than the seatbacks.
3-30
Knowing Your Mazda
Steering Wheel and Mirrors
Mazda3_8U55-EA-05G_Edition2 Page100
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (101,1)
4Before Driving Your Mazda
Important information about driving your Mazda.
Fuel and Engine Exhaust Precautions ........................................ 4-2
Fuel Requirements .................................................................... 4-2
Emission Control System .......................................................... 4-3
Engine Exhaust (Carbon Monoxide) ......................................... 4-5
Before Starting the Engine ........................................................... 4-6
Before Getting In ...................................................................... 4-6
After Getting In ......................................................................... 4-6
Driving Tips ................................................................................... 4-7
Break-In Period ......................................................................... 4-7
Money-Saving Suggestions ...................................................... 4-7
Hazardous Driving .................................................................... 4-8
Rocking the Vehicle .................................................................. 4-9
Winter Driving .......................................................................... 4-9
Driving In Flooded Area ......................................................... 4-11
Overloading ............................................................................ 4-12
Towing ......................................................................................... 4-13
Trailer Towing ......................................................................... 4-13
4-1
Mazda3_8U55-EA-05G_Edition2 Page101
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (102,1)
Fuel Requirements
Vehicles with catalytic converters or oxygen sensors must use ONLY UNLEADED FUEL,
which will reduce exhaust emissions and keep spark plug fouling to a minimum.
Your Mazda will perform best with fuel listed in the table.
Fuel Octane Rating*(Anti-knock index)
Regular unleaded fuel 87 [ (R+M)/2 method] or above (91 RON or above)
* U.S. federal law requires that octane ratings be posted on gasoline station pumps.
Fuel with a rating lower than 87 octane (91 RON) could cause the emission control system
to lose effectiveness. It could also cause engine knocking and serious engine damage.
CAUTION
lUSE ONLY UNLEADED FUEL.
Leaded fuel is harmful to the catalytic converter or the oxygen sensor. The lead will
accumulate on the oxygen sensor and the catalyst inside the converter. This will result
in a malfunction of the emission control system, causing poor performance.
lYour vehicle can only use oxygenated fuels containing no more than 10% ethanol by
volume. Damage to your vehicle may occur when ethanol exceeds this
recommendation, or if the gasoline contains any methanol. Stop using gasohol of any
kind if your vehicle engine is performing poorly.
lNever add fuel system additives. Never add cleaning agents other than those specified
by Mazda. Other cleaning agents and additives may damage the system. Consult an
Authorized Mazda Dealer.
Gasoline blended with oxygenates such as alcohol or ether compounds are generally
referred to as oxygenated fuels. The common gasoline blend that can be used with your
vehicle is ethanol blended at no more than 10%. Gasoline containing alcohol, such as
ethanol or methanol, may be marketed under the name“Gasohol”.
Vehicle damage and drivability problems resulting from the use of the following may not
be covered by the Mazda warranty.
lGasohol containing more than 10% ethanol.
lGasoline or gasohol containing methanol.
lLeaded fuel or leaded gasohol.
4-2
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda3_8U55-EA-05G_Edition2 Page102
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (103,1)
Emission Control System
Your vehicle is equipped with an emission control system (the catalytic converter is part of
this system) that enables your vehicle to comply with existing exhaust emissions
requirements.
WARNING
Parking Over Flammable Objects:
Parking over or near anything flammable, such as dry grass, is dangerous. Even with
the engine turned off, the exhaust system could ignite it because the exhaust system
gets very hot during normal use. A resulting fire could cause serious injury or death.
Never park over or near anything flammable.
CAUTION
Ignoring the following precautions could cause lead to accumulate on the catalyst inside
the converter or cause the converter to get very hot. Either condition will damage the
converter and cause poor performance.
lUSE ONLY UNLEADED FUEL.
lDon't drive your Mazda with any sign of engine malfunction.
lDon't coast with the ignition switch turned off.
lDon't descend steep grades in gear with the ignition switch turned off.
lDon't operate the engine at high idle for more than 5 minutes.
lDon't tamper with the emission control system. All inspections and adjustments must
be made by a qualified technician.
lDon't push-start or pull-start your vehicle.
NOTE
Under U.S. federal law, any modification to the original-equipment emission control
system before the first sale and registration of a vehicle is subject to penalties. In some
states, such modification made on a used vehicle is also subject to penalties.
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
4-3
Mazda3_8U55-EA-05G_Edition2 Page103
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G

Black plate (104,1)
NOTE
While the engine is off, the sound of a valve opening and closing can be heard at the rear
of the right side of the vehicle, however this does not indicate an abnormality. Your
vehicle has a self-checking device and it operates while the engine is off.
4-4
Before Driving Your Mazda
Fuel and Engine Exhaust Precautions
Mazda3_8U55-EA-05G_Edition2 Page104
Thursday, June 23 2005 2:53 PM
Form No.8U55-EA-05G
