2006 LEXUS LX470 key

OCCUPANT RESTRAINT SYSTEMS
142
NOTICE
Do not perform any of the following changes without
consulting your Lexus dealer. Such changes can
interfere with proper operation of the SRS front airbag
system in some cases.
Installation of electronic devices such as a mobile
twoway radio, cassette tape player or CD player.
 Modification of the front end structure.
 Attachment of a grille guard (bull bar, kangaroo bar,
etc.), snowplow, winches or any other equipment to
the front end.
 Repairs made on or near the front fenders, front end
structure, console, steering column, steering wheel,
dashboard near the front passenger airbag or front
seats.
16x502a
This indicator comes on when the ignition key is turned to
the “ON” position. It goes off after about 6 seconds. This
means the SRS front airbags are operating properly.
This warning light system monitors the airbag sensor
assembly, front airbag sensors, side and curtain shield airbag
sensor assemblies, curtain shield airbag sensor assemblies,
driver’s seat position sensor, driver’s seat belt buckle switch,
front passenger occupant classification system and indicator
light, front passenger’s seat belt buckle switch, seat belt
pretensioner assemblies, inflators, roll sensing of curtain
shield airbags off indicator light, interconnecting wiring and
power sources. (For details, see “Service reminder indicators
and warning buzzers” on page 52.)

OCCUPANT RESTRAINT SYSTEMS
143
If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the “ON” position or remains on for more than 6 seconds
or flashes.
 The light comes on or starts flashing while driving.
The SRS warning light will come on and front passenger
occupant classification indicator light will indicate “OFF” if
there is a malfunction in the front passenger occupant
classification system.
16x605b

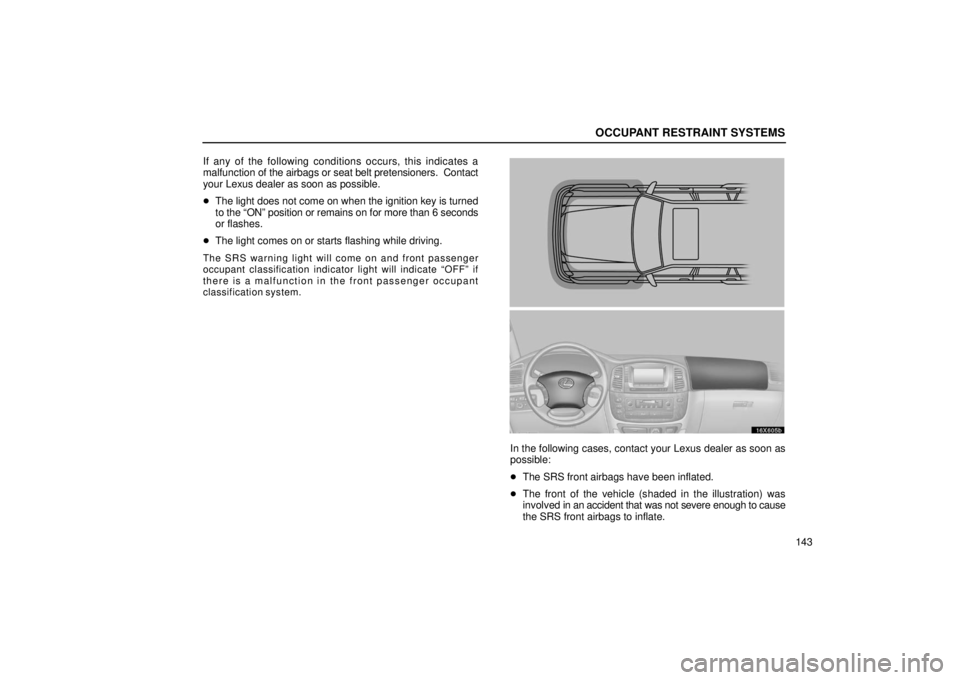

In the following cases, contact your Lexus dealer as soon as
possible:
 The SRS front airbags have been inflated.
 The front of the vehicle (shaded in the illustration) was
involved in an accident that was not severe enough to cause
the SRS front airbags to inflate.

OCCUPANT RESTRAINT SYSTEMS
156If any of the following conditions occurs, this indicates a
malfunction of the airbags or seat belt pretensioners. Contact
your Lexus dealer as soon as possible.

The light does not come on when the ignition key is turned
to the “ON” position or remains on for more than 6 seconds
or flashes.
 The light comes on or starts flashing while driving.
The SRS warning light will come on and front passenger
occupant classification indicator light will indicate “OFF” if
there is a malfunction in the front passenger occupant
classification system.
16x608a

OCCUPANT RESTRAINT SYSTEMS
158
The front passenger occupant classification indicator
light indicates the actuation of the front passenger airbag,
side airbag on the front passenger seat and front
passenger’s seat belt pretensioner.
The indicator light will indicate “OFF” when the ignition switch
is in the “ON” position with the condition 2 in the table shown
below.
If the front passenger occupant classification system
determines that a person of adult size sits in the front
passenger seat but the “OFF” indicator is illuminated, one of
the following is likely to have occurred:
 A rear passenger lifts the front passenger seat cushion with
their legs.
 Objects are placed under the front passenger seat.
 The front passenger seatback is in contact with the rear
seat. To ensure the system correctly detects an adult sitting in the
front passenger seat, make sure the above do not occur.
Make sure that the “ON” indicator is illuminated when an adult
is seated in the front passenger seat. If the “OFF” indicator is
illuminated, ask the passenger to sit up straight, well back in
the seat, and with the seat belt worn correctly. If the “OFF”
indicator still
remains illuminated, either ask the passenger to
move to the rear seat, or if that is not possible, move the front
passenger seat fully rearward.
The front passenger occupant classification indicator
light will indicate “ON” and “OFF” when the ignition key
is turned to the “ON” position. After about 4 seconds, it
will go off. After about 2 seconds, the front passenger
occupant classification system operates and judges
whether to indicate “ON” or “OFF”.

OCCUPANT RESTRAINT SYSTEMS
176Install the child restraint system on the front passenger seat
only when it is unavoidable. Your vehicle is equipped with a
front passenger occupant classification system. In order to
activate
the occupant classification system correctly, install the
forward−facing child restraint system on the front passenger
seat in the following order:
1. Turn the ignition key to the “ON” position.
2. Move the front passenger seat to the rearward position.
3. Put the child restraint system on the front passenger seat
without putting your weight on the front passenger seat.
4. Insert the seat belt tab into the seat belt buckle.
5. Fully extend the shoulder belt to put it in the lock mode.
When the belt is then retrac ted even slightly, it cannot be
extended. To hold the seat securely, make sure the belt is in the
lock mode before letting the belt retract.
6. While pressing the convertible seat firmly against the seat
cushion and seatback, let the shoulder belt retract as far as it
will go to hold the convertible seat securely.
CAUTION
Push and pull the child r estraint system in different
directions to be sure it is secure. Follow all the
installation instructions pr ovided by its manufacturer.
7. Put a child on the child restraint system and secure the child,
complying with the instructions provided by the child restraint
system manufacturer. The occupant classification indicator light should indicate
“OFF”
when the ignition key is in the “ON” position and the child
is in the child restraint system after following these procedures.
The “OFF” indicator indicates the SRS front passenger airbag
will not deploy. If the indicator light indicates “ON”, remove the
child restraint system and reinstall it with the ignition key in the
“ACC” or “LOCK” position. If the indicator light still indicates
“ON” when the ignition key is turned to the “ON” position, then
the SRS front passenger airbag may deploy in an accident. Do
not drive the vehicle in this condition. Remove the child
restraint system and contact your Lexus dealer.
CAUTION
Never install a rearfacing child restraint system on
the front passenger seat. A forwardfacing child
restraint system should only be installed on the front
passenger seat when unavoidable. If you must install
the child restraint system on the front passenger
seat, put the seat in its mo st rearward position, and
install the forwardfacing child restraint system in
the proper order. Otherw ise, the front passenger
occupant classification system cannot detect the
presence of the child rest raint system and the front
passenger airbag could deploy.

OCCUPANT RESTRAINT SYSTEMS
189
DRIVING POSITION MEMORYSYSTEM
A microcomputer will memorize the position of the driver’s
seat, and the positions of the tilt and telescopic steering, and
outside rear view mirrors. Two different driving position
profiles can be entered into the computer’s memory.
Recording the driving position in the computer’s memory can
only be done when the ignition key is in the “ON” position and
the selector lever is in the “P” position.
Setting the driving position
16X162
1. Adjust the driver’s seat, tilt and telescopic steering and
outside rear view mirrors to the desired position.
2. While pushing the “SET” button, push button “1” or “2”
until the signal beeps. The beep sound means that the positions are recorded in the
computer’s memory.
By repeating these two steps
and pressing the remaining
button, the driving position for another driver can be recorded.
To set a new memorized position, select the desired position
and perform step 2. The previous memory will be erased and
the new position will be set.
To make only slight changes to an already memorized position,
the easiest way is to first activate the memorized position, then
make the desired changes and perform step 2 above.
Recalling the memorized position
16X163
When you push button “1” or “2”, the driving position will
be automatically adjusted to the position recorded for that
button.

OCCUPANT RESTRAINT SYSTEMS
190Conditions for memorized position activation

Ignition key “ON” and selector lever in “P” position.
All parts of the memorized positions can be activated.
 Key not in ignition switch and within 30 seconds of opening
driver’s door.
The memorized position can be activated, except for the tilt
and telescopic steering.
If any driving position memory switch is pushed while one of
the memorized driving position profiles is being activated, the
operation will stop.
To activate the system, push the desired button (“1” or “2”)\
again.
The driving position memory control system cannot be
operated while the vehicle is moving.
If the vehicle’s battery is disconnected, the computer’s
memory w ill be erased and the memorized positions will have
to be set again.
CAUTION
 Do not start the vehicle while the adjustments are
being made.
 Take care not to select the wrong button, or the seat
could strike the rear passenger or hit your body
against the steering wheel. If this happens, you can
stop the movement by pressing another driving
position memory switch.

STEERING WHEEL AND MIRRORS
193
Automatic tiltaway*
16X100f
When the ignition key is removed, the steering column
moves forward away from the driver and also tilts up for
easy exit and entry.
When the key is inserted in the ignition switch, the steering
column returns to the previously set position.NOTE: *This feature can be deactivated. Ask your Lexus
dealer for details.
OUTSIDE REAR VIEW MIRRORS
16X013a
Adjust the mirror so that you can just see the side of your
vehicle in the mirror.
Be careful when judging the size or distance of any object seen
in the outside rear view mirror on the passenger’s side
because it is a convex mirror. Any object seen in a convex
mirror will look smaller and farther away than if seen in a normal
flat mirror.
When the inside rear view mirror darkens in “AUTO” mode, the
outside rear view mirrors also darken to reduce the reflection
of the headlights of the following vehicle. For details, see
“Inside rear view mirror” on page 196.
When you push the outside rear view mirror defogger switch,
the heater panels in the outside rear view mirrors will quickly
clear the mirror surface. (See “Outside rear view mirror
defogger switch” on page 38.)
