2006 LEXUS LS430 engine

TABLE OF CONTENTSIndex
1-1. Key information .............................. 2Keys ......................................................... 2
1-2. Opening, closing and locking 
the doors and trunk ..................... 5
Smart access system......................... 5
Wireless remote control ............... 12
Doors..................................................... 15
Trunk...................................................... 19
1-3. Adjustable components ............ 22 Front seats .......................................... 22
Rear seats ........................................... 23
Driving position memory 
system ............................................... 25
Rear seat position memory 
system ............................................... 29
Head restraints.................................. 31
Seat belts ............................................ 34
Steering wheel.................................. 40
Auto anti-glare mirror................... 42
Side mirrors ....................................... 43
1-4. Opening and closing the 
windows and moon roof .......... 45
Power windows................................ 45
Moon roof .......................................... 48 1-5. Opening the fuel tank cap ......... 51
Opening the fuel tank cap............ 51
1-6. Theft deterrent system............... 54 Engine immobilizer system ......... 54
Alarm.................................................... 55
Theft prevention labels 
(U.S.A.Only) .................................. 57
1-7. Safety information ...................... 58 Correct driving posture .............. 58
SRS airbags ....................................... 60
Child restraint system
................... 73
Installing child restraints ............... 76
2-1. Driving procedures..................... 86 Driving the vehicle .......................... 86
Starting the engine ......................... 94
Automatic transmission................ 98
Turn signal lever.............................. 101
Parking brake ................................. 102
2-2. Instrument cluster ..................... 103 Gauges and meters ..................... 103
Indicators and warning lights ... 105
Multi-information display........... 107
1Before driving
2When driving

TABLE OF CONTENTSIndex
Refreshing rear seat 
switches ......................................... 222
Coat hooks ..................................... 223
Floor mats........................................ 224
Sunshades ....................................... 225
Trunk features................................ 227
Garage door opener .................. 232
Compass (vehicles without 
navigation syst em)
................... 238
4-1. Maintenance and care............ 244 Cleaning and protecting the 
vehicle exterior .......................... 244
Cleaning and protecting the 
vehicle interior............................ 247
4-2. Maintenance ............................. 250 Maintenance requ irements
.... 250
General maintenance ................ 252
Emission inspection and 
maintenance (I/M) 
programs....................................... 255
4-3. Do-it-yourself 
maintenance ........................... 256
Do-it-yourself service 
precautions .................................. 256
Hood................................................. 260
Positioning the jack ...................... 261
Engine compartment.................. 262 Tires ................................................... 278
Tire inflation pressure................ 283
Wheels.............................................. 287
Air conditioning filters............... 289
Wireless remote control

battery ............................................ 295
Blade fuses ..................................... 298
Cartridge fuses ............................ 309
Headlight aim.................................... 311
Light bulbs ........................................ 313
5-1. Essential information .............. 320 If your vehicle needs to be 
towed............................................. 320
If you think something is 
wrong ............................................. 324
Fuel pump shut off system ........ 325
Event data recorder .................... 326
5-2. Steps to take in an 
emergency .............................. 328
If a warning light turns on... ...... 328
If a warning message 
appears.......................................... 334
If you have a flat tire..................... 347
If the engine will not start ......... 353
If the transmission selector 
lever cannot be shifted 
from P............................................. 354
If you lose your keys ................... 355
4Maintenance and care
5When trouble arises

Scrapping of your Lexus
The SRS airbag and seat belt pretensioner devices in your Lexus contain explosive
chemicals. If the vehicle is scrapped with the airbags and seat belt pretensioners left
as they are, this may cause an accident such as fire. Be sure to have the systems of
the SRS airbag and seat belt pretensioner removed and disposed of by a qualified
service shop or by your Lexus deal er before you scrap your vehicle.
Leak detection pump
This pump performs fuel evaporation leakage check. This check is done approxi -
mately five hours after the engine is turned off. So you may hear sound coming from
un
derneath the luggage compartment for se veral minutes. It does not indicate a
malfunction.
CAUTION
■General precautions while driving
Driving under the influence: Never drive your vehicle when under the influence of
al
cohol or drugs that have impaired your ab ility to operate your vehicle. Alcohol and
certain drugs delay reaction time, impair judgment and reduce coordination, which
could lead to an accident that will hurt or kill you, your occupants or others.
Defensive driving: Always drive defensively. Anticipate mistakes that other drivers or
pedestrians
might make and be ready to avoid accidents.
Driver distraction: Always give your full attention to driving. Anything that distracts
the driv
er, such as adjusting controls, talking on a cellular phone or reading can result
in a collision with resulting death or seriou s injury to you, your occupants or others.
■When children are in the vehicle
Never leave children unattended in the vehicle.
When left unattended, children may be able to st
art the vehicle or shift the vehicle into
neutral. There is also a danger that children may injure themselves by playing with the
cigarette lighter, the windows, the moon roof , or other features of the vehicle. In addi-
tion, heat build-up or extremely cold temperatures inside the vehicle can be fatal to
ch
ildren.

1Before driving
1
1-1. Key information ........................... 2Keys ....................................................... 2
1-2. Opening, closing and locking 
the doors and trunk .................. 5
Smart access system ..................... 5
Wireless remote control ............. 12
Doors .................................................. 15
Trunk.................................................... 19
1-3. Adjustable components ......... 22 Front seats....................................... 22
Rear seats........................................ 23
Driving position memory 
system ............................................ 25
Rear seat position memory 
system ............................................ 29
Head restraints ............................... 31
Seat belts ......................................... 34
Steering wheel .............................. 40
Auto anti-glare mirror ................ 42
Side mirrors.................................... 43 1-4. Opening and closing the

windows and moon roof
....... 45
Power windows.............................. 45
Moon roof....................................... 48
1-5. Opening the fuel tank cap .......51 Opening the fuel tank cap ......... 51
1-6. Theft deterrent system ........... 54 Engine immobilizer system ...... 54
Alarm................................................ 55
Theft prevention labels 
(U.S.A.Only) ................................ 57
1-7. Safety information ................... 58 Correct driving posture............ 58
SRS airbags.................................... 60
Child restraint system ................. 73
Installing child r
estraints ............ 76

2
1-1. Key information

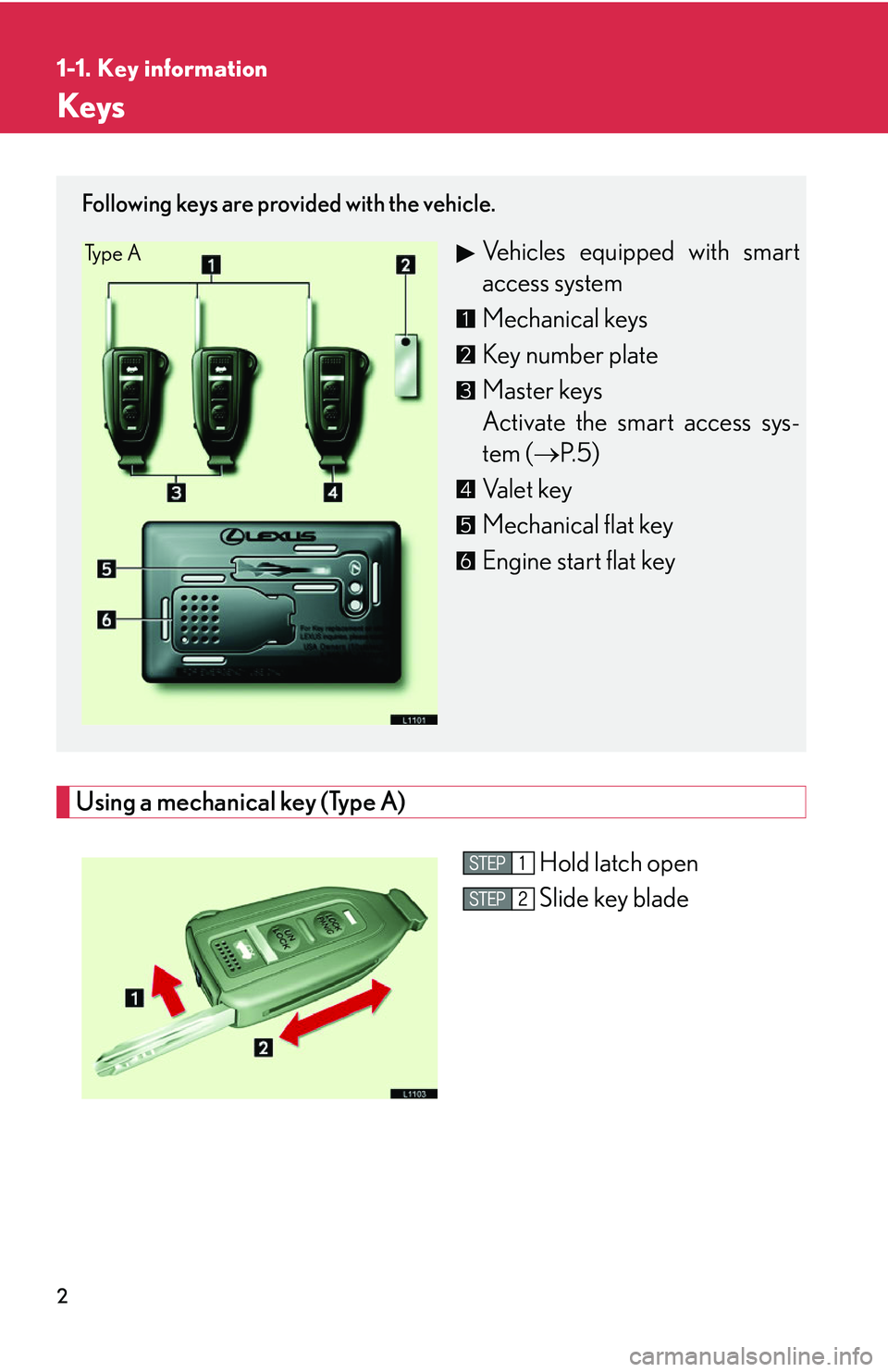

Keys
Using a mechanical key (Type A)
Hold latch open
Slide key blade
Following keys are provided with the vehicle.
Vehicles equipped with smart
access system
Mechanical keys
Key number plate
Master keys
Activate the smart access sys -
tem ( P.5)
Valet key
Mechanical flat key
Engine start flat keyTy p e A

5
1
Before driving
1-2. Opening, closing and locking the doors and trunk

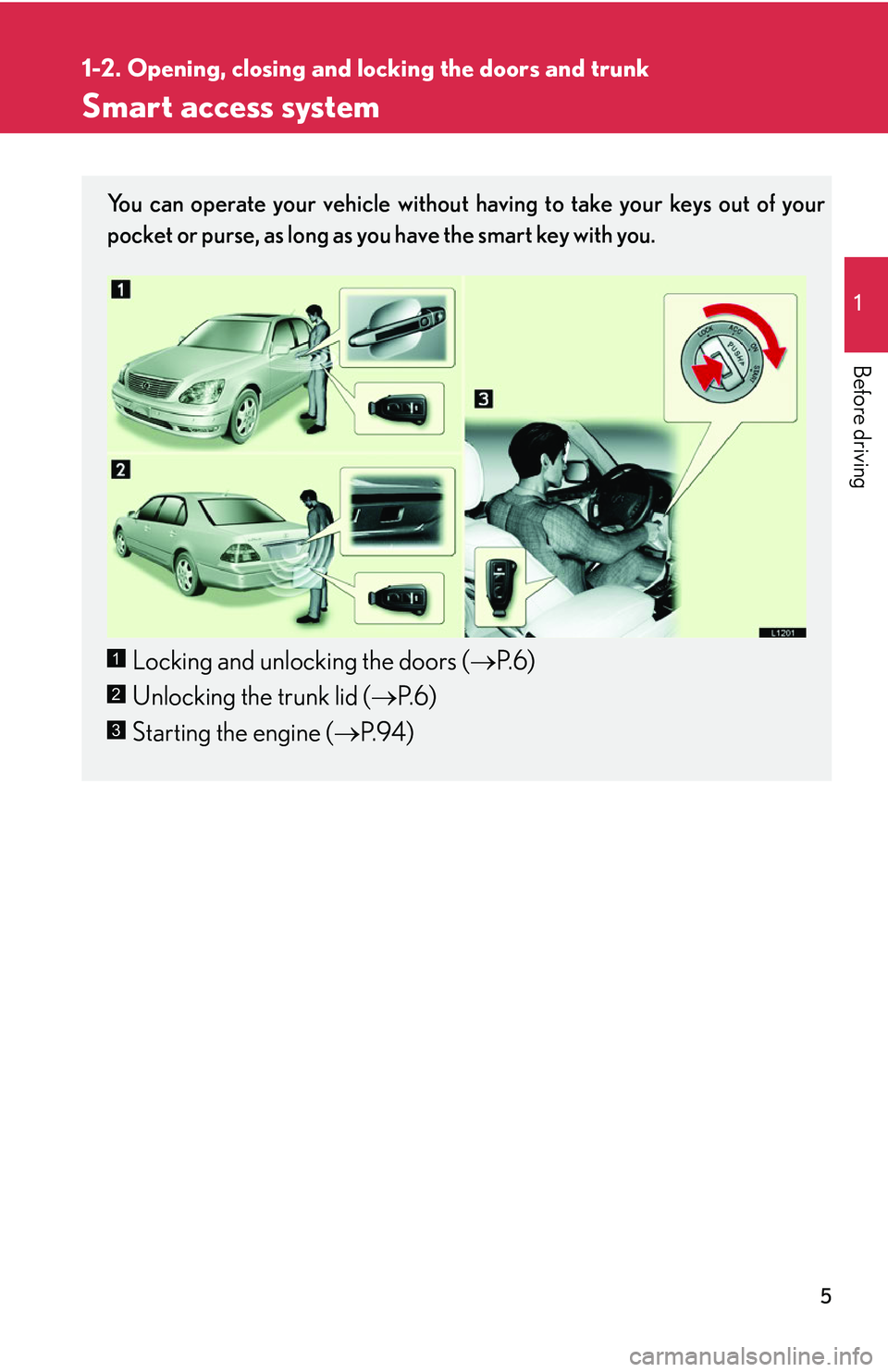

Smart access system
You can operate your vehicle without having to take your keys out of your
pocket or purse, as long as you have the smart key with you.
Locking and unlocking the doors ( P.6)
Unlocking the trunk lid ( P.6)
Starting the engine ( P.94 )1
2
3

8
1-2. Opening, closing and locking the doors and trunk
■To secure the system operation
In the following cases, the smart access system or wireless remote control feature
ma
y not operate properly. (If this happens, use a mechanical key to lock or unlock
the doors and trunk lid and insert a master key to start the engine.)
• When facilities emitting strong elec tr
omagnetic waves such as TV towers,
electric power stations and broadcasting stations are nearby.
• When you are carrying a smart key together with a mobile communications sy
stem such as a two-way radio or cellular phone.
• When the smart key is in contact with or covered by a metallic object.
• When another person is operating a wi r
eless remote control function on
another vehicle near your vehicle.
If you do not drive your vehicle, store the smart key, keeping it at least 15 ft. (5 m)
a
way from the vehicle.
■If the key battery is discharged
Use the mechanical key to lock or unlock doors or trunk lid. To start the engine,
inse
rt the master key in the ignition switch. See page 295 for replacing the key bat -
tery.

46

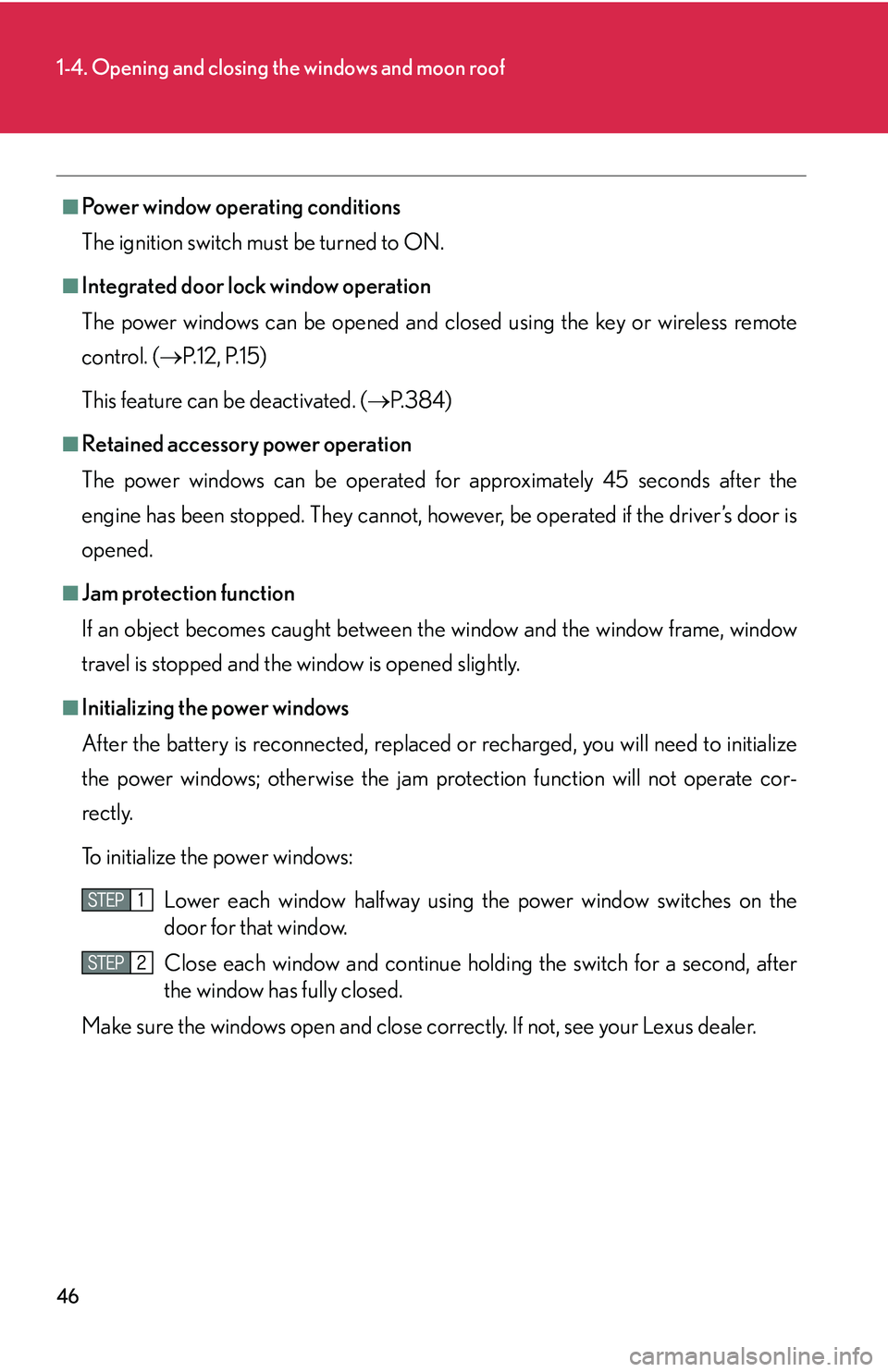

1-4. Opening and closing the windows and moon roof
■Power window operating conditions
The ignition switch must b
e turned to ON.
■Integrated door lock window operation
The power windows can be opened and closed using the key or wireless remote
co

ntrol. ( P.12 , P. 15)
This feature can be deactivated. ( P.
3 8 4 )
■Retained accessory power operation
The power windows can be operated for approximately 45 seconds after the
engine ha

s been stopped. They cannot, however, be operated if the driver’s door is
opened.
■Jam protection function
If an object becomes caught between th e
window and the window frame, window
travel is stopped and the window is opened slightly.
■Initializing the power windows
After the battery is reconnected, replaced or recharged, you will need to initialize
the po
wer windows; otherwise the jam prot ection function will not operate cor-
rectly.
To initialize the power windows:
Lower each window halfway using the power window switches on the
door for that window.
Close each window and continue hold ing the
switch for a second, after
the window has fully closed.
Make sure the windows open and close correctly. If not, see your Lexus dealer.
