2-5. Driving information
■Before towing
●Ensure that your vehicle’s tires are properly inflated. (P.283 )
●Trailer tires should be inflated according to the trailer manufacturer’s recom -
mendation.
●All trailer lights must work to be legal.
●Confirm all lights work each time you connect them.
●Check that your vehicle remains level when a loaded or unloaded trailer is
hitched. Do not drive if the vehicle is not level, and check for improper tongue
load, overloading, worn suspension, or other possible causes.
●Make sure the trailer cargo is securely loaded.
●Check that your rear view mirrors conform to any federal, state/provincial or
local regulations. If they do not, instal l rear view mirrors appropriate for towing
purposes.
■Break-in schedule
Lexus recommends that you do not use a new vehicle or a vehicle with any new
p

ower train components (engine, transmissi on, differential, wheel bearing, etc.) to
tow a trailer for the first 500 miles (800 km) of driving.
■Maintenance
●If you tow a trailer, your vehicle will require more frequent maintenance due to
the additional load. (see “Owner’s Manual Supplement/ Scheduled Mainte -
nance”)
●Retighten the fixing bolts of the towing ball and bracket after approximately
600 miles (1000 km) of trailer towing.

171
3-1. Using the air conditioning system and defogger
3
Interior features
■Window defogger feature
The automatic air conditioning control system detects the operating conditions of
the s

ystem and automatically switches between recirculated and outside air modes.
■Outside rear view mirror heaters
Pressing the rear window defogger button also turns the mirror heaters on.
CAUTION
■When the defogger is on
Do not touch the rear view mirror surfaces, as the surfaces can become very hot
and burn y
ou.
Vehicles with navigation system
ON/OFF
Push the button to turn the rear wind ow defogger on. The defogger will auto -
matically turn off after approximately 15 minutes or if you push the button again.

240
3-5. Other interior features
Drive the vehicle at 5 mph (8 km/
h) or lower in a circle until a direc-
tion is displayed.
If there is not enough space to
drive in a circle, drive around the
block until the direction is dis -
played.
■Factors affecting compass accuracy
The compass may not show the correct direction in the following conditions:
• The vehicle is stopped immediat
ely after turning.
• The vehicle is on an inclined surface.
• The vehicle is in a place where the earth’s magnetic field is subject to interfer -
ence by artificial magnetic fields 
(underground parking, under a steel tower, between buildings, roof parking,
ne
ar a crossing, near a large vehicle, etc.).
• The vehicle is magnetized. 
(There is a magnet or a metal object near the inside rear view mirror.)
• The battery has been disconnected.
• A door is open.
CAUTION
■While the vehicle is moving
Do not adjust the display. Be sure to adjust the display only when the vehicle is
stopped.
■When doing the circling calibration
Be sure to secure a wide space, and watch out for people and vehicles in the neigh -
bood. Do not violate any local traffic rule s
while performing circling calibration.

304
4-3. Do-it-yourself maintenance
■Fuse box in the driver’s side kick panel
FuseAmpereCircuit
TA I L7. 5Tail lights, parking lights, Side marker lights
H-LP CLN30Headlight cleaner
EFI NO.125Multiport fuel injection system/sequential
multiport fuel injection system
HORN10Horns
ETCS10Multiport fuel injection system/sequential
multiport fuel injection system
H-LP HI20Headlights (high beam)
FuseAmpereCircuit
TI & TE20Tilt and telescopic steering
PA N E L7. 5
Lexus park assist system, Rear seat heater,
Rear climate control seat, Multi-informa -
tion display, Audio system, Cigarette
li
ghter, Instrument panel light, Coin box
light, Rear mirror light, Glove box light,
Power rear seat, Electronically modulated
air suspension system, Turn signal lights,
Clock, Shift lock system, Vehicle stability
control system, Sunshade, Power rear view
mirror control system, Console box light,
Fuel opener system, Adaptive Front Light -
ing System (AFS)
D P/SEAT30Power seat system
GAUGE7. 5Gauges and meters, Lexus park assist sys -
tem, Shift lock system
12
13
14
15
16
17
1
2
3
4

306
4-3. Do-it-yourself maintenance
FuseAmpereCircuit
IG230SRS airbag system, Engine immobilizer sys-
tem, Steering lock system, Starting system
HAZ15Emergency flashers
ST R LO C K7. 5Steering lock system
AM27. 5All components in "STA" and "IG2", Start -
ing system
MPX-B17. 5
Power door lock system, Engine immobi -
lizer system, Steering lock system, Front
power seat, Rear power seat
MPX-B37. 5
Tilt and telescopic steering, Headlight
switch, Windshield wiper and washer
switch, Turn signal switch
DOME10
Vanity lights, Outer foot lights, lgnition
switch light, Clock, Gauges and meters,
Interior lights, Personal lights
MPX-B27. 5Gauges and meters, Vehicle stability con -
trol system, Illuminated entry system, TEL
P RR-IG10Refreshing seat
H-LP LVL7. 5Headlight leveling system, Adaptive Front
Lighting System (AFS)
P- I G7. 5Rain sensor, Air conditioning system, Moon
roof, Multi-information display, Clock
P S/HTR15Seat heater, Climate control seat system
P- ACC7. 5
Air conditioning system, Audio system,
Clock, Multi-information display, Illumi -
nated entry system
P- C I G15Front cigarette lighter
RADIO NO.17. 5Audio system
RR DOOR LH20Power door lock system, Power window,
Door closer system, Door courtesy lights
P DOOR25
Power door lock system, Power rear view
mirror control system, Outside rear view
mirror defogger, Door closer system, Door
courtesy lights, Power windows
TEL7. 5Audio system, Navigation system
P B/ANC5Seat belts, Seat belt buckle illumination
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19

307
4-3. Do-it-yourself maintenance
4
Maintenance and care

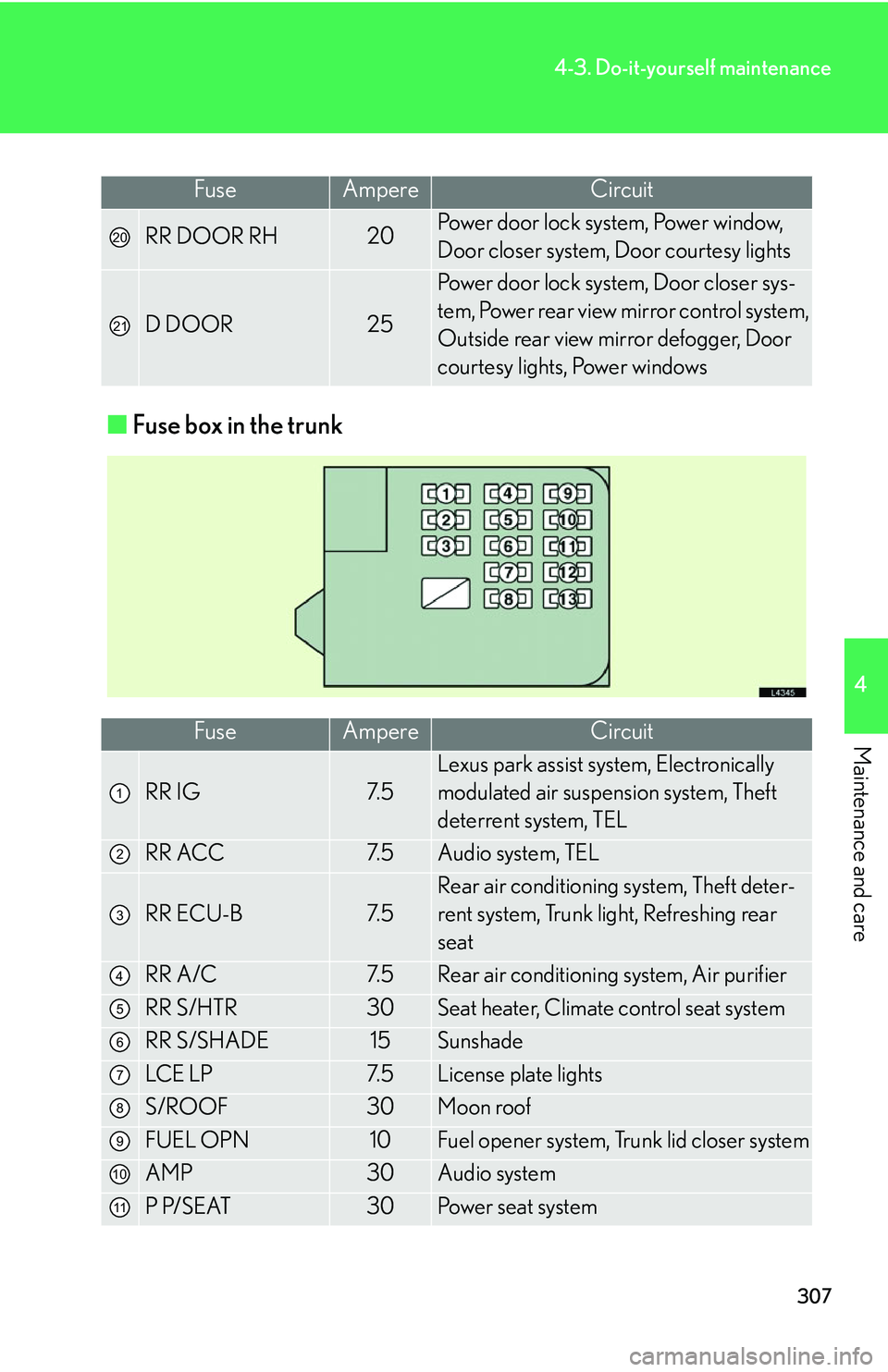

■Fuse box in the trunk
FuseAmpereCircuit
RR DOOR RH20Power door lock system, Power window,
Door closer system, Door courtesy lights
D DOOR25
Power door lock system, Door closer sys -
tem, Power rear view mirror control system,
Outside rear view mirror defogger, Door
courtesy lights, Power windows
FuseAmpereCircuit
RR IG7. 5
Lexus park assist system, Electronically
modulated air suspen sion system, Theft
deterrent system, TEL
RR ACC7. 5Audio system, TEL
RR ECU-B7. 5
Rear air conditioning system, Theft deter -
rent system, Trunk light, Refreshing rear
seat
RR A/C7. 5Rear air conditioning system, Air purifier
RR S/HTR30Seat heater, Climate control seat system
RR S/SHADE15Sunshade
LCE LP7. 5License plate lights
S/ROOF30Moon roof
FUEL OPN10Fuel opener system, Trunk lid closer system
AMP30Audio system
P P/SEAT30Power seat system
20
21
1
2
3
4
5
6
7
8
9
10
11

395
Alphabetical index
Switch .........................................................110
Wattage .................................................. 372
Heaters Seat heaters............................................ 218
Side mirror ................................................ 43
High mounted stop light Replacing bulbs.................................... 314
Wattage .................................................. 372
Hood ......................................................... 260
I/M test ..................................................... 255
Ignition Keys ................................................................. 2
Switch .......................................................... 94
Ignition switch light ................................ 198
Illuminated entry system ..................... 198
In case of an emergency If the battery runs out....................... 356
If you cannot shift automatic 
transmission selector lever ....... 354
If you have a flat tire........................... 347
If you lose your keys ........................ 355
If your vehicle becomes 
stuck ....................................................... 361
If your vehicle needs to 
be towed ............................................ 320
If your vehicle overheats................ 359
If your vehicle will not start............ 353
If you think something is 
wrong................................................... 324
Indicator lights ......................................... 105
Initializing your lexus........................... 387
Inside rear view mirror........................... 42
Interior light .............................................. 199Jack
Positioning the jack ............................. 261
Replacing the wheel ......................... 287
Jack handle.............................................. 347
Jump starting .....
........................................ 353
Key reminder buzzer .............................. 15
Keys Flat key........................................................ 95
If you lose your keys ........................ 355
Ignition switch ......................................... 94
Key number ................................................. 2
Keys ................................................................. 2
Mechanical key ................................... 295
Replacing battery ............................... 295
Wireless remote control ..................... 12
Knee airbag.................................................. 61
Lexus park assist system Lexus park assist system ................... 118
Warning message ............................. 334
License plate lights Wattage .................................................. 372
Light bulbs Replacing ................................................ 314
Wattage .................................................. 372
Lights Fog lights switch .................................... 113
Headlights switch.................................. 110
Interior light switch ............................... 20
Personal light switch........................ 200
Replacing light bulbs ......................... 313
Turn signal lever .................................... 101
Vanity lights ......................................... 209
Wattage .................................................. 372
I
J
K
L

396
Alphabetical index
Load limits .................................................148
Luggage net ............................................ 227
Maintenance Do-it-yourself maintenance ......... 256
General maintenance ..................... 252
Maintenance data.............................. 364
Maintenance requirements .......... 250
Meter Instrument panel light 
control................................................... 104
Meters ...................................................... 103
Mirrors Auto anti-glare mirror ......................... 42
Side mirror heaters ............................. 170
Side mirrors ............................................. 43
Vanity mirrors...................................... 209
Moon roof ................................................... 48
Multi-information display Cruise information .............................. 107
Graphic information ......................... 109
Warning messages .......................... 334
Odometer ..........
........................................... 103
Oil Engine oil ............................................... 263
Open door warning 
light/buzzer .......................................... 331
Opener Fuel filler door........................................... 51
Hood........................................................ 260
Trunk ............................................................. 19
Outer foot light ....................................... 198
Outside rear view mirrors Adjusting and folding ......................... 43Driving position memory ..................
25
Outside temperature 
display ......................................................216
Overhead console 
Box .......................................................... 203
Overhead lights 
Wattage ................................................ 372
Parking lights Switch .......................................................... 110
Wattage .................................................. 372
Parking brake.......................................... 102
Penlight ..................................................... 230
Personal lights Switch ...................................................... 200
Wattage .................................................. 372
Power outlet ............................................. 214
Power steering fluid ............................. 272
Power windows ........................................ 45
Pre-collision system Per-collision system........................... 143
Warning message ............................ 334
Radiator .................................................... 269
Radio............................................................ 176
RDS .............................................................. 177
Rear air conditioning control............. 172
Rear audio switches ............................. 185
Rear seat position memory ................. 29
Rear seats Adjustment ............................................... 23
Rear view monitor system .................. 123
Rear window defogger ........................ 170
Refleshing rear seat switches .......... 222
M
O
P
R
