GAUGES, METERS AND SERVICE REMINDER INDICATORS
74The time that has elapsed since the engine started is
displayed.
When the engine is started,
driving time is counted from 0:00.
Up to 19:59 (19 hours, 59 minutes) can be displayed. When
the driving time exceeds 19:59, the counter returns to 0:00.
To reset the calculations, push and hold the “RESET” button for
more than 1 second.
INSTRUMENT PANEL LIGHT CONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
If the instrument panel light control dial is turned fully down, the
foot lights will turn off.

STEERING WHEEL AND MIRRORS
207
Compass
The compass indicates the direction in which the vehicle
is heading. The illustration shown above indicates the
vehicle is heading north.
Push the “COMP” switch to turn the compass system on
and off.
If the ignition switch was turned off with the system on, the
system will automatically turn back on when the ignition switch
is turned on. Displays
Directions
N
NE E
SE S
SW W
NWNorth
Northeast East
Southeast South
Southwest West
Northwest
The compass may not show the correct direction in the
following conditions:
 The vehicle is stopped immediately after turning.
The compass does not adjust while the vehicle is stopped.
 The ignition switch is turned off immediately after turning.
 The vehicle is on an inclined surface.
 The vehicle is in a place where the earth’s magnetic field is
subject to interference by artificial magnetic fields
(underground parking, under a steel tower, between
buildings, roof parking, near a crossing, near a large vehicle,
etc.).
 The vehicle is magnetized. (There is a magnet or a metal
object on or near the inside rear view mirror.)
 The battery has been disconnected.

STEERING WHEEL AND MIRRORS
208If your vehicle is out of the set zone, refer to “Calibrating the
compass” in this Section to set the zone number.
If the deviation is small, the compass works to calibrate the
direction automatically while the vehicle is in motion.
For additional precision or for complete calibrating, see
“Calibrating the compass” below.
If the direction is not indicated or the system does not operate
properly, contact your Lexus dealer.

Compass sensor
NOTICE
Do not put magnets or a metal object on or near the
inside rear view mirror of the vehicle. Doing this may
cause malfunction of the compass sensor in the mirror.
Calibrating the compass (deviation calibration)
The direction display on the compass deviates from the true
direction determined by the earth’s magnetic field. The angle
of deviation varies according to the geographic position of the
vehicle.
To adjust this deviation, stop the vehicle, then push and hold
the “COMP” switch until the zone number appears on the
display. Then push the “COMP” switch, referring to the
following map to select the number of the zone where the
vehicle is.

STEERING WHEEL AND MIRRORS
209
16Z001
Samoa: 5 Guam: 8 Saipan: 8
 Zone numbers Leaving the system after the calibration for several seconds,
the direction will appear on the display. It shows the zone
number is set.
CAUTION
Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.
Calibrating the compass (circling calibration)
To rectify the compass, stop the vehicle and push and hold the
“COMP” switch until “C” appears on the display.
There is also a case that “C” appears on the display in case of
the drastic change of the magnetic field.

STEERING WHEEL AND MIRRORS
210
Drive the vehicle slowly (at 8 km/h [5 mph] or lower) in a circle
until the direction is displayed. If there is not enough space to
drive in a circle, drive around the block until the direction is
displayed.
After driving in 1 to 3 circles in the above method, calibration
is complete with the direction shown on the display. Perform
circling calibration just after you have purchased
your Lexus. And then always perform circling calibration
after the battery has been removed, replaced or
disconnected.
 Do not perform circling calibration of the compass in a place
where the earth’s magnetic field is subject to interference by
artificial magnetic fields (underground parking, under a steel
tower, between buildings, roof parking, near a crossing,
near a large vehicle, etc.).
 During calibration, do not operate electric systems (moon
roof, power windows, etc.) as they may interfere with the
calibration.
CAUTION
When doing the circling calibration, be sure to secure
a wide space, and watch out for people and vehicles
in the neighborhood. Do not violate any local traffic
rules while performing circling calibration.
 Do not adjust the display while the vehicle is moving.
Be sure to adjust the display only when the vehicle is
stopped.

AIR CONDITIONING
214
AUTOMATIC AIR CONDITIONING CONTROLS
21PY023
You can adjust the brightness of the display. See “Instrument panel light control” on page 74 for details.

AIR CONDITIONING
215
The automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1“AUTO” button
2“OFF” button
3Driver side temperature display (in degrees
Fahrenheit or Centigrade)
4Fan speed display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7Windshield air flow button
8“PASSENGER TEMP” (passenger side temperature
control) button
9“DUAL” (temperature setting mode change) button
10“A/C” button
11“MODE”(air flow control) button
12Fan speed control button
13Air intake control button
14“TEMP” (driver side temperature control) button

AIR CONDITIONING
219
If quick heating or cooling is desired —
Push the “TEMP” or “PASSENGER TEMP” button on either
side
and hold it until “MAX. HOT” or “MAX. COLD” appears on
the display.
If manual fan speed control is desired —

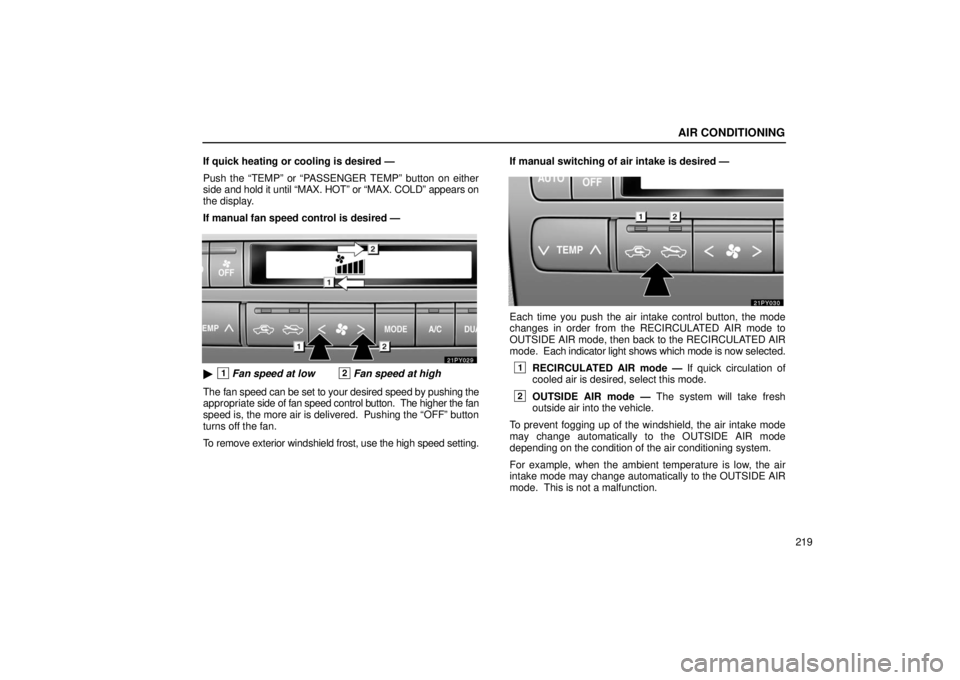

1Fan speed at low2Fan speed at high
The fan speed can be set to your desired speed by pushing the
appropriate side of fan speed control button. The higher the fan
speed is, the more air is delivered. Pushing the “OFF” button
turns off the fan.
To remove exterior windshield frost, use the high speed setting. If manual switching of air intake is desired —
Each time you push the air intake control button, the mode
changes in order from the RECIRCULATED AIR mode to
OUTSIDE AIR mode, then back to the RECIRCULATED AIR
mode. Each indicator light shows which mode is now
selected.
1RECIRCULATED AIR mode — If quick circulation of
cooled air is desired, select this mode.
2OUTSIDE AIR mode — The system will take fresh
outside air into the vehicle.
To prevent fogging up of the windshield, the air intake mode
may change automatically to the OUTSIDE AIR mode
depending on the condition of the air conditioning system.
For example, when the ambient temperature is low, the air
intake mode may change automatically to the OUTSIDE AIR
mode. This is not a malfunction.
