2006 Lexus GS430 clock

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xPage
1
Power window switches 37, 57
. . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 198
. . . . . . . . . . .
3 Window lock switch 58
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Door lock switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Side vents 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Engine switch 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Automatic air conditioning controls 254
. . . . . . . . . .
8 Audio system 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Clock 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
10 Center vents 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Outside temperature display 106
. . . . . . . . . . . . . . . . .
12 Touch screen 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Navigation system display (See the separate
“Navigation System Owner’s Manual”)
13 Security indicator light 40
. . . . . . . . . . . . . . . . . . . . . . .
14 Rear window and outside rear view
mirror defogger switch 56 . . . . . . . . . . . . . . . . . . . . . . .
15 Front passenger’s seat belt reminder light 76 . . . . .
16 Emergency flasher switch 60
. . . . . . . . . . . . . . . . . . . . Page
17 Glove box
110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Trunk lid opener main switch 126
. . . . . . . . . . . . . . . .
19 Tire selector switch 442
. . . . . . . . . . . . . . . . . . . . . . . . .
20 Cigarette lighter 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Cupholders 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Seat heater switches or Seat ventilator/heater
switches 61, 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch
(Twowheel drive models only) 419 . . . . . . . . . . . . . .
24 Driving pattern selector switch 353
. . . . . . . . . . . . . . .
25 Damping mode select switch
(GS430 only) 417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Coin box 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Ashtray 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
28 Automatic transmission selector lever 353 . . . . . . .
29 Tire pressure warning system reset switch 440 . . . .
30 Hood lock release lever 124
. . . . . . . . . . . . . . . . . . . . .
31 Parking brake pedal 352
. . . . . . . . . . . . . . . . . . . . . . . . .
32 Switch box xix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

For detailed information, refer to the description given in each Section\
.
PICTORIAL INDEX
xiiPage
1
Power window switches 37, 57
. . . . . . . . . . . . . . . . . . .
2 Driving position memory switches 198
. . . . . . . . . . .
3 Window lock switch 58
. . . . . . . . . . . . . . . . . . . . . . . . . .
4 Door lock switch 37
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
5 Side vents 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
6 Engine switch 342
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
7 Automatic air conditioning controls 254
. . . . . . . . . .
8 Audio system 274
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
9 Clock 103 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
10 Center vents 268
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11 Outside temperature display 106
. . . . . . . . . . . . . . . . .
12 Touch screen 215
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
13 Security indicator light 40
. . . . . . . . . . . . . . . . . . . . . . .
14 Rear window and outside rear view
mirror defogger switch 56 . . . . . . . . . . . . . . . . . . . . . . .
15 Front passenger’s seat belt reminder light 76 . . . . .
16 Emergency flasher switch 60
. . . . . . . . . . . . . . . . . . . . Page
17 Glove box
110
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
18 Trunk lid opener main switch 126
. . . . . . . . . . . . . . . .
19 Tire selector switch 442
. . . . . . . . . . . . . . . . . . . . . . . . .
20 Cigarette lighter 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . .
21 Cupholders 115
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
22 Seat heater switches or Seat ventilator/heater
switches 61, 63 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
23 Traction control system off switch
(Twowheel drive models only) 419 . . . . . . . . . . . . . .
24 Driving pattern selector switch 353
. . . . . . . . . . . . . . .
25 Damping mode select switch
(GS430 only) 417 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
26 Coin box 116
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27 Ashtray 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
28 Automatic transmission selector lever 353 . . . . . . .
29 Tire pressure warning system reset switch 440 . . . .
30 Hood lock release lever 124
. . . . . . . . . . . . . . . . . . . . .
31 Parking brake pedal 352
. . . . . . . . . . . . . . . . . . . . . . . . .
32 Switch box xix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
96
INSTRUMENT PANEL LIGHTCONTROL
The brightness of the instrument panel lights is
automatically adjusted at the maximum when the engine
switch is turned on.
Using the light control switch, you can also adjust the
brightness as you like. Perform the following operation.
Instrument panel control switches are located in the switch
box.
G13005
Light control switch
Push the button to use the switch box. And push the light
control switch upward to increase brightness and
downward to decrease it. However, if the brightness is automatically adjusted at the
maximum, pushing the switch cannot change the brightness.
And this switch cannot adjust the brightness of the outside
temperature
display and clock on the instrument panel as well
as the touch screen.
Pushing the “MAX” switch will turn the brightness of all
indicators on the instrument panel at the maximum. The
intensity of the instrument panel lights will not be reduced when
the headlight switch is on with the brightness adjusted at the
maximum using the “MAX” switch.
When the light control switch is turned to minimum, the foot
lights and inside door handle lights will turn off.
After operation, be sure to close the switch box to its original
position.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, keep the switch box closed when not in
use while driving.

SECTION 1 – 4
97
INSTRUMENTS AND CONTROLS
Interior equipment
Sun visors98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Interior lights 98
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Personal lights 99
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Illuminated entry system 100
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Luggage compartment lights 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock 103
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Outside temperature display 106
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cigarette lighter and ashtray 107
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet 108
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Rear console box 109
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Glove box 11 0
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Garage door opener 111
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Cupholders 11 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . .
Coin boxes 11 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Overhead console box 11 7
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Door pockets 11 8
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Trunk storage extension 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat 11 9
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . .
Rear electric sunshade 120
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie −down hooks 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
First−aid kit holder 122
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .

INTERIOR EQUIPMENT
103
LUGGAGE COMPARTMENT LIGHT
G14035
To turn on the luggage compartment light, open the trunk
lid or push the switch. Closing the trunk lid will turn the
light off.
CLOCK
G14007
The digital clock indicates the time with the engine switch
in “ACC” or “IGON” mode.
Vehicles with navigation system: T he cloc k can be
corrected manually or automatically using signals from the
GPS. For details, see the separate “Navigation System
Owner’s Manual”.
Vehicles without navigation system: To adjust the clock or
set the daylight saving time, follow the procedures below.

INTERIOR EQUIPMENT
104
G14054
1. Push the “INFO” button to display the setting screen.
G14055
2. Touch the “Adjust Clock” switch to display the adjust
clock screen.
When the headlight switch is turned to the first or second click
stop, the brightness of the display will be reduced.
You can brighten the display. To adjust the brightness, see
“Instrument panel light control” on page 96.

INTERIOR EQUIPMENT
105

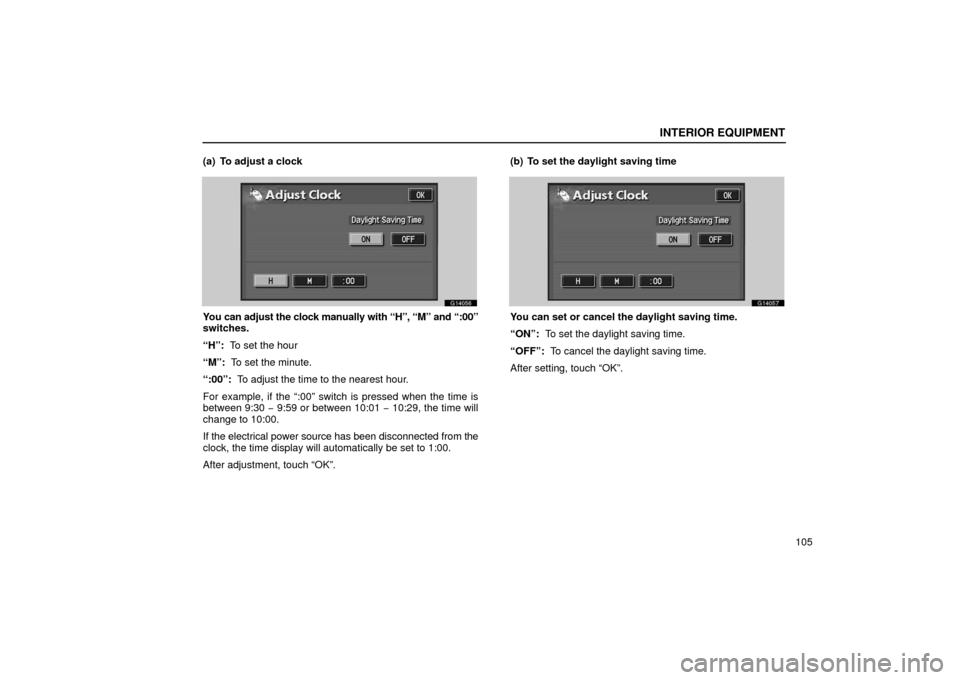

(a) To adjust a clock
G14056
You can adjust the clock manually with “H”, “M” and “:00”\
switches.
“H”: To set the hour
“M”: To set the minute.
“:00”: To adjust the time to the nearest hour.
For example, if the “:00” switch is pressed when the time is
between 9:30
− 9:59 or between 10:01 − 10:29, the time will
change to 10:00.
If the electrical power source has been disconnected from the
clock, the time display will automatically be set to 1:00.
After adjustment, touch “OK”. (b) To set the daylight saving time
G14057
You can set or cancel the daylight saving time.
“ON”:
To set the daylight saving time.
“OFF”: To cancel the daylight saving time.
After setting, touch “OK”.

INTERIOR EQUIPMENT
11 0
CAUTION
To reduce the chance of injury in case of an accident
or a sudden stop, always keep the rear console box
closed while driving.
 Do not apply excessive load over the tray with your
hand, or closing the console box lid may injure your
fingers.
 Do not open the rear console box while operating the
rear vents, or closing the console box lid may injure
your fingers.
GLOVE BOX
G14012
 1
Unlock 2Open 3Lock
To open the glove box door, push the button. To lock the
glove box door, insert the mechanical key and turn it
clockwise.
With the tail lights on, the glove box light will come on.
CAUTION
To reduce the chance of injury in case of an accident or
a sudden stop, always keep the glove box door closed
while driving.
