2006 Lexus GS430 display

TOUCH SCREEN
237

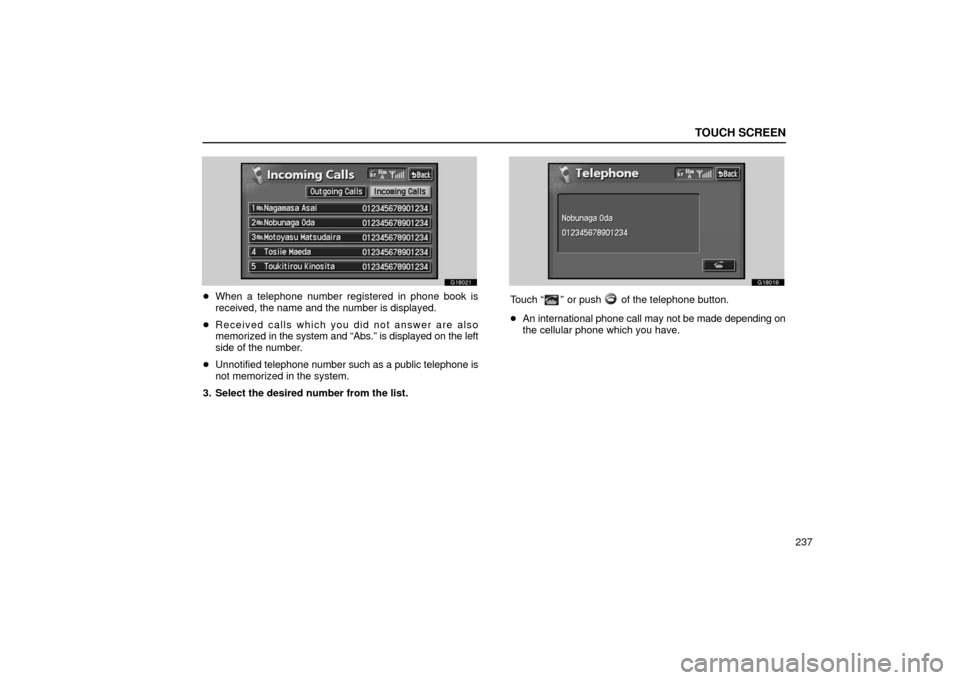

G18021
When a telephone number regi stered in phone book is
received, the name and the number is displayed.
 Received calls which you did not answer are also
memorized in the system and “Abs.” is displayed on the left
side of the number.
 Unnotified telephone number such as a public telephone is
not memorized in the system.
3. Select the desired number from the list.
G18019
Touch “” or push of the telephone button.
 An international phone call may not be made depending on
the cellular phone which you have.

TOUCH SCREEN
238By one touch call—
You can call by registered telephone number which you
selected
from a phone book, dialed numbers and received
calls. (See page 244 for registering the one touch dial.)
G18008
1. Touch the “1touch Dial” switch to display “1touch
Dial” screen.
G18022
2. Touch the desired number to call. You can change the
page by touching “1touch Dial 2” or “1touch Dial 3”.\
When you push the telephone button while you are driving, the
screen above appears. Touch the desired name to call. (The
telephone number is not displayed.)
By POI call—
You can call by operating a switch when “Call” is
displayed on the screen from Navigation system. (See the
Navigation System Owner’s Manual.)

TOUCH SCREEN
239
(e) Receiving on the Bluetooth phone
G18023
When a call is received, this screen is displayed with a
sound. Touch “
” or push of the telephone button
to talk on the phone.
To hang up the phone:
Touch “
” or push of the telephone button again.
To refuse to receive the call: Touch “
” and hold it.
To adjust the volume of received call: Touch “–” or “+”.
On the international phone call, the party’s name may not be
displayed correctly depending on the cellular phone which you
have. (f) Talking on the Bluetooth phone
G18024
While you are talking on the phone, this screen is
displayed. You
can do the operation below on the screen.
To adjust the volume of the party’s voice: Touch “–” or “+” switch.
To hang up the phone: Touch the “
” switch or push of the telephone
button.
To mute your voice: Touch the “Mute ON” switch.
To input the Key: Touch the “0 −9” switch.

TOUCH SCREEN
240

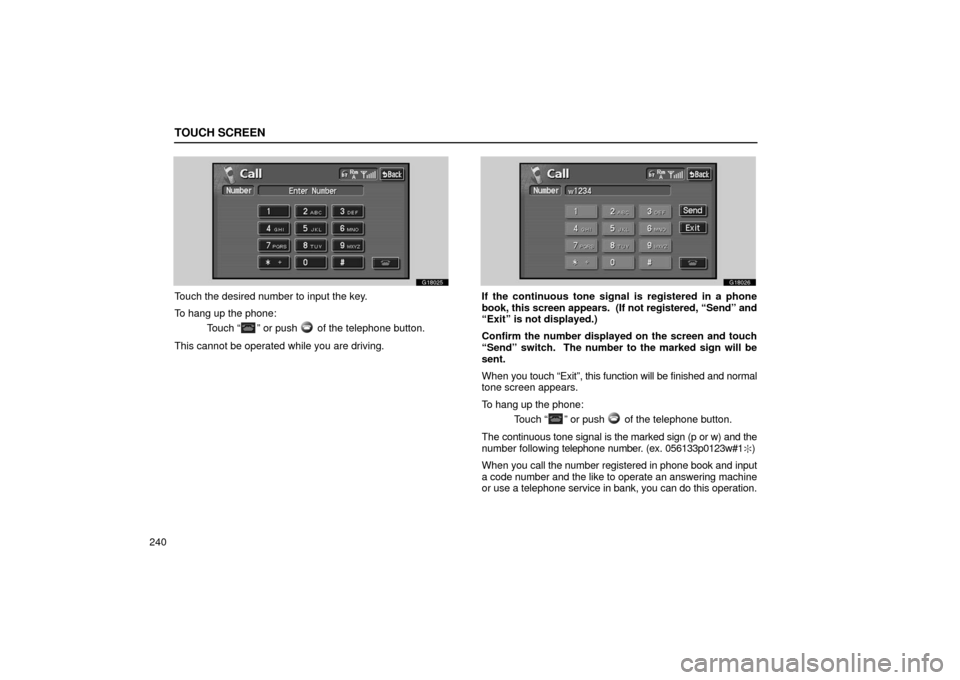

G18025
Touch the desired number to input the key.
To hang up the phone:Touch “
” or push of the telephone button.
This cannot be operated while you are driving.
G18026
If the continuous tone signal is registered in a phone
book, this screen appears. (If not registered, “Send” and
“Exit” is not displayed.)
Confirm the number displayed on the screen and touch
“Send” switch. The number to the marked sign will be
sent.
When you touch “Exit”, this function will be finished and normal
tone screen appears.
To hang up the phone:
Touch “
” or push of the telephone button.
The continuous tone signal is the marked sign (p or w) and the
number following tel ephone number. (ex. 056133p0123w#1

)
When you call the number registered in phone book and input
a code number and the like to operate an answering machine
or use a telephone service in bank, you can do this operation.

TOUCH SCREEN
241
(g) Changing the settings of the Bluetooth phone
G18008
Touch the “Settings” switch to display “Settings” screen.
G18009
You can change the settings of the phone.

TOUCH SCREEN
242To change the phone book—
The system has two phone books. You can select either
phone book.
G18009
Touch the “Phone Book 1” or “Phone Book 2” switch.
To transfer the telephone number—
You can
transfer the telephone numbers in your Bluetooth
phone to the system. Up to 500 numbers can be registered
in one phone book.
Transfer it while the engine is running.
G18009
1. Touch the “Start Transfer” switch to display “Data
Transfer” screen.

TOUCH SCREEN
249
Language
You can select the language shown on the screen.
1. Push the “INFO” button on the bezel to display the
“Information Menu” screen.
G18045
2. Touch the “Language” switch.
G18041
3. Touch the desired switch to select the language.
When you select the language, touch “OK”.

TOUCH SCREEN
250
Setting screen
1. Push the “INFO” button on the bezel to display the
“Information Menu” screen.
G18045
2. Touch the “Screen Setting” switch.(a) Automatic transition
You can select a function that enables automatic return to
the navigation screen from the audio screen.
G18035
Select the “ON” or “OFF” and then touch the “OK”.
ON: The navigation screen automatically returns from the
audio or air conditioning screen 20 seconds after the end of
audio or air conditioning screen operation.
OFF: The audio or air conditioning screen remains on.
