2006 Lexus ES330 Control

SECTION 1 – 7
clxxii
INSTRUMENTS AND CONTROLS
Steering wheel and mirrors
Tilt steering columnclxxiii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power adjustable pedals clxxiii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Outside rear view mirrors clxxiv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Inside rear view mirror clxxvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors clxxxii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .

STEERING WHEEL AND MIRRORS
clxxv
When you push the rear window and outside rear view mirror
defogger switch, the heater panels in the outside rear view
mirrors
will quickly clear the mirror surface. (See “Rear window
and outside rear view mirror defogger switch” on page xliv.)
CAUTION
 Do not adjust the mirror while the vehicle is moving.
Doing so may cause the driver to mishandle the
vehicle and an accident may occur resulting in death
or serious injuries.
 Since the mirror surfaces can get hot, do not touch
them when the rear window and outside rear view
mirror defogger switch is on.
Power rear view mirror control
1Control switch2Master switch
To adjust the power rear view mirror, first place the master
switch at “L” (left) or “R” (right), and push the contro\
l
switch on the desired side.
The power rear view mirror can be adjusted when the key is in
the “ACC” or “ON” position.

STEERING WHEEL AND MIRRORS
clxxviVehicles with driving position memory system —
When
the automatic transmission selector lever is shifted
into the “R” position with the master switch in the “L” or
“R” position, the rear view mirrors automatically down to
help backing up.
The mirrors return to the previous position in the following
operations.
 Shift the transmission lever out of the “R” position.
 Place the master switch in the neutral position.
NOTICE
If ice should jam the mirror, do not operate the control
or scrape the mirror face. Use a spray deicer to free the
mirror.
Folding rear view mirrors
To fold the rear view mirror, push backward.
The rear view mirrors can be folded backward for parking in
compact areas.
CAUTION
Do not drive with the mirrors folded backward. Both the
driver and passenger side rear view mirrors must be
extended and properly adjusted before driving.

SECTION 2 – 1
clxxxiv
AIR CONDITIONING AND AUDIO
Air conditioning
Automatic air conditioning controlsclxxxv
. . . . . . . . . . . . . . . . . . . . . . .

AIR CONDITIONING
clxxxv
AUTOMATIC AIR CONDITIONING CONTROLS

AIR CONDITIONING
clxxxviThe automatic air conditioning automatically maintains
the set temperature.
In the automatic operation mode, the air conditioning selects
the most suitable fan speed, air flow, air intake and on−
off the
air conditioning according to the temperature.
The ignition key must be in the “ON” position.
NOTICE
To prevent the battery from being discharged, do not
leave the air conditioning on longer than necessary
when the engine is not running.
1“TEMP” (driver side temperature control) button
2Driver side temperature display (in degrees
Fahrenheit or Centigrade)
3Fan speed display
4Outside temperature display
5Air flow display
6Passenger side temperature display (in degrees
Fahrenheit or Centigrade)
7“PASSENGER TEMP” (passenger side temperature
control) button
8“DUAL” (temperature setting mode change) button
9Windshield air flow button
10“MODE”(air flow control) button
11Air intake control button
12Fan speed control button
13“OFF” button
14“AUTO” button
15“A/C” button

AIR CONDITIONING
clxxxviii

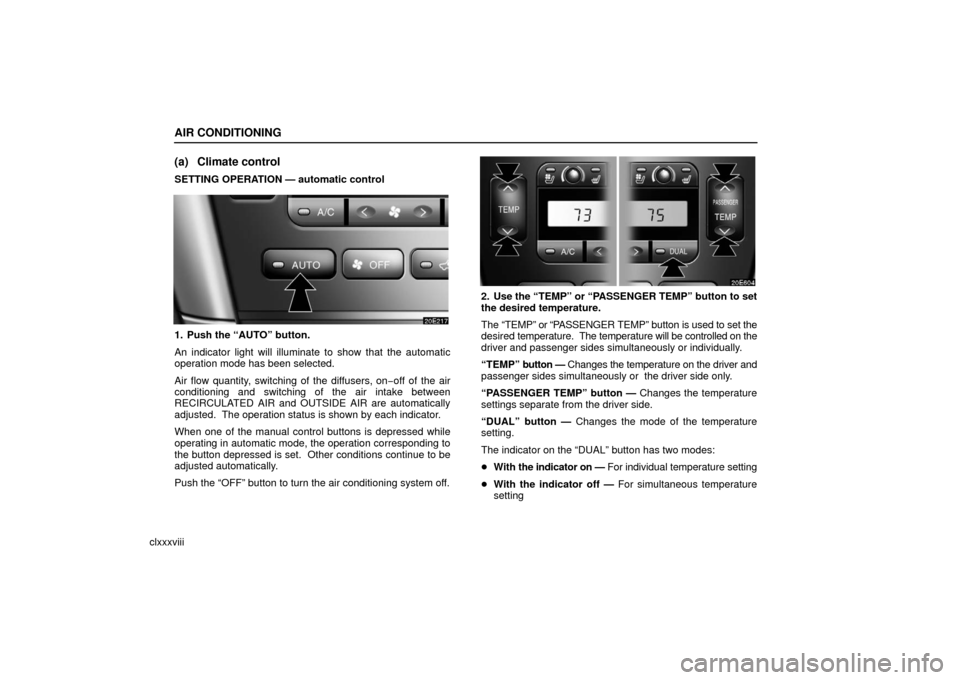

(a) Climate control
SETTING OPERATION — automatic control
1. Push the “AUTO” button.
An indicator light will illuminate to show that the automatic
operation mode has been selected.
Air flow quantity, switching of the diffusers, on−off of the air
conditioning and switching of the air intake between
RECIRCULATED AIR and OUTSIDE AIR are automatically
adjusted. The operation status is shown by each indicator.
When one of the manual control buttons is depressed while
operating in automatic mode, the operation corresponding to
the button depressed is set. Other conditions continue to be
adjusted automatically.
Push the “OFF” button to turn the air conditioning system off.
2. Use the “TEMP” or “PASSENGER TEMP” button to set
the desired temperature.
The “TEMP” or “PASSENGER TEMP” button is used to set the
desired temperature. The temperature will be controlled on the
driver and passenger sides simultaneously or individually.
“TEMP” button — Changes the temperature on the driver and
passenger sides simultaneously or the driver side only.
“PASSENGER TEMP” button — Changes the temperature
settings separate from the driver side.
“DUAL” button — Changes the mode of the temperature
setting.
The indicator on the “DUAL” button has two modes:
 With the indicator on — For individual temperature setting
 With the indicator off — For simultaneous temperature
setting

AIR CONDITIONING
clxxxix
20E396
Driver side setting
Passenger side setting
Mixed settingSETTING OPERATION — manual control
When one of the manual control buttons is depressed
while operating in automatic mode, the mode relevant to
the depressed button is set. Other conditions continue to
be adjusted automatically.
If manual air flow selection is desired —
The outlets from which air is delivered can be selected
manually by
pushing the button. The function of each mode is
as follows:
1Panel — Air flows mainly from the instrument panel vents.
2Bilevel — Air flows from both the floor vents and the
instrument panel vents.
3Floor — Air flows mainly from the floor vents.
4Floor/Windshield — Air flows mainly from the floor vents
and windshield vents.
