2006 Lexus ES330 Control

SWITCHES
xlvii

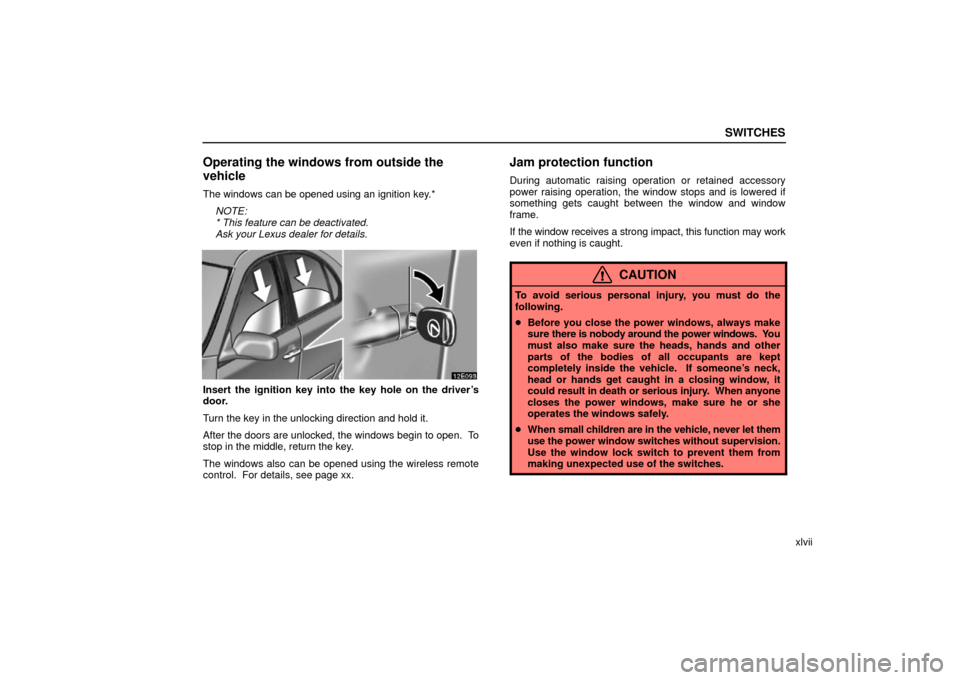

Operating the windows from outside the
vehicle
The windows can be opened using an ignition key.*NOTE:
* This feature can be deactivated.
Ask your Lexus dealer for details.
Insert the ignition key into the key hole on the driver’s
door.
Turn the key in the unlocking direction and hold it.
After the doors are unlocked, the windows begin to open. To
stop in the middle, return the key.
The windows also can be opened using the wireless remote
control. For details, see page xx.
Jam protection function
During automatic raising operation or retained accessory
power raising operation, the window stops and is lowered if
something gets caught between the window and window
frame.
If the window receives a strong impact, this function may work
even if nothing is caught.
CAUTION
To avoid serious personal injury, you must do the
following.
Before you close the power windows, always make
sure t here is nobody around the power windows. You
must also make sure the heads, hands and other
parts of the bodies of all occupants are kept
completely inside the vehicle. If someone’s neck,
head or hands get caught in a closing window, it
could result in death or serious injury. When anyone
closes the power windows, make sure he or she
operates the windows safely.
 When small children are in the vehicle, never let them
use the power window switches without supervision.
Use the window lock switch to prevent them from
making unexpected use of the switches.

SECTION 1 – 3
liv
INSTRUMENTS AND CONTROLS
Gauges, meters and service reminder
indicators
Fuel gaugelv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . .
Engine coolant temperature gauge lvi
. . . . . . . . . . . . . . . . . . . . . . . . . .
Tachometer lvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . .
Odometer and trip meter lvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Service reminder indicators and warning buzzers lviii
. . . . . . . . . . . . .
Multi−information display lxviii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Instrument panel light control lxxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

GAUGES, METERS AND SERVICE REMINDER INDICATORS
lvi
ENGINE COOLANT
TEMPERATURE GAUGE
 Normal range
The gauge indicates the engine coolant temperature when
the ignition switch is on. The engine operating
temperature will vary with changes in weather and engine
load.
If the needle points to the red zone or higher, stop your vehicle
and allow the engine to cool. Your vehicle may overheat during severe operating conditions,
such as:

Driving up a long hill on a hot day.
 Reducing speed or stopping after high speed driving.
 Idling for a long period with the air conditioning on in
stop−and−go traffic.
 Towing a trailer.
NOTICE
Do not remove the thermostat in the engine cooling
system as this may cause the engine to overheat. The
thermostat is designed to control the flow of coolant
to keep the temperature of the engine within the
specified operating range.
 Do not continue driving with an overheated engine.
See “If your vehicle overheats” on page cccviii.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
lxiv
(i) Malfunction Indicator Lamp
This lamp comes on when the ignition key is turned to the
“ON” position and goes off after the engine starts. This
means that the warning light system is operating properly.
If the lamp remains on, or the lamp comes on while driving,
first check the followings.
 Empty fuel tank
If the fuel tank is empty, refuel immediately.
 Loose fuel tank cap
If the fuel tank cap is loose, securely tighten it.
These cases are temporary malfunctions. The malfunction
indicator lamp will go off after taking several driving trips.
If the lamp does not go off even after several trips, contact your
Lexus dealer as soon as possible.
If the fuel tank is not empty or the fuel tank cap is not
loose...
 There is a problem somewhere in the engine, emission
control system, electronic throttle control system, automatic
transmission electrical system or warning light system itself.
Contact your Lexus dealer as soon as possible to service the
vehicle.
If engine speed does not increase when the accelerator pedal
is depressed, there may be a problem somewhere in the
electronic throttle control system. At this time, vibration may occur. However, if you depress the
accelerator pedal more firmly and slowly, you can drive your
vehicle at low speeds. Have your vehicle checked by your
Lexus dealer as soon as possible.
Even if the abnormality of the electronic throttle control system
is corrected during low speed driving, the system may not be
recovered until the engine is stopped and the ignition key is
turned to the “ACC” or “LOCK” position.
CAUTION
Be especially careful to prevent erroneous pedal
operation.
Emissions Inspection and Maintenance (I/M) programs
Your vehicle may not pass a state emission inspection if the
malfunction indicator lamp remains on. Contact your Lexus
dealer to check your vehicle’s emission control system and
OBD (On−Board Diagnostics) system before taking your
vehicle for the inspection.
For details, see “Emissions Inspection and Maintenance (I/M)
programs” on page cccxxxvi.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
lxv
(j) “ABS” Warning Light
Vehicles without vehicle stability control system —
The light comes on with the ignition key turned to the “ON”
position. If the anti−lock brake system works p roperly, the light
turns off after a few seconds. Thereafter, if the system
malfunctions, the light comes on again.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate, but the brake system still operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.
If either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light. Contact your Lexus dealer as soon
as possible to service the vehicle.
 The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the antilock brake system will fail
but also the vehicle will become extremely unstable
during braking.
Vehicles with vehicle stability control system —
The light comes on with the ignition key turned to the “ON”
position. If the anti−lock brake system and the brake assist
system work properly, the light turns off after a few seconds.
Thereafter, if the system malfunctions, the light comes on
again.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti −lock brake system, the brake
assist system, the traction control system and the vehicle
stability control system do not operate, but the brake system
still operates conventionally.
When the “ABS” warning light is on (and the brake system
warning light is off), the anti−lock brake system does not
operate so that the wheels could lock up during a sudden
braking or braking on slippery road surfaces.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
lxviIf either of the following conditions occurs, this indicates
a malfunction somewhere in the components monitored
by the warning light. Contact your Lexus dealer as soon
as possible to service the vehicle.

The light does not come on when the ignition key is turned
to the “ON” position, or remains on.
 The light comes on while you are driving.
A warning light turning on briefly during operation does not
indicate a problem.
CAUTION
If the “ABS” warning light remains on together with the
brake system warning light, immediately stop your
vehicle at a safe place and contact your Lexus dealer.
In this case, not only the antilock brake system will fail
but also the vehicle will become extremely unstable
during braking.
(k) Open Door Warning Light
This light remains on until all the doors are completely closed.
(l) Rear Light Failure Warning Light
If this light comes on when the headlight switch is turned on (at
the first or second clickstop), it indicates that one or more of the
tail lights are burned out.
If it comes on when the brake pedal is depressed, one or more
stop lights are burned out.
Have defective bulbs replaced as soon as possible.
(m) Vehicle Stability Control System/Traction
Control System Warning Light
This light warns that there is a problem somewhere in the
vehicle stability control system or traction control system.
The light will come on when the ignition key is turned to “ON”
and will go off after a few seconds.
If the light comes on while driving, the system does not work.
However, as conventional braking operates when applied,
there is no problem to continue your driving.
In the following cases, contact your Lexus dealer:
The warning light does not come on after the ignition key is
turned to “ON”.
 The warning light remains on after the ignition key is turned
to “ON”.
 The warning light comes on while driving.
The “TRAC OFF” indicator light will come on when the “VSC”
warning light comes on even if the “TRAC OFF” switch is not
pushed.

GAUGES, METERS AND SERVICE REMINDER INDICATORS
lxxi
INSTRUMENT PANEL LIGHTCONTROL
To adjust the brightness of the instrument panel lights,
turn the dial.
With the dial turned fully up, the intensity of the instrument
panel lights will not be reduced when the headlight switch is on.
If the instrument panel light control dial is turned fully down, the
foot lights will turn off.

Finish
SECTION 1 – 4
lxxii
INSTRUMENTS AND CONTROLS
Interior equipment
Sun visorslxxiii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Interior light lxxiii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Personal lights lxxiv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Illuminated entry system lxxiv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Clock lxxvi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . .
Cigarette lighter and ashtray lxxvi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Power outlet lxxvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Glove box lxxviii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . .
Rear console box lxxix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. .
Garage door opener lxxx
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Cupholders lxxxv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . .
Overhead console box lxxxvi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auxiliary boxes lxxxvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . .
Trunk storage extension lxxxviii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Floor mat lxxxviii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . .
Grocery bag hook lxxxix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
.
Coat hooks xc
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . .
Rear electric sunshade xc
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Tie −down hooks xci
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . .
