PICTORIAL INDEX
viPage
1Tachometer
lvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2Traction control system off indicator light cclxxiv .
3Vehicle stability control system/traction control
system warning light lxvi. . . . . . . . . . . . . . . . . . . . . . . .
4Tail light indicator light xxxv
. . . . . . . . . . . . . . . . . . . . .
5Headlight high beam indicator light xxxviii . . . . . . . .
6Turn signal indicator light xxxviii
. . . . . . . . . . . . . . . . .
7Fog light indicator light xxxix
. . . . . . . . . . . . . . . . . . . . .
8Cruise control indicator light cclxix
. . . . . . . . . . . . . .
9Slip indicator light cclxxiii, cclxxvi
. . . . . . . . . . . . . . .
10Automatic headlight leveling system
warning light lxvii . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
11Low fuel level warning light lxvii
. . . . . . . . . . . . . . . . . .
12Automatic transmission indicator lights cclxiii . . . .
13Engine coolant temperature gauge lvi
. . . . . . . . . . . . . Page
14Odometer and trip meter
lvii
. . . . . . . . . . . . . . . . . . . . .
15Trip meter reset knob lvii
. . . . . . . . . . . . . . . . . . . . . . . .
16Fuel gauge lv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
17Low washer fluid warning light lxvii
. . . . . . . . . . . . . . .
18Low engine oil level warning light lxiii
. . . . . . . . . . . .
19Multiinformation display lxviii
. . . . . . . . . . . . . . . . . . .
20Rear light failure warning light lxvi
. . . . . . . . . . . . . . .
21Low engine oil pressure warning light lxii
. . . . . . . . .
22Brake system warning light lx
. . . . . . . . . . . . . . . . . . . .
23Antilock brake system warning light lxv
. . . . . . . . . .
24Driver’s seat belt reminder light lxi
. . . . . . . . . . . . . . . .
25Charging system warning light lxii
. . . . . . . . . . . . . . . .
26SRS warning light lxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . .
27Open door warning light lxvi
. . . . . . . . . . . . . . . . . . . . .
28Malfunction indicator lamp lxiv
. . . . . . . . . . . . . . . . . .

PICTORIAL INDEX
vii

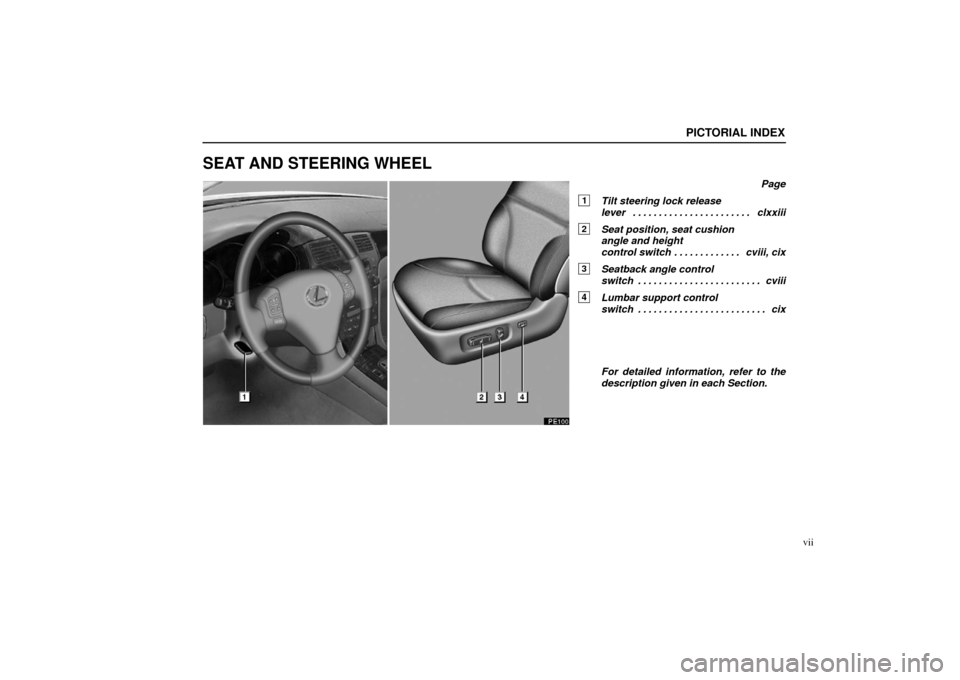

SEAT AND STEERING WHEEL
Page
1Tilt steering lock release
lever clxxiii. . . . . . . . . . . . . . . . . . . . . . .
2Seat position, seat cushion
angle and height
control switch cviii, cix . . . . . . . . . . . . .
3Seatback angle control
switch cviii. . . . . . . . . . . . . . . . . . . . . . . .
4Lumbar support control
switch cix. . . . . . . . . . . . . . . . . . . . . . . . .
For detailed information, refer to the
description given in each Section.

SECTION 1 – 1
x
INSTRUMENTS AND CONTROLS
Keys and doors
Keysxi
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . . . . . . . . . . . .
Engine immobilizer system xv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Wireless remote control xvii
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Doors xxiv
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . . . . .
Theft deterrent system xxix
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

KEYS AND DOORS
xvii
WIRELESS REMOTE CONTROL
1Locking the doors and sounding an alarm
2Indicator light
3Unlocking the trunk lid
4Unlocking the doors
When you operate any button on the key, push it slowly and
surely. At this time, the indicator light on the key grip flashes
once.
The operational range of the wireless remote control is
approximately 1 meter (3 ft.). The effective range may vary
with different conditions. To activate the wireless remote
control without fail, do it approximately 1 meter (3 ft.) from your
Lexus. In the following cases, the battery in the key may be
discharged. If this is the case, replace it using a special
screwdriver.

The remote control does not work.
 The operational range of wireless remote control becomes
extremely short.
 The indicator light on the key is dimmed or does not come
on.
For the replacement of the battery, see “Replacing the battery”
on page xxii. You can also have the battery of the key replaced
by your Lexus dealer.
If you lose the wireless key, contact your Lexus dealer as soon
as possible to avoid the possibility of theft, or an accident. (See
“If you lose your keys or lock yourself out” on page cccxxviii.)
You can use up to 4 wireless remote control keys for the same
vehicle. Contact your Lexus dealer for detailed information.
The wireless remote control key is an electronic
component. Observe the following instructions in order
not to cause damage to the key.
 Do not leave the wireless remote control key in places
where the temperature becomes high such as on the
dashboard.
 Do not disassemble it.
 Avoid knocking it hard against other objects or dropping it.
 Avoid putting it in water.

KEYS AND DOORS
xxvi
Locking with power door lock switch
1Lock2Unlock
To lock all the doors simultaneously, push the power door
lock switch down on the front side. Pushing down on the
rear side will unlock them.
The same switch is also located on the front passenger’s side. If you do any of the following,
no door can be unlocked with the
power door lock switch.
 Lock all the doors with the key or wireless remote control
when all the doors are closed.
 Open the driver’s door or front passenger’s door and move
the inside lock buttons of both front doors to the lock
position, then close the front doors.
The power door lock switch can be reset in the following ways.
 Turn the ignition key to the “ON” position.
 Unlock all the doors with the key or wireless remote control.
 Unlock the driver’s door or front passenger’s door with the
inside lock button, and then unlock all the doors with the
power door lock switch.

KEYS AND DOORS
xxix
Locking with rear door childprotector
1Unlock2Lock
Whenever small children are in the vehicle, lock the rear
door so that it does not open by the inside door handle.
To do this, move the lever to the lock position as shown on
the label next to the lever.
THEFT DETERRENT SYSTEM
To deter theft of the vehicle, this system is designed to
sound an alarm if any of the doors, trunk or hood is
forcibly unlocked or the battery terminal is disconnected
and then reconnected while the vehicle is locked.
The alarm blows the horn intermittently and flashes the
headlights, tail lights and turn signal lights.
Further more when the interior light switch is in the “DOOR”
position, the interior light turns on.
After the alarm is activated, when you unlock any door using
an ignition key or wireless remote control, the tail lights turn on
for about 2 seconds to inform you that the system was
activated.

KEYS AND DOORS
xxx
Security indicator light (type A)
Security indicator light (type B)
Setting the system
1. Turn the ignition key to the “LOCK” position and
remove it.
The engine immobilizer system causes the indicator light to
flash.
2. Close and lock all the doors, trunk and hood using an
ignition key or wireless remote control.
If you lock them with wireless remote control, the turn signal
lights flash once.
The flashing indicator light will remain on when all the doors,
trunk and hood are closed and locked.
3. After 30 seconds, the indicator starts flashing and the
system is set.
Cancelling the system
When you unlock any door or trunk using an ignition key
or wireless remote control, the system is cancelled.
If you unlock any door or trunk with wireless remote control, the
turn signal lights flash twice.

KEYS AND DOORS
xxxi
Activating the system
The alarm sounds for 60 seconds if any of the following are
operated:
Unlocking any door or trunk without using an ignition key or
wireless remote control
 Opening the hood forcibly
 Reconnecting the battery
If any door is unlocked and the ignition key is not in the ignition
switch during the alarm sounding, the door is automatically
locked.
To stop the alarm: Use either of the following methods.
 Unlock the door using an ignition key or wireless remote
control.
 Turn the ignition switch on.
Testing the system
1. Open all the windows.
2. Set the system as described above.
The front doors should be locked with the ignition key or
wireless remote control. Be sure to wait until the indicator light
starts flashing.
3. Unlock one of the doors from the inside.
The system should activate the alarm.
4. Unlock any of the doors with a key or the wireless
remote control to cancel the system.
5. Repeat this operation for the other doors and hood.
When testing the hood, also check that the system is activated
when the battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it checked by your
Lexus dealer.
NOTICE
Disconnecting the battery may result in the erasure of
information you have set in the computer memory. After
reconnecting the battery, check that the memorized
data has been retained. If it has been erased, input it into
the computer once more.
