2006 KIA Sportage Owner's Manual

Knowing your vehicle92
3
1
2
3
4
5
6
7
8
9
Center console storageThese compartments can be used to
store small items required by the
driver or front passenger.
Type A (if equipped)
To open either of the console storage
compartments, pull up on the locking
tab (
➀) or (
➁). To use the center console as arm-
rest, push the release button then it
rises.
To lower the center console, push
the release button and press it down.
Type B (if equipped)
To open the console storage com-
partment, pull up on the locking tab.
1KMA2165
1KMA2166
1KMA2190
➀
➁
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 92

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Glove boxThe glove box can be locked and
unlocked with a master key.
To open the glove box, make sure it
is unlocked, then pull the handle (
➀)
and the glove box will automatically
open (
➁). Close the glove box after
use.
✽ ✽ NOTICEDo not apply excessive force when
using the key in the glovebox lock.
Doing so may damage the parts.
Sunglass holder A sunglass storage compartment is
provided on the overhead console.
To open the sunglass holder, press
the cover and the holder will slowly
open. Place your sunglasses in the
compartment door with the lenses
facing out. Push to close.✽ ✽NOTICEMake sure the sunglass holder is
closed while driving.
1KMA2168
1KMA2164
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 93

Knowing your vehicle94
3
1
2
3
4
5
6
7
8
9
Cigarette lighterTo use the cigarette lighter, pull the
assembly cover out.
To operate the cigarette lighter, press
it in and release it. When it is heated,
it automatically pops out ready for
use.
If the engine is not running, the igni-
tion switch must be in the ACC posi-
tion for the lighter to operate.
✽ ✽
NOTICE Do not hold the lighter in after it is
already heated because it will
overheat.
 Only a genuine Kia lighter should be used in the cigarette lighter
socket. The use of plug-in acces-
sories (shavers, hand-held vacu-
ums, and coffee pots, for example)
may damage the socket or cause
electrical failure.
 If the lighter does not pop out within 30 seconds, remove it to
prevent overheating.
Ashtrays Front
To use the ashtray, pull the assembly
cover out.
To remove the ashtray to empty or
clean it, lift it upward and pull it out.
INTERIOR FEATURES
1KMA2159
1KMA2160
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 94

395
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Rear
You can open the rear ashtray by
pulling it out by its top edge. To
remove the ashtray to empty or clean
it, push the tab (
➀) inside and pull it
all the way out.
Cup holder
WARNING
- Ashtray use
 Do not use the vehicle’s ash- trays as waste receptacles.
 Putting lit cigarettes or match- es in an ashtray with other
combustible materials may
cause a fire.
1KMA2161
WARNING
- Hot liquids
 Do not place uncovered cups of hot liquid in the cup holder
while the vehicle is in motion.
If the hot liquid spills, you
could be burned. Such a burn
to the driver could cause a
loss of control of the vehicle.
 To reduce the risk of personal injury in the event of sudden
stop or collision, do not place
uncovered or insecure bot-
tles, glasses, cans, etc., in the
cup holder while the vehicle is
in motion.
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 95

Knowing your vehicle96
3
1
2
3
4
5
6
7
8
9
Front
Cups or small beverage cans may be
placed in the cup holders. Rear
To use the cup holders in rear seat,
pull the rear cup holder cover (
➀)
out. Push the cover to close after
use.
✽ ✽ NOTICE Do not place heavy cups or cans in
cup holders. Cup holders could be
damaged.
 Be careful not to step on the rear cup holder.
SunvisorUse the sunvisor to shield direct light
through the front or side windows.
To use a sunvisor, pull it downward.
To use a sunvisor for a side window,
pull it downward, unsnap it from the
bracket (
➀) and swing it to the side.
Adjust the sunvisor forward or back-
ward.
To use the vanity mirror, pull down
the visor and pull up the mirror cover
(
➁).
1KMA2171
1KMB2170
➀
1KMN2158
➀
➁
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 96

397
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICEClose the vanity mirror cover
securely and return the sunvisor to
its original position after use.
Power socketThe power outlets are designed to
provide power for mobile telephones
or other devices designed to operate
with vehicle electrical systems. The
devices should draw less than 10
amps with the engine running.
✽ ✽NOTICE Use when the engine is running,
and remove a plug from the power
outlet after using the electric
appliance. Using when the engine
stops or remaining the electric
appliance with plugged in for
many hours may cause the battery
to be discharged.
 Only use 12V electric appliances which are less than 10A in electric
capacity.
 Adjust the air-conditioner or heater to the lowest operating
level when you have to use the
power socket.
 Close the cover when not in use.
 Some electronic devices can cause electronic interference when
plugged into a vehicle’s power out-
let. These devices may cause exces-
sive audio static and malfunctions
in other electronic systems or
devices used in your vehicle.
1KMA21631KMB2162
FrontRear
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 97

Knowing your vehicle98
3
1
2
3
4
5
6
7
8
9

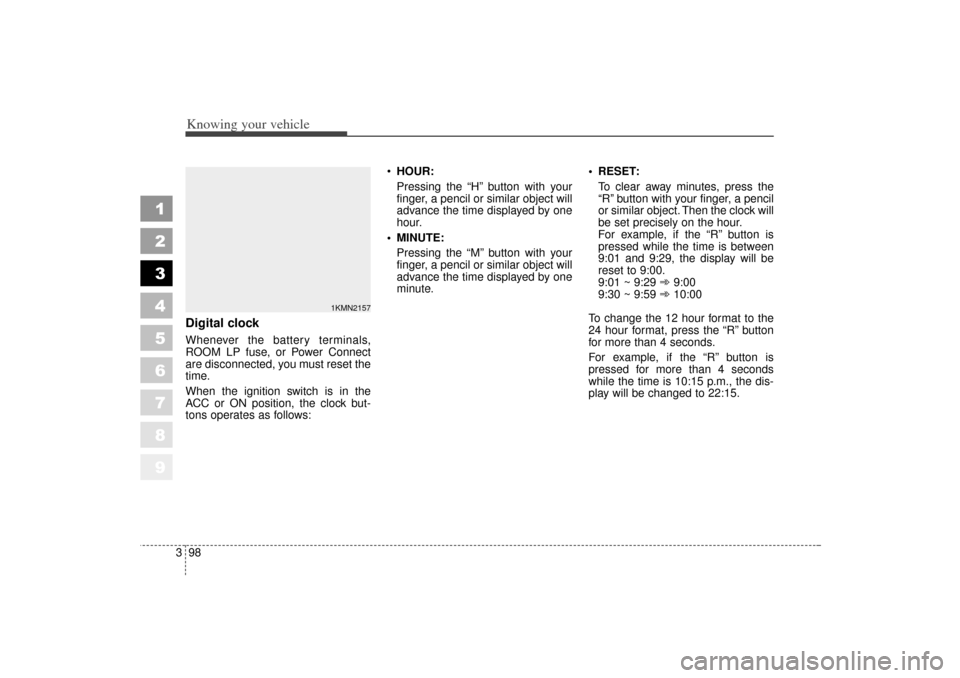

Digital clockWhenever the battery terminals,
ROOM LP fuse, or Power Connect
are disconnected, you must reset the
time.
When the ignition switch is in the
ACC or ON position, the clock but-
tons operates as follows:
HOUR:
Pressing the “H” button with your
finger, a pencil or similar object will
advance the time displayed by one
hour.
 MINUTE: Pressing the “M” button with your
finger, a pencil or similar object will
advance the time displayed by one
minute.  RESET:
To clear away minutes, press the
“R” button with your finger, a pencil
or similar object. Then the clock will
be set precisely on the hour.
For example, if the “R” button is
pressed while the time is between
9:01 and 9:29, the display will be
reset to 9:00.
9:01 ~ 9:29 ➾ 9:00
9:30 ~ 9:59 ➾ 10:00
To change the 12 hour format to the
24 hour format, press the “R” button
for more than 4 seconds.
For example, if the “R” button is
pressed for more than 4 seconds
while the time is 10:15 p.m., the dis-
play will be changed to 22:15.
1KMN2157
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 98

399
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Shopping bag holderFront
To use the holder, push the lower
portion.Rear
To use the holder, pull out the top
edge.
✽ ✽
NOTICE Do not hang a bag beyond 3 kg (7
lbs.). It may cause damage to the
shopping bag holder.
 Return it to the original position after using the shopping bag hold-
er.
1KMA2174
1KMA2173
KM CAN (ENG) 3 (55~)new.qxd 7/29/05 9:37 AM Page 99
