2006 KIA Spectra Owner's Manual

Knowing your vehicle86
3
1
2
3
4
5
6
7
8
9
✽ ✽
NOTICE• Make sure to refuel with gasoline
(unleaded fuel) only for the gaso-
line engine vehicles.
 Check to make sure the fuel filler cap is securely closed after refuel-
ing.
 If the fuel filler cap requires replacement, use only a genuine
Kia cap or the equivalent specified
for your vehicle. An incorrect fuel
filler cap can result in a serious
malfunction of the fuel system or
emission control system. Correct
replacement caps are available at
authorized Kia dealers.
 Do not spill fuel on the exterior surfaces of the vehicle. Any type of
fuel spilled on painted surfaces
may damage the paint.
 A loose fuel filler cap may cause the “Check Engine” (Malfunction
Indicator) light in the instrument
panel to illuminate unnecessarily.
 If the fuel filler lid will not open in cold weather because the area
around it is frozen, push or lightly
tap the lid.
(Continued)
 When refueling always shut
the engine off. Sparks pro-
duced by electrical compo-
nents related to the engine
can ignite fuel vapors causing
a fire. Always insure that the
engine is OFF before and dur-
ing refueling. Once refueling
is complete, check to make
sure the fuel filler cap and
door are securely closed,
before starting the engine.
 Do not light any fire around a gas station. DO NOT use
matches or a lighter and DO
NOT SMOKE or leave a lit cig-
arette in your vehicle while at
a gas station especially during
refueling. Automotive fuel is
highly flammable and can,
when ignited, result in explo-
sion by flames.
(Continued)
(Continued)
 If a fire breaks out during refu-eling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station or contact the police
and local fire department.
Follow any safety instructions
they provide.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 86

387
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Auto fuel cutoff switch (if equipped)The auto fuel cutoff switch is located
on the driver’s side of the engine
compartment. In the event of a colli-
sion or sudden impact, the auto fuel
cutoff device cuts off the fuel supply.
If this device is activated, it must be
reset by pressing in on the top of the
switch before the engine can be
restarted.
MIRRORS Outside rearview mirror Be sure to adjust mirror angles
before driving.
Your vehicle is equipped with both
left-hand and right-hand outside
rearview mirrors. The mirrors can be
adjusted remotely with the control
levers or remote switch, depending
on the type your vehicle has. The
mirror heads can be folded back to
prevent damage during an automatic
car wash or when passing in a nar-
row street.
✽ ✽NOTICEDo not scrape ice off the mirror
face; this may damage the surface of
the glass. If ice should restrict move-
ment of the mirror, do not force the
mirror for adjustment. To remove
ice, use a deicer spray, or a sponge
or soft cloth with very warm water.
CAUTION
 The right outside rearview
mirror is convex. Objects seen
in the mirror are closer than
they appear.
 Use your interior rearview mir- ror or direct observation to
determine the actual distance
of following vehicles when
changing lanes.
WARNING
Before resetting the auto fuel
cutoff switch, the fuel line
should be checked for fuel
leaks.
1LDA5002A
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 87

Knowing your vehicle88
3
1
2
3
4
5
6
7
8
9
Manual remote control
(if equipped)
To adjust an outside mirror, move the
control lever located at the forward
inside area of the window frame. Electric remote control
(if equipped)
The electric remote control mirror
switch allows you to adjust the posi-
tion of the left and right outside
rearview mirrors. To adjust the posi-
tion of either mirror, move the lever
(
➀) to R or L to select the right side
mirror or the left side mirror, then
press a corresponding point ( ) on
the mirror adjustment control to posi-
tion the selected mirror up, down, left
or right.
After adjustment, put the lever into
neutral position to prevent the inad-
vertent adjustment.
✽ ✽ NOTICE The mirrors stop moving when
they reach the maximum adjust-
ing angles, but the motor contin-
ues to operate while the switch is
depressed. Do not depress the
switch longer than necessary, the
motor may be damaged.
 Do not attempt to adjust the out- side rearview mirror by hands.
Doing so may damage the parts.
1LDN2080
➀
1LDA2081
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 88

389
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Folding the outside rearview
mirror
Manual type
To fold outside rearview mirror, grasp
the housing of mirror and then fold it
toward the rear of the vehicle.Outside rearview mirror heater
(if equipped)
The outside rearview mirror heater is
actuated in connection with the rear
window defroster. To heat the outside
rearview mirror glass, push the but-
ton for the rear window defroster.
The outside rearview mirror glass will
be heated for defrosting or defogging
and will give you improved rear
vision in inclement weather condi-
tions. Push the button again to turn
the heater off. The outside rearview
mirror heater automatically turns off
after 20 minutes.
Day/night rearview mirror Adjust the rearview mirror to center
on the view through the rear window.
Make this adjustment before you
start driving.
1LDA2083
CAUTION
Do not place objects in the rear
seat or cargo area which would
interfere with your vision out
the rear window.
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 89

Knowing your vehicle90
3
1
2
3
4
5
6
7
8
9
Manual type
Make this adjustment before you
start driving and while the day/night
lever is in the day position.
Pull the day/night lever toward you to
reduce glare from the headlights of
vehicles behind you during night
driving.
Remember that you lose some
rearview clarity in the night position. Electric type (if equipped)
When the engine is running, the
glare is automatically controlled by
the sensor mounted in the rearview
mirror. The sensor mounted in the
mirror senses the light level around
the vehicle, and through a chemical
reaction, automatically controls the
headlight glare from vehicles behind
you.
Whenever the shift lever is shifted
into reverse (R), the mirror will auto-
matically go to the brightest setting in
order to improve the drivers view
behind the vehicle.When the ignition switch is ON, the
automatic-dimming function will turn
on automatically.
Press the ON/OFF button(
➀) to turn
the automatic-dimming function off.
The mirror indicator light will turn off.
Press the ON/OFF button(➀) once
again to turn the automatic-dimming
function on. The mirror indicator light
will illuminate.
✽ ✽ NOTICEWhen cleaning the mirror, use a
paper towel or similar material
dampened with glass cleaner. Do not
spray glass cleaner directly on the
mirror as that may cause the liquid
cleaner to enter the mirror housing.
1LDA2078
Day
Night
Day/Night lever
1KMA3084
➀
Sensor
Indicator
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 90

391
1
2
3
4
5
6
7
8
9
Knowing your vehicle
Map light Front (if equipped)
The lights are turned ON or OFF by
pressing the corresponding switch.
Dome light (if equipped)
➀
OFF - The light stays off evenwhen a door is open.
➁
DOOR - The light turns on or offwhen a door is opened
or closed.
Interior light goes out
slowly if the door is
closed.
When a door is unlocked by the transmitter, interi-
or light stays on for 30
seconds as long as the
door is not opened.
➂
ON - The light turns on and stays on even when the doors are
all closed.
INTERIOR LIGHTS
1LDA21111LDA2112
1LDA2113
 TYPE A TYPE B
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 91

Knowing your vehicle92
3
1
2
3
4
5
6
7
8
9

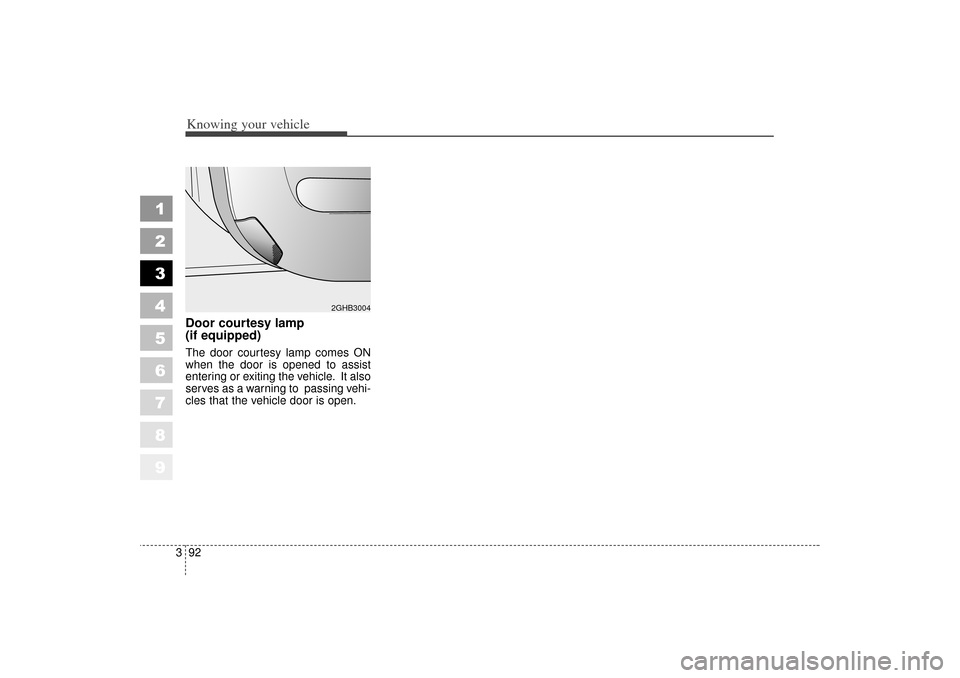

Door courtesy lamp
(if equipped)The door courtesy lamp comes ON
when the door is opened to assist
entering or exiting the vehicle. It also
serves as a warning to passing vehi-
cles that the vehicle door is open.
2GHB3004
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 92

393
1
2
3
4
5
6
7
8
9
Knowing your vehicle
✽ ✽NOTICE To avoid possible theft, do not
leave valuables in the storage com-
partment.
 Since stored items may move while driving, be sure to position them
in the storage compartment so
that they do not make noise or
cause a potential safety hazard
when the vehicle is moving.
 Always keep the storage compart- ment covers closed while driving.
Do not attempt to place many
items in the storage compartment
that the storage compartment
cover can not close securely.
Center console storageTo open either of the console storage
compartments, pull up on the locking
tab
➀
or
➁.
These compartments can be used to
store small items required by the
driver or front passenger.
STORAGE COMPARTMENT
WARNING
Do not store cigarette lighters,
propane cylinders, or other
flammable/explosive materials
in the vehicle. These items may
catch fire and/or explode if the
vehicle is exposed to hot tem-
peratures for extended periods.
1LDA2157
LD CAN (ENG) 3-84~.qxd 7/29/05 10:15 AM Page 93
