Immobilizer Indicator
When you turn the ignition key to the
ON position, if the IMMO indicator
goes off after blinking 6 times, this
indicates that the immobilizer system
is normal. However, if the IMMO indi-
cator remains on continuously after
blinking 6 times, this indicates that
the immobilizer system is out of order
and you cannot start the engine with-
out the limp home procedure. Refer
to the “Limp home procedure”on
page 3-4.Malfunction Indicator
The CHECK ENGINE or malfunction
indicator light is installed in your vehi-
cle’s instrument panel and responds
to signals from the vehicle’s On
Board Diagnostic (OBD -II) System.
The OBD-II System monitors the per-
formance of the vehicle’s Emission
Control System (ECS), which is
designed to reduce the amount of air
pollutants in engine exhaust to the
levels required by government regu-
lations.
When you first start the engine, the
check engine light will illuminate
briefly as a system check to confirm
that the OBD-II System is operating
properly. As the engine starts, this
light turns off. However, if at any time
the OBD-II system detects a faulty
signal or determines that the ECS is
not performing to specification, the
CHECK ENGINE light will illuminate
continuously or flash.Continuously ON :
If the CHECK ENGINE light comes
ON while driving and illuminates con-
tinuously, a potential problem has
been discovered in the ECS or one of
the exhaust system components.
Generally, the vehicle will continue to
be driveable but it should be checked
by an authorized Kia dealer as soon
as possible. This condition is unlikely
to lead to engine damage unless a
decrease in vehicle power or poor
running conditions is immediately
apparent.
Note that the CHECK ENGINE light
will illuminate for a problem like a
loose or missing gas cap, but will not
illuminate as a result of low engine oil
or coolant, low automatic transaxle
fluid or engine overheating. The driv-
er will be alerted to these conditions
by other indicators on the instrument
panel
DRIVING YOUR VEHICLE
4-49
CHECK
IMMO
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 49

Air Bag Warning
This warning light will blink for
approximately 6 seconds each time
you turn the ignition switch to the ON
position.
If this indicator does not do this or if it
illuminates while the vehicle is being
driven, see an Authorized Kia Dealer
for immediate service.
Auto Cruise Indicator
The indicator light illuminates when
the cruise control system is activated.
Front fog light indicator
(if equipped)
This light comes on when the front
fog lights are ON.4WD Indicator Light
(If equipped)
(Part Time 4WD Only)
When the key is turned to the “ON”
position, the 4WD indicator light will
come on and then go off in a few sec-
onds.
The 4WD indicator light will illuminate
when the transfer shift knob is set to
4HI position (Part time 4WD only).
4WD LOW Indicator Light
(If equipped)
When the key is turned to the “ON”
position, the 4WD Low indicator will
come on and then go off in a few sec-
onds. The 4WD Low indicator light
comes on when the transfer shift
knob is set to 4WD low position.
Part-time 4WD : 4LO position
Full-time 4WD : Low position
DRIVING YOUR VEHICLE4-50
CRUISE
4WD
LOW
CAUTION
 Prolonged driving with the On
Board Diagnostic System
Malfunction Indicator Light
( ) illuminated may cause
damage to the emission con-
trol systems which could
effect driveability and/or fuel
economy.
 If the On Board Diagnostic
System Malfunction Indicator
Light ( ) illuninates, poten-
tial catalytic converter dam-
age is possible which could
result in loss of engine power.
Have the On Board Diagnostic
System inspected as soon as
possible by an authorized Kia
dealer.
CHECK
CHECK
✽ ✽
NOTICEA loose fuel filler cap may cause the
On Board Diagnostic System
Malfunction Indicator Light ( )
in the instrument panel to illumi-
nate unnecessarily. Always make
sure that the fuel filler cap is tight.
CHECK
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 50

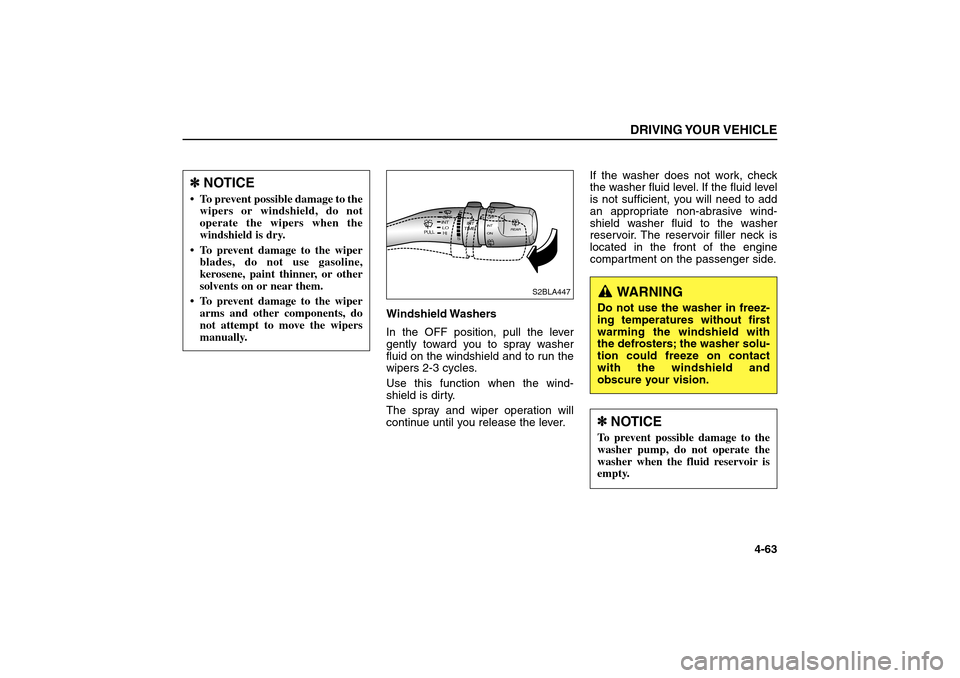

Windshield Washers
In the OFF position, pull the lever
gently toward you to spray washer
fluid on the windshield and to run the
wipers 2-3 cycles.
Use this function when the wind-
shield is dirty.
The spray and wiper operation will
continue until you release the lever.If the washer does not work, check
the washer fluid level. If the fluid level
is not sufficient, you will need to add
an appropriate non-abrasive wind-
shield washer fluid to the washer
reservoir. The reservoir filler neck is
located in the front of the engine
compartment on the passenger side.
DRIVING YOUR VEHICLE
4-63
HILO
O
N
INT
INT
OFF
OFF
FS
REAR
INT
TIME
PULL
S2BLA447
✽ ✽
NOTICE To prevent possible damage to the
wipers or windshield, do not
operate the wipers when the
windshield is dry.
 To prevent damage to the wiper
blades, do not use gasoline,
kerosene, paint thinner, or other
solvents on or near them.
 To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.
WARNING
Do not use the washer in freez-
ing temperatures without first
warming the windshield with
the defrosters; the washer solu-
tion could freeze on contact
with the windshield and
obscure your vision.✽ ✽
NOTICETo prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.
BL-ENG (CAN)-4.qxd 7/28/05 5:55 PM Page 63

EMISSION CONTROL
SYSTEMThe emissions control system of your
vehicle is covered by a written limited
warranty. Please see the warranty
information contained in the Warranty
and Consumer Information Manual in
your vehicle.
Vehicle Modifications
This vehicle should not be modified.
Modification of your Kia could affect
its performance, safety or durability
and may even violate governmental
safety and emissions regulations.
In addition, damage or performance
problems resulting from any modifi-
cation may not be covered under
warranty.Engine Exhaust Gas Precautions
(Carbon Monoxide)
 Carbon monoxide can be present
with other exhaust fumes.
Therefore, if you smell exhaust
fumes of any kind inside your vehi-
cle, have it inspected and repaired
immediately by an authorized Kia
dealer. If you ever suspect exhaust
fumes are coming into your vehicle,
drive it only with all the windows
fully open. Have your vehicle
checked and repaired immediately. Do not operate the engine in con-
fined or closed areas (such as
garages) any more than what is
necessary to move the vehicle in or
out of the area.
 When the vehicle is stopped in an
open area for more than a short
time with the engine running, adjust
the heating or cooling system (as
needed) to draw outside air into the
vehicle.
 Never sit in a parked or stopped
vehicle for any extended time with
the engine running.
 When the engine stalls or fails to
start, excessive attempts to re-start
the engine may cause damage to
the emission control system.
DRIVING TIPS
5-3
WARNING
Engine exhaust gases contain
carbon monoxide (CO). Though
colorless and odorless, it is dan-
gerous and could be lethal if
inhaled. Follow the instructions
following to avoid CO poisoning.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 3

TIPS ON DRIVING YOUR
VEHICLEBefore Entering Vehicle:
 Be sure that all windows, outside
mirror(s), and outside lights are
clean.
 Check the condition of the tires.
 Check under the vehicle for any
sign of leaks.
 Be sure there are no obstacles
behind you if you intend to back up.
Necessary Inspections
Fluid levels, such as engine oil,
engine coolant, brake/clutch fluid,
and washer fluid should be checked
on a regular basis, with the exact
interval depending on the fluid.
Further details are provided in the
“Maintenance” section.Before Starting
 Close and lock all doors.
 Position the seat so that all controls
are easily reached.
 Adjust the inside and outside
rearview mirrors.
 Be sure that all lights work.
 Check all gauges.
 Check the operation of warning
lights when the ignition switch is
turned to the ON position.
 Release the parking brake and
make sure the brake warning light
goes out.
For safe operation, be sure you are
familiar with your vehicle and its
equipment.
DRIVING TIPS
5-5
WARNING- Driving Under the
Influence of Alcohol or
Drugs
Drinking and driving is danger-
ous. Drunk driving is the num-
ber one contributor to the high-
way death toll each year. Even
a small amount of alcohol will
affect your reflexes, percep-
tions and judgement.
You are much more likely to
have a serious accident if you
drink and drive.
If you are drinking or taking
drugs, don’t drive. Do not ride
with a driver who has been
drinking or taking drugs.
Choose a designated driver or
call a cab.
Driving while under the influ-
ence of drugs is as dangerous
or more dangerous than driving
drunk.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 5

Driving in the Rain
Rain and wet roads can make driving
dangerous, especially if you’re not
prepared for the slick pavement. Here
are a few things to consider when
driving in the rain:
 A heavy rainfall will make it harder
to see and will increase the dis-
tance needed to stop your vehicle,
so slow down.
 Keep your windshield wiping equip-
ment in good shape. Replace your
windshield wiper blades when they
show signs of streaking or missing
areas on the windshield.
 If your tires are not in good condi-
tion, making a quick stop on wet
pavement can cause a skid and
possibly lead to an accident. Be
sure your tires are in good shape. Turn on your headlights to make it
easier for others to see you.
 Driving too fast through large pud-
dles can affect your brakes. If you
must go through puddles, try to
drive through them slowly.
 If you believe your brakes may have
become wet, apply them lightly
while driving until normal braking
operation returns.Winter Driving
 We recommend that you carry
emergency equipment, including
tire chains, a window scraper, wind-
shield de-icer, a bag of sand or salt,
flares, a small shovel and jumper
cables.
 Make sure you have sufficient eth-
ylene-glycol coolant in the radiator.
 Check the battery condition and
cables. Cold temperatures reduce
the capacity of any battery, so it
must be in excellent condition to
provide enough winter starting
power.
 Make sure the engine oil viscosity
is suitable for cold weather.
 Check the ignition system for loose
connections and damage.DRIVING TIPS5-10
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 10

 Use antifreeze-formulated wind-
shield washer fluid. (Do not use
engine coolant antifreeze.)
 Do not use the parking brake if it
might freeze. When parking, shift to
1 (First) or R (Reverse) with a man-
ual transmission or P (Park) with an
automatic transmission, and block
the rear wheels.Snow Tires
If you mount snow tires on your Kia,
make sure they are radial tires of the
same size and load range as the orig-
inal tires. Mount snow tires on all four
wheels to balance your vehicle’s han-
dling in all weather conditions. Keep
in mind that the traction provided by
snow tires on dry roads may not be
as high as your vehicle’s original
equipment tires. You should drive
cautiously even when the roads are
clear. Check with the tire dealer for
maximum speed recommendations.Do not install studded tires without
first checking local, provincial and
municipal regulations for possible
restrictions against their use.
DRIVING TIPS
5-11
WARNING- Snow Tire Size
Snow tires should be equivalent
in size and type to the vehicle’s
standard tires. Otherwise, the
safety and handling of your
vehicle may be adversely affect-
ed.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 11

USING FOUR-WHEEL DRIVEDriving on Snow- or Ice-Covered
Roads (“4HI, 4LO” for Part-time
4WD Operation or “AUTO” for
Full-time 4WD Operation)
 Use snow tires. See “Tires” in this
section for more information.
 Keep an adequate distance
between yourself and other vehi-
cles.
 Avoid sudden braking, acceleration
or steering. These actions can
cause your vehicle to lose traction.Driving in Sand or Mud (“4HI,
4LO” for Part-time 4WD Operation
or “AUTO” for Full-time 4WD
Operation)
 Avoid sudden braking, acceleration
or steering. These actions can
cause your vehicle to get stuck in
the sand or mud.
 Drive at low speeds whenever pos-
sible.
 You may need to get out of your
vehicle at times to check road con-
ditions.
 If you get stuck in the sand or mud,
try placing stones, wood or other
similar materials under the tires to
get traction, or move forward and
backward repeatedly to get
unstuck.DRIVING TIPS5-14
WARNING
- Traction
Make sure that no one stands in
front of or behind the tires when
materials are placed under the
tires to get more traction. The
tires may cause loose materials
to fly out from under the vehi-
cle, potentially causing serious
bodily injury or death.
✽ ✽
NOTICEProlonged rocking may cause
engine damage, overheating, trans-
mission differential or transfer case
damage or failure and tire damage.
BL-ENG (CAN)-5.qxd 7/28/05 5:56 PM Page 14
