2006 KIA AMANTI trunk release

10
23
1
2
3
4
5
6
7
8
9
Your vehicle at a glance
1. Rear door child safety lock
2. Fuel filler lid
3. Rear window
4. Trunk release lever and key lock
5. Spare tire
6. Outside rearview mirror
7. Tail lights
8. High mounted stop light
9. Door handle (driver)
10. Door handle (passenger)
11. Emergency trunk release lever
2GHN0002

10
Your vehicle at a glance42
1
2
3
4
5
6
7
8
9
INTERIOR OVERVIEW
1. Door lock/unlock button
2. Power window switches
3. Outside rearview mirror control switch
4. Seat adjust knob
5. Hood release lever
6. Parking brake pedal
7. Parking brake release lever
8. Instrument panel illumination
9. Steering wheel
10. Instrument cluster
11. Inside rearview mirror
12. Trunk release lever
13. Fuel filler lid release button
14. Seat
15. Master power door lock control
16. Master power window control lock
17. Brake pedal
18. Accelerator pedal
19. Vent controls
20. Steering wheel tilt
2GHN0005

33
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Restrictions in handling keysWhen leaving keys with parking lot
and valet attendants, the following
procedures will ensure that your
vehicle’s trunk and glove box com-
partment can not be opened in your
absence.1. Unlock the glove box with the mas-
ter key and open it.
2. Set the trunk lid control button in the glove box compartment to
OFF (not depressed). In the OFF
position, the trunk can not be
unlocked with either the trunk
release lever inside the car or
trunk open button of transmitter.
3. Close the glove box, and lock the glove box using the master key.
4. Leave the sub key with the atten- dant. Trunk and glove box are
secured because sub key only
allows engine start and door lock
and unlock.
CAUTION
Use only Kia original parts forthe ignition key in your vehicle.If an aftermarket key is used, theignition switch may not returnto ON after START. If this hap-pens, the starter will continue tooperate causing damage to thestarter motor and possible firedue to excessive current in thewiring.
1GHA2004

333
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Storing long/narrow cargo withtrunk closed (if equipped)Pull the armrest down using the
strap provided on the armrest. Pull
the cover down while pushing the
release lever down. Additional cargo
space is provided to accommodate
long/narrow cargo (skis, poles, lum-
ber, etc.) not able to fit properly in the
trunk when closed.
WARNING
To reduce the risk of head and
neck injuries, do not drive the
vehicle with the headrest
removed or improperly posi-
tioned.
1GHA2108
CAUTION
 Make sure the engine is off,
the transaxle is in P and theparking brake is appliedwhenever loading or unload-ing cargo. Vehicle may move ifshift lever is inadvertentlymoved to another position.
 Be careful when loading cargo
through the rear passengerseats to prevent damage tothe vehicle interior.
 When cargo is loaded through
the rear passenger seats,ensure the cargo is properlysecured to prevent it frommoving while driving.Unsecured cargo in the pas-senger compartment cancause damage to the vehicleor injury to its occupants.

385
1
2
3
4
5
6
7
8
910
Knowing your vehicle

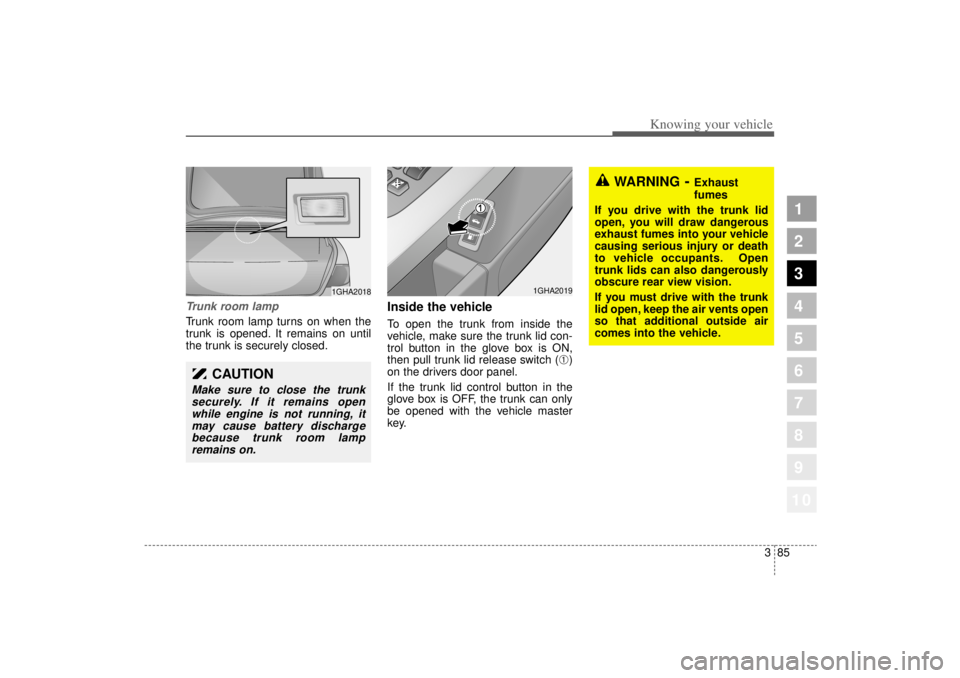

Trunk room lampTrunk room lamp turns on when the
trunk is opened. It remains on until
the trunk is securely closed.
Inside the vehicleTo open the trunk from inside the
vehicle, make sure the trunk lid con-
trol button in the glove box is ON,
then pull trunk lid release switch (
➀)
on the drivers door panel.
If the trunk lid control button in the
glove box is OFF, the trunk can only
be opened with the vehicle master
key.
WARNING
- Exhaust
fumes
If you drive with the trunk lid
open, you will draw dangerous
exhaust fumes into your vehicle
causing serious injury or death
to vehicle occupants. Open
trunk lids can also dangerously
obscure rear view vision.
If you must drive with the trunk
lid open, keep the air vents open
so that additional outside air
comes into the vehicle.
1GHA2018
CAUTION
Make sure to close the trunk securely. If it remains openwhile engine is not running, itmay cause battery dischargebecause trunk room lampremains on.
1GHA2019

Knowing your vehicle86
3
1
2
3
4
5
6
7
8
910

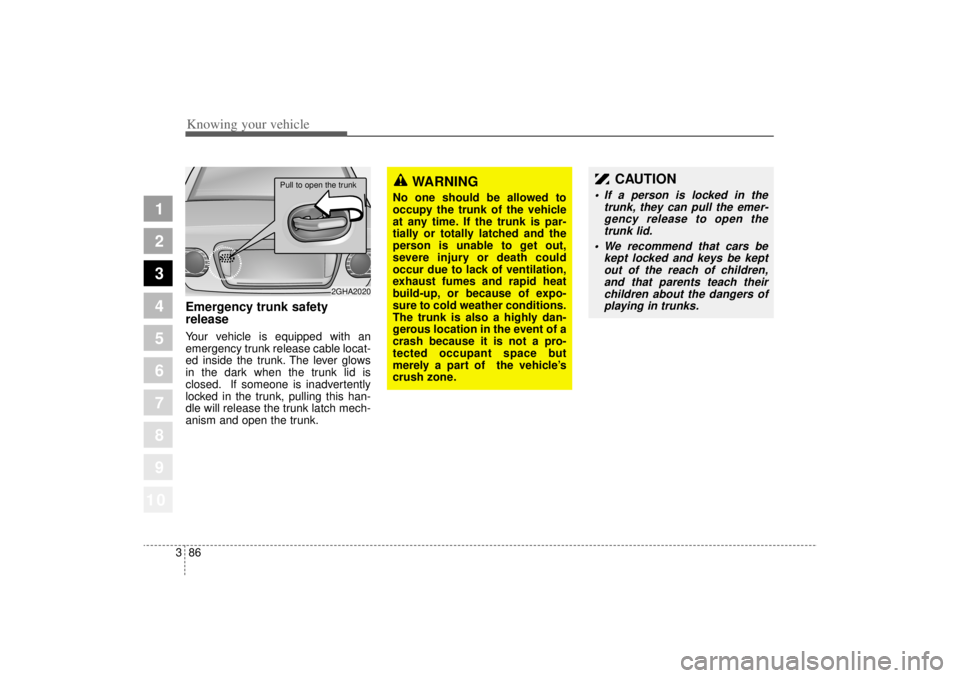

Emergency trunk safety
releaseYour vehicle is equipped with an
emergency trunk release cable locat-
ed inside the trunk. The lever glows
in the dark when the trunk lid is
closed. If someone is inadvertently
locked in the trunk, pulling this han-
dle will release the trunk latch mech-
anism and open the trunk.
2GHA2020
WARNING
No one should be allowed to
occupy the trunk of the vehicle
at any time. If the trunk is par-
tially or totally latched and the
person is unable to get out,
severe injury or death could
occur due to lack of ventilation,
exhaust fumes and rapid heat
build-up, or because of expo-
sure to cold weather conditions.
The trunk is also a highly dan-
gerous location in the event of a
crash because it is not a pro-
tected occupant space but
merely a part of the vehicle ’s
crush zone.
Pull to open the trunk
CAUTION
 If a person is locked in the
trunk, they can pull the emer-gency release to open thetrunk lid.
 We recommend that cars be
kept locked and keys be keptout of the reach of children,and that parents teach theirchildren about the dangers ofplaying in trunks.

387
1
2
3
4
5
6
7
8
910
Knowing your vehicle
Trunk lock systemThe trunk lid control button located in
the vehicle glove box is used to pre-
vent unauthorized access to the
trunk.
Trunk lockingTo activate the trunk lock system so
that the trunk can only be opened
with the master key, perform the fol-
lowing:
1. Open the glove box.
2. Set the trunk lid control button toOFF position (not depressed).
3. Close the glove box and lock the glove box with the master key.
When leaving the key with a parking
lot attendant or valet, perform steps
1 to 3 above and leave the sub key
with the attendent. Sub key can start
the engine and operate door locks
only.
Lock releaseTo release the trunk lock feature,
open the glove box with master key
and set the trunk lid control button to
ON position (depressed). In this
position the trunk will open with trunk
lid release switch or transmitter. The
trunk can never be opened with the
sub key.
1GHA2004

391
1
2
3
4
5
6
7
8
910
Knowing your vehicle
✽ ✽NOTICE• Make sure to refuel with gasoline
(unleaded fuel) only for the gaso-
line engine vehicles.
• Check to make sure the fuel filler cap is securely closed after refuel-
ing.
• If the fuel filler cap requires replacement, use only a genuine
Kia cap or the equivalent specified
for your vehicle. An incorrect fuel
filler cap can result in a serious
malfunction of the fuel system or
emission control system. Correct
replacement caps are available at
authorized Kia dealers.
• Do not spill fuel on the exterior surfaces of the vehicle. Any type of
fuel spilled on painted surfaces
may damage the paint.
• A loose fuel filler cap may cause the “Check Engine” (Malfunction
Indicator) light in the instrument
panel to illuminate unnecessarily.
• If the fuel filler lid will not open in cold weather because the area
around it is frozen, push or lightly
tap the lid.
When fuel filler lid does not open
with the release button1. Open the trunk.
2. Pull the emergency hook for fuel filler lid inside the trunk.
1GHA2022
(Continued)
Do not light any fire around a
gas station. DO NOT use
matches or a lighter and DO
NOT SMOKE or leave a lit cig-
arette in your vehicle while at
a gas station especially during
refueling. Automotive fuel is
highly flammable and can,
when ignited, result in explo-
sion by flames.
 If a fire breaks out during refu-
eling, leave the vicinity of the
vehicle, and immediately con-
tact the manager of the gas
station or contact the police
and local fire department.
Follow any safety instructions
they provide.
