2006 INFINITI QX56 warning

BL-76
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: November 20092006 QX56
System DescriptionEIS0060F
DESCRIPTION
Operation Flow

Setting the vehicle security system
Initial condition

Ignition switch is in OFF position.
Disarmed phase

When the vehicle is being driven or when doors or glass hatch is open, the vehicle security system is set
in the disarmed phase on the assumption that the owner is inside or near the vehicle.
Pre-armed phase and armed phase

The vehicle security system turns into the "pre-armed" phase when hood, glass hatch and all doors are
closed and locked by keyfob. The security indicator lamp illuminates for 30 seconds, then the system
automatically shifts into the "armed" phase.
Canceling the set vehicle security system
When one of the following operations is performed, the armed phase is canceled.
1. Unlock the doors with the key or the keyfob.
2. Open the power back door with the keyfob. When the power back door is closed after opening the power back door with the keyfob, the system returns to the armed phase.
Activating the alarm operation of the vehicle security system
Make sure the system is in the armed phase.
When one of the following operations is performed, the system sounds the horns and flashes the headlamps
for about 50 seconds.
1. Engine hood, glass hatch or any door is opened before unlocking door with key or keyfob.
7. BCM M18, M19, M20
(view with instrument panel LH
removed) 8. Horn E3
(view with grille removed) 9. Front door lock assembly LH (key
cylinder switch) D14
10. Main power window and door lock/ unlock switch D7, D8
Power window and door lock/unlock
switch RH D105 11. Front door switch
LH B8
RH B108 12. Rear door switch
LH B18
RH B116
13. Back door latch (door ajar switch) D503 Glass hatch ajar switch D707 14. Combination meter M24
15. Hood switch E8
16. RH headlamp
PIIA1367E

VEHICLE SECURITY (THEFT WARNING) SYSTEMBL-77
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
2. Door is unlocked without using key or keyfob.
3. Power back door is opened without using the keyfob.
POWER SUPPLY AND GROUND CIRCUIT
Power is supplied at all times

through 10A fuse [No.19, located in the fuse block (J/B)]

to combination meter (security indicator lamp) terminal 8 and

through 50A fusible link (letter f , located in the fuse and fusible link box)

to BCM terminal 70

through 15A fuse [No. 22, located in the fuse block (J/B)]

to BCM terminal 57

through 15A fuse (No. 25, located in the fuse and fusible link box)

to horn relay terminal 2

through 20A fuse (No. 52, located in the IPDM E/R) and

through 20A fuse (No. 53, located in the IPDM E/R),

to IPDM E/R internal CPU.
With the ignition switch in the ACC or ON position, power is supplied

through 10A fuse [No. 4, located in the fuse block (J/B)]

to BCM terminal 11.
Ground is supplied

to BCM terminal 67

through body grounds M57, M61 and M79 and

to IPDM E/R terminals 38 and 59

through body ground E9, E15 and E24.
INITIAL CONDITION TO ACTIVATE THE SYSTEM
The operation of the vehicle security system is controlled by the doors, hood and glass hatch.
To activate the vehicle security system, BCM must receive signals indicating the doors, hood and glass hatch
are closed and the doors are locked.
When a door is open, BCM terminal 12, 13, 42, 47 or 48 receives a ground signal from each door switch.
When front door LH is unlocked, BCM terminal 22 receives a signal from terminal 14 of main power window
and door lock/unlock switch.
When front door RH is unlocked, BCM terminal 22 receives a signal from terminal 16 of power window and
door lock/unlock switch RH or the rear power window switch LH or RH.
When the back door is open, BCM terminal 43 receives a ground signal

from terminal 7 of the back door latch (door ajar switch)

through body grounds B7 and B19.
When the glass hatch is open, BCM terminal 42 receives a ground signal

from terminal + of the glass hatch ajar switch

through glass hatch ajar switch case ground.
VEHICLE SECURITY SYSTEM ALARM OPERATION
The vehicle security system is triggered by

opening a door

opening the hood

opening the glass hatch

unlocking door without using the key or keyfob.
The vehicle security system will be triggered once the system is in armed phase,

when BCM receives a ground signal at terminals 12, 13, 47, 48 (door switch), terminal 42 (glass hatch ajar
switch) or terminal 43 [back door latch (door ajar switch)], or IPDM E/R terminal 41 (hood switch) receives
a ground signal.
Power is supplied at all times

to horn relay terminal 2

BL-78
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: November 20092006 QX56

through 15A fuse (No. 25, located in fuse and fusible link box).
When the vehicle security system is triggered, ground is supplied intermittently

from IPDM E/R terminal 45

to headlamp high relay and

to horn relay terminal 1.
The headlamps flash and the horn sounds intermittently.
The alarm automatically turns off after 50 seconds, but will reactivate if the vehicle is tampered with again.
VEHICLE SECURITY SYSTEM DEACTIVATION
To deactivate the vehicle security system, a door must be unlocked with the key or keyfob.
When the key is used to unlock the front door LH, BCM terminal 22 receives signal

from terminal 14 of the main power window and door lock/unlock switch.
When the BCM receives this signal or unlock signal from keyfob, the vehicle security system is deactivated.
(Disarmed phase)
PANIC ALARM OPERATION
Remote keyless entry system may or may not operate vehicle security system (horn and headlamps) as
required.
When the remote keyless entry system is triggered, ground is supplied intermittently

from IPDM E/R terminal 45

to headlamp high relay and

to horn relay terminal 1.
The headlamp flashes and the horn sounds intermittently.
The alarm automatically turns off after 25 seconds or when BCM receives any signal from keyfob.
CAN Communication System DescriptionEIS0060G
Refer to LAN-26, "CAN COMMUNICATION" .

VEHICLE SECURITY (THEFT WARNING) SYSTEMBL-79
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
SchematicEIS0060H
WIWA1311E

BL-80
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: November 20092006 QX56

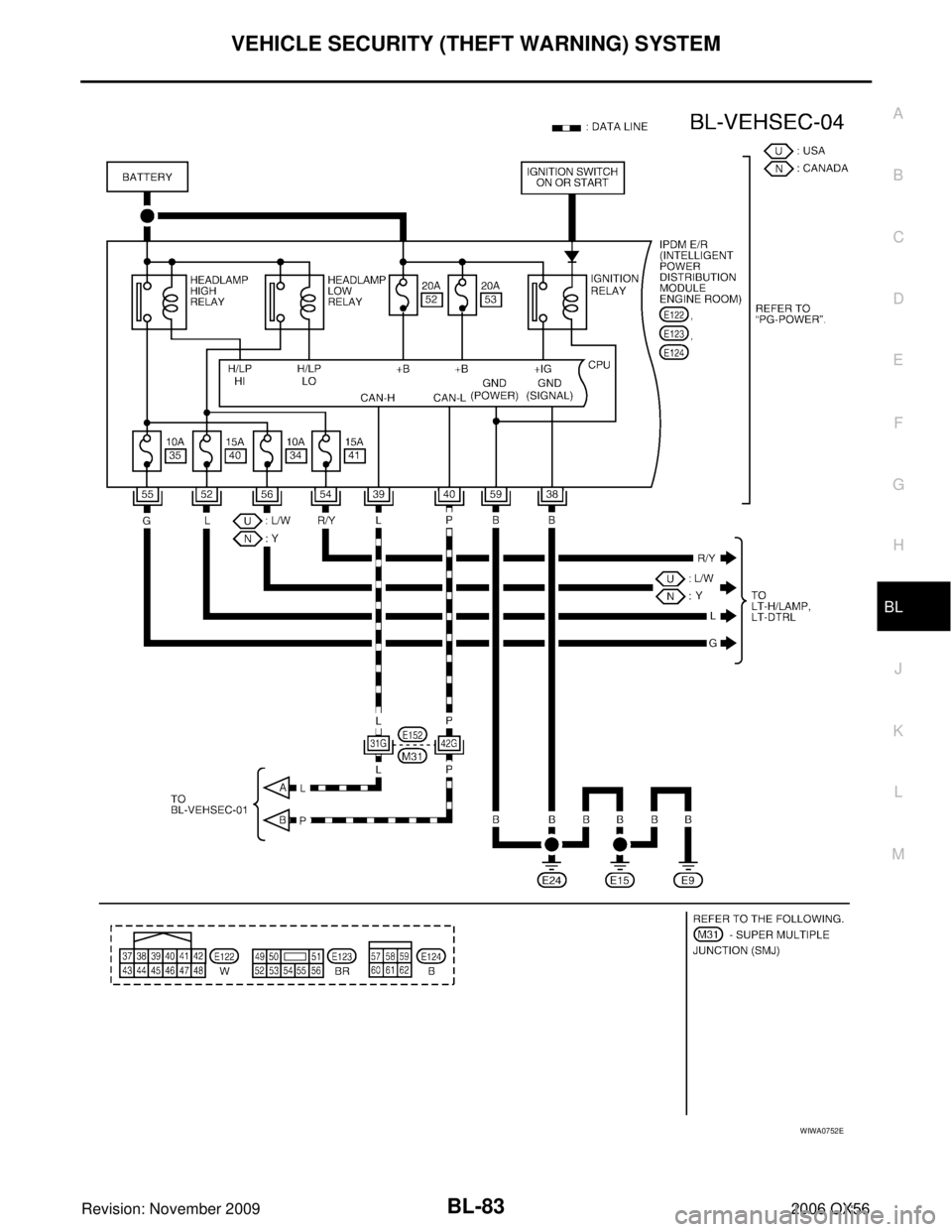

Wiring Diagram — VEHSEC —EIS0060I
WIWA1227E

VEHICLE SECURITY (THEFT WARNING) SYSTEMBL-81
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
LIWA0458E

BL-82
VEHICLE SECURITY (THEFT WARNING) SYSTEM
Revision: November 20092006 QX56
WIWA2210E

VEHICLE SECURITY (THEFT WARNING) SYSTEMBL-83
C
DE
F
G H
J
K L
M A
B
BL
Revision: November 2009 2006 QX56
WIWA0752E
