2006 INFINITI M35 diagram

DTC P0643 SENSOR POWER SUPPLY
EC-1219
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS005K0
TBWT1045E

EC-1222
[VK45DE]
DTC P0643 SENSOR POWER SUPPLY
Revision: 2006 January2006 M35/M45
3. CHECK SENSOR POWER SUPPLY CIRCUITS
Check harness for short to power and short to ground, between the following terminals.
OK or NG
OK >> GO TO 4.
NG >> Repair short to ground or short to power in harness or connectors.
4. CHECK COMPONENTS
Check the following.
EVAP control system pressure sensor (Refer to EC-1168, "Component Inspection" .)
Refrigerant pressure sensor (Refer to ATC-98, "COMPONENT INSPECTION" .)
Battery current sensor (Refer to EC-1268, "Component Inspection" .)
Power steering pressure sensor (Refer to EC-1210, "Component Inspection" .)
OK or NG
OK >> GO TO 7.
NG >> Replace malfunctioning component.
5. CHECK APP SENSOR
Refer to EC-1363, "
Component Inspection" .
OK or NG
OK >> GO TO 7.
NG >> GO TO 6.
6. REPLACE ACCELERATOR PEDAL ASSEMBLY
1. Replace accelerator pedal assembly.
2. Perform EC-806, "
Accelerator Pedal Released Position Learning" .
3. Perform EC-806, "
Throttle Valve Closed Position Learning" .
4. Perform EC-807, "
Idle Air Volume Learning" .
>>INSPECTION END
7. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END
ECM terminal Sensor terminal Reference Wiring Diagram
90 APP sensor terminal 4EC-1219
48 EVAP control system pressure sensor terminal 3EC-1165
49Refrigerant pressure sensor terminal 1EC-1435Battery current sensor terminal 1EC-1265
68 PSP sensor terminal 1EC-1207

DTC P0850 PNP SWITCH
EC-1225
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45

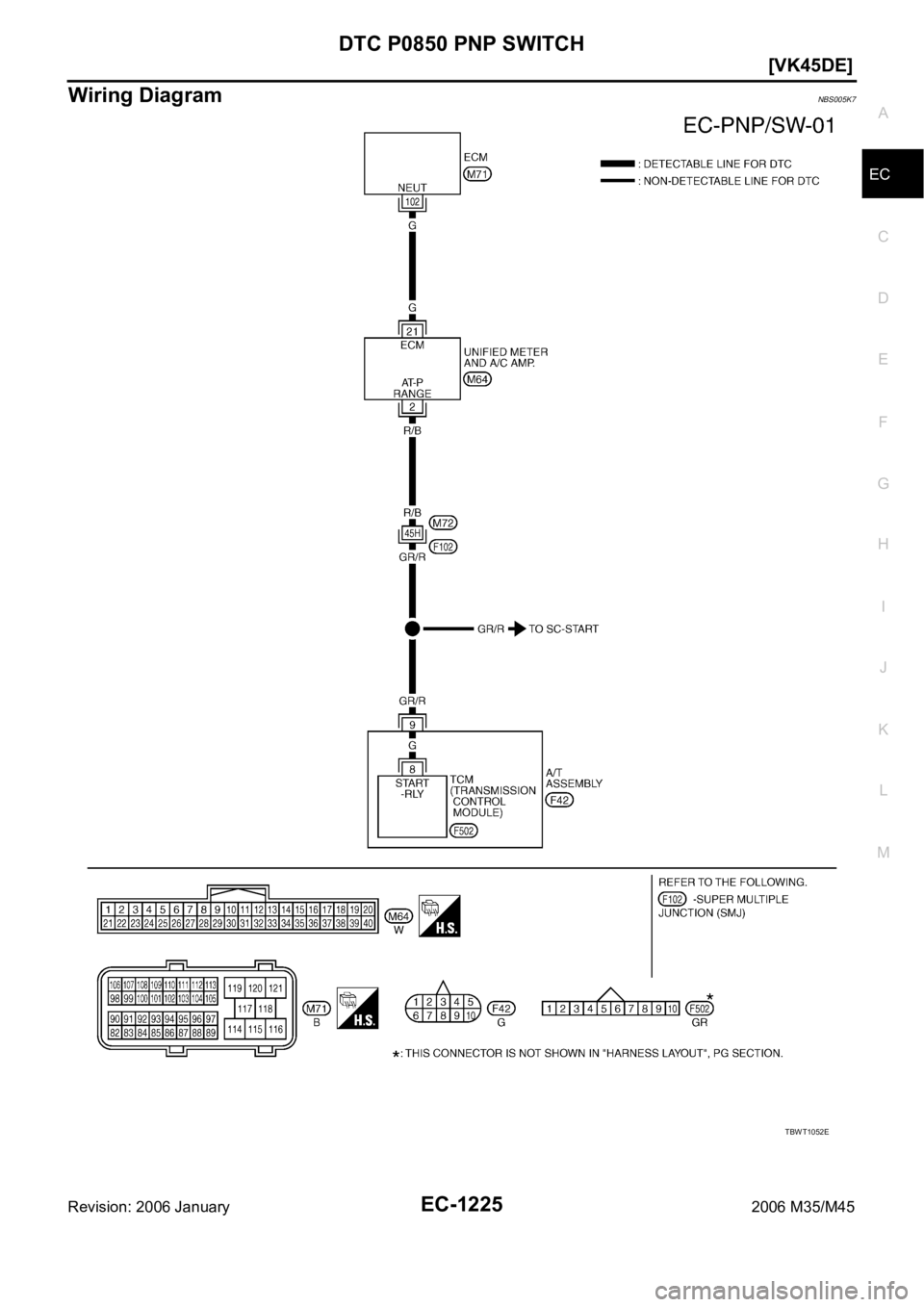

Wiring DiagramNBS005K7
TBWT1052E

EC-1226
[VK45DE]
DTC P0850 PNP SWITCH
Revision: 2006 January2006 M35/M45
Specification data are reference values and are measured between each terminal and ground.
CAUTION:
Do not use ECM ground terminals when measuring input/output voltage. Doing so may result in dam-
age to the ECM's transistor. Use a ground other than ECM terminals, such as the ground.
Diagnostic ProcedureNBS005K8
1. CHECK DTC WITH TCM
Refer to AT- 4 0 , "
OBD-II Diagnostic Trouble Code (DTC)" .
OK or NG
OK >> GO TO 2.
NG >> Repair or replace.
2. CHECK STARTING SYSTEM
Turn ignition switch OFF, then turn it to START.
Does starter motor operate?
Ye s o r N o
Yes >> GO TO 3.
No >> Refer to SC-10, "
STARTING SYSTEM" .
3. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-I
1. Turn ignition switch OFF.
2. Disconnect A/T assembly harness connector.
3. Disconnect “unified meter and A/C amp.” harness connector.
4. Check harness continuity between A/T assembly terminal 9 and “unified meter and A/C amp.” terminal 2.
Refer to Wiring Diagram.
5. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 5.
NG >> GO TO 4.
4. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors M72, F102
Harness for open or short between A/T assembly and “unified meter and A/C amp.”
>> Repair open circuit or short to ground or short to power in harness or connectors.
TER-
MINAL
NO.WIRE
COLORITEM CONDITION DATA (DC Voltage)
102 G PNP switch[Ignition switch: ON]
Selector lever: P or NApproximately 0V
[Ignition switch: ON]
Selector lever: Except aboveBATTERY VOLTAGE
(11 - 14V)
Continuity should exist.

DTC P0850 PNP SWITCH
EC-1227
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
5. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-II
1. Disconnect ECM harness connector.
2. Check harness continuity between ECM terminal 102 and “unified meter and A/C amp.” terminal 21.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 6.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
6. CHECK PNP SWITCH INPUT SIGNAL CIRCUIT FOR OPEN AND SHORT-III
1. Check harness continuity between A/T assembly terminal 9 and TCM terminal 8.
Refer to AT-108, "
DTC P0615 START SIGNAL CIRCUIT" .
2. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
OK or NG
OK >> GO TO 8.
NG >> Repair or replace.
8. REPLACE “UNIFIED METER AND A/C AMP.”
Refer to DI-28, "
UNIFIED METER AND A/C AMP" .
>>INSPECTION END Continuity should exist.
Continuity should exist.

DTC P1140, P1145 IVT CONTROL POSITION SENSOR
EC-1229
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
Wiring DiagramNBS005KD
BANK 1
TBWT1041E

DTC P1140, P1145 IVT CONTROL POSITION SENSOR
EC-1233
[VK45DE]
C
D
E
F
G
H
I
J
K
L
MA
EC
Revision: 2006 January2006 M35/M45
2. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR POWER SUPPLY CIRCUIT
1. Disconnect intake valve timing control position sensor harness connector.
2. Turn ignition switch ON.
3. Check voltage between intake valve timing control position sen-
sor terminal 3 and ground with CONSULT-II or tester.
OK or NG
OK >> GO TO 4.
NG >> GO TO 3.
3. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors E108, M15
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and IPDM E/R
Harness for open or short between intake valve timing control position sensor and ECM
>> Repair open circuit or short to ground or short to power in harness or connectors.
4. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR GROUND CIRCUIT FOR OPEN AND
SHORT
1. Turn ignition switch OFF.
2. Check harness continuity between intake valve timing control position sensor terminal 1 and ground.
Refer to Wiring Diagram.
3. Also check harness for short to power.
OK or NG
OK >> GO TO 6.
NG >> GO TO 5.
1. Intake valve timing control position
sensor (bank 2)2. Intake valve timing control position
sensor (bank 1)
Voltage: Battery voltage
PBIB2686E
SEF509Y
Continuity should exist.

EC-1234
[VK45DE]
DTC P1140, P1145 IVT CONTROL POSITION SENSOR
Revision: 2006 January2006 M35/M45
5. DETECT MALFUNCTIONING PART
Check the following.
Harness connectors F102, M72
Harness for open or short between intake valve timing control position sensor and ground
>> Repair open circuit or short to power in harness or connectors.
6. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR INPUT SIGNAL CIRCUIT FOR OPEN
AND SHORT
1. Disconnect ECM harness connector.
2. Check harness continuity between the following;
ECM terminal 72 and intake valve timing control position sensor (bank 1) terminal 2 or
ECM terminal 53 and intake valve timing control position sensor (bank 2) terminal 2.
Refer to Wiring Diagram.
3. Also check harness for short to ground and short to power.
OK or NG
OK >> GO TO 7.
NG >> Repair open circuit or short to ground or short to power in harness or connectors.
7. CHECK INTAKE VALVE TIMING CONTROL POSITION SENSOR
Refer to EC-1235, "
Component Inspection" .
OK or NG
OK >> GO TO 8.
NG >> Replace intake valve timing control position sensor.
8. CHECK CRANKSHAFT POSITION SENSOR (POS)
Refer to EC-1105, "
Component Inspection" .
OK or NG
OK >> GO TO 9.
NG >> Replace crankshaft position sensor (POS).
9. CHECK CAMSHAFT POSITION SENSOR (PHASE)
Refer to EC-1112, "
Component Inspection" .
OK or NG
OK >> GO TO 10.
NG >> Replace camshaft position sensor (PHASE).
10. CHECK CAMSHAFT SPROCKET
Check accumulation of debris to the signal pick-up portion of the camshaft sprocket. Refer to EM-203, "
TIM-
ING CHAIN" .
OK or NG
OK >> GO TO 11.
NG >> Remove debris and clean the signal pick-up cutout of camshaft sprocket.
11 . CHECK INTERMITTENT INCIDENT
Refer to EC-878, "
TROUBLE DIAGNOSIS FOR INTERMITTENT INCIDENT" .
>>INSPECTION END Continuity should exist.
